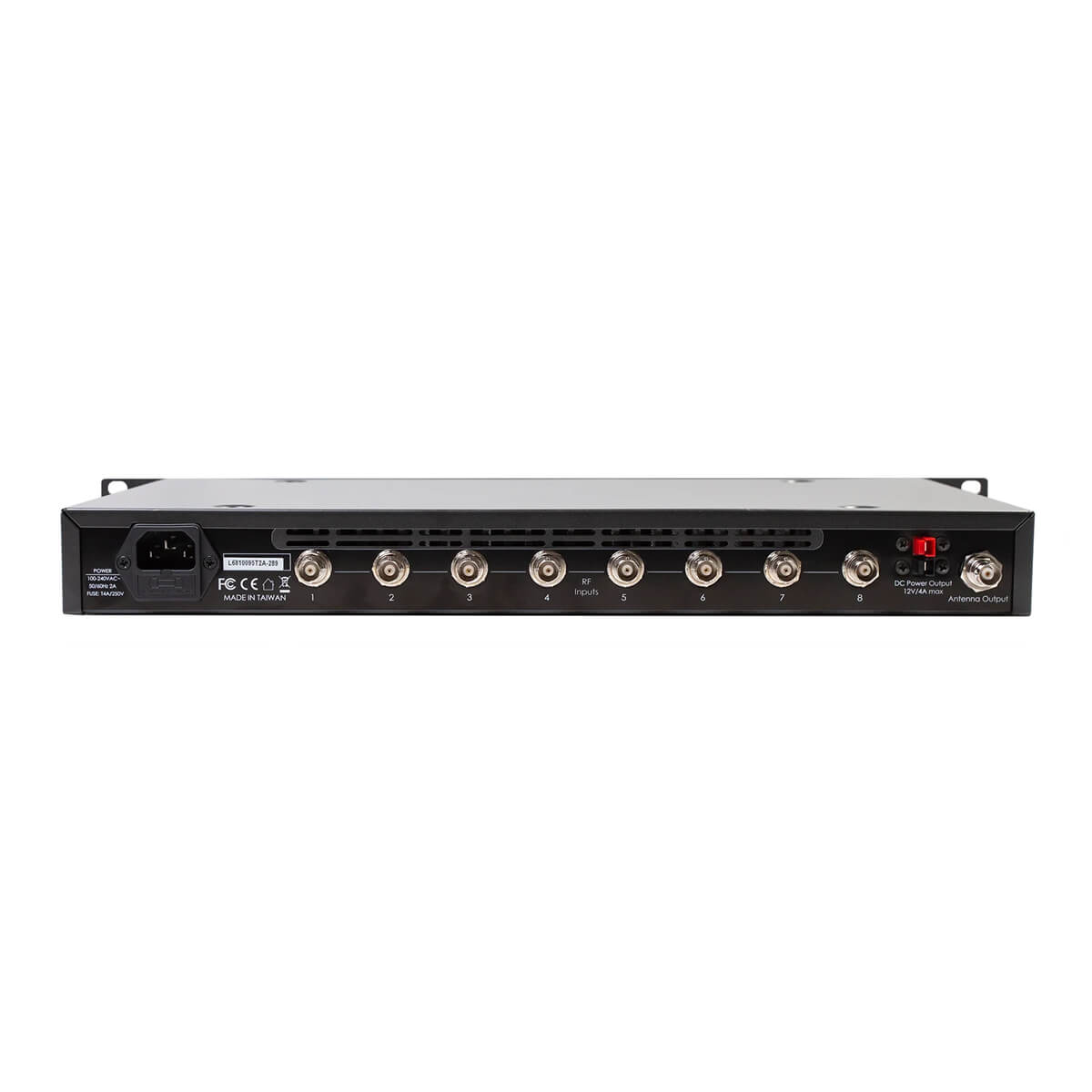

Rf Venue IEM Transmitter Combiner 8 CH
Rf Venue IEM Transmitter Combiner 8 CH
SKU:RFV-COMBINE8
Couldn't load pickup availability
Streamline your stage setup with the Rf Venue COMBINE8 IEM Transmitter Combiner. This powerful device combines signals from up to eight in-ear monitor transmitters into a single rear panel antenna connector, reducing clutter and minimizing interference. Compatible with any brand IEM transmitting at 50 mW or less, and any directional antenna, the COMBINE8 also powers up to eight IEM transmitters via an external power supply, eliminating the need for multiple wall warts. Perfect for multi-channel systems, it ensures clean, interference-free signals by actively reducing intermodulation artifacts. Optimize your performance with the reliability and efficiency of the Rf Venue COMBINE8.
Capabilities and Functions
Rf Venue COMBINE8 IEM Transmitter Combiner Features & Specifications
Rf Venue COMBINE8 IEM Transmitter Combiner Product Features
Included accessories:
- BNC Jumpers
- AC Cable
- DC Octopus Cable
Rf Venue COMBINE8 IEM Transmitter Combiner Technical Specifications
- Frequency range: 470-608 MHz
- Input connectors: BX BNC
- Full system gain: 0 dB (±2 dB)
- Maximum RF input power: +18 dBm (60 mW)
- LED indicator (input signal threshold): > +5 dBM (Threshold power)
- Power consumption: 84W
- I/ 0: BX RF inputs 1 antenna out.
- Input AC voltage: 100-240 VAC, 50/60 Hz, 2A
- DC Output: 12VDC 4A
- Dimensions: 480mm x 45mm x 260mm
- Weight: 3.7kg
Would you like more information on the Rf Venue COMBINE8 IEM Transmitter Combiner?
For more indepth information, please download the Rf Venue COMBINE8 IEM Transmitter Combiner product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
