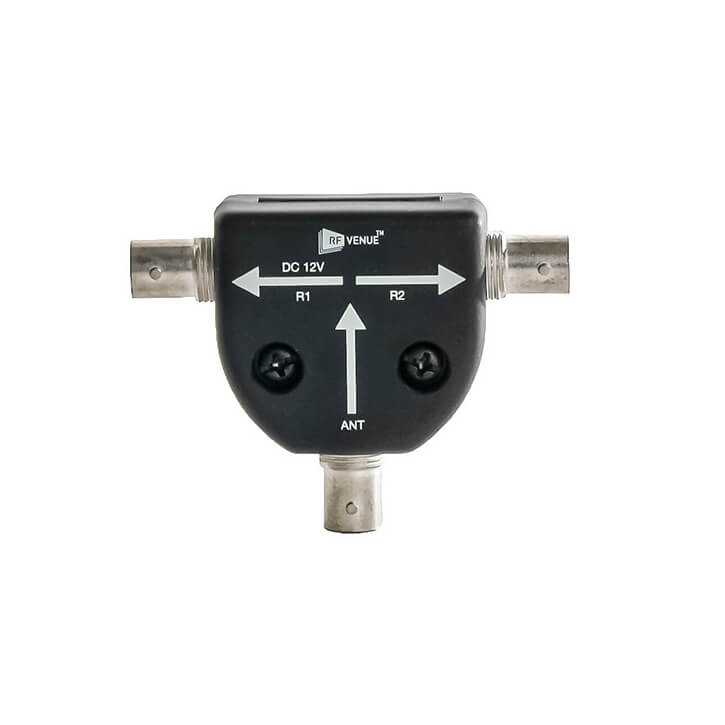

Rf Venue 2X1SPLIT Passive RF Splitter Combiner
Rf Venue 2X1SPLIT Passive RF Splitter Combiner
SKU:RFV-2X1SPLIT
Couldn't load pickup availability
The RF Venue 2x1Split Splitter Combiner is a versatile, passive 2x1 RF splitter-combiner designed to streamline your audio setup. With 50 Ohm impedance and BNC female connectors, this compact device allows you to create an 8-channel IEM combiner, build a distributed antenna system, or enhance your spectrum analyzer's capabilities. Get more insight and control over your RF environment with the 2x1Split.
Capabilities and Functions
Rf Venue 2x1SPLIT Passive RF Splitter -Combiner Features & Specifications
Rf Venue 2x1SPLIT Passive RF Splitter -Combiner Product Features
Rf Venue 2x1SPLIT Passive RF Splitter -Combiner Technical Specifications
- RF Carrier Frequency Range: 10-1,000 MHz
- VSWR: 1:2
- Impedance: 50Ω
- Isolation: 20 dB
- Insertion Loss: 2 dB
- Max power into ANT input: 30 dBm
- Max power to each of R1 & R2: 26 dBm
- Power requirements: 12V DC, 100ma
