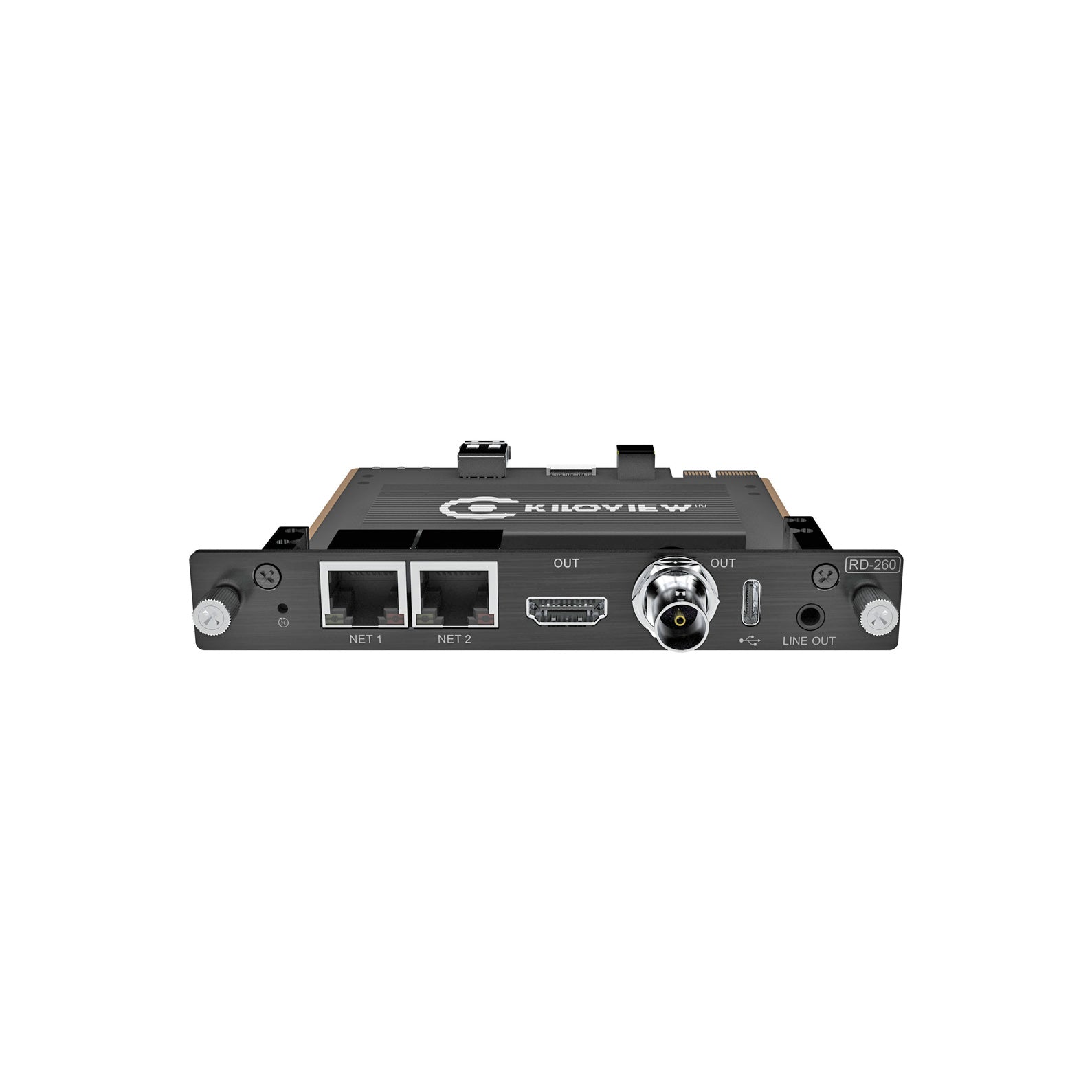

Kiloview RD-260 NDI|HX, SRT, RTSP, RTMP, HLS to SDI and HDMI Decoding Card
Kiloview RD-260 NDI|HX, SRT, RTSP, RTMP, HLS to SDI and HDMI Decoding Card
SKU:KIL-RD-260
Couldn't load pickup availability
The RD-260 supports decoding in H.265 format and simultaneously streams up to 4 channels of video in 1080p60 resolution. All 4 video outputs can be customised to a single display or PIP with adjustable figures.
Simultaneous decoding of 9 channels of network streams and split-screen output, network streaming on-screen/into the switcher, SRT video point-to-point transmission, program shooting, monitoring, video conferencing, audio and video engineering, conference engineering, etc.
Capabilities and Functions
Kiloview RD-260 Decoding Card Features & Specifications
Kiloview RD-260 Decoding Card Product Features
- As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.
- D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
Kiloview RD-260 Decoding Card Technical Specifications
- Video Output - 2*HDMI, 1*3G-SDI
- Audio output - HDMI、SDI and 1*3.5mm Line out
- Video formats - H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2, H.265(HEVC)Compatible with Main Profile, up to Level 5.1
- Streaming protocols - NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP
Would you like more information on the Kiloview RD-260 Decoding Card?
For more indepth information, please download the Kiloview RD-260 Decoding Card product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
