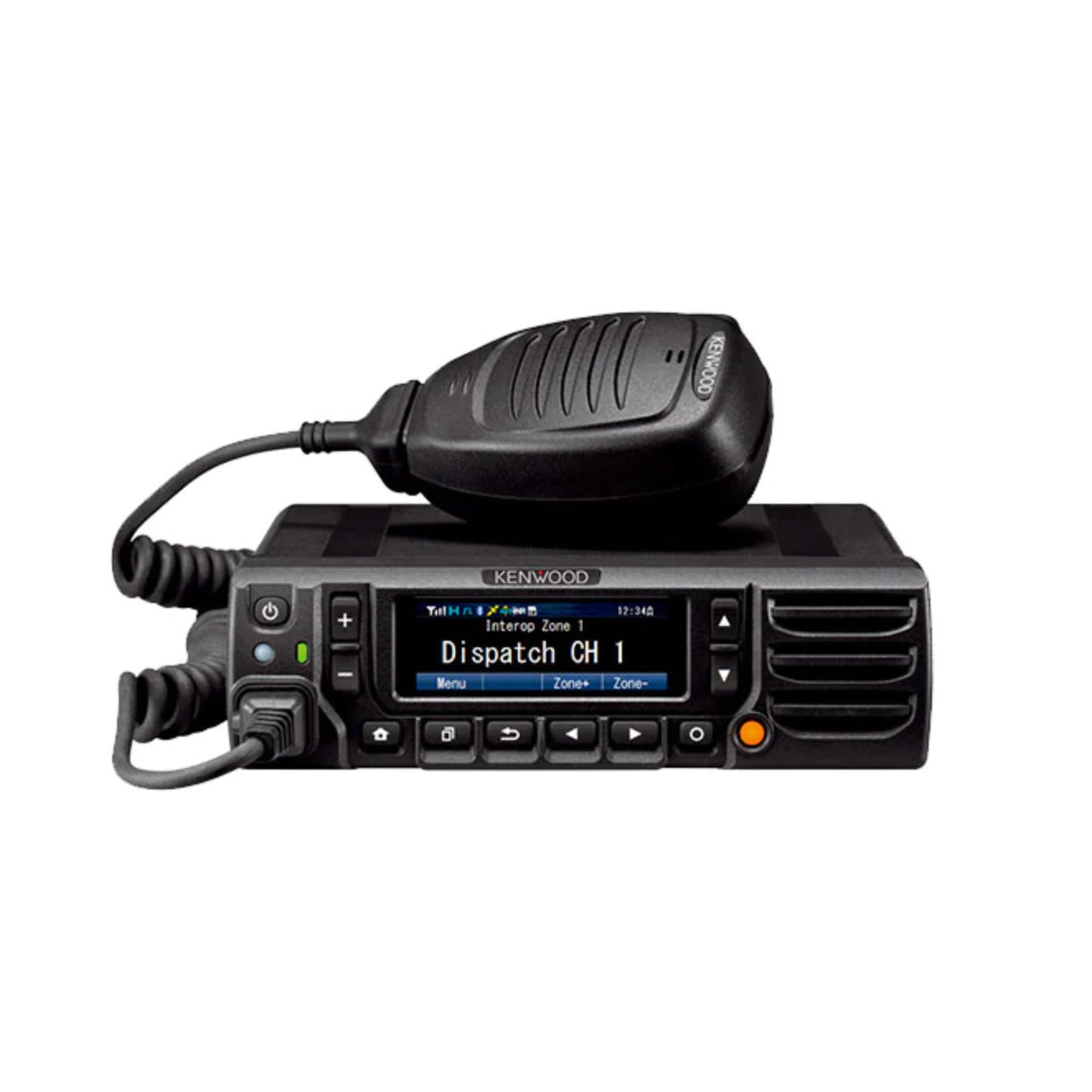

Kenwood NX-5700/NX-5800 DMR, NXDN + Analogue Mobile Radio
Kenwood NX-5700/NX-5800 DMR, NXDN + Analogue Mobile Radio
SKU:KEN-NX-5700-K
Couldn't load pickup availability
The NX-5000 Series offers unsurpassed interoperability for a wide variety of users as it supports three digital CAIs NXDN, DMR and P25 (Phase 1 & 2) plus FM analog in a single radio. Best of all, a desired CAI can be selected at will, giving you the freedom to migrate at your own pace whether you are intent on going fully digital, undecided about which digital system to pick, or just wanting to maintain both digital and analog for a while.
An NX-5000 radio can simultaneously support two digital protocols plus analog, offering the following combinations: FM/DMR/ NXDN, FM/NXDN/P25, and FM/DMR/P25.
Capabilities and Functions
Kenwood NX-5700/5800 Radio Features & Specifications
Kenwood NX-5700/5800 Radio Product Features
Package includes:
- NX-5700/5800 radio x 1
- KMC-30 Speaker Microphone x1
- Microphone clip x 1
- DC Power cable x 1
- Mounting bracket x 1
- Instruction Manual x 1
Kenwood NX-5700/5800 Radio Technical Specifications
'- Multi-protocol digital radio: Designed to operate under an NXDN or DMR digital, and FM analog protocols
- NXDN Conventional and Type-C & Gen2 Trunking
- DMR Tier II & Site Roaming
- Mixed Digital & FM Analog Operation allows gradual migration at your own pace
- 4-line Basic Frame (2-line Main/Sub-LCD, icon, & key guide) / 14 Characters
- 4-Line Text Message Frame (2 Lines ofText, icon & key guide)
- Note: The number of lines may vary depending on the display language (character set).
- 7-color LED indicator
- External and Internal Speaker Switching
- Built-in GPS Receiver module for effective fleet management (G model only Optional KRA-40G Required)
- Built-in Bluetooth for hands-free operation(G model only)
- Applicable Bluetooth profiles: HSP(Headset Profile provided) and SPP (Serial Port Profile available as an option; availability depends on the model)
- Renowned KENWOOD Audio Quality can be achieved with Active Noise Reduction (ANR) that utilizes built-in DSP
- Software DES and AES Encryptions for NXDN Conventional/Trunking and DMR Conventional protocols
- MIL-STD-810 C/D/E/F/G
Would you like more information on the Kenwood NX-5700/5800 Radio?
For more indepth information, please download the Kenwood NX-5700/5800 Radio product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
