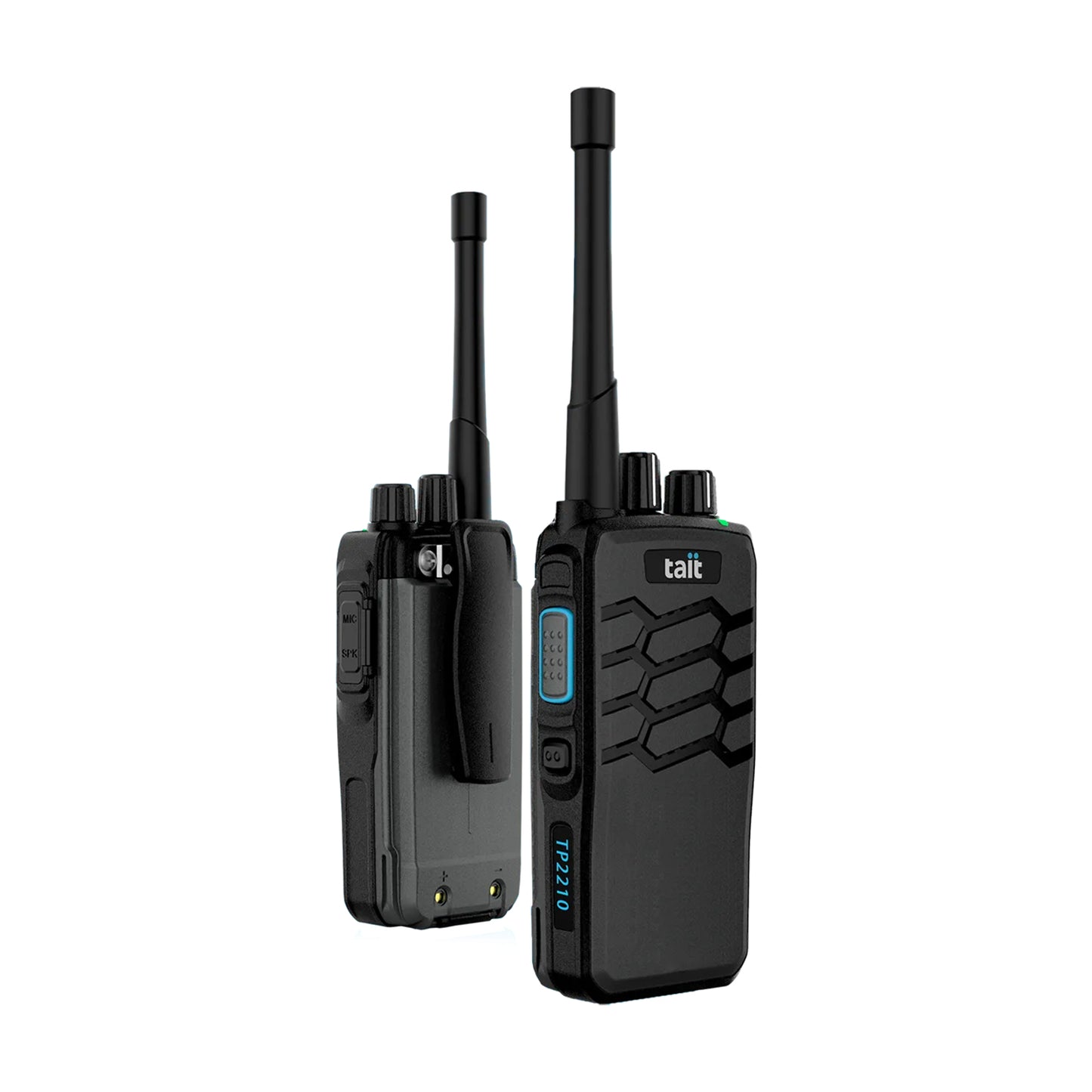

Tait TP2 DMR Portable Radio with Man Down
Tait TP2 DMR Portable Radio with Man Down
SKU:TAI-TP2210-MD
Couldn't load pickup availability
Boost your team's productivity with the Tait TP2210 DMR Portable Radio—an affordable, easy-to-use solution designed to keep your business moving forward. With a choice of frequencies (136-174MHz, 400-470MHz, 450-520MHz), this lightweight two-way radio offers clear digital audio, ensuring you’re heard even in noisy environments.
It seamlessly operates in both analog and digital modes, making it versatile for mixed radio groups. With up to 15 hours of battery life, emergency features like Man Down, and voice annunciation, the TP2210 is perfect for growing businesses that need reliable communication, day in and day out.
Your TP2 Radio package includes:
- TP2210 Radio
- Antenna
- 2000mAh Battery
- Belt Clip
- Single Charger with Power Pack
Capabilities and Functions
Tait TP2 DMR Portable Radio Features & Specifications
Tait TP2 DMR Portable Radio Product Features
'- Seamless Analog and Digital Operation: Easily communicate within mixed groups of analog and digital radios, with automatic mode switching that requires no user input.
- Crystal-Clear Digital Audio: Experience clear audio even in loud environments like construction sites or event venues, ensuring messages are always heard.
- Extended Battery Life: Stay connected all day with up to 15 hours of battery life, keeping your communications running smoothly throughout long shifts.
- Enhanced Safety Features: Monitor employee safety with built-in Emergency Call and Man Down functions, providing peace of mind for your team.
- Voice Channel Annunciation: Always connect with the right team members by receiving clear voice prompts when changing channels.
Tait TP2 DMR Portable Radio Technical Specifications
'- Frequency Range: 136-174MHz, 350-400MHz, 400-470MHz, 450-520MHz
- Channel Capacity: 256
- Zone Capacity: 16
- Channel Spacing: 25KHz / 12.5KHz (Analog), 12.5KHz (Digital)
- Operating Temperature: -30°C to +60°C (-22°F to +140°F)
- Operating Voltage: 7.4V DC ± 20%
- Battery: 2000mAH Li-ion
Dimensions (with battery, without antenna): 116mm x 54mm x 31mm
- Weight (with battery and antenna): 280g
- IP Rating, Water Ingress: IP54
**Transmitter**
- RF Power Output: 5W / 1W (VHF), 4W / 1W (UHF)
- Frequency Stability: ±1.5ppm
- Frequency Modulation: 4FSK (Digital)
- Emission Designator: 16K0F3E / 11K0F3E (Analog)
- Antenna Impedance: 50Ω
- Modulation Limiting: ±2.5KHz @ 12.5KHz, ±5KHz @ 25KHz
- Radiated Spurious Emission: -36dBm < 1GHz, -30dBm > 1GHz
- Adjacent Channel Power: 60dB @ 12.5KHz, 70dB @ 25KHz
- FM Noise: 40dB @ 12.5KHz, 45dB @ 25KHz
- Modulation Distortion: ≤ 3%
- Audio Response: + 1 ~ -3dB
- Digital Protocol: ETSI TS 102 361 -1, -2, -3
- Digital Vocoder Type: ABME+2TM
**Receiver**
- Frequency Stability: ±1.5 ppm
- Sensitivity: 0.2µV @ 12dB SINAD, 119dBm @ 5% BER
- Adjacent Channel Selectivity: -60dB @ 12.5KHz, -70dB @ 25KHz
- Intermodulation: -65dB
- Spurious Response Rejection: 70dB
- Audio Output: 1W @ 16Ω
- Rated Audio Distortion: ≤ 3% (typically)
- Audio Response: +1 ~ -3dB
- Conducted Spurious Emission: -57dBm @ <1GHz, -47dBm @ >1GHz
- Blocking: 84dB
Would you like more information on the Tait TP2 DMR Portable Radio?
For more indepth information, please download the Tait TP2 DMR Portable Radio product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
