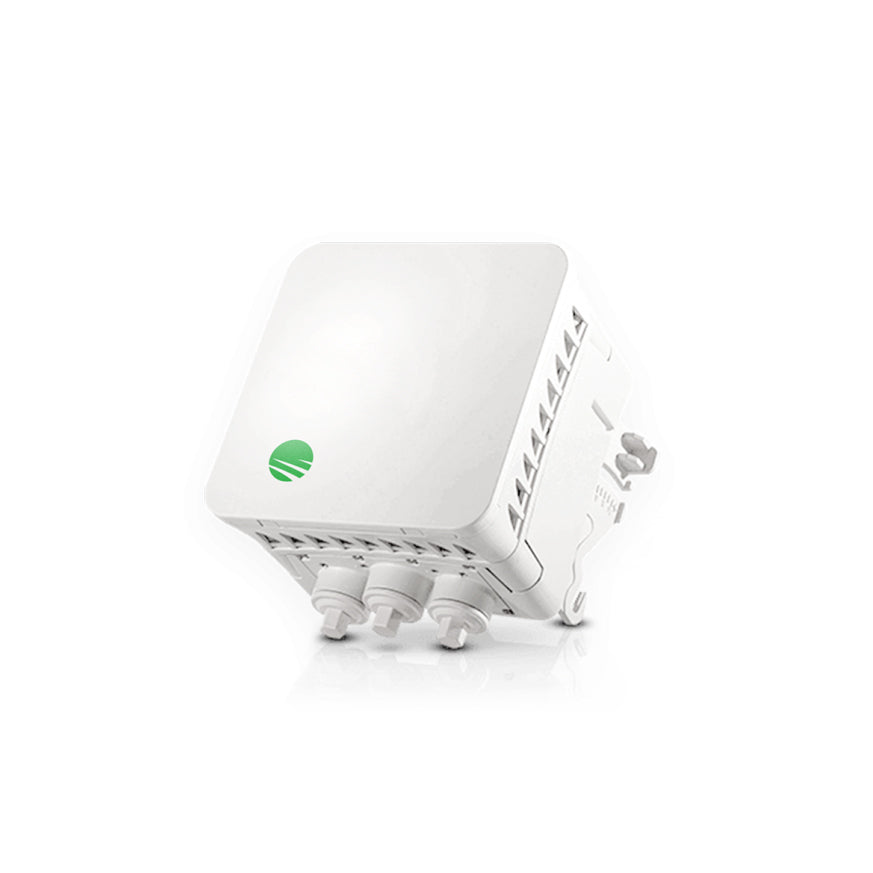

Siklu EH-600 - Ex-Rental - EtherHaul 600 Lightweight Radio 1Gbps
The Siklu EtherHaul 600 Series Radio is a versatile and robust solution designed for a variety of applications including smart city networks, business broadband, Wi-Fi hotspot backhaul, gigabit-to-the-home, and small cell backhaul. This series delivers up to 1Gbps throughput, housed in a compact and durable form factor suitable for street-level deployment on poles and light fixtures. The EH-614 model is notable for its ability to operate in both the lower and upper portions of the 60GHz V-Band, covering 11GHz of spectrum and achieving greater distances in the upper band due to reduced oxygen absorption.
Engineered for interference-free operation, the EtherHaul 600 Series utilizes the unlicensed 60GHz V-band spectrum, which supports dense deployments with ample allocated spectrum and spatial separation. It features carrier-class construction with an IP-67 rating, ensuring performance in extreme temperatures ranging from -45°C to +55°C. The integrated MEF-compliant Carrier Ethernet switch streamlines operations with service-aware QoS, bandwidth management, and optional timing synchronization. Installation is straightforward, requiring minimal training and time, and advanced configurations can be managed via an intuitive web GUI. With low deployment costs and high reliability, the EtherHaul 600 Series offers exceptional value and a quick return on investment.
This product is a used, ex-rental item. It is in good condition and fully functioning. Please note there is no warranty or returns on ex-rental items.
CONTACT US for a demonstration or more information.
CLICK HERE to download the Data Sheet.
Main Features
- One of the smallest Gbps radios on the market delivering range and capacity, making site acquisition and installation on street furniture straightforward.
- Carrier grade predictable performance ideal for mission critical network connectivity.
- Up to 1Gbps throughput over ranges as far as 1.6 miles (2.6km).
- Field proven advanced all-silicon integration yields a high 90-yr MTBF.
- Installation and support of Siklu by Ceragon radios can be performed by anyone, with minimal training.
- Optional integrated timing over packet 1588v2 and SyncE with SSM schemes facilitate reliable, accurate mobile backhaul synchronization.
- Prioritized payloads using hitless adaptive modulation synced with 8 levels of QoS.
Specifications
- Topologies: Ring, daisy-chain, mesh.
- Frequency / Duplexing: 57-66GHz, TDD / 57-68GHz, TDD
- Channel Bandwidth, Modulation & Adaptive Coding:
- 125/250/500MHz wide, 11 non-overlapping channels
- 125/250/500MHz wide, 14 non-overlapping channels
- QPSK ÷ QAM64 .5 levels of hitless adaptive bandwidth, coding and modulation - Link budget boost up to 25dB
- Line Rate / Throughput: 1Gbps Aggregated throughput (with capacity license)
- System Gain 65/90 (channel bandwidth = 500MHz, maximum capacity / minimum modulation)
- Antenna Options: Integrated 0.5 ft. (16 cm) - 36dBi antenna gain.
- Interfaces: 3xGbE copper ports
- Ethernet features:
- IEEE 802.1d transparent bridging VLAN & VLAN stacking, 4K VLANs. Jumbo Frames: 16KB.
- MEF 9, 14 and 21 compliant Ethernet services.
- Ring Protection Switching: ITU-T G.8031 ERPS (*FTL). Link state propagation.
- Configurable QOS aware forwarding.
- 8 level H-QOS with flexible mapping options: L2 (802.1p, VLAN id), L2.5 (MPLS EXP) and L3 (DSCP).
- Security: AES 128-bit and 256-bit (*FTL)
- Management & provisioning:
- Zero-touch turn up; In-band, out-of-band management.
- Web GUI (one-click configuration of local and remote units) & Embedded CLI. SNMPv2/3, TACACS+, RADIUS.
- Link OAM & Connectivity Fault Management (CFM): IEEE802.3ah & IEEE802.1ag; performance monitoring: ITU-T Y.1731 (*FTL).
- IPERF TCP/UDP capacity tester.
- PoE-Out: Port 2 and Port 3 (IEEE 802.3at): 26W+26W / 13W+40W / 50W+0W (*FTL).
- Power supply: PoE+ (IEEE 802.3at), 26W without PoE-Out; up to 78W with PoE-Out
- Conformance:
- Radio: FCC Part 15.255, ETSI EN 302 217-3 & UK IR 2078 & IR 2000; EMC:
- USA FCC 47CFR.part 15 & ETSI EN 301 489; Safety: UL/EN 60950
- Environmental Operating Temperature: -45° to +55°C (-49° to +131°F) Ingress. Protection Rating: IP67
- Dimensions: ODU + 0.5ft antenna: 5.9” x 6.1” x 3.5” (16.5 x 16.5 x 10cm)
- Weight: ODU + 0.5ft antenna: 3.9 lbs. (1.8 kg)
