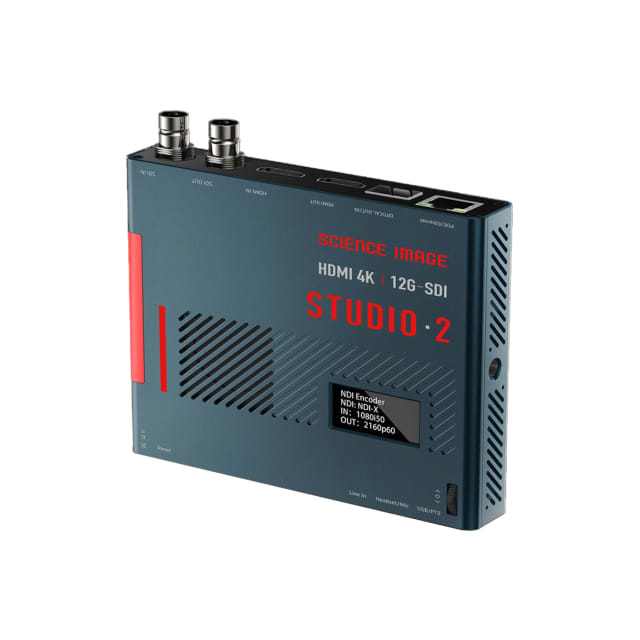

Science Image STUDIO 2 NDI Bi-Directional Encoder/ Decoder
Science Image STUDIO 2 NDI Bi-Directional Encoder/ Decoder
SKU:SCI-NDI-STUDIO-2
Couldn't load pickup availability
Studio 2 emerges as a potent solution, seamlessly integrating frequency conversion and optical transceiver capabilities into a compact unit. Serving as the enhanced iteration of the NDI Studio 4K SH, it features an intelligent scroll wheel. Its versatility extends across diverse business settings including broadcast programs, variety show recordings, large-scale events, and video conferences, promising users exceptional AV performance.
Thanks to its intelligent scroll wheel, operating it is effortlessly convenient; simply use your finger to navigate menus and adjust settings by scrolling up and down, eliminating the need to access the web UI.
Capabilities and Functions
Science Image NDI-STUDIO-2 Encoder/ Decoder Features & Specifications
Science Image NDI-STUDIO-2 Encoder/ Decoder Product Features
'- Supports up to 12G SDI and HDMI 4K60 video signal input.
- Bi-directional encoding and decoding.
- Intelligent scroll wheel to select and manage settings.

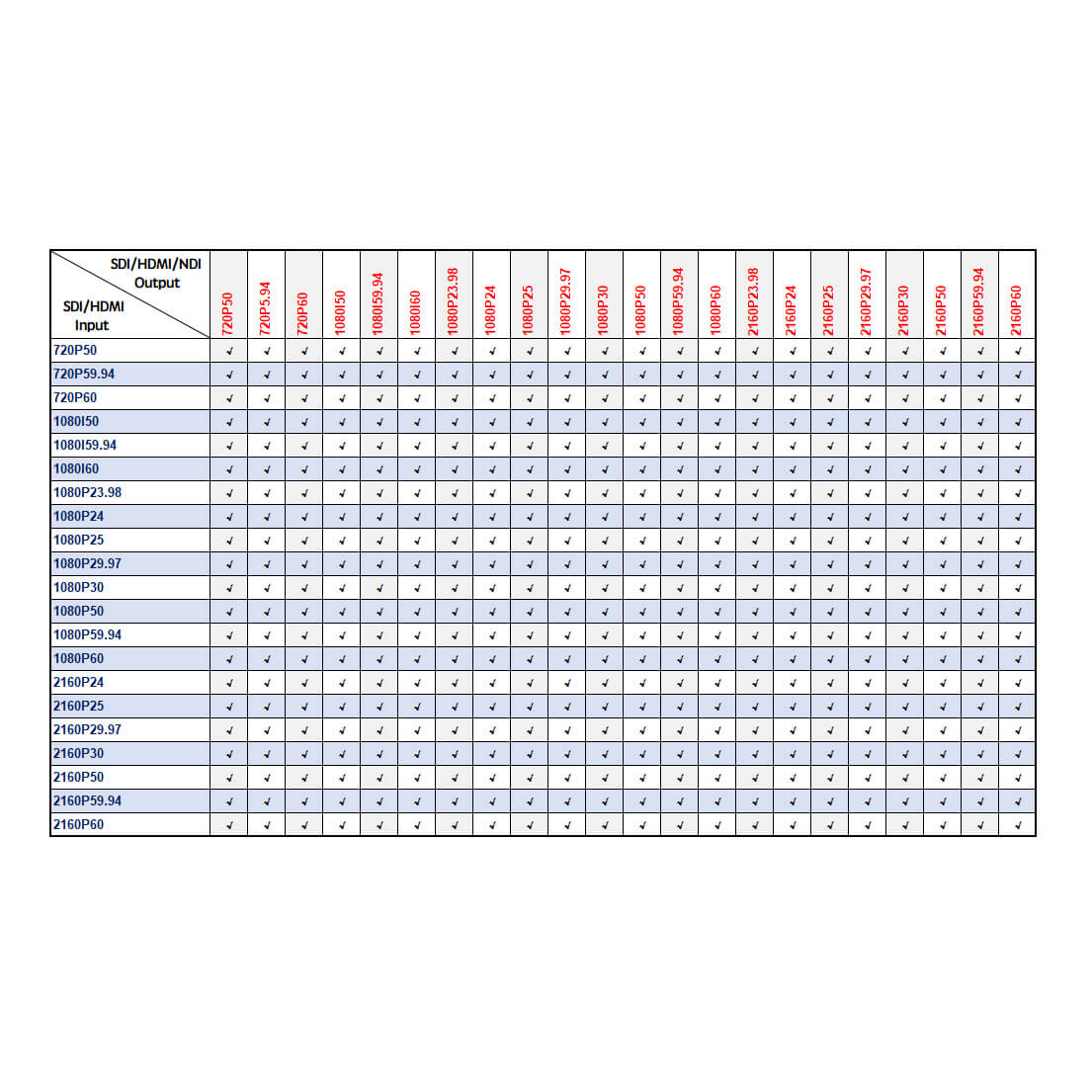

- Supports 27 formats of up and down conversion from HD to UHD.
- UHD optical transceiver.
- 1.3″ OLED displays all working status.
- 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats.
Science Image NDI-STUDIO-2 Encoder/ Decoder Technical Specifications
**SDI video format**
- 1.5G/3G-SDI HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
- 6G/12G-SDI/Ultra HD/4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI specification: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, and SMPTE 2082-10
**HDMI video format**
- HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
- 4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI video sampling: 4:2:2 and 4:4:4
- SDI audio sampling rate: TV standard 48kHz
- SDI color accuracy: 4:2:2 and 4:4:4
- SDI color space:
REC 709
BT2020
- HDMI color space:
REC 709
BT2020
- HDMI color accuracy: YUV 4:2:2 and RGB 4:4:4
** Interface**
- SDI Video Input: 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
- HDMI Video Input: 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
- Optical Fiber Input: 1 x SMPTE optical fiber SFP socket, 12G-SDI optical Transceiver modules
- SDI Video Output: 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
- HDMI Video Output: 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
- RJ45 Gigabit Ethernet Port: 1 x RJ45 Gigabit Ethernet interface, used for controlling equipment parameters and input/output of NDI signals
- LINE IN Audio Input Port: 1 x LINE IN 3.5mm audio input port for external analog audio embedding
- MIC Intercom Input/Output Port: 1 x Mic 3.5mm audio input and output port (De-Embedded), used for NDI Intercom (with DynaControl software required)
- USB 2.0 Type A Port: 1 x USB 2.0 Type A interface, used for controlling third-party PTZ cameras
** Display**
- 1.3 inch OLED screen: real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate.
- Large-size semi-transparent matt TALLY light guide block, displaying three TALLY states transmitted through NDI in real time: Green/Preview, Red/Program.
**Network**
- Gigabit Ethernet switch and Gigabit Ethernet card..
- Software, Operating System, Support Platform: Built-in Linux, application control software ScienceImage DynaControl. Supports Windows 8.1, Windows 10 and Windows 11 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher. Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers.
**Power supply**
- Two power supply modes: 9-18V DC and POE+
- Power consumption: 25W
**Accessories**
- 12G-SDI /HDMI 4K SFP Optical Module
**Environmental Requirements**
- Operating temperature: 5°C to 40°C
- Storage temperature: -20° to 60° C (-4° to 140° F)
- Relative humidity: 0% to 90% non-condensing
