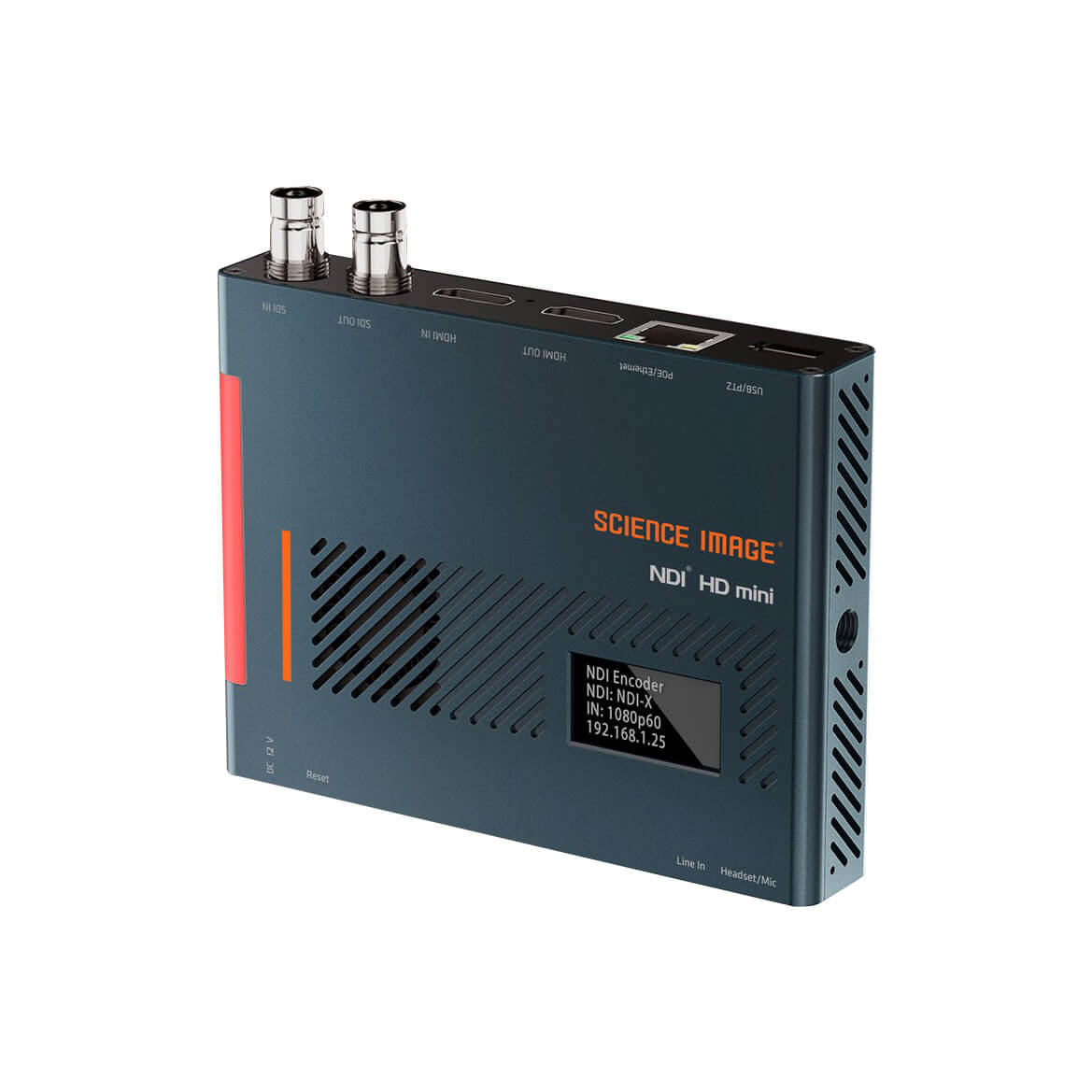

Science Image NDI HD MINI Bi-Directional Encoder/ Decoder
Science Image NDI HD MINI Bi-Directional Encoder/ Decoder
SKU:SCI-NDI-HD-MINI
Couldn't load pickup availability
Introducing the Science Image NDI-HD-Mini, a breakthrough in HD full NDI bidirectional codec technology. Engineered to deliver pristine image quality and unparalleled versatility, this compact powerhouse seamlessly integrates into various professional settings, from programming to medical surgery teaching.
With support for up to 3G-SDI and HDMI 4K30, the NDI-HD-Mini ensures seamless compatibility with SMPTE input standards. Its advanced encoding technology accurately restores the color and clarity of the original image, delivering broadcast-grade metrics with low latency for a superior AV experience.
Featuring one-touch Full NDI encoding and decoding, this device simplifies operation while offering flexible UDP features, integrated TALLY, and audio embed/unembed capabilities. Whether deployed as a Full NDI Encoder or Decoder, or utilized as an SDI/HDMI Bi-Directional converter, the NDI-HD-Mini adapts effortlessly to diverse scenarios, reducing system costs and enhancing operational efficiency.
Designed for rapid deployment and ease of use, the Science Image NDI-HD-Mini empowers your team to build an IP broadcast-grade studio with unmatched speed, flexibility, and convenience. Elevate your video production capabilities with this versatile solution, revolutionizing the way you capture, encode, and decode high-quality content.
Capabilities and Functions
Science Image NDI-HD-MINI Encoder/ Decoder Features & Specifications
Science Image NDI-HD-MINI Encoder/ Decoder Product Features
'- 3G-SDI/ HDMI Converter
- HDMI IN 4K30 Encoding
- Audio Embedded/De-Embedded Intercom
- Integrated Tally
- Encoding/Decoding in one key switch
- NDI 5.5
- Broadcast quality
Science Image NDI-HD-MINI Encoder/ Decoder Technical Specifications
'- Video input: 3G-SDI IN 1, HDMI IN 1
- Video output: 3G-SDI OUT 1, HDMI OUT 1
- SDI video format: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- HDMI video format: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- SDI specifications: SMPTE 259M, SMPTE 292M, SMPET 274, SMPTE 296M, SMPTE 424M, ITU-R BT.656 and ITU-R BT.601, ITU-R BT.709
- SDI video data rate: Switchable between standard definition, high definition A and B 3G‑SDI
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI audio sampling TV standard sampling rate: 48kHz, 24bit
- SDI color accuracy: 4:2:2 and 4:4:4
- SDI color space: REC 601, REC 709
**SDI Auto Switch: Automatically detects SD, HD and 3G‑SDI**
- HDMI color accuracy: YUV 4:2:2 and RGB 4:4:4
- HDMI color space: REC 601, REC 709
**Display**
- 1.3 inch OLED screen: 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate
- Large size TALLY light guide block: Large-size semi-transparent matt TALLY light guide block, which can display two TALLY states transmitted through NDI in real time: Green/Preview, Red/Program
**Network**
- Network and requirements: Gigabit Ethernet switch and Gigabit Ethernet card
- Software: Built-in Linux, application control software ScienceImage Laudo
- Operating system: Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher
- Support platform: Supports IE/Edge/Firefox/Chrome/Safari/Opera and other browsers
**Power Supply**
- 5-18V DC power input
- USB power supply
- POE
- Power consumption: 10W
**Environmental requirements**
- Operating temperature: 5°C to 40°C
- Storage temperature: -20° to 60°C (-4° to 140°F)
- Relative humidity: 0% to 90% non-condensing
Would you like more information on the Science Image NDI-HD-MINI Encoder/ Decoder?
For more indepth information, please download the Science Image NDI-HD-MINI Encoder/ Decoder product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
