Science Image FLOW 4K SDI to HDMI Converter
Science Image FLOW 4K SDI to HDMI Converter
SKU:SCI-FLOW-4K
Couldn't load pickup availability

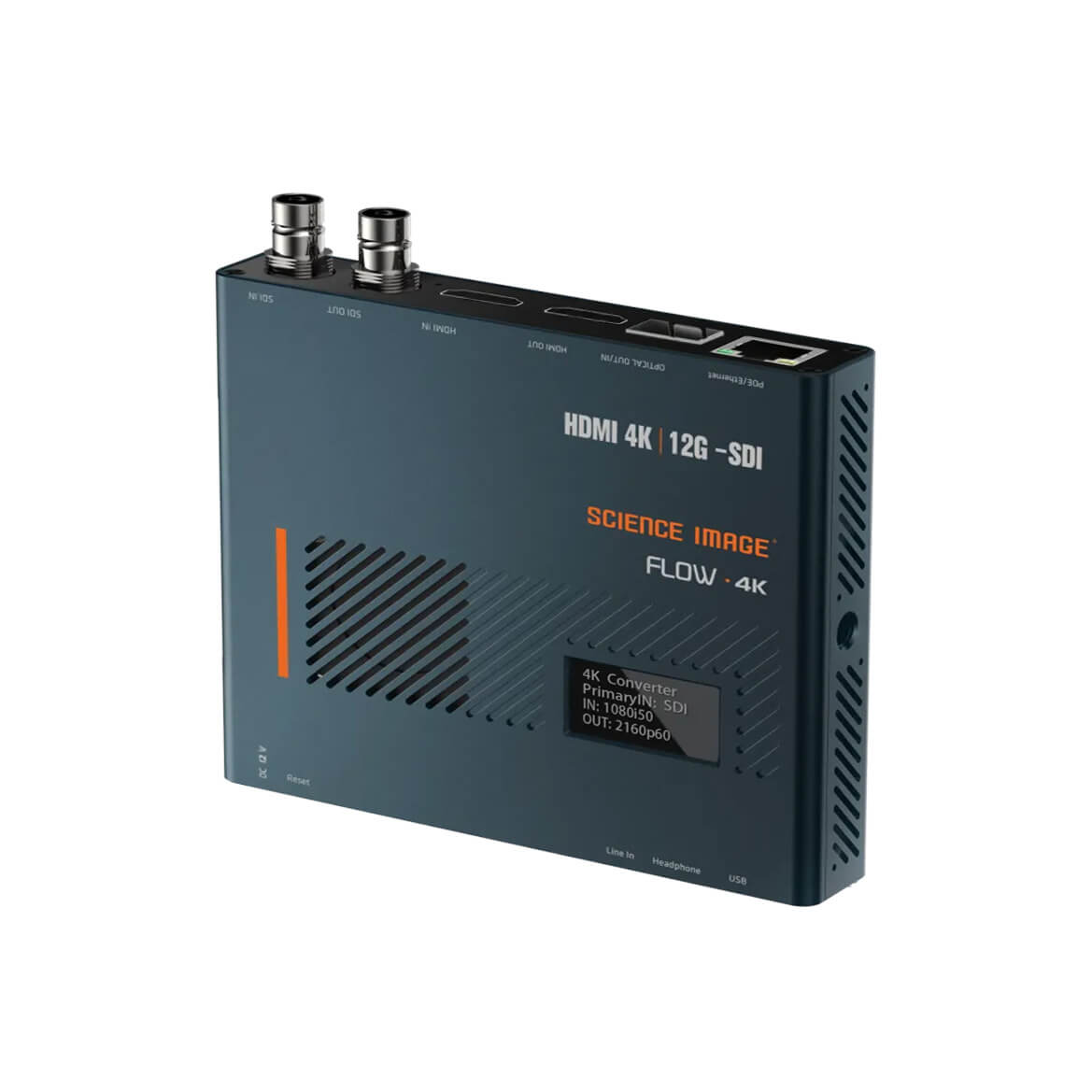

FLOW 4K is a compact, all-in-one frequency conversion and optical endpoint device housed in a sleek enclosure. Equipped with built-in 12G-SDI and HDMI 4K60 optical modules, it serves as a versatile bidirectional optical solution for on-site use. This device acts as both an up and down converter, enabling seamless integration into optical fibre lines for long-distance signal transmission. With its multifunctional design, FLOW 4K optimizes system costs while offering swift, flexible, and convenient response capabilities.

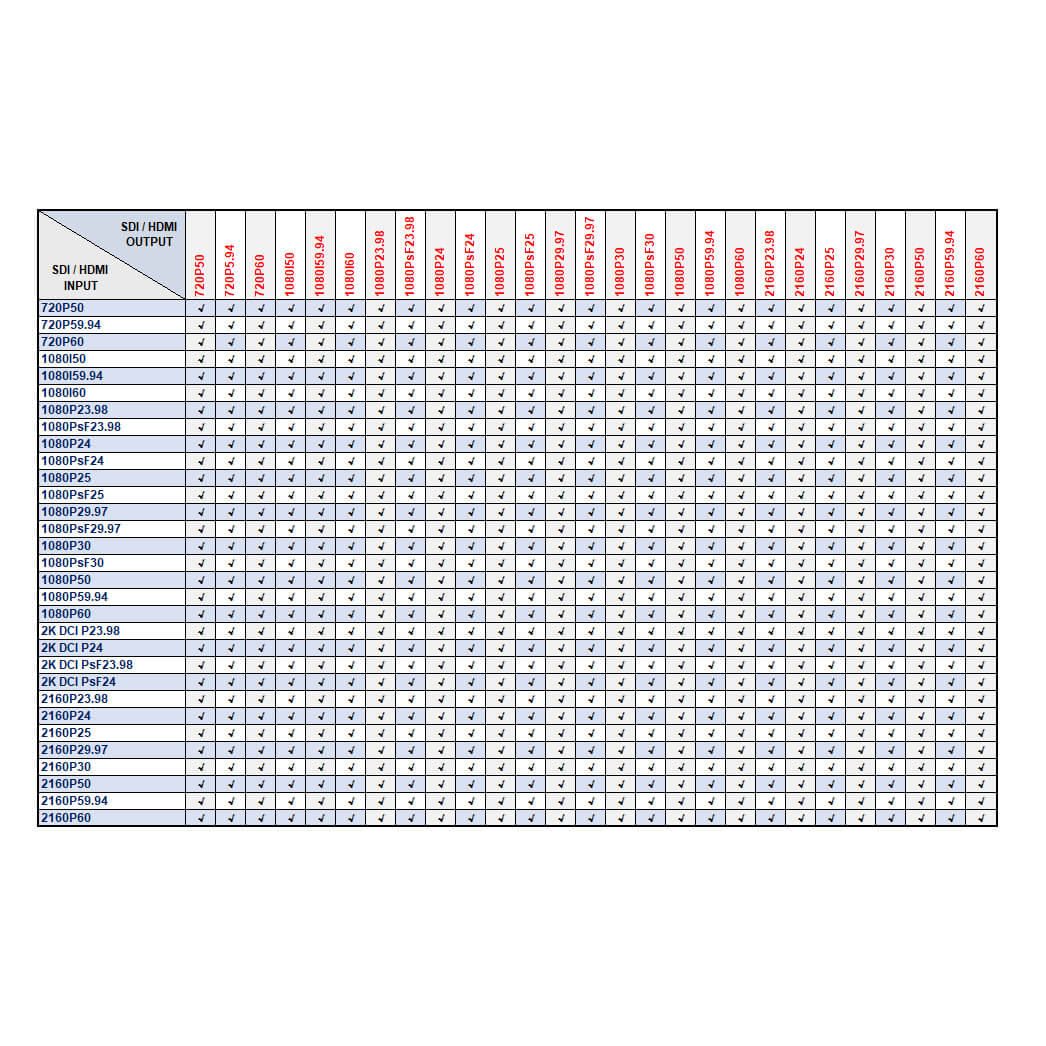

The FLOW 4K is a versatile up/down/cross converter with 12G-SDI/HDMI2.0 interfaces. It supports a minimum of 35 SMPTE standard formats, and it can also accommodate user-defined custom formats. Featuring integrated 12G-SDI and HDMI 4K60 optical transceiver capabilities, it functions as a bidirectional optical transceiver on-site, facilitating reception and transmission. Users can effortlessly switch between sending and receiving functions with a single key, adapting to specific requirements. With an impressive transmission distance of up to 20km, ensuring reliable long-distance communication.
Capabilities and Functions
Science Image FLOW-4K Converter Features & Specifications
Science Image FLOW-4K Converter Product Features
'- 12G-SDI/HDMI2.0 interface up/down/cross converter.
- 35 SMPTE standard formats.
- Built-in 12G-SDI and HDMI 4K60 optical transceiver function.
- 1.3" OLED display.
- Broadcast quality.
Science Image FLOW-4K Converter Technical Specifications
**SDI Video Format**
- 1.5G/3G-SDI HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
- 6G/12G-SDI/Ultra HD /4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI specification: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
**HDMI Video Format**
- HD video format: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
- 4K video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- SDI video sampling: 4:2:2 and 4:4:4
- SDI audio sampling rate: TV standard 48kHz
- SDI colour accuracy: 4:2:2 and 4:4:4
- SDI colour space: REC 709 BT2020
- HDMI colour space: REC 709 BT2020
- HDMI colour accuracy: YUV 4:2:2 and RGB 4:4:4

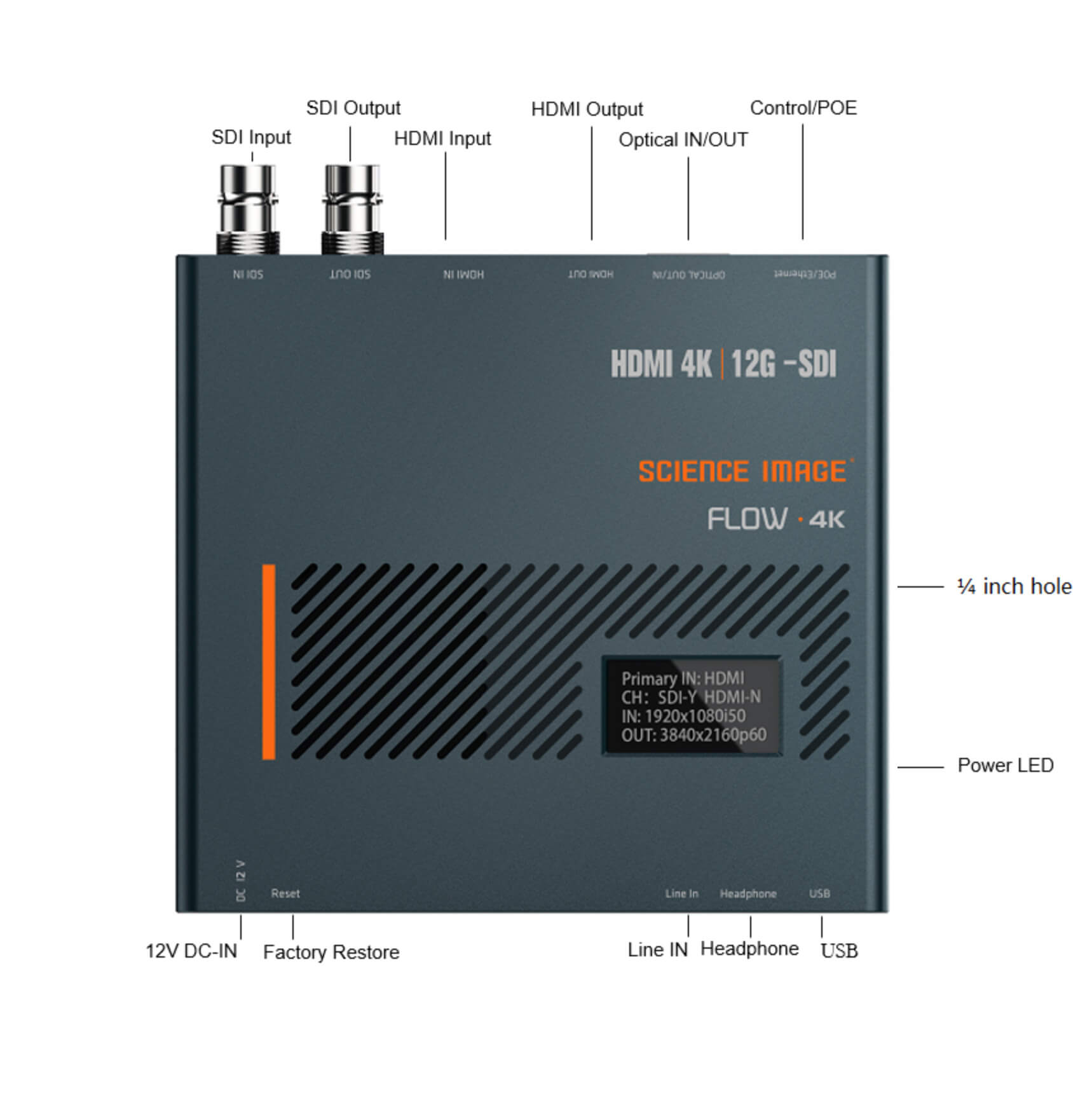

**Interface**
- SDI video input: 1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
- SDI video output: 1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
- HDMI video input: 1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
- HDMI video output: 1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
- Optical fibre input and output: 1 x SMPTE optical fiber SFP socket, used to connect different types of Gigabit/10 Gigabit/12G-SDI optical fiber modules
- RJ45 gigabit ethernet port: 1 x RJ45 Gigabit Ethernet interface
- LINE IN audio input port: 1 x LINE IN 3.5mm audio input port for external analog audio embedding
- MIC input and output port: 1 x Mic 3.5mm audio input and output port
**Display**
- 1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate.
**Power Supply**
- Two power supply modes: 5-18V DC power input and POE
- Power consumption: 10W
**Environmental Requirements**
- Operating temperature: 5°C to 40°C
- Storage temperature: -20° to 60° C (-4° to 140° F)
- Relative humidity: 0% to 90% non-condensing
Would you like more information on the Science Image FLOW-4K Converter?
For more indepth information, please download the Science Image FLOW-4K Converter product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
