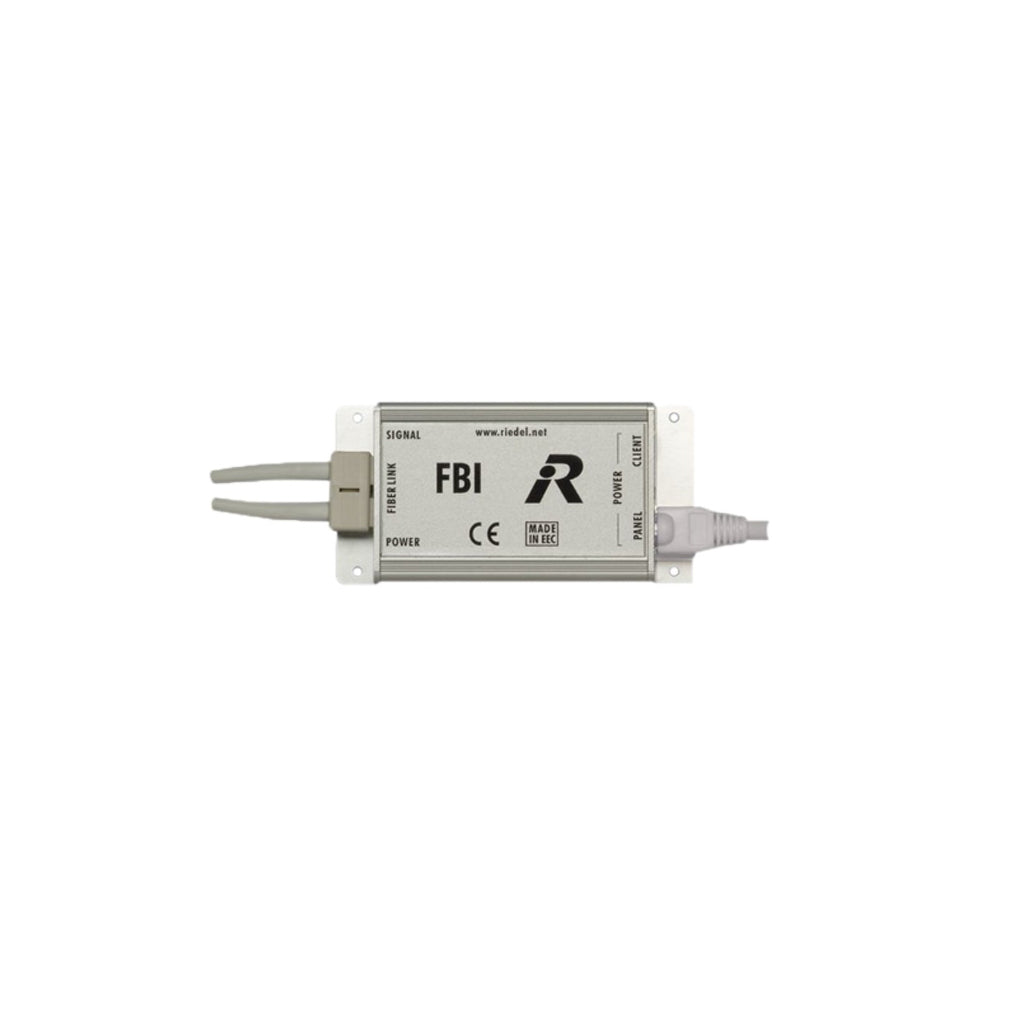

Riedel FBI Fibre Interface Adapter Single Mode

Riedel FBI Fibre Interface Adapter Single Mode

RIE-FBI-SM

$1,430.00
$1,430.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

The FBI converts an Artist panel port from CAT5 to fibre in a bidirectional way providing long-distance operation of Artist control panels. As the unit offers both connectors, for the matrix and for the panel, it can be inserted on either side. The interface may also be used for the bidirectional transmission of an AES3 signal. Distances up to 20,000m can be realised using duplex single-mode fibre.

View full details

Capabilities and Functions

Riedel FBI Fibre Interface Adapter Single Mode Features & Specifications


- Single Mode Fibre only
- Price is for a single unit only
- Price includes a single power supply

- Connectors: RJ-45 for matrix, panel or AES/EBU, SC-Duplex for multimode-fiber
- Transmission distances: up to 2,000 m with multimode-fiber (1300 nm)
- Indicators: Power LED, signal detect LED
- Power Requirements: 6V DC provided by optional external power supply via RJ-45
- Dimensions: 110mm x 55mm x 25mm
