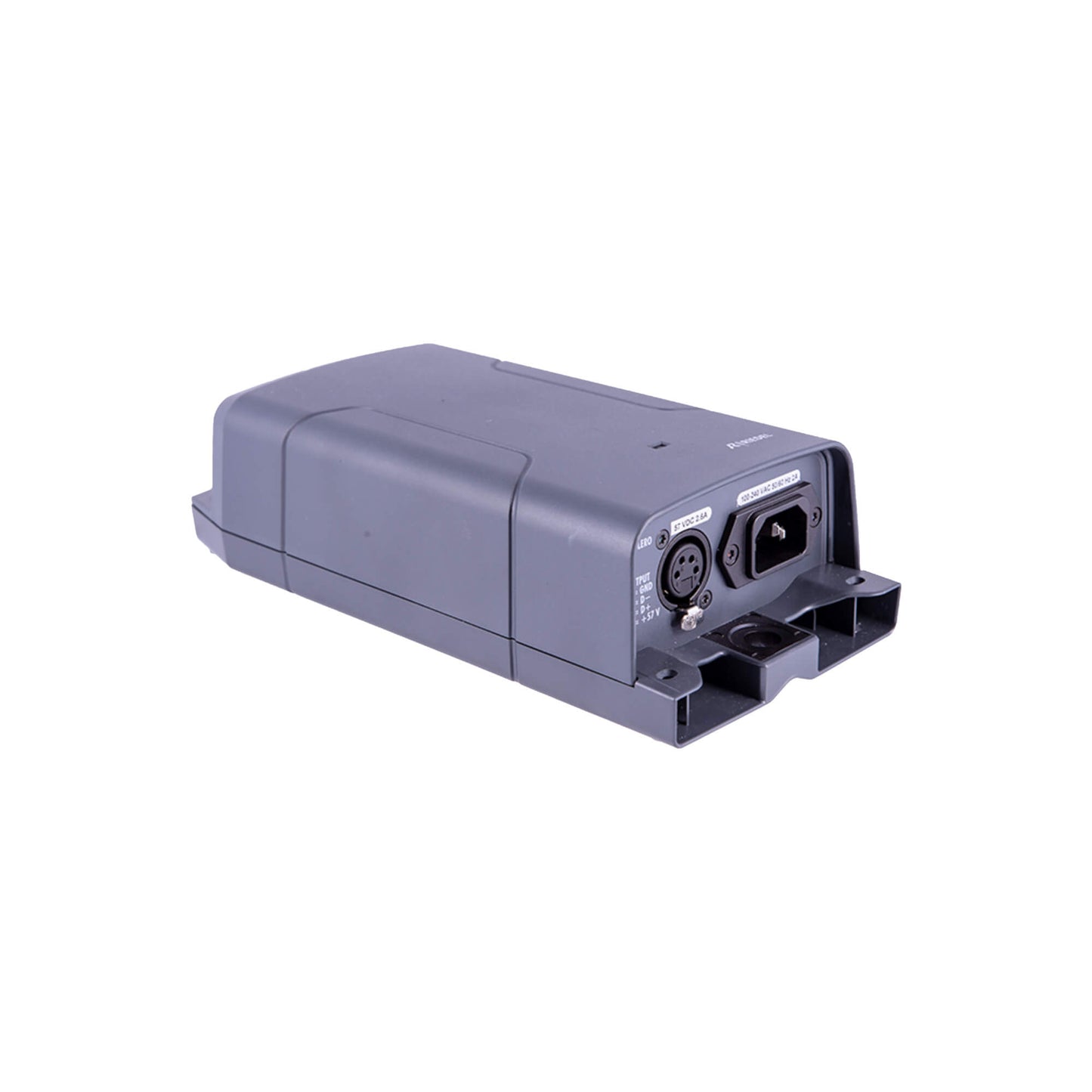

Riedel Bolero External Power Supply
Riedel Bolero External Power Supply
SKU:RIE-BL-EPS-1005-00
Couldn't load pickup availability
Keep your Riedel Bolero system running smoothly with this robust external power supply. Designed to power up to 5 antennas via CAT5 connections, it ensures reliable performance for even the most demanding setups.
The power supply includes a 2.5m (8 ft) XLR-XLR DC power cable and an IEC cable, giving you the flexibility to set up with ease. Wall and pole-mountable, it's adaptable to various environments, whether you're in a broadcast studio, a live event venue, or an industrial facility.
Compact yet powerful, this external power supply is an essential addition to your Bolero communication system, delivering consistent power and connectivity where you need it most.
Capabilities and Functions
Riedel Bolero External Power Supply Features & Specifications
Riedel Bolero External Power Supply Product Features
- External power supply, powers up to 5 antennas via CAT5 connection
- 2.5m / 8 ft XLR-XLR DC power cable & IEC cable
- Wall and pole mountable
Riedel Bolero External Power Supply Technical Specifications
INPUT
- Voltage: 100 ... 240 VAC
- Frequency: 50 / 60 Hz
- Current:
Max. 2 A / 100 VAC
Max. 0.8 A / 230 VAC
OUTPUT
- Voltage: 57±5% VDC
- Current:
1.5 A @ 40°C
Max. 2.6 A @ 25°C
- Power:
Max. 85 W @ 40°C
Max. 150 W @ 25°C
CABLE / CONNECTORS
- Only the original XLR-4 cable may be used.
- The length of 2.5 meters must not be extended.
EFFICIENCY LEVEL
- >90%, typical at 230 VAC full load
OPERATING ENVIRONMENT
- Ambient Temperature: -10° ... +40°C
- Humidity: 0 % ... 90 % rel. (non-condensing)
STORAGE ENVIRONMENT
- Ambient Temperature: -20° ... +85°C
- Humidity: 10 % ... 95 % rel.
DIMENSIONS
- Width: 106 mm
- Height: 230 mm
- Depth: 63 mm
- Weight: 1030g
MOUNTING OPTIONS
- Wall mount
- Pole mount with clamp (not included)
- 5/8" thread
PROTECTION CLASS
- IP53 (if mounted vertically, with plugs facing downwards XLR + IEC plugged)
- IP51 (if mounted horizontally, with plugs facing sidewards XLR + IEC plugged)
APPROVALS
- CE, ETL, CB, FCC
SAFETY
- IEC62368-1 + PSE, EAC, BSMI
