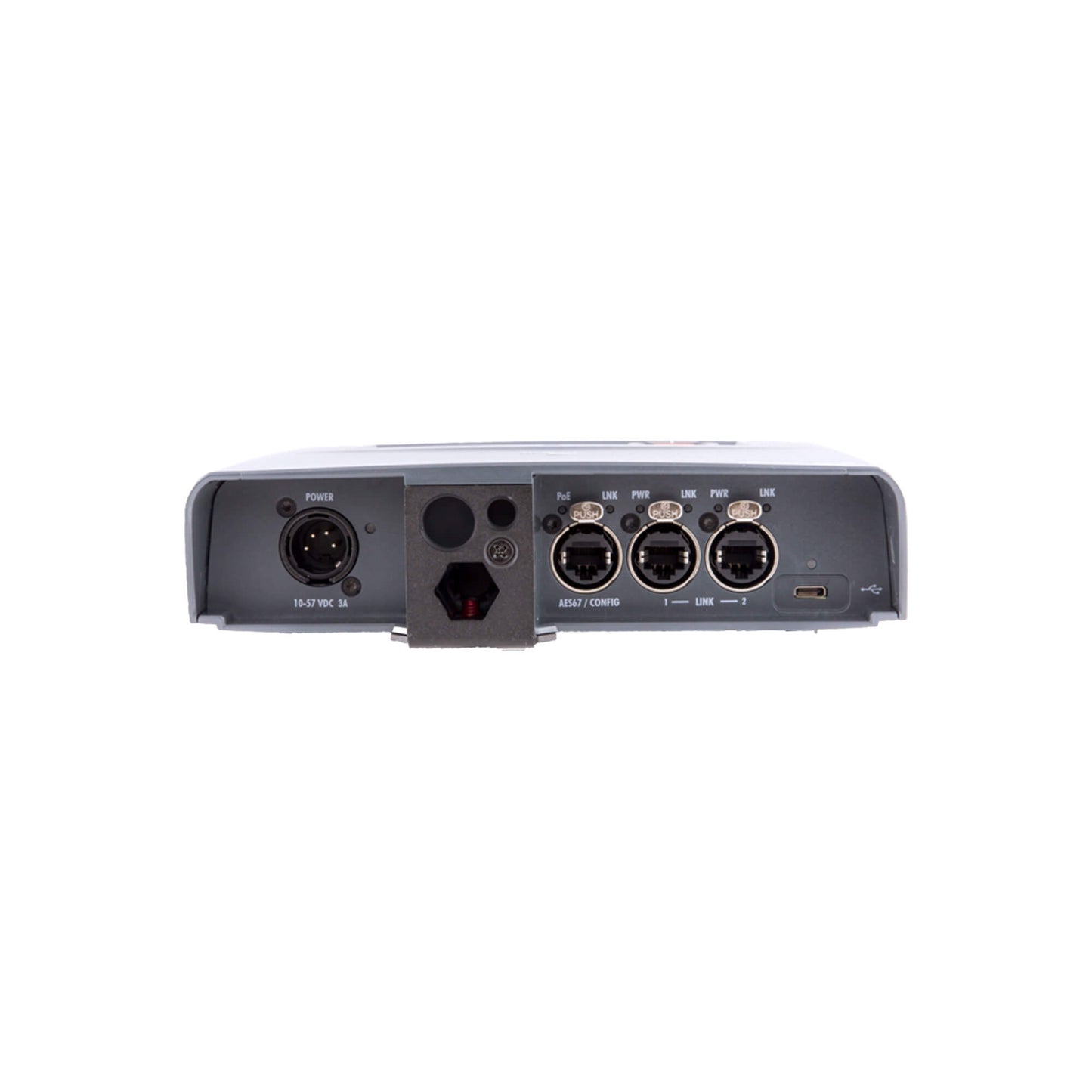

Riedel Bolero Wireless Active Antenna
Riedel Bolero Wireless Active Antenna
SKU:RIE-BL-ANT-1010-19G-EU-G2
Couldn't load pickup availability
The Riedel Bolero Wireless Active Antenna is an advanced solution designed to deliver unparalleled performance and flexibility in wireless intercom systems. Supporting up to 250 beltpacks and 100 antennas per Bolero Net, its intelligent bandwidth utilization ensures exceptional efficiency, accommodating up to 10 beltpacks per antenna. Featuring decentralized SMPTE 2110-30 (AES67) IP-networked antennas, Bolero offers seamless scalability and enhanced network robustness. Its fully re-programmable FPGA architecture ensures future-proof adaptability, allowing integration with evolving network standards.
With three distinct network modes—Bolero Integrated, Bolero Standalone Link, and Bolero Standalone 2110 (AES67)—the system meets the diverse needs of various applications. Bolero Integrated leverages the powerful Artist ecosystem, enabling seamless point-to-point handovers. Standalone Link provides plug-and-play simplicity for smaller or portable setups, while Standalone 2110 allows IP-based deployments without the need for an Artist matrix. Equipped with a high-clarity voice codec and Riedel’s exclusive ADR technology, the Bolero Antenna delivers superior speech intelligibility and reliable performance, even in RF-challenging environments.
Capabilities and Functions
Riedel Bolero Wireless Active Antenna Features & Specifications
Riedel Bolero Wireless Active Antenna Product Features
- E-Ink display for up to 10 BL-BPK-1006-19 Beltpacks
- DECT license free band (1880-1900MHz)
- AES67 layer 3 IP network mode via Cat-5 cabling
- Optional standalone daisy chain network mode via Cat-5 cabling
- PoE+ (802.3at, type 2, class 4, 15-30W) power, local DC or PoC daisy chain remote power
Riedel Bolero Wireless Active Antenna Technical Specifications
- No of beltpacks per antenna: 10
- Radio frequency range: 1.880 1.930GHz (region dependent)
- Antenna radio coverage (diameter): Indoor (structure dependent): max. ~200 m; outdoor (free line of sight): ~300-500m
- Beltpack to antenna range: Indoor (structure dependent): max. ~200 m; outdoor (free line of sight): ~150-250m
- Beltpack registration: 1 touch NFC registration (beltpack to antenna, beltpack to beltpack), OTA registration (over the air with PIN)
- Network connection: SMPTE 2110 (AES67) IP or direct cable connection in standalone mode
- Display type: High contrast E-ink display
- Programmable transmission power: Yes
- Support of Layer 3 networks: Yes
- TTL Settings: Adjustable multicast TTL (1 to 255 / default 16)
- DECT Master Priority: Configurable in WebUI
- Network monitoring on antenna display: IP / daisy chain / closed ring
- Power supply: PoE+ (802.3at, type 2, class 4, 15 to 30 W) or 10 to 57 VDC, 3 A
- Power consumption: 15W
- Mounting points: Mic stand threaded socket 5/8“ & 3/8“ inside, spigot adapter with wing screw lock, Kensington lock hole, & screw hole for a safety wire mounting
- Environmental: IP-53 protected against limited dust ingress and water falling as a spray at an angle of up to 60° from vertical
- Operational temperature: -10 to 45 °C
- Humidity: 0-90%, non-condensing Ta=40 °C
- Dimensions: 210mm (W) x 66mm (D) x 190mm (H)
- Weight: 1320g
