Rf Venue Optix Series 3 Dual Channel RF to Fibre Optic Convertor
Rf Venue Optix Series 3 Dual Channel RF to Fibre Optic Convertor
SKU:RFV-OPTX2-S3
Couldn't load pickup availability
Revolutionize your wireless setup with the OPTIX Series 3 by RF Venue. This cutting-edge system leverages the power of light, allowing you to position RF antennas several miles away from your receivers, offering unmatched flexibility. By converting RF energy into light, the OPTIX Series 3 eliminates the need for traditional coaxial cables, ensuring your wireless microphones maintain a strong, reliable signal.

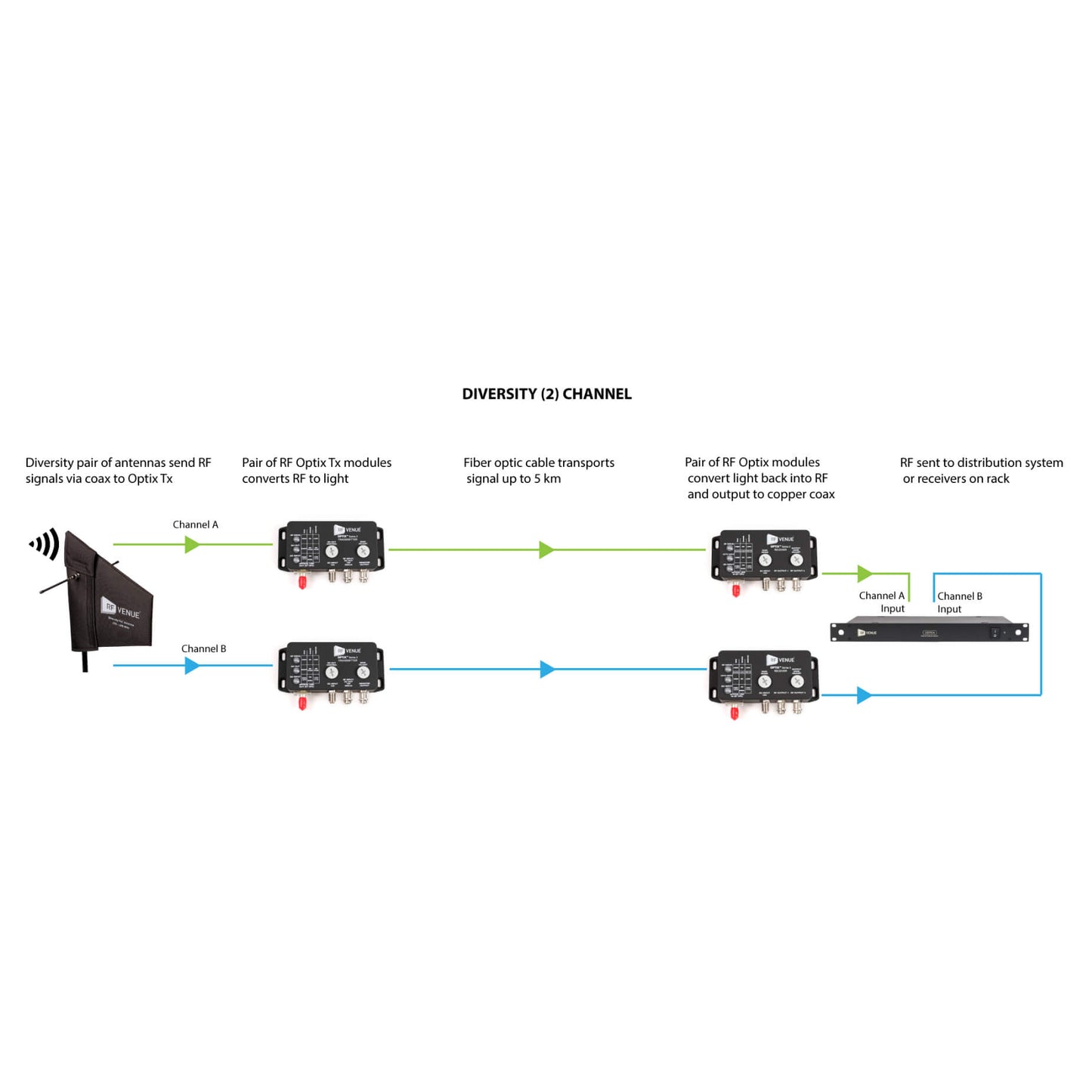

Designed for high performance, the OPTIX Series 3 RF over fiber optic (RFoF) conversion system enables remote placement of wireless audio antennas over long distances. The Transmitter module converts RF signals from an antenna into a single-mode optical signal, transmitting it via a fiber-optic cable to the OPTIX Receiver, which then converts it back into RF. This system is ideal for extending antenna placement up to several miles apart or even between floors in buildings, without losing any RF signal quality.
Perfect for live productions and installed sound systems, the OPTIX Series 3 boasts extensive configurable controls, allowing users to manage signal levels, apply DC power for active antennas or amplifiers, and directly monitor outputs for optimal performance. Compatible with any brand of wireless audio system, the OPTIX Series 3 supports VHF, UHF, and 900 MHz bands. Designed specifically for use with wireless microphones, it supports a maximum RF input power of 0dBm/1mW, with exceeding this input voiding the product warranty.
**This product is the dual channel converter**
Capabilities and Functions
Rf Venue Optix RF to Fibre Optic Convertor Features & Specifications
Rf Venue Optix RF to Fibre Optic Convertor Product Features
- Remote placement of antennas now available over long distances with no signal loss.
- Longer Coax runs require thicker, unwieldy, more expensive cables.
- With virtually no signal loss over fiber, longer runs are now available and many locations already have fiber runs in place.
Rf Venue Optix RF to Fibre Optic Convertor Technical Specifications
**Electrical**
- Typical operating frequency: 175-213, 470–698, 900-960 MHz
- VSWR avg.: < 2.5:1
- Impedance (nom): 50Ω
- Max RF input power: < 0 dBm / 1 mW
- DC operating voltage: 5–22 V
- Power supply voltage: 12.25 VDC
- Tx Module Power Draw: ~166 mA @ 12VDC
- Rx Module Power Draw: ~258 mA @ 12VDC
- Optical Tx wavelength: 1310 nm
**Physical**
- Dimensions (each, including flange and connectors): 138 X 77 X 33 mm / 5.4x3x1.3”
- Tx weight: 223 g / .5lb
- Rx weight: 229 g / .5lb
- Operating temperature: -25C–75C / -13–167F
- RF Connectors: BNC female
- Optical connectors: ST/UPC
