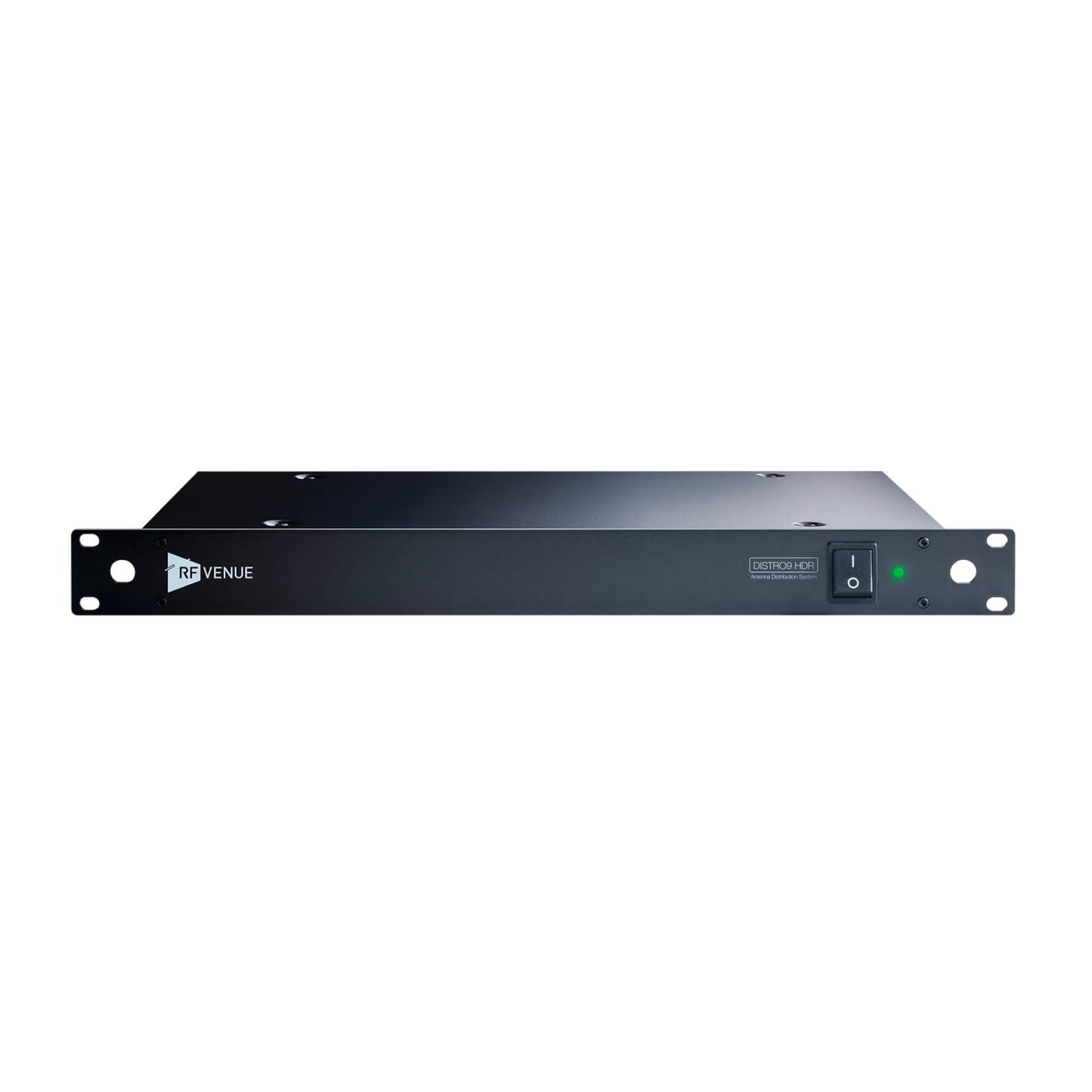

Rf Venue DISTRO9 HDR Antenna Distribution
Experience the pinnacle of RF signal distribution with the RF Venue DISTRO9 HDR Antenna Distributor. This innovative device streamlines your setup, offering 9 outputs and 2 zone inputs in just one rack space. The DISTRO9 HDR features low noise figure amplifiers and an exceptional gain structure, ensuring a high dynamic range across the RF spectrum. Perfect for large areas or multiple rooms, it provides DC power for in-line amplifiers or active antennas. Cascade up to 17 wireless microphone channels seamlessly without the need for dedicated cascade ports. Built to handle VHF, T-Band, and UHF, the DISTRO9 HDR adapts to the ever-evolving RF landscape worldwide.
CONTACT US for a demonstration or more information.
CLICK HERE to download the spec sheet.
Main Features
- High end RF performance at a competitive price
- Designed and Assembled in USA
- Works with all manufacturers.
- Turnkey bundles are available for easy setup.
Specifications
- Frequency range: 50-1000 MHz (VHF, UHF, +900 bands)
- RF output level (gain): ± 3dB
- Output connection isolation: 60dB @ 510MHz, 80dB @ 200 MHz
- Third order intercept point: 15dBm @ VHF, 20+ @ UHF
- Impedance: 50Ω
- Power Requirements: 50/60 HZ, 2A
- Fuse: T3.15A/250V
- Input AC voltage: 100-240 VAC
- DC over coax (to external antennas): 12 VDC 100mA
- Output DC voltage (to receiver jacks): 12V 5A
- Output DC connectors: Anderson Power Pole
- Dimensions: 480(W) X 45(H) X 250(D) mm / 19(W) X 2(H) X 10(D) in
- Unit Weight: 2.7 Kg / 6lbs
