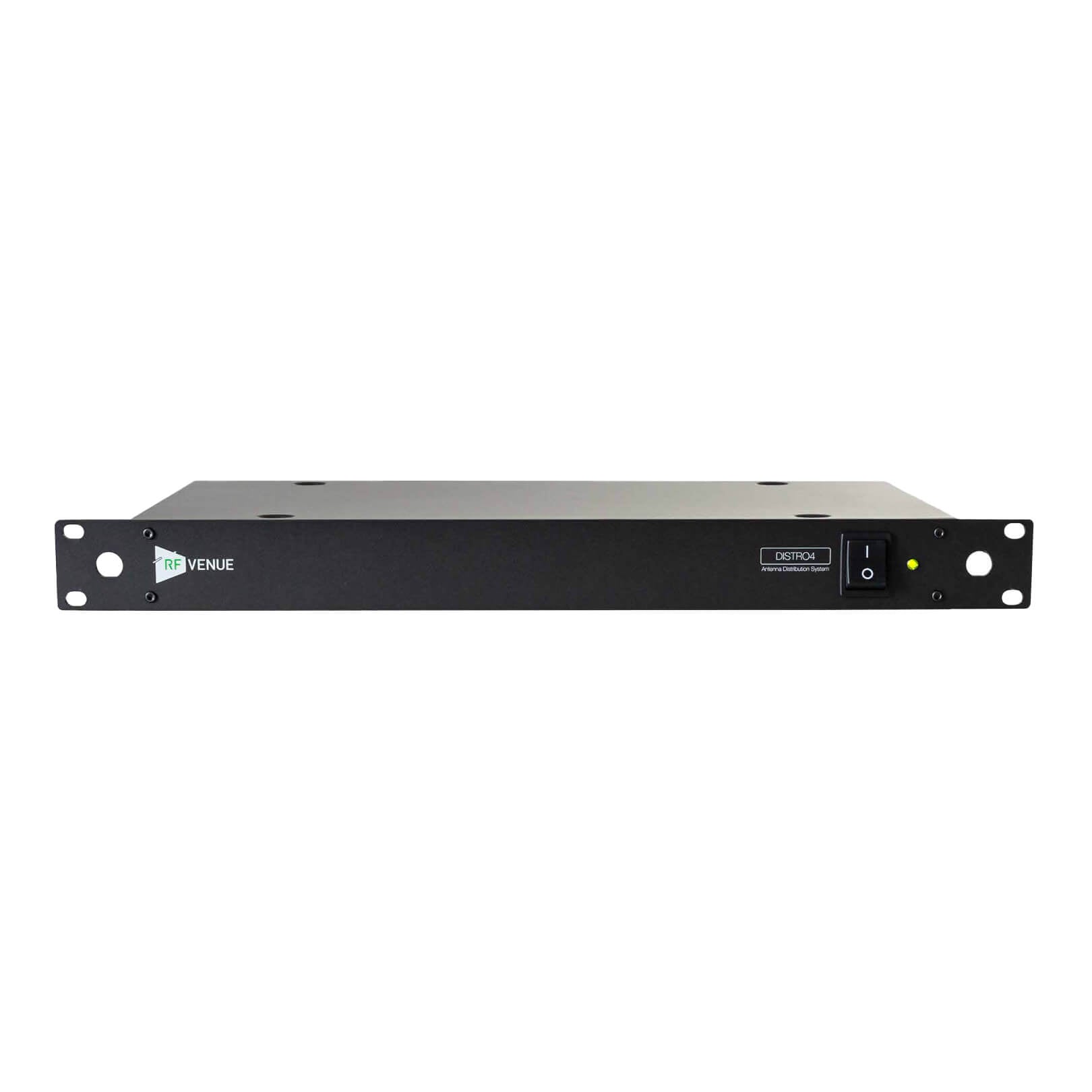

Rf Venue DISTRO4 Antenna Distributor

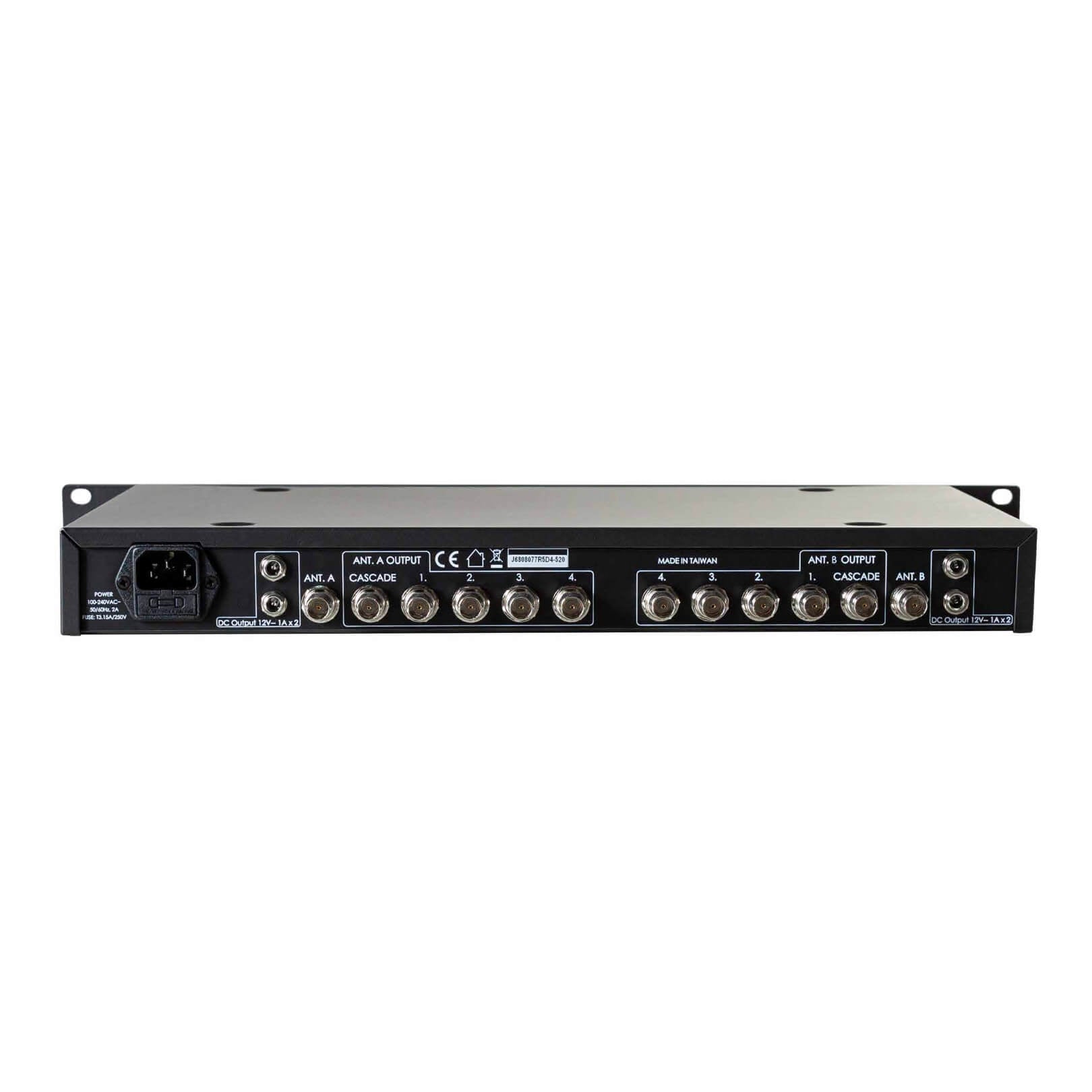

The DISTRO4 is the ultimate solution for distributing diversity RF and DC power across four wireless microphone receivers, regardless of brand. This robust 4-way active antenna splitter, housed in full metal, includes a cascade port and external power, allowing you to share one pair of diversity antennas with up to five wireless receivers. Perfect for both small stage setups and larger venues, multiple DISTRO4 units can be linked together to support up to 25 receivers from a single diversity antenna pair. Eliminate crosstalk, avoid unreliable power solutions, and ensure flawless performance with the DISTRO4’s 2000 mA internal power supply. It comes equipped with 10 BNC cables and 4 DC power cables, making it ready to enhance your audio setup right out of the box.
CONTACT US for a demonstration or more information.
CLICK HERE to download the spec sheet.
Main Features
- Reduce IMD and crosstalk while decluttering your rack with regulated 12VDC power to your receivers.
- 1RU full rack width to install near receivers.
- Compatible with all manufacturers.
Specifications
- Frequency range: 470-952 MHz
- RF output level (gain): 3 dB (±2 dB)
- Cascade output level: 0 dB ~ +2 dB
- Output connection isolation: ≥ 25 dB
- Third order intercept point: 24 dBm
- Impedance: 50Ω
- Power consumption: 60 W
- Input AC voltage: 100~240 V switching
- DC over coax (to external antennas): 12-14 VDC
- Output DC voltage (to receiver jacks): +12 V 1 A x 4
- Output DC connectors: 5.5mm OD, 2.1mm ID
- Dimensions: 480(W) X 45(H) X 250(D) mm / 19(W) X 2(H) X 10(D) in
- Weight: 2.15 Kgs / 4.75lbs
