RF Venue CP Architectural Antenna

RF Venue CP Architectural Antenna

SKU:RFV-CP-ARC

Regular price $1,404.55
Regular price Sale price $1,404.55
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

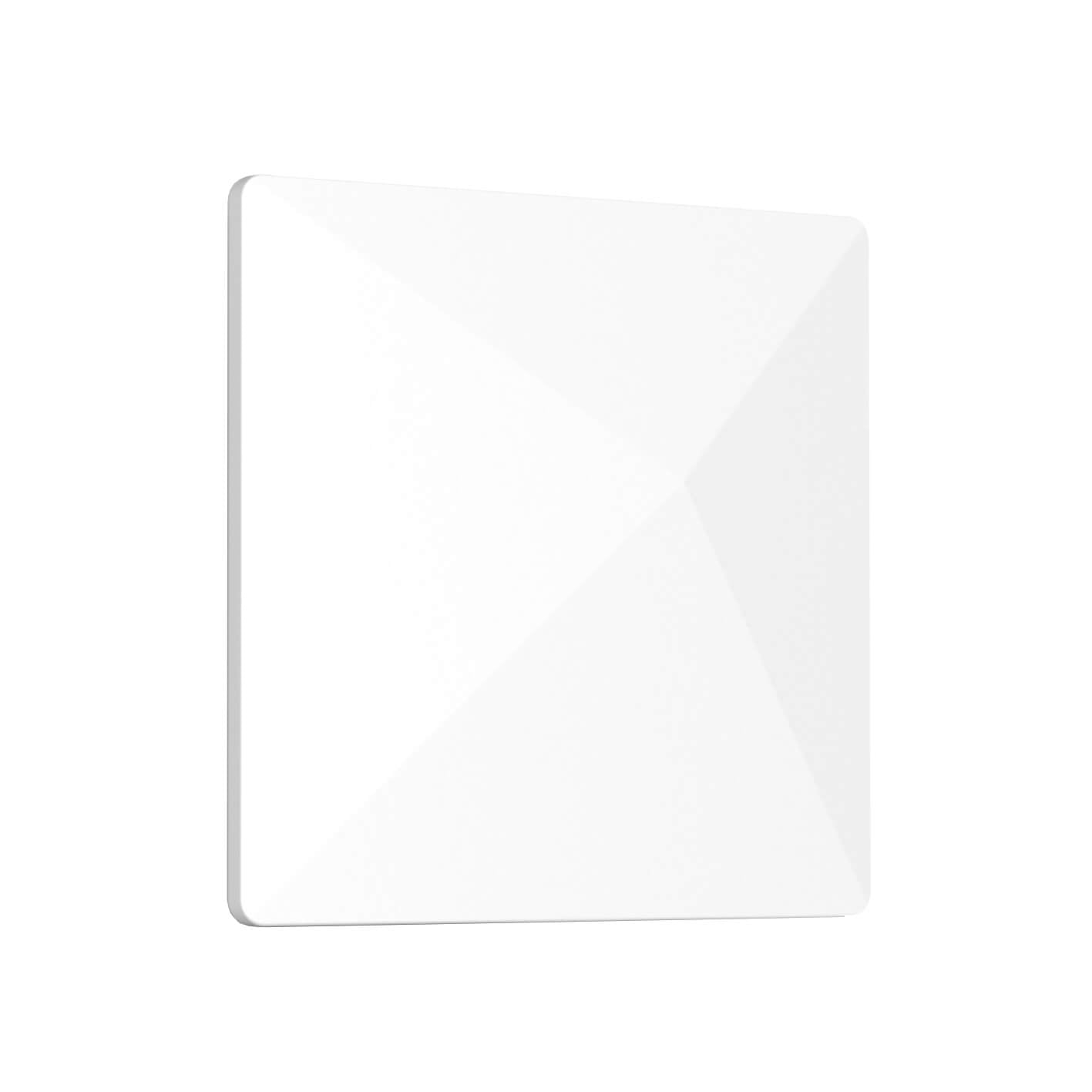

The CP Architectural Antenna by RF Venue is a top-tier antenna designed for in-ear monitor (IEM) systems. With its sleek and slim enclosure, it can be easily installed on walls or ceilings and painted to blend seamlessly with any interior décor. Unlike traditional LPDA or "paddle" antennas with fixed polarization, this antenna boasts a unique circularly polarized design, ensuring superior transmit signal coverage for IEMs. Its polished, professional appearance is highly valued by room designers and architects.

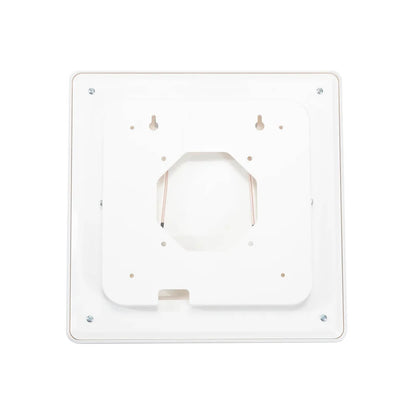

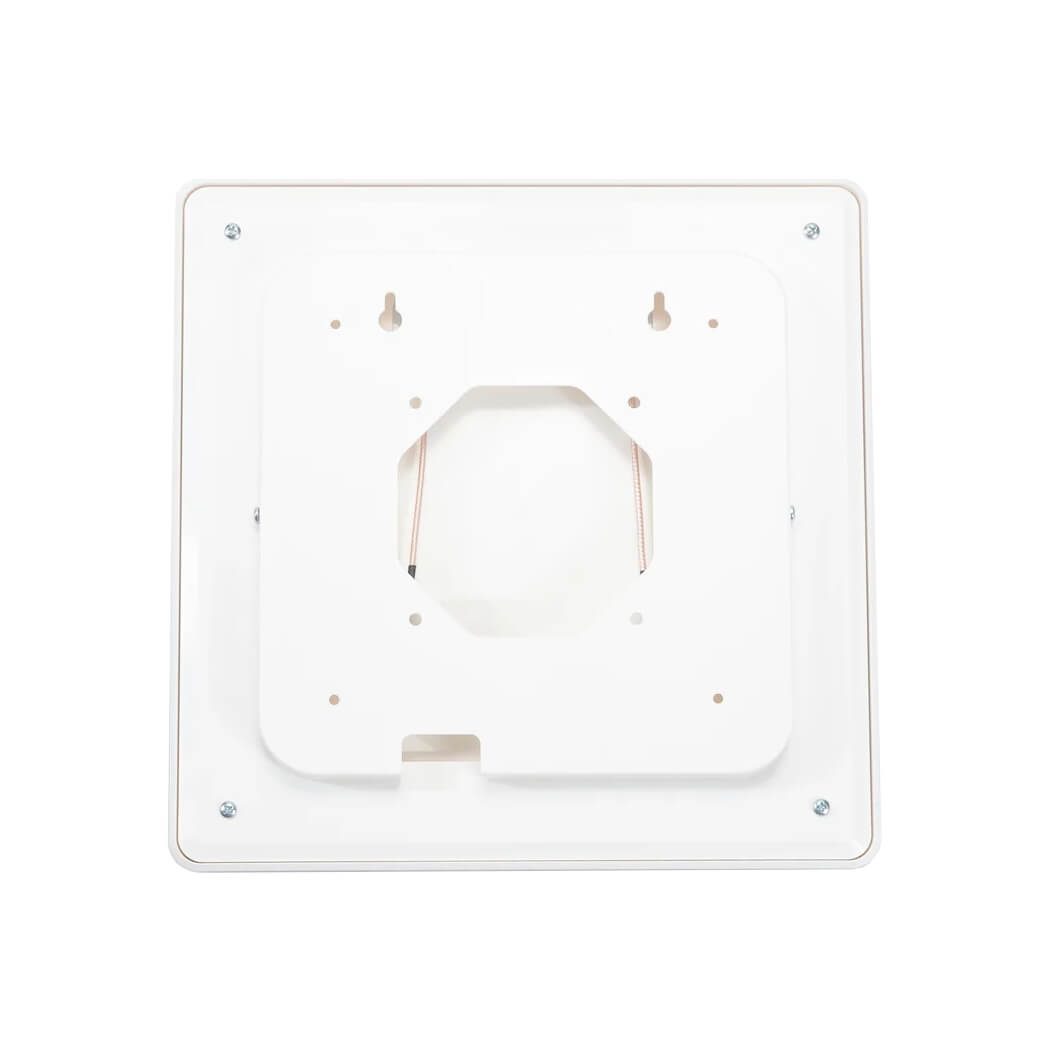

Installation is a breeze: the antenna's wall or ceiling-mounted rear plate comes pre-drilled with multiple mounting hole options. Simply attach the rear plate to the front plate using the included screws, and connect the rear-mounted BNC terminated coaxial cable to your in-wall or in-ceiling cable run. Your CP Architectural Antenna is then ready for use.

Building on the success of the acclaimed foldable CP helical antenna, the CP Architectural Antenna minimizes common signal dropouts and reduces noise and interference. It is perfect for houses of worship and other IEM installations, blending effortlessly with any interior design while delivering professional RF performance. Its sleek, industrial design matches the popular Diversity Architectural Antenna used for wireless microphones.

View full details

Capabilities and Functions

RF Venue CP-ARC CP Architectural Antenna Features & Specifications

RF Venue CP-ARC CP Architectural Antenna Product Features

- Operating frequency:400–800 MHz
- Bandwidth: 400 MHz
- Average return loss: 10 dB
- Impedance: 50Ω
- Pattern type: Flood
- Polarization: RHCP
- Beam width: 120°
- Gain @ 500MHz: 2.5dBi

RF Venue CP-ARC CP Architectural Antenna Technical Specifications

- Dimensions: 280 x 280 x 50mm / 11” X 11” X 2”
- Weight: 0.9 kg / 2 lbs
- Mount location: wall or ceiling
- Operating temperature: -10–40°C / 14–104°F
- Colour: White
- Connector(s): BNC female
