Rf Venue Band-pass Filter 560-608 MHz
Rf Venue Band-pass Filter 560-608 MHz
SKU:RFV-BPF560T608
Couldn't load pickup availability

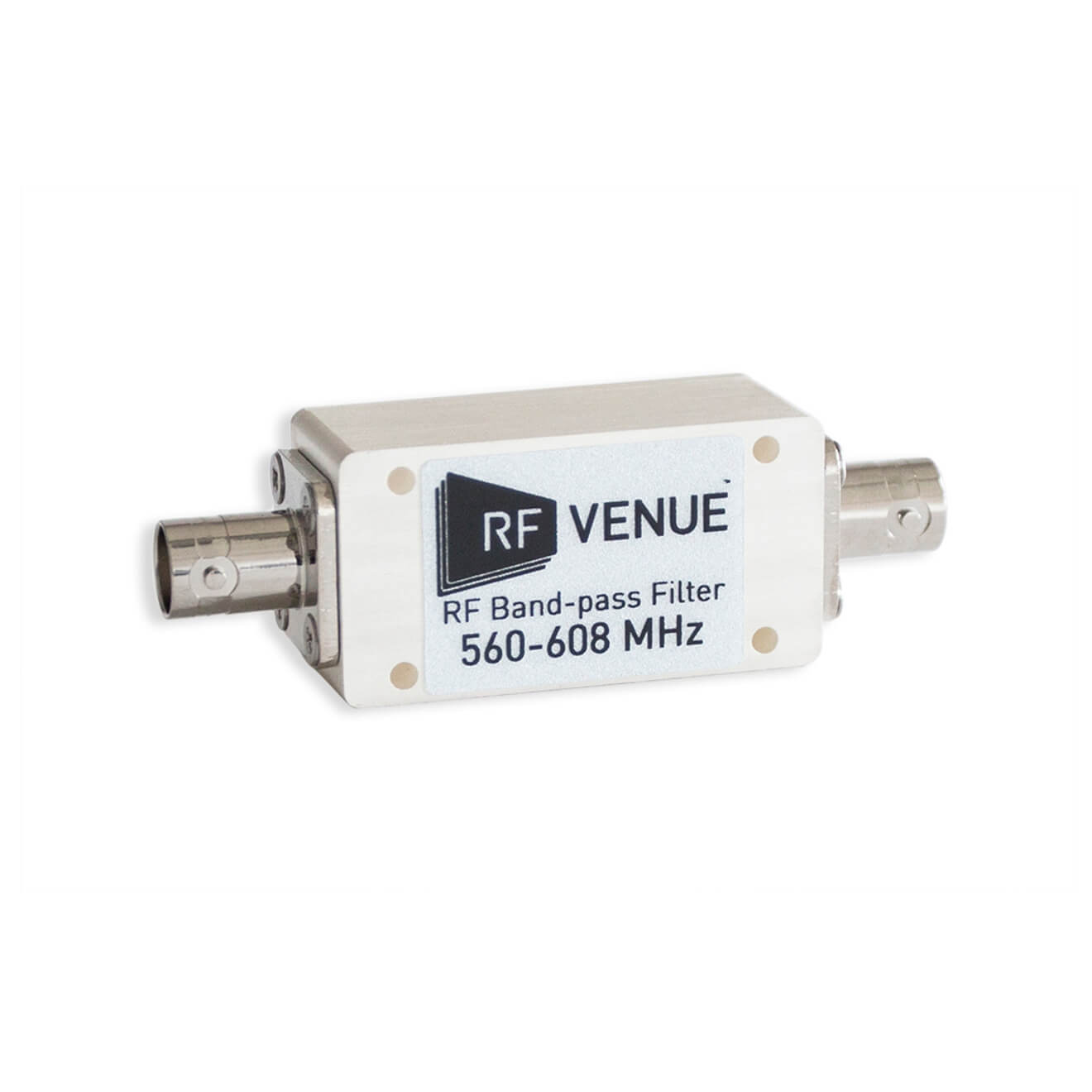

The RF Venue Band-Pass Filter (560-608 MHz) is essential for any wireless microphone system. With its compact 3” x 1.75” (7.6 x 4.5cm) design and industry-standard BNC connectors, this hand-tuned filter easily connects in-line with your wireless microphone antennas. It requires no power or user configuration, providing up to 40 dB of side rejection to effectively reduce noise and boost the performance of your wireless system.
Capabilities and Functions
Rf Venue BPF560T608 Band-pass Filter 560-608 MHz Features & Specifications
Rf Venue BPF560T608 Band-pass Filter 560-608 MHz Product Features
- Shure J1 and J3
- Sennheiser G
- Sennheiser 6000/9000 High Band
- Lectrosonics Blocks B22 and B23
Rf Venue BPF560T608 Band-pass Filter 560-608 MHz Technical Specifications
- Pass Band: 560-608Mhz
- Insertion Loss Max: 3.5dB
- Ripple in-band Max: 1.5dB
- VSWR Max: 1.5
- Rejection:
40dB @ DC-535 MHz
20dB @ 535-543 MHz
20dB @ 626-632 MHz
40dB @ 632-1000 MHz
- Power: 2W
- Temp: -30 to 70 °C
