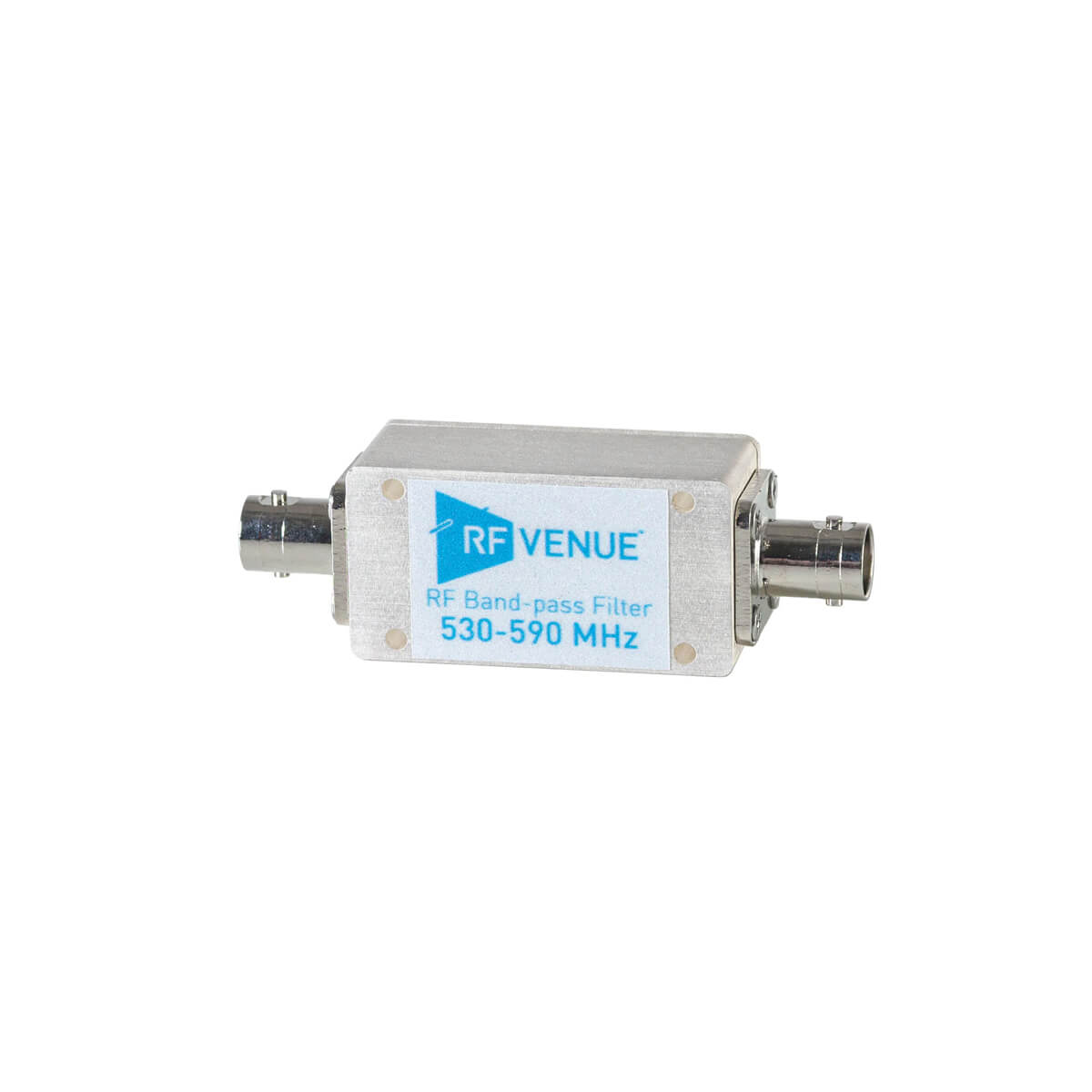

Rf Venue Band-pass Filter 530-590 MHz
Rf Venue Band-pass Filter 530-590 MHz
SKU:RFV-BPF530T590
Couldn't load pickup availability
The RF Venue Band-Pass Filter (530-590MHz) is a must-have for any wireless microphone setup. With its compact 3” x 1.75” (7.6 x 4.5cm) design and industry-standard BNC connectors, this hand-tuned filter effortlessly connects in-line with your wireless microphone antennas. It requires no power or user configuration, delivering up to 40 dB of side rejection to significantly reduce noise and enhance the performance of your wireless system.
Capabilities and Functions
Rf Venue BPF530T590 Band-pass Filter 530-590 MHz Features & Specifications
Rf Venue BPF530T590 Band-pass Filter 530-590 MHz Product Features
- Shure H50
- Audio-Technica EE1
Rf Venue BPF530T590 Band-pass Filter 530-590 MHz Technical Specifications
- Pass Band: 530-590MHz
- Insertion Loss Max: 3.5dB
- Ripple in-band Max: 1.5dB
- VSWR Max: 1.5
- Rejection:
40dB @ DC-500 MHz
20dB @ 500-508 MHz
20dB @ 613-619 MHz
40dB @ 619-1000 MHz
- Power: 2W
- Temp: -30 to 70 °C
