Rf Venue 4ZONE Antenna Combiner
Rf Venue 4ZONE Antenna Combiner
SKU:RFV-4ZONE
Couldn't load pickup availability
Simplify your multi-zone wireless microphone setup with the Rf Venue 4 ZONE antenna combiner. It effortlessly merges up to four pairs of diversity antenna connections, perfect for multi-purpose rooms, indoor-outdoor spaces, or main stages with breakout areas.
Fine-tune RF levels in each zone with precision using individual channel RF signal attenuation control, adjustable down to -31dB in 1dB increments. For setups requiring active antennas or in-line amplifiers, the 4 ZONE offers selectable 12V DC power, ideal for long cable runs.

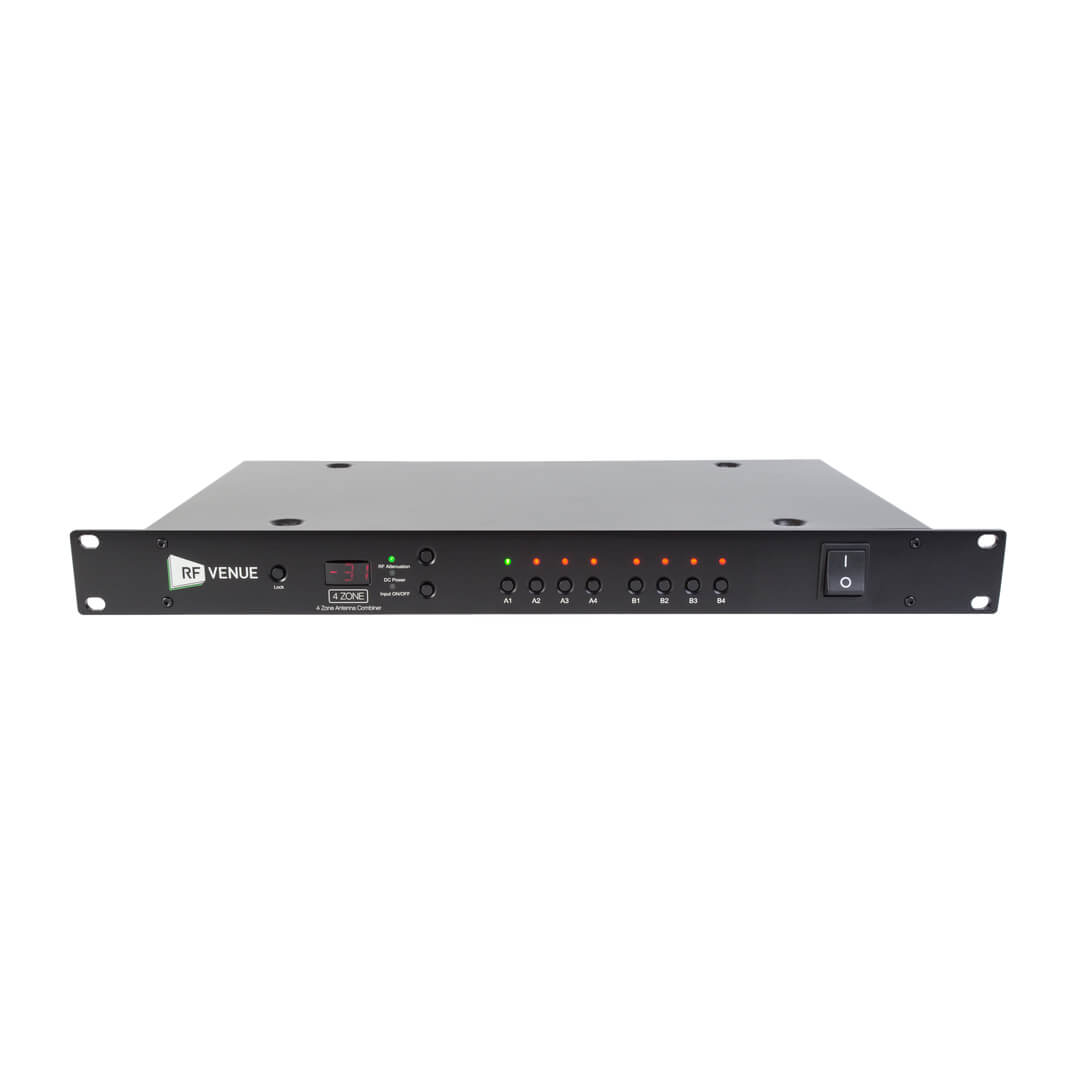

Quickly manage coverage zones with selectable ON/OFF inputs, allowing you to activate or deactivate zones as needed during live events or sound projects, streamlining setup and breakdown on site.
Capabilities and Functions
Rf Venue 4ZONE Antenna Combiner Features & Specifications
Rf Venue 4ZONE Antenna Combiner Product Features
4Zone product includes:
- 4 Zone Antenna Combiner
- 15cm / 6” BNC jumpers
- AC power cord
Rf Venue 4ZONE Antenna Combiner Technical Specifications
- Carrier frequency range: 470-960MHz
- Full system gain: 3dB(±3dB)
- Input/Output impedance: 50 Ω
- A/B antenna input: 4+4
- OIP3: -35dBm(typ.) @ 2-tone; Pi=-15dBm/tone RF input attenuation: -31-0dB (step:1dB)

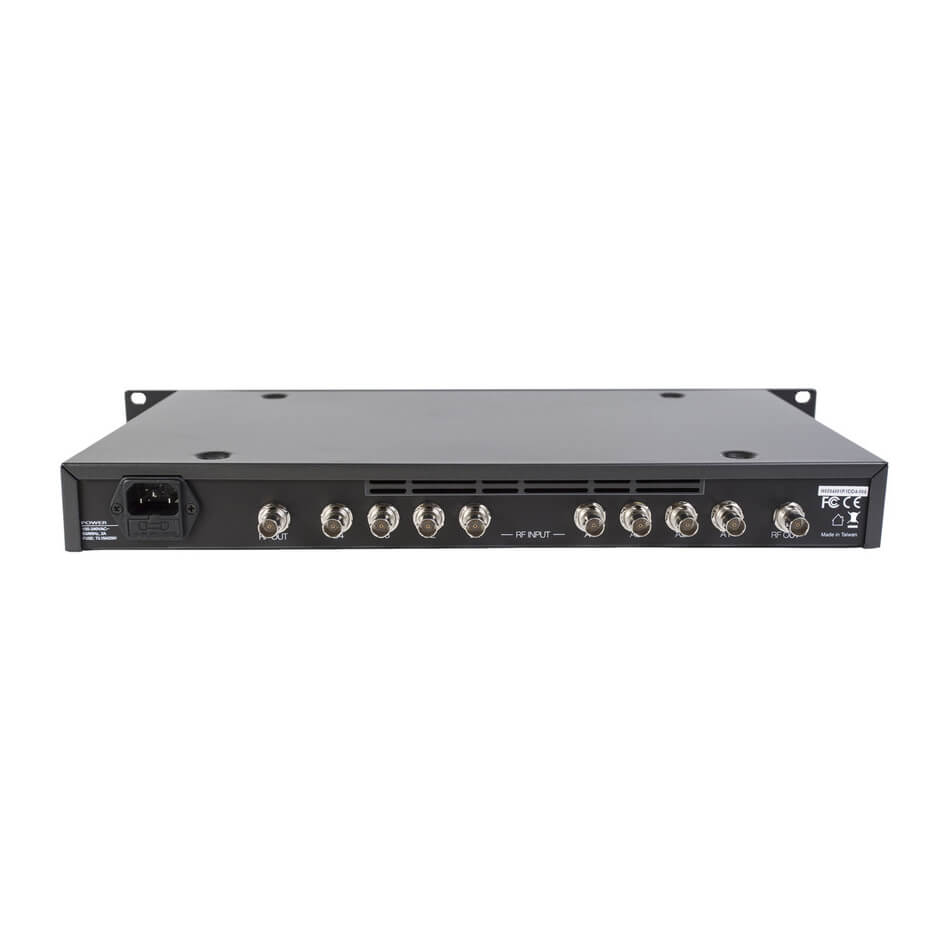

- Input/Output connectors: BNC(F)
- Input: 8x
- Output: 2x
- DC over coax (to external antennas): 12V/200mA*8
- Power supply: 100-240VAC; MAX 2A 50/60HZ
Would you like more information on the Rf Venue 4ZONE Antenna Combiner?
For more indepth information, please download the Rf Venue 4ZONE Antenna Combiner product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
