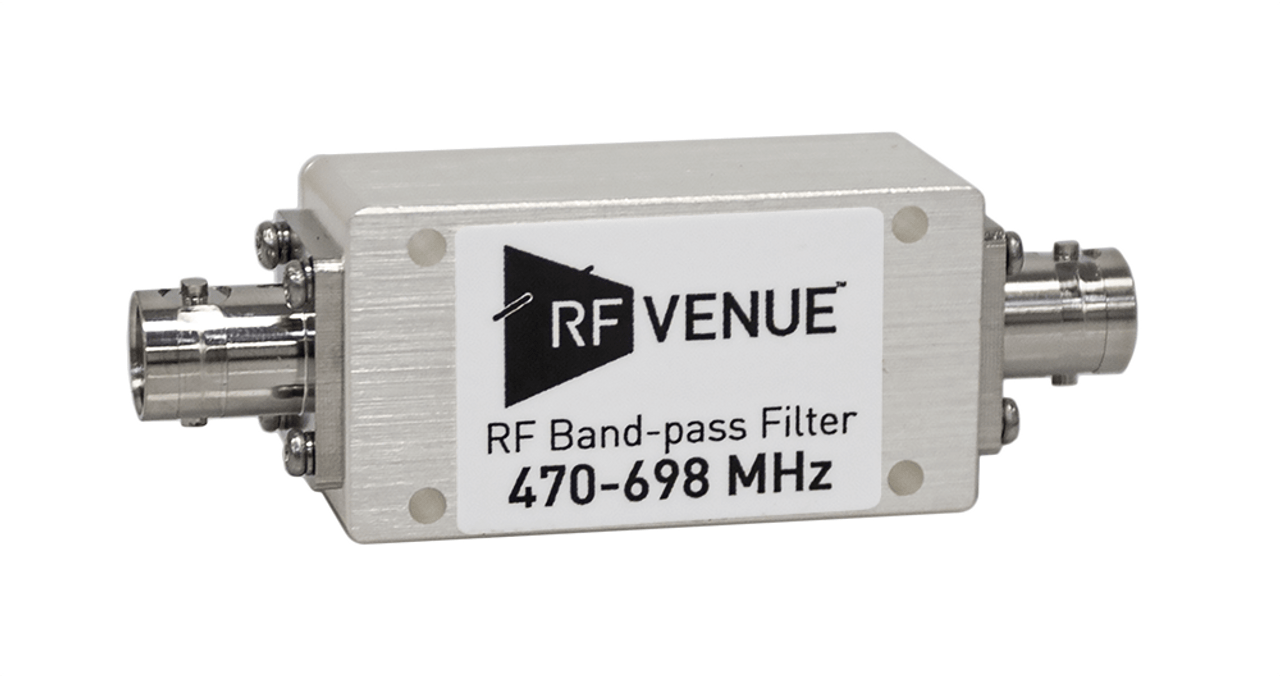

Rf Venue BPF470T698 Band-pass Filter 470-698 MHz
Rf Venue BPF470T698 Band-pass Filter 470-698 MHz
SKU:RFV-BPF470T698
Couldn't load pickup availability
This product is currently out of stock
👉 If you are ordering an item that is not in stock, please allow 3-4 weeks lead time.
The RF Venue Band-Pass Filter (470-698 MHz) is essential for any wireless microphone system. With its compact 3” x 1.75” (7.6 x 4.5cm) design and industry-standard BNC connectors, this hand-tuned filter easily connects in-line with your wireless microphone antennas. It requires no power or user configuration, providing up to 40 dB of side rejection to effectively reduce noise and boost the performance of your wireless system.
Capabilities and Functions
Rf Venue BPF470T698 Band-pass Filter 470-698 MHz Features & Specifications
Rf Venue BPF470T698 Band-pass Filter 470-698 MHz Product Features
- Works with most wireless microphones
Rf Venue BPF470T698 Band-pass Filter 470-698 MHz Technical Specifications
- Pass Band: 470-698Mhz
- Insertion Loss Max: 3.5dB
- Ripple in-band Max: 1.5dB
- VSWR Max: 1.5
- Rejection:
40dB @ DC-535 MHz
20dB @ 535-543 MHz
20dB @ 626-632 MHz
40dB @ 632-1000 MHz
- Power: 2W
- Temp: -30 to 70 °C
