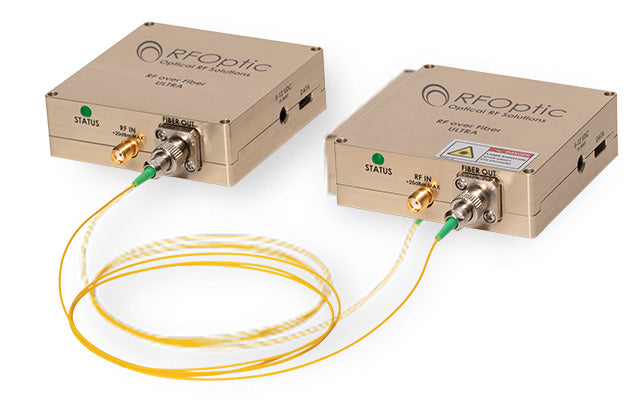

Rf Optic 18GHz Ultra Rf over Fibre Transceiver
Rf Optic 18GHz Ultra Rf over Fibre Transceiver
SKU:RFO-RFoF-18G-N0-ULTRA
Couldn't load pickup availability
This product is currently out of stock
👉 If you are ordering an item that is not in stock, please allow 3-4 weeks lead time.
The RF Optic 18GHz Ultra RF-over-Fibre Transceiver range enables long-distance transport of wideband RF analog signals with exceptional performance. The transmitter modulates an RF signal onto an optical beam, which is transmitted via single-mode fibre to the receiver, which converts it back to RF. Engineered for high spurious-free dynamic range (SFDR) and elevated IP1dBc, it handles multiple signals with vastly different power levels without additional attenuation.
An optional pre-amplifier, post-amplifier, or both can improve the noise figure, enhancing sensitivity. Ideal for 5G testing, antenna characterisation, RADAR, altimeter systems, and DF/ELINT applications requiring concurrent transmission of strong and weak signals with minimal interaction.
Capabilities and Functions
Rf Optic 18GHz Ultra Rf over Fibre Transceiver Features & Specifications
Rf Optic 18GHz Ultra Rf over Fibre Transceiver Product Features
Frequency Range: 1GHz – 18GHz
High IP1dBc
High SFDR 111dB/Hz2/3
Excellent Phase Noise
Excellent phase linearity
Optical wavelength 1550nm
Low power consumption
Standard (stand-alone)
1U Generic enclosure (8 units)
1U Removable panel enclosure (4 units)
Outdoor (4/8 units)
Rf Optic 18GHz Ultra Rf over Fibre Transceiver Technical Specifications
Please download the brochure below for the full specifications.
Would you like more information on the Rf Optic 18GHz Ultra Rf over Fibre Transceiver?
For more indepth information, please download the Rf Optic 18GHz Ultra Rf over Fibre Transceiver product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
