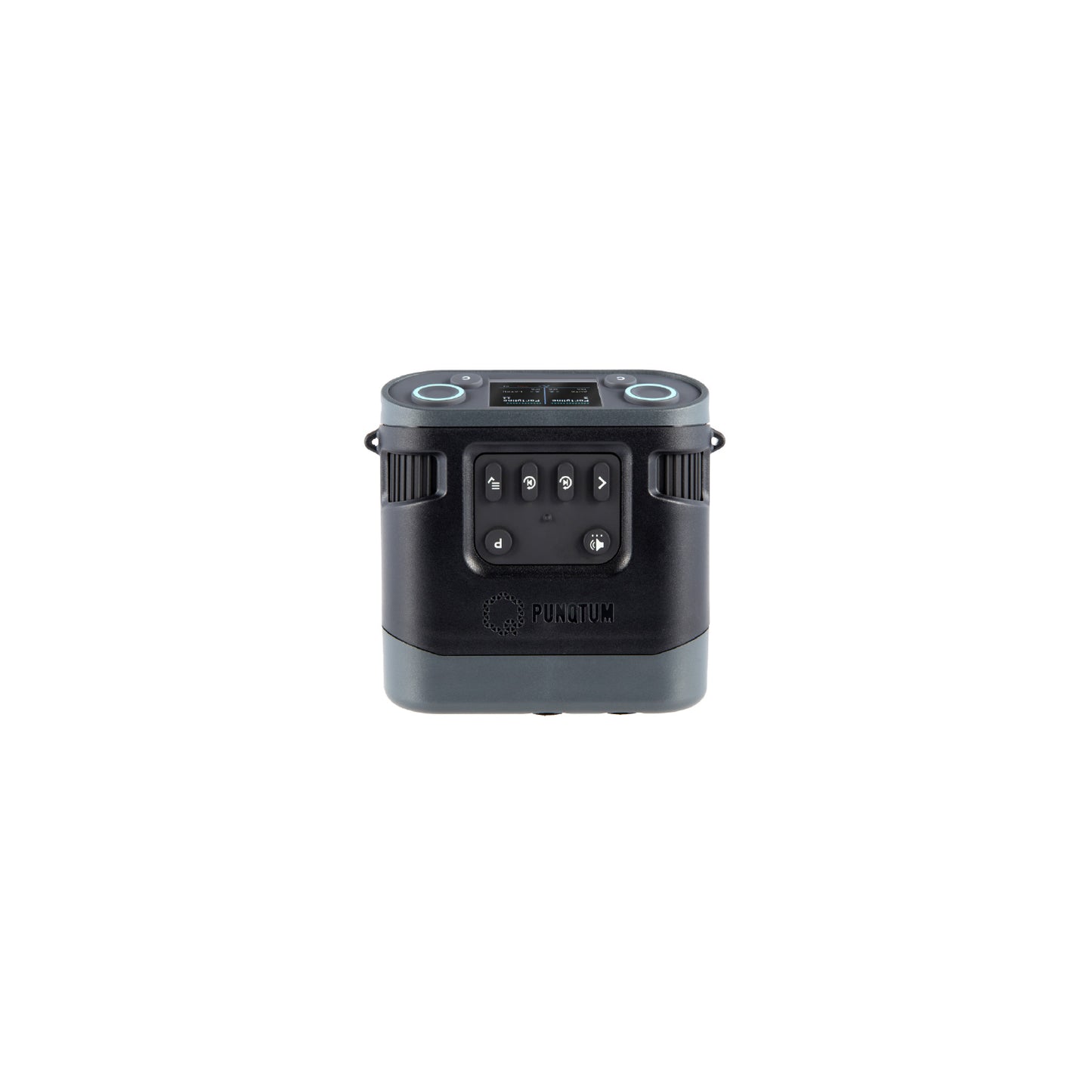

punQtum by Riedel Beltpack

punQtum by Riedel Beltpack

SKU:RIE-Q110

Regular price $860.00
Regular price Sale price $860.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

The easy-to-use and ergonomic Q110 Beltpack offers two channels of IP-partyline-intercom and is packed with many useful features.

Power can be supplied via standard PoE switch or from our speaker station, beltpacks are daisy-chainable to up to eight units on a single network connection, and you can even replay missed comms like a voice mail. It’s the perfect solution for improved team communication during events from small to large.

View full details

Capabilities and Functions

punQtum Q110 Beltpack Features & Specifications

punQtum Q110 Beltpack Product Features

- Plug and Play
- Powered by any PoE source (Switch/Injector)
- Daisy-chain up to 8 beltpacks on one line
- An audio replay of missed calls (up to 30s)
- No master station needed
- Supports industry-standard headsets (4-Pin)
- Works with any IP switch
- Talk/Listen to any 2 out of 32 party lines
- Two configurable “Talk-to-many“ channel buttons
- Flexible configuration
- Choose 1 out of 4 program inputs*
- Operate 4 out of 32 GPIO outputs*
- Talk to max. 4 PA channels*
- On- and Offline configuration software (Win/Mac)

(*) Only with a speaker station.

punQtum Q110 Beltpack Technical Specifications

**Beltpack**

- Power Source: PoE (max. 15W), PoE+ (max. 30W), 4-pair PoE (max. 90W)
- Power consumption: 2.5W typ. 3.5W max.
- Sampling Rate 1: 16 kHz
- Headset Connector: XLR 4pin male
- LAN/PoE Connector: RJ-45 etherCON
- Environment: IP53
- Operating Temp: -10° to +50°C
- Relative humidity: 0 to 90%, non-condensing
- Intercom connection: RJ-45 etherCON
- Beltclip: Easy removable, spring-loaded clip
- Dimensions: 111mm x 110mm x 40mm
- Weight: 255g

**Headset**

- Output impedance: 27 Ohm
- Output level: + 18.5 dBu (max.)
- Frequency response: 20Hz to 10kHz (+0/-0.25dB)
- Distortion @ 1kHz <-73 dB (0.02%)
- Dynamic range (20kHz) 95 dB (A-weighted)

**Microphone Input**

- Type: Dynamic, Electret
- Full-scale input range: 95dB (A-weighted)
- Distortion: < -75 dB (0.02%) @ + 4dBu FS (min. gain), < -68 dB (0.04%) @ -30dBu FS, < -49 dB (0.35%) @ -53dBu FS (max. gain)
- Dynamic range: 92 dB (min. gain), 59 dB (max. gain)
