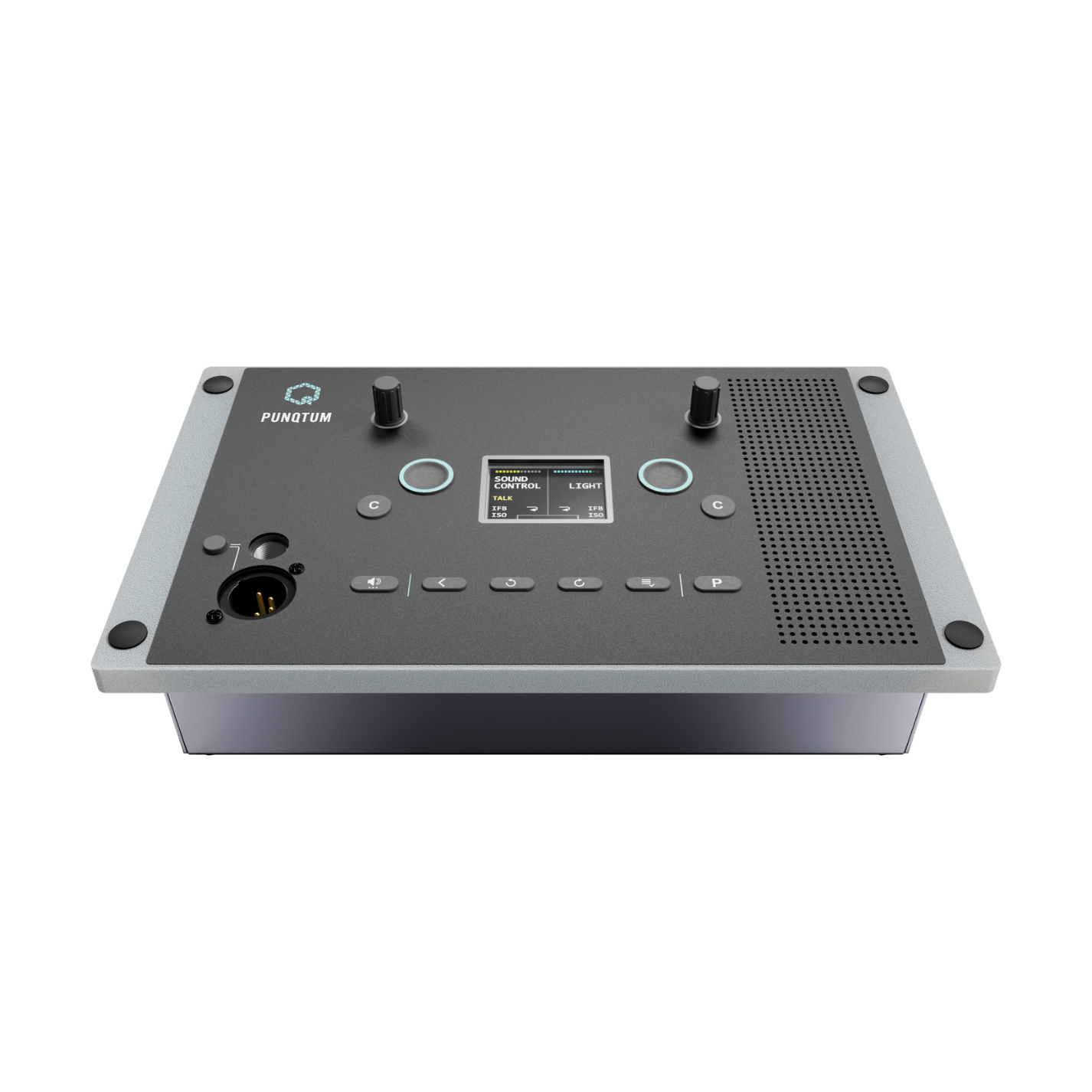

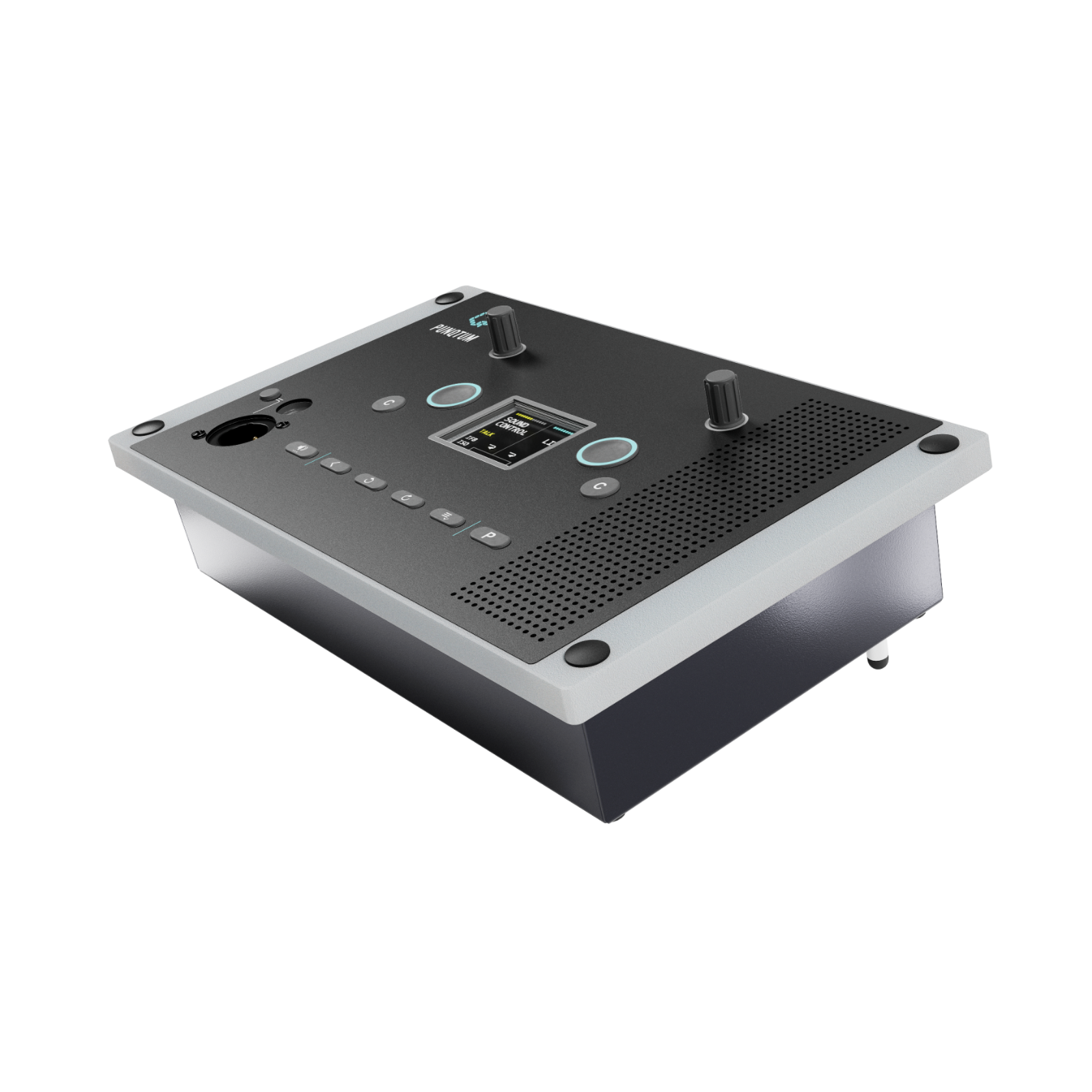

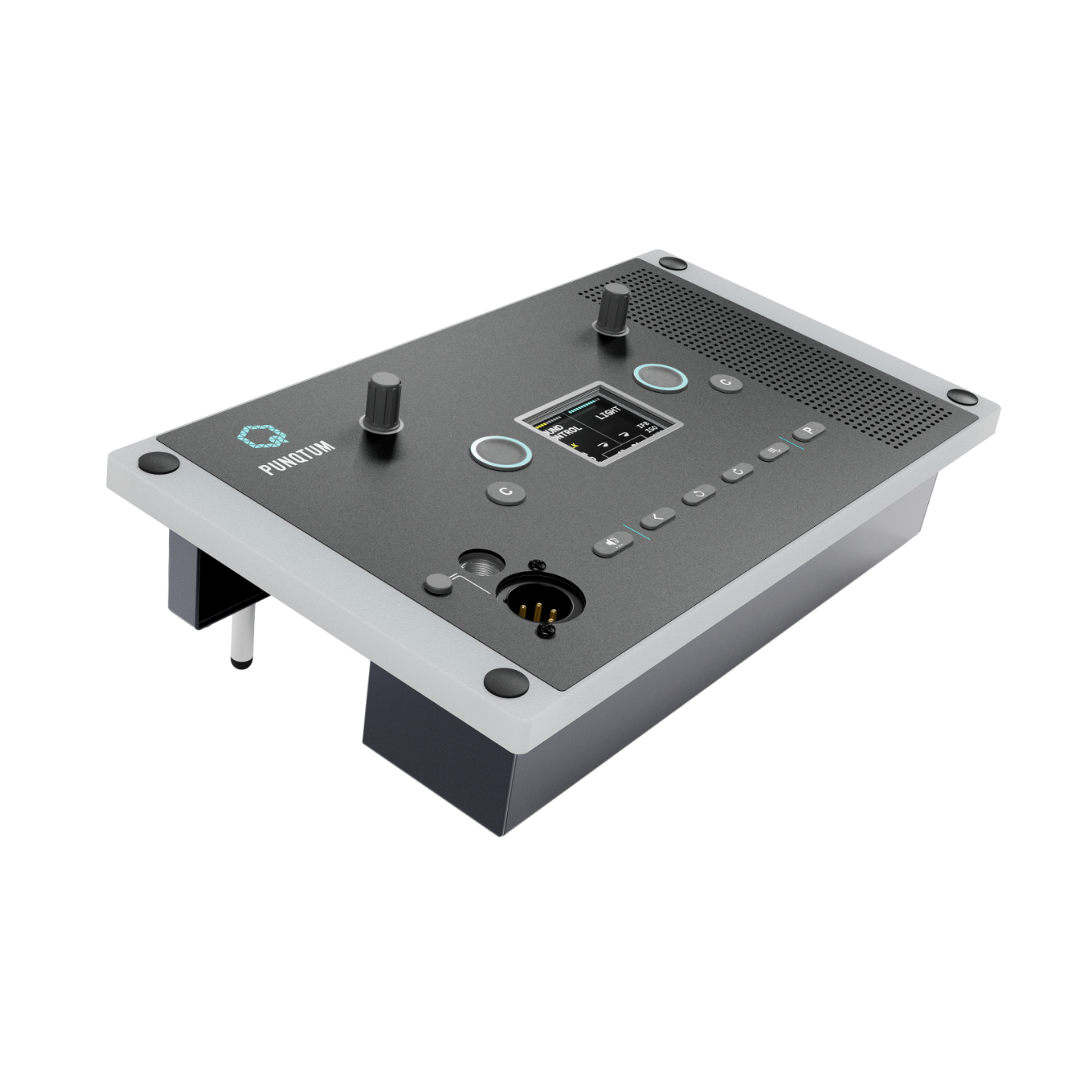

punQtum by Riedel Q310 Wall/Desk Mount Panel
punQtum by Riedel Q310 Wall/Desk Mount Panel
SKU:RIE-Q310
Couldn't load pickup availability
Q310 2-Channel Intercom Station
Upgrade your communication with the Q310—built for seamless, reliable performance in live events, broadcast environments, and performance venues.
Key Features
Flexible Mounting: Select from wall or desk installation options to suit your space and workflow.
Integrated Audio: Built-in microphone and loudspeaker for clear, real-time communication.
Headset Ready: Easily connect a headset for private conversations.
Dual Channel Control: Individual volume controls for each channel ensure you never miss a message.
Programmable Buttons: Customise controls to your needs for fast, efficient operation.
GPIO Automation: Trigger cue lights or announcements with simple automation.
Message Replay: Instantly replay missed messages for complete confidence.

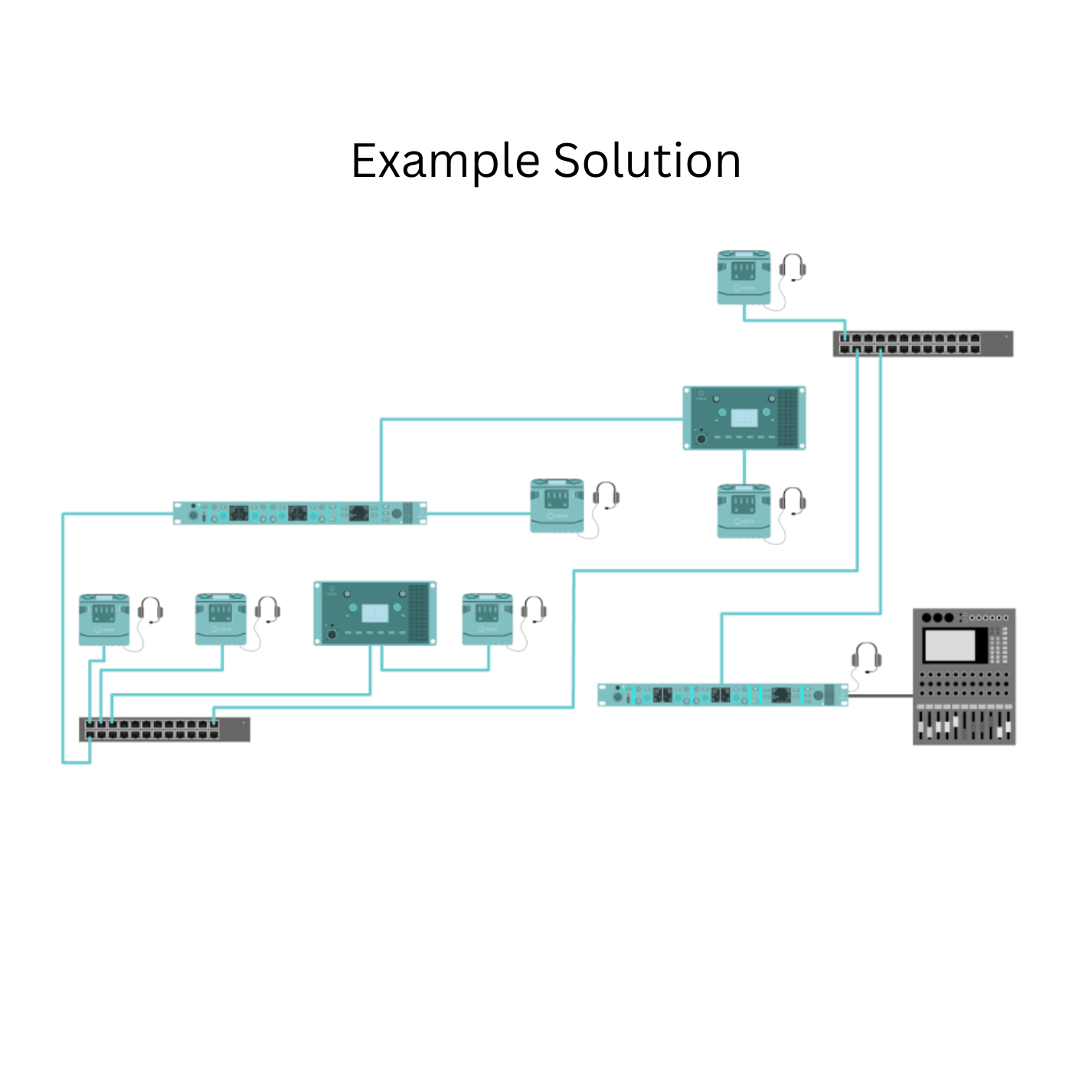

Daisy-Chain Connectivity: Link multiple stations on a single network connection—perfect for expanding your system.
PoE Power: Power the Q310 via a standard PoE switch or through a PunQtum speaker station.
Why Choose the Q310?
Seamless Communication: Experience crystal-clear, real-time audio for smooth coordination from stage to control room.
Versatile Installation: The compact design fits any setup, whether permanent or portable.
Professional Performance: Trusted features for demanding environments.
Enhance your next event or production with professional-grade communication using the Q310 Intercom Station.
Capabilities and Functions
punQtum Q310 Desk/Wall Mount Panel Features & Specifications
punQtum Q310 Desk/Wall Mount Panel Product Features
- Wall mount or desk mount
- Powered by any PoE source (Switch/Injector)
- Daisy-chain, along with Q210 beltpacks (dependent on PoE source)
- Built-in GPIO connection to enable controls (e.g with a foot switch)
- Activate Talk-Through mode to ensure critical communication is never missed
- Audio replay of missed calls (up to 30 seconds)
- No master station needed
- Supports industry-standard headsets (4-Pin)
- Optional gooseneck microphone
- Works with any PoE network switch
- Talk/Listen to any 2 out of 32 party lines
- 2 configurable “Talk-to-many“ channels
- Flexible configuration
- Choose 1 out of 4 program inputs*
- Talk to max. 4 PA channels*
- On- and Offline configuration software (Win/Mac)
punQtum Q310 Desk/Wall Mount Panel Technical Specifications
**General Specifications**
- Power Source: 50 … 54 VDC
- PoE Power: 30W per PoE port
- Sampling Rate: 16 kHz
- Headset Connector: XLR 4pin male

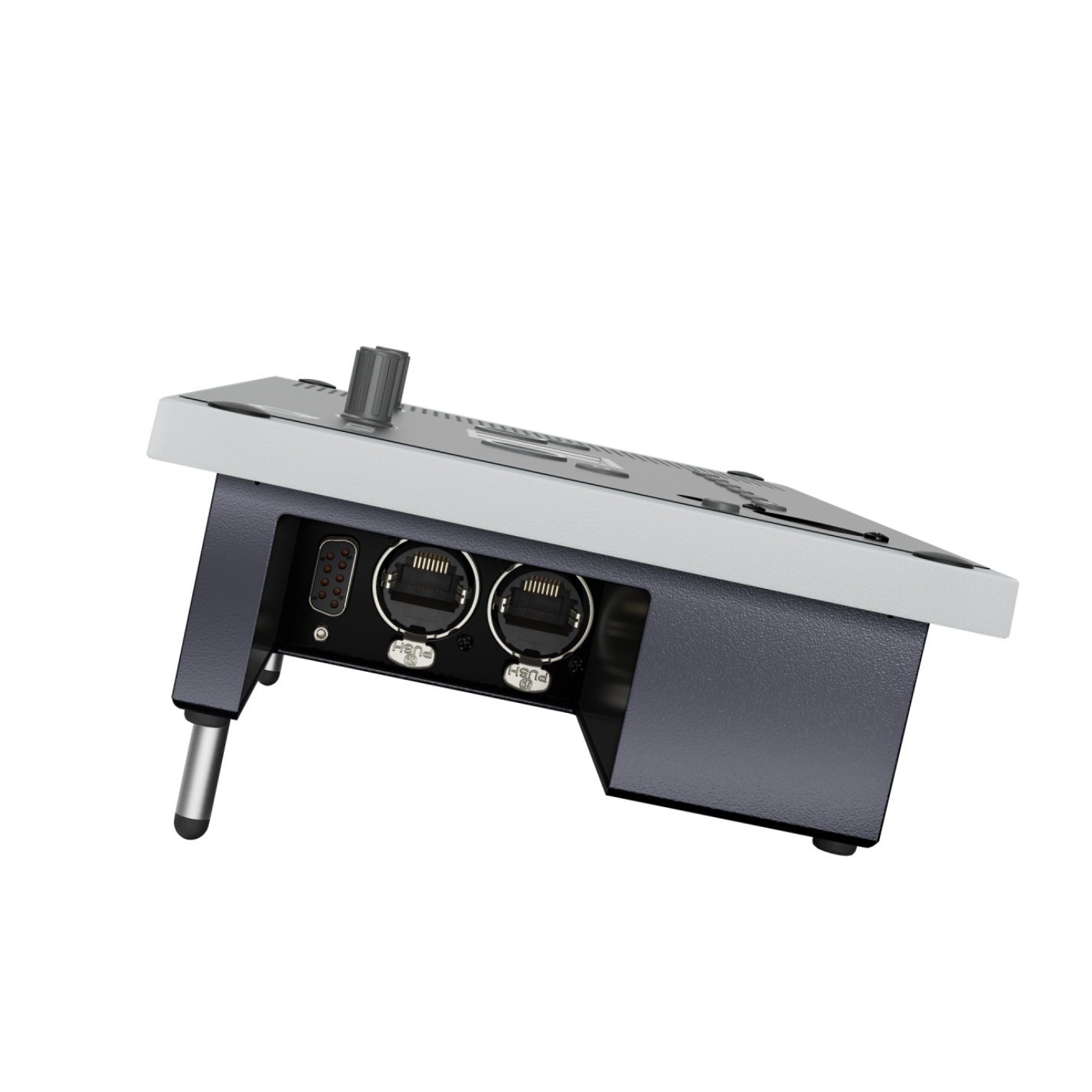

- Connector Ethernet/LAN: 2x RJ-45 EtherCon
- Microphone Connector: 1/4“ jack with 7/16“ -20 UNF thread
- Built-in Speaker: 5 Watts
- Operating Temp: -10° to +50°C
- Operation Environment Humidity: 0 to 90% non-condensing
**Headphone Output**
- Output impedance: 27 Ohm
- Output level: + 18.5 dBu (max.)
- Frequency response: 20Hz to 7kHz (+0/-1dB)
- Distortion @ 1kHz: <-73 dB (0.02%)
- Dynamic range (20kHz) 95 dB (A-weighted)
**Microphone Input**
- Bias Voltage: 5.4V (typ.)
- Full-scale input range: -53 … +4 dBu
- Distortion @ 1kHz: < -75 dB (0.02%) @ + 4dBu FS (min. gain), < -68 dB (0.04%) @ -30dBu FS, < -49 dB (0.35%) @ -53dBu FS (max. gain)
- Dynamic range: 92 dB (min. gain), 59 dB (max. gain)
**Analog Interface Outputs**
- Input Impedance: < 2 Ohm
- Input Level: + 18 dBu (max.)
- Frequency Response: 20Hz to 7kHz (+0/-0.25dB)
- Distortion @ 1kHz: <-80 dB (0.01%)
- Dynamic Range (20kHz): 98 dB (A-weighted)
**Analog Interface Inputs**
- Input Impedance: > 20 kOhm
- Input Level: + 18 dBu (max.)
- Frequency Response: 20Hz to 7kHz (+0/-0.25dB)
- Distortion @ 1kHz: <-80 dB (0.01%)
- Dynamic Range (20kHz): 90 dB (A-weighted)
**GPI Inputs**
- Input Connector: D-Sub 9 female
- Number of GPI Inputs: 4
- Input Type: Optocoupler input with current limiter
- Input Voltage: 5 … 50 VDC
- Input Current: 5 mA (typ.)
**GPI Outputs**
- Output Connector: D-Sub 9 male
- Number of GPI Outputs: 4
- Output Type: PhotoMOS Relay
- On Resistance: < 3 Ohm
- On Current: 200 mA (max.) – resettable PTC fuse 400 mA
- Maximum Voltage: 50 VDC / 35 VAC
Would you like more information on the punQtum Q310 Desk/Wall Mount Panel?
For more indepth information, please download the punQtum Q310 Desk/Wall Mount Panel product brochure.
