Motorola MOTOTRBO SLR8000 Repeater

'- High Performance: 100W transmitter output and high sensitivity receiver ensure clear voice quality even in challenging conditions.
- Advanced Technology: Seamlessly integrates voice and data with the latest digital technology, enhancing communication capacity and efficiency.
- Reliable and Robust: Validated through Motorola’s rigorous Accelerated Life Testing (ALT) program, ensuring durability and round-the-clock operation.
- Space and Cost Efficient: Occupies only 2U of rack space with low power consumption, resulting in low cost of ownership.
- Versatile and Customizable: Compatible with the full MOTOTRBO™ feature set, it offers customization options like an internal preselector amplifier, antenna relay module, and internal wireline card for tone control and additional inputs.

'- Frequency Range: 136-174MHz, 400-470MHz
- Channel Spacing: 25*/ 12.5 kHz
- Channel Step Size: 5 Hz
- Frequency Stability: 0.5 ppm
- Channel Capacity: 64
- RF Output Power: 1-100 W
- Dimensions (H x W x D): 89 x 483 x 438 mm
- Weight: 14.1 kg
- Input Voltage (AC): 100-240 Vac, 47-63 Hz
Current (standby): 110 / 240 V 0.25 / 0.3 A
Current (transmitting at 100 W): 110 / 240 V 2.1 / 1.1 A (typical) 2.0 / 1.1 A (typical)
- Input Voltage (DC): 12 V (11.0-15.5 V) / 24 V (21.6-32.0 V)
Current (standby): 24 V 0.5 A
Current (transmitting at 100 W): 24 V 8.6 A (typical) 8.2 A (typical)
- Input Power Modes: AC only, DC only, AC with Battery Revert
- Operating Temperature Range: -30 to +60 °C
- Humidity: RH of 95%, Non-condensing at 50 °C
- Max Duty Cycle: 100%
- Digital Vocoder Type: AMBE+2™
- Battery Charger Capacity: (12 / 24 V) 5 A
- Connectivity, front panel: USB B Receptacle, Microphone (RJ45), Speaker (integrated)

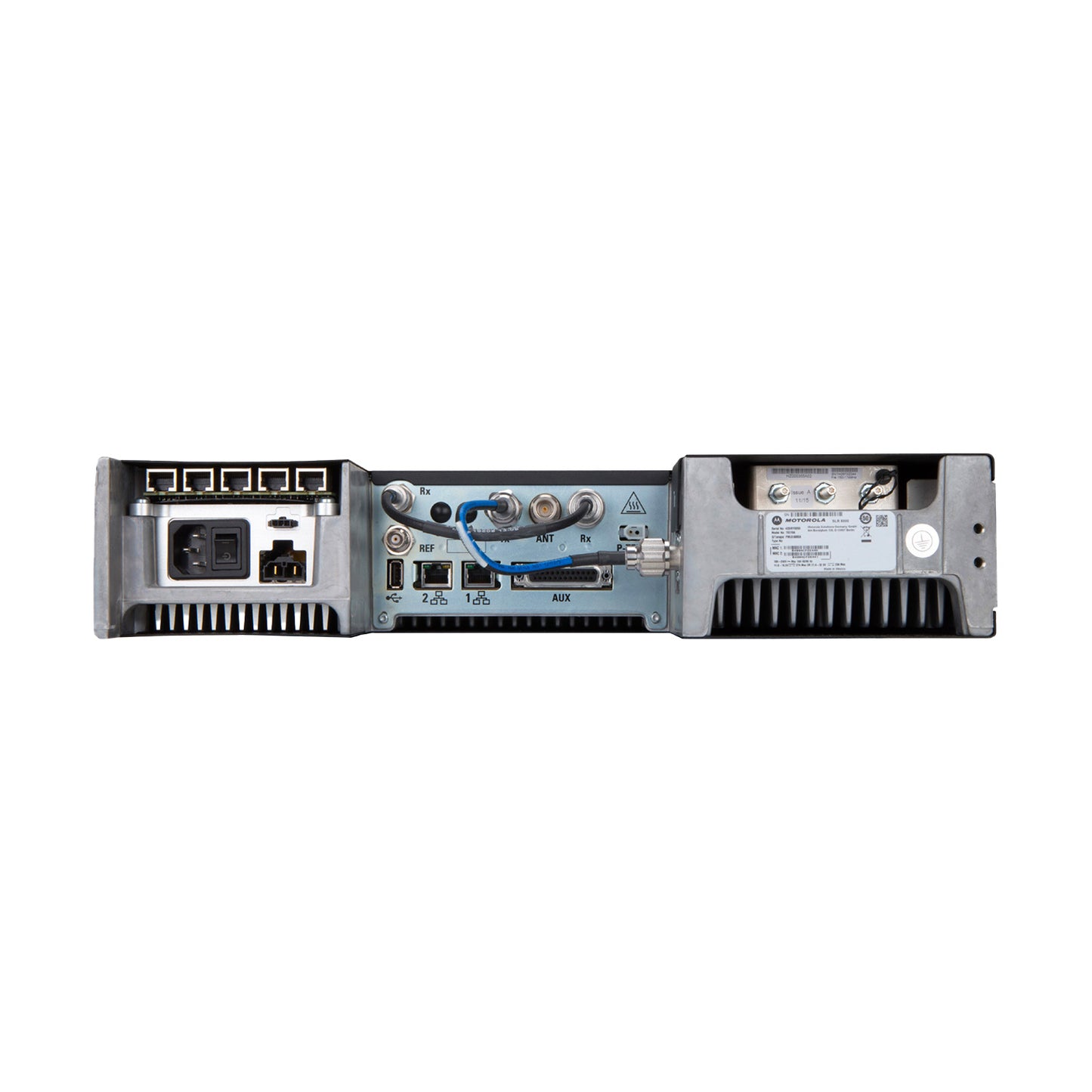

- Connectivity, rear panel: Tx (N female), Rx (BNC female), USB A Receptacle, 2x Ethernet, DB25 Accessory Connector, External Reference (BNC Female)
- External Reference: 5 / 10 MHz (Auto-detect)
- Supported System Types:
Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus
Analogue Conventional, Analogue Conventional Voting, MPT 1327
- Audio Types:
Input: Balanced (600 ohms and Country-specific Impedances), Unbalanced (1000 ohms), Microphone Accessory Port.
Output: Balanced (600 ohms and Country-specific Impedances), Unbalanced (600 ohms), Integrated Speaker.
- Audio Levels:
Input: Balanced: +10 to -30 dBm, Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD.
Output: Balanced: +7 to -30 dBm, Unbalanced: Adjustable, 330 mV rms nominal @ 60% RSD.
- FCC Emission Designators: 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W
- FCC Type Acceptance: ABZ99FT3095 (VHF), ABZ99FT4098 (UHF)
- IC Description: 109AB-99FT3095 (VHF), 109AB-99FT4098 (UHF)

**Receiver**

- Sensitivity, 12dB SINAD: 0.3 uV (0.22 uV typical)
- Sensitivity, 5% BER: 0.25 uV (0.18 uV typical)
- Selectivity (TIA603D), 25 / 12.5 kHz: 83 / 52 dB (VHF), 78 / 52 dB (UHF)
- Selectivity (TIA603), 25 / 12.5 kHz: 83 / 75 dB (VHF), 80 / 75 dB (UHF)
- Intermodulation Rejection (TIA603D/ETSI): 85 / 73 dB (87 / 78 dB typical)
- Spurious Rejection (TIA603D/ETSI): 85 / 75 dB (95 / 90 dB typical)
- Audio Distortion: < 3% (<1.5% typical)
- Hum and Noise, 25 / 12.5 kHz: -50 / -45 dB (-56 / -52 dB typical)
- Blocking: > 110 dB (113 dB typical)

**Transmitter**

- RF Output Power:
DC (24 V) or AC 1-100 W
DC (12 V) 1-50 W
- Max Duty Cycle: 100%
- Intermodulation Attenuation: 55 dB
- Adjacent Channel Power (TIA603D), 25/ 12.5 kHz: 75 / 60 dB
- Adjacent Channel Power (ETSI), 25 / 12.5 kHz: 75 / 60 dB (78 / 62 dB typical)
- Conducted Spurious Emissions: 40 dBm < 1 GHz, -30 dBm > 1 GHz
- Audio Response: TIA603D
- Audio Distortion: < 3% (<1% typical)
- Hum and Noise, 25/ 12.5 kHz: -50 / -45 dB (-55 / -52 dB typical)
Rated System Deviation, 25 /12.5 kHz ±5.0 / ±2.5 kHz
