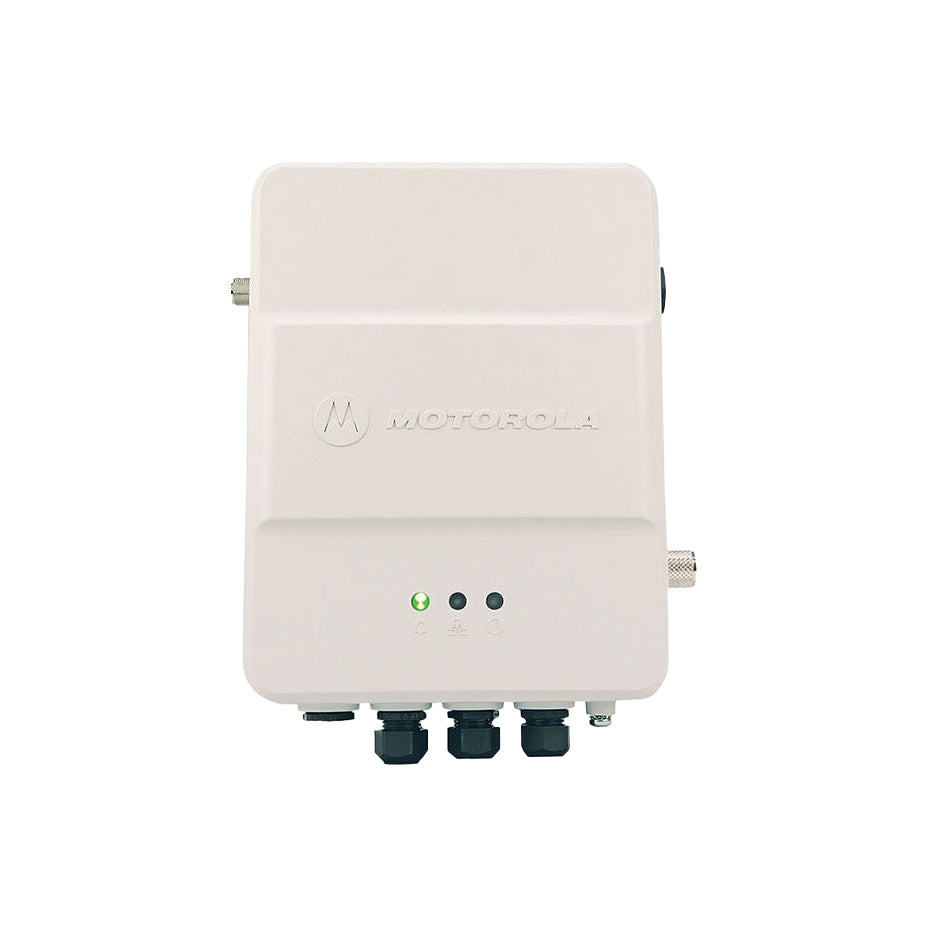

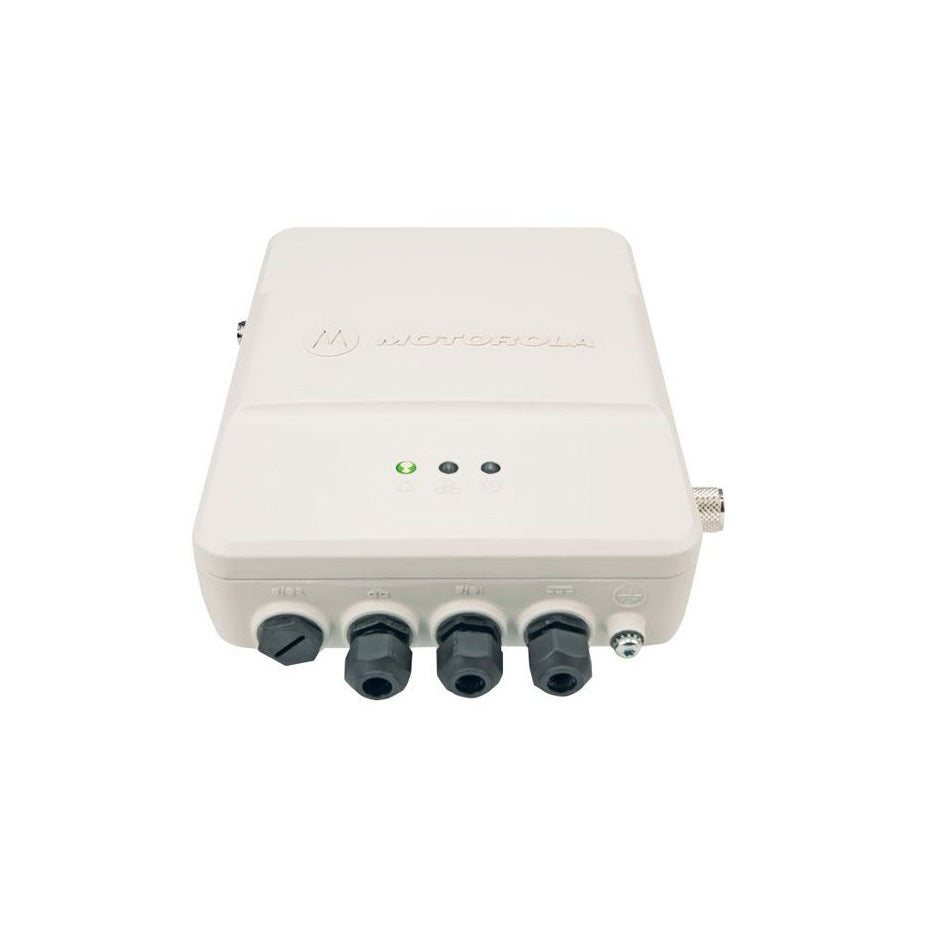

Motorola MOTOTRBO SLR1000 Repeater
Motorola MOTOTRBO SLR1000 Repeater
SKU:MOT-MDR11JDGANQ1AN-AU
Couldn't load pickup availability
Whether you want to eliminate dead zones or extend coverage to remote areas, the SLR 1000 has you covered. Compact and easy to install, this versatile device is designed for indoor and outdoor use and can scale with your growing needs.
To keep your team connected, you need uninterrupted radio coverage, but network dead zones and remote locations can pose challenges. Unlike traditional repeaters, the SLR 1000 is IP65-rated for dust and water resistance, making it suitable for deployment in various environments, including campuses, parking garages, and outdoor areas. Its compact size allows for flexible installation options, such as wall or pole mounting. Its low-power, fanless design saves space and energy, cutting costs.
As your organization expands, the SLR 1000 can adapt to it. It supports conventional and trunking systems for voice and data, so upgrading to a larger system doesn’t necessarily mean replacing your repeater.
With over 10 years of expertise in DMR, Motorola Solutions and their reliable MOTOTRBO™ technology ensure you can trust the SLR 1000 to deliver.
Capabilities and Functions
Motorola SLR1000 Repeater Features & Specifications
Motorola SLR1000 Repeater Product Features
- Indoor and outdoor use
- Ease of installation
- Reduced total cost of ownership
- Expandable
Motorola SLR1000 Repeater Technical Specifications
- Frequency Range: 136-174 MHz, 400-527 MHz
- Channel Spacing: 25 / 12.5 kHz
- Frequency Stability: 0.5 ppm
- Frequency Generation: Synthesized
- Channel Capacity: 64
- RF Output Power: 1-10 W
- Dimensions (H x W x D): 11 x 9 x 4 in (279.4 x 228.6 x 101.6 mm)*
- Weight: 10 lbs (4.54 kg)
- Input Voltage (DC): 12 V (11.0-15.5 V)
- Current (standby): 0.7 A (0.63 A typical)
- Current (transmitting at 10 W): 3 A (typical)
- Input Power Modes: DC only, Optional AC/DC Power Supply Available
- Operating Temperature Range: -22 to +140 °F (-30 to +60 °C)
- Ingress Rating: IP65
- Max Duty Cycle: 100%
- Digital Vocoder Type: AMBE+2™

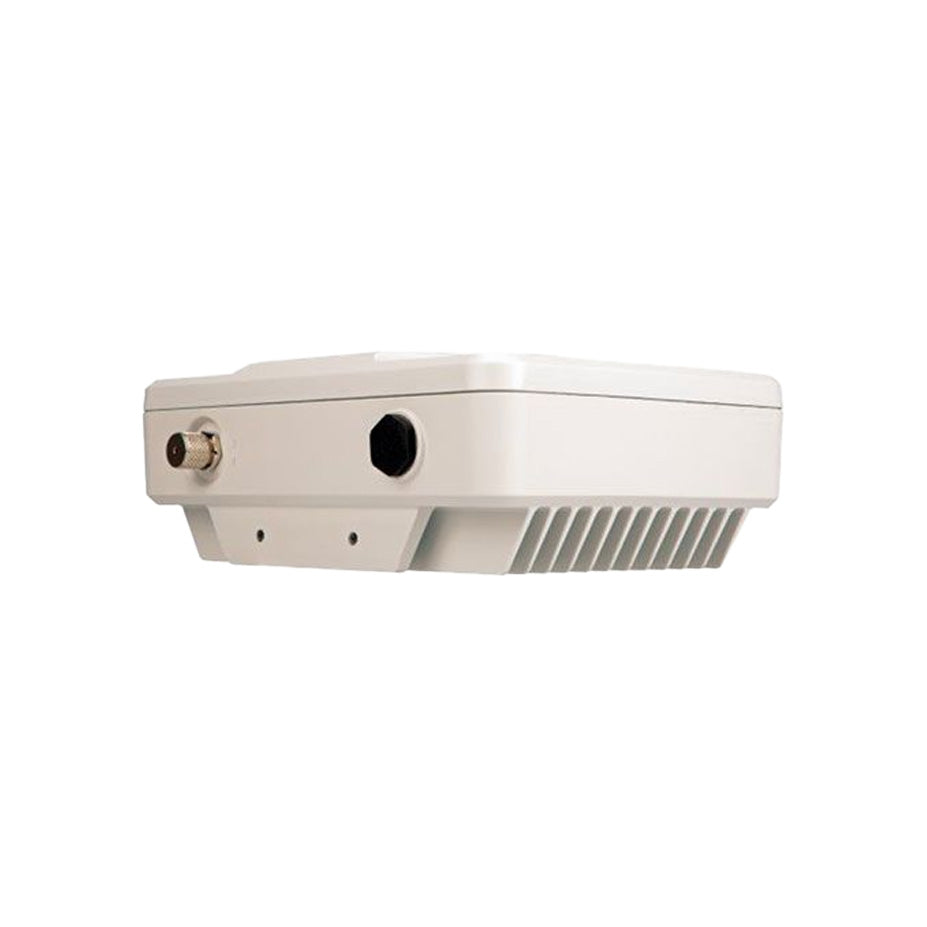

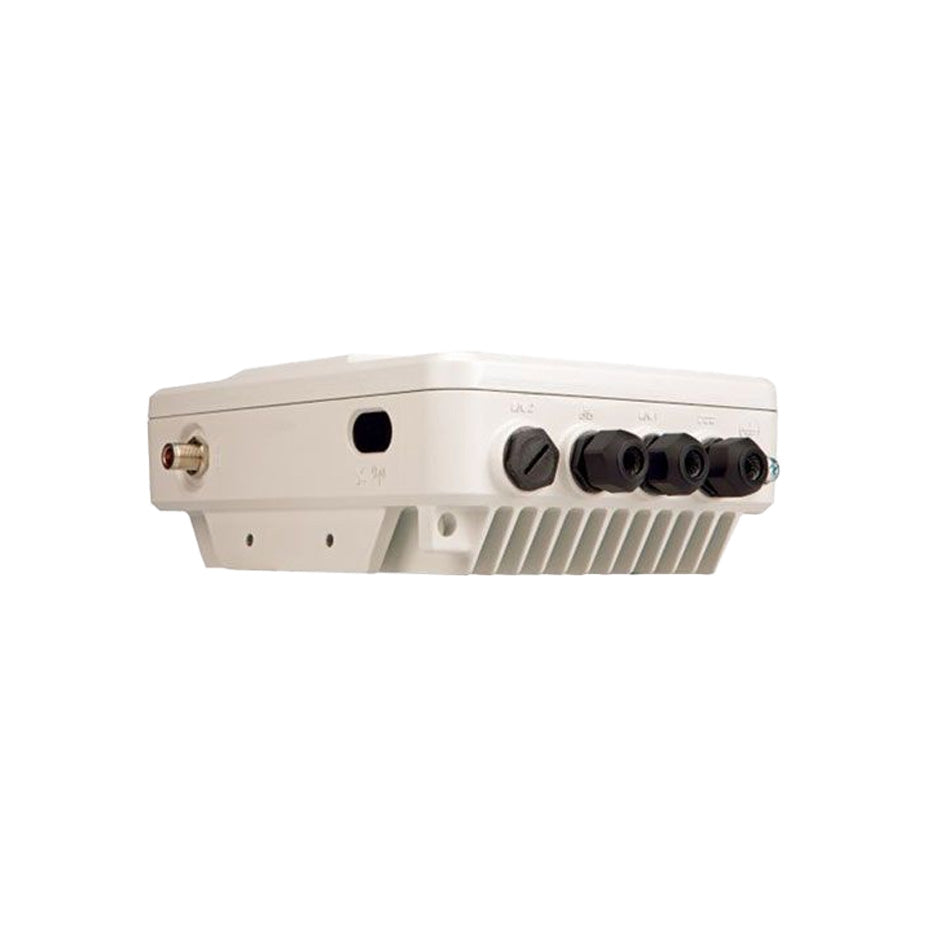

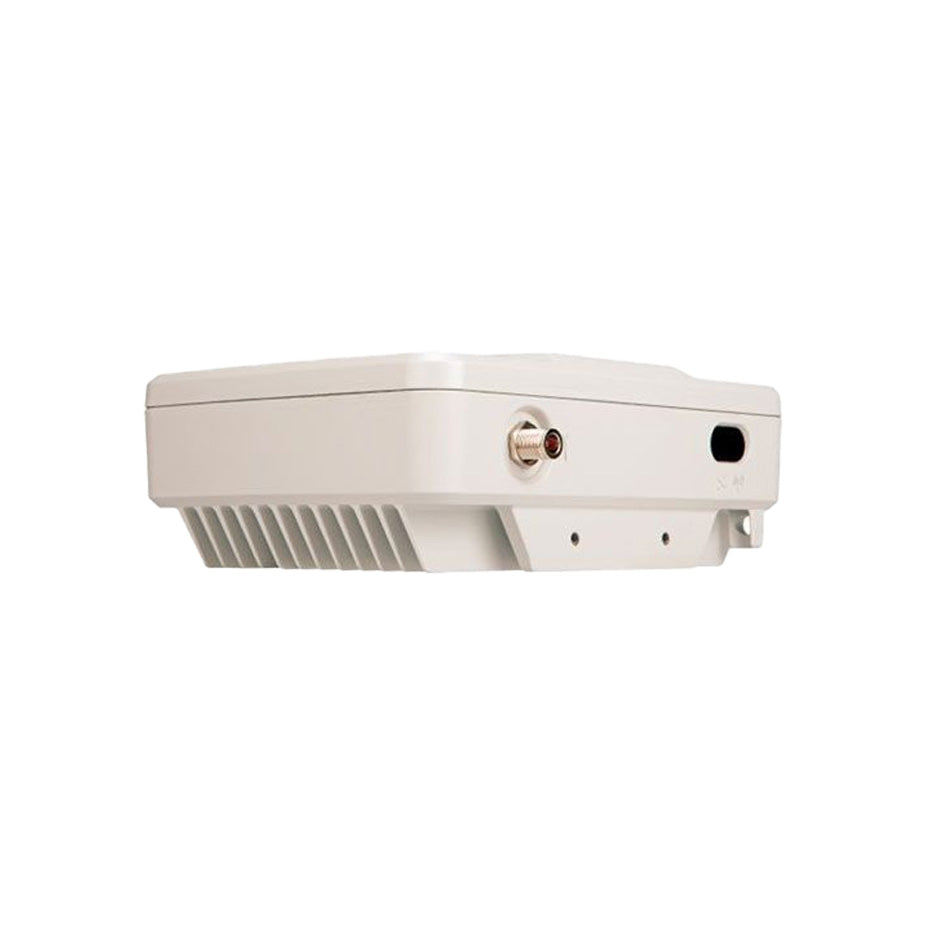

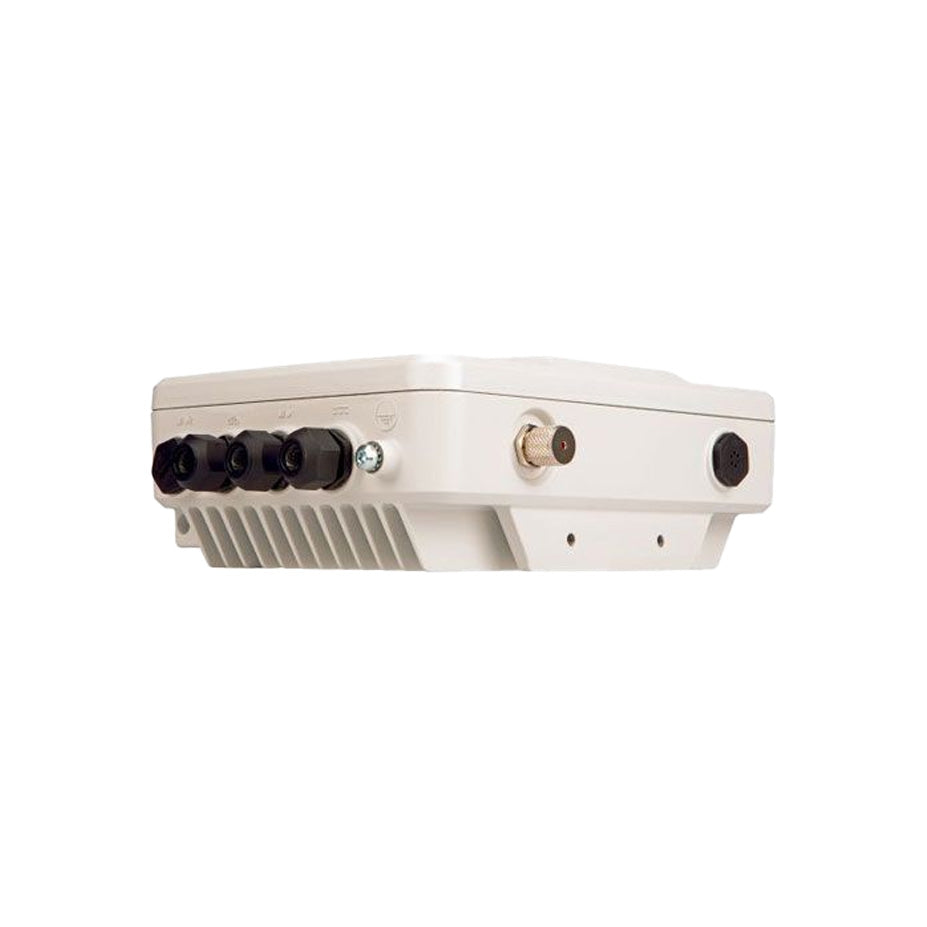

- Connectivity, right side: Rx (N female)
- Connectivity, left side: Tx (N female)

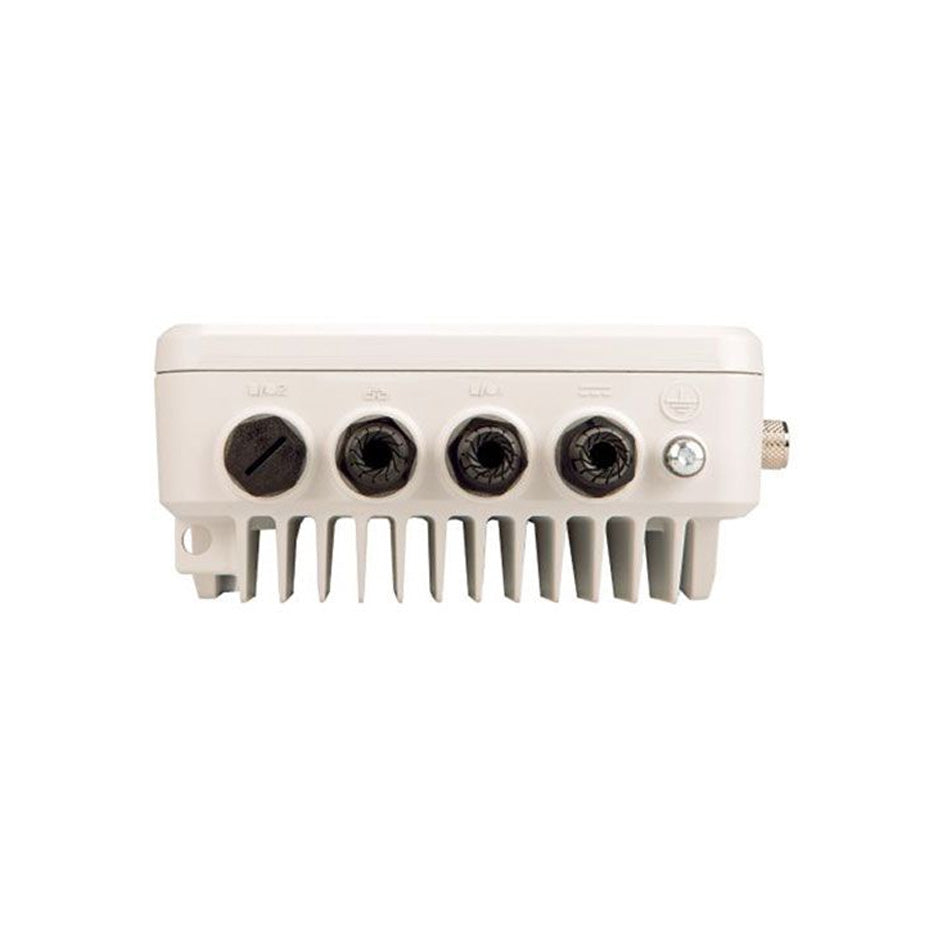

- Connectivity, bottom: USB B Receptacle, 1x Ethernet, RJ45 Accessory Connector, DC Input
- Modes of Operation: Half Duplex / Duplex
**Receiver**
- Frequency Range: 136-174 MHz, 400-527 MHz
- Sensitivity, 12dB SINAD: 0.3 uV (0.22 uV typical)
- Sensitivity, 5% BER: 0.25 uV (0.18 uV typical)
- Selectivity (TIA603D), 25* / 12.5 kHz:
VHF: 83 / 55 dB
UHF: 80 / 55 dB
- Selectivity (TIA603), 25* / 12.5 kHz:
VHF: 83 / 68 dB
UHF: 80 / 68 dB
- Intermodulation Rejection (TIA603D/ETSI): 80 / 70 dB (82 / 73 dB typical)
- Spurious Rejection (TIA603D/ETSI): 85 / 75 dB (95 / 90 dB typical)
- Audio Distortion: < 3% (<1% typical)
- Hum and Noise, 25* / 12.5 kHz: -50 / -45 dB
- Conducted Spurious Emissions: -57 dB
**Transmitter**
- RF Output Power: 1-10 W
- Max Duty Cycle: 100%
- Intermodulation Attenuation: 40 dB
- Adjacent Channel Power
(TIA603D), 25*/ 12.5 kHz: 78 / 62 dB
(ETSI), 25* / 12.5 kHz: 78 / 62 dB
- Modulation Fidelity: 4FSK FSK Error 5%, FSK Magnitude 1%
- Conducted Spurious Emissions: -36 dBm < 1 GHz, -30 dBm > 1 GHz
- Audio Response: TIA603D / ETSI
- Audio Distortion: <1%
- Hum and Noise, 25* / 12.5 kHz: -50 / -45 dB
- Rated System Deviation, 25* / 12.5 kHz: ±5.0 / ±2.5 kHz
