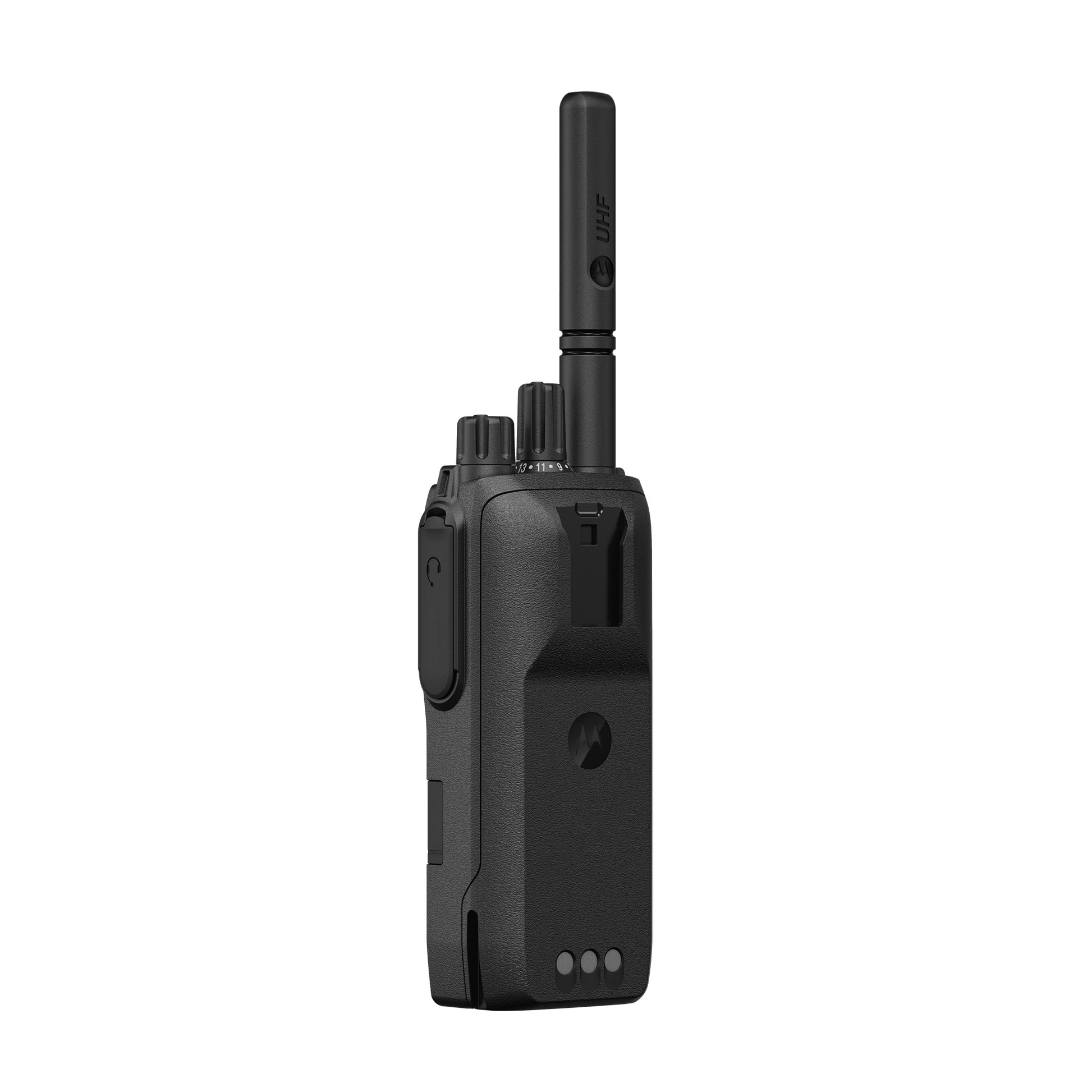

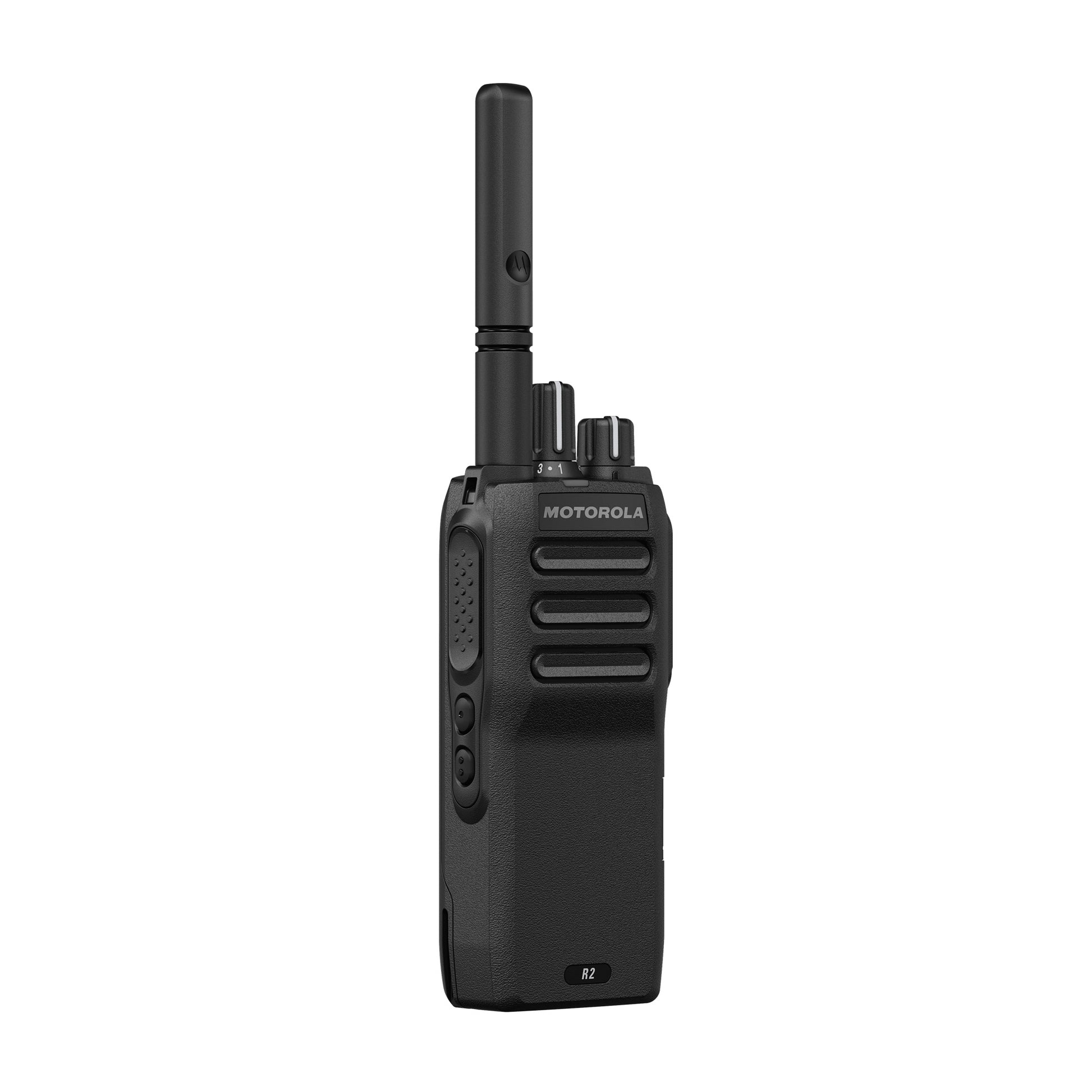

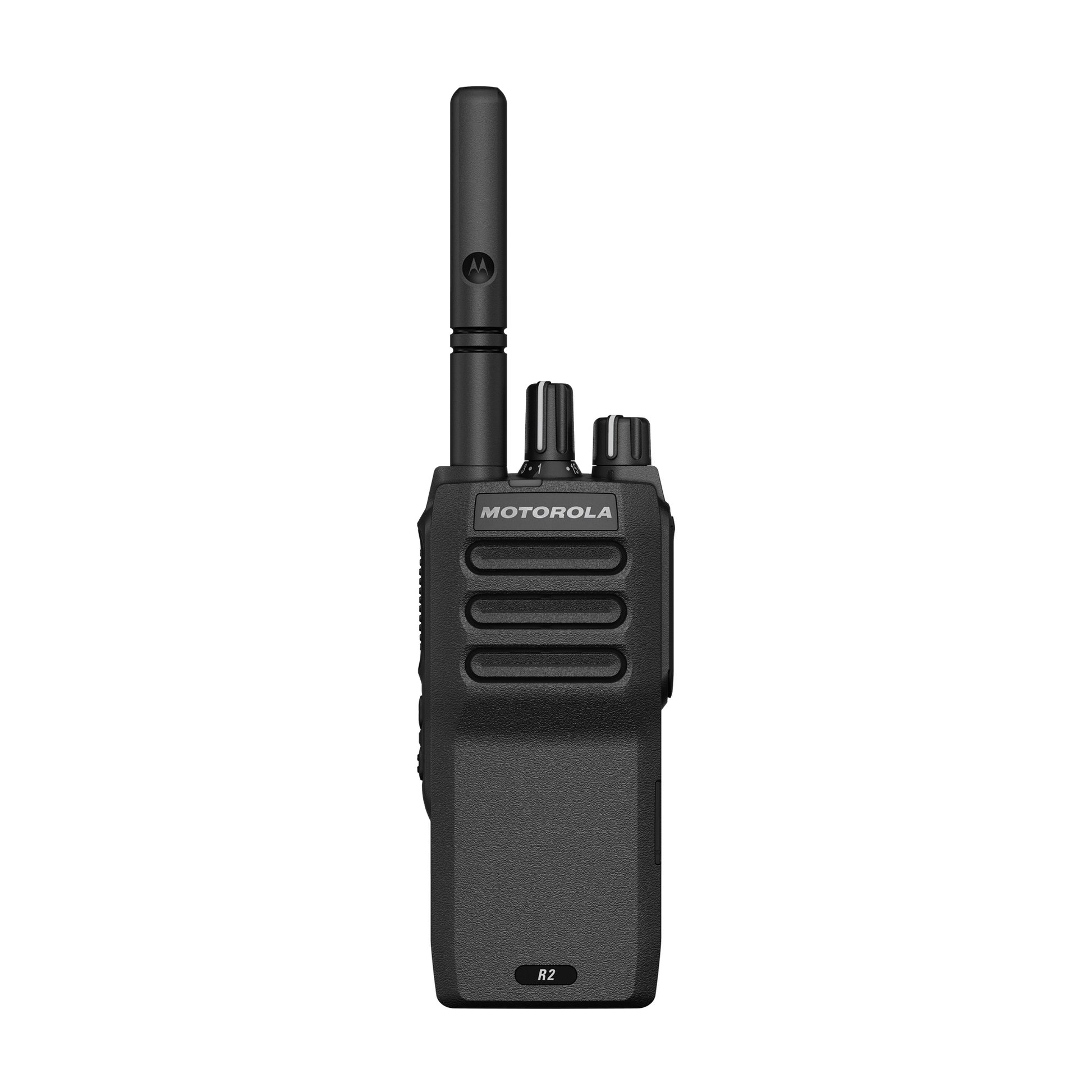

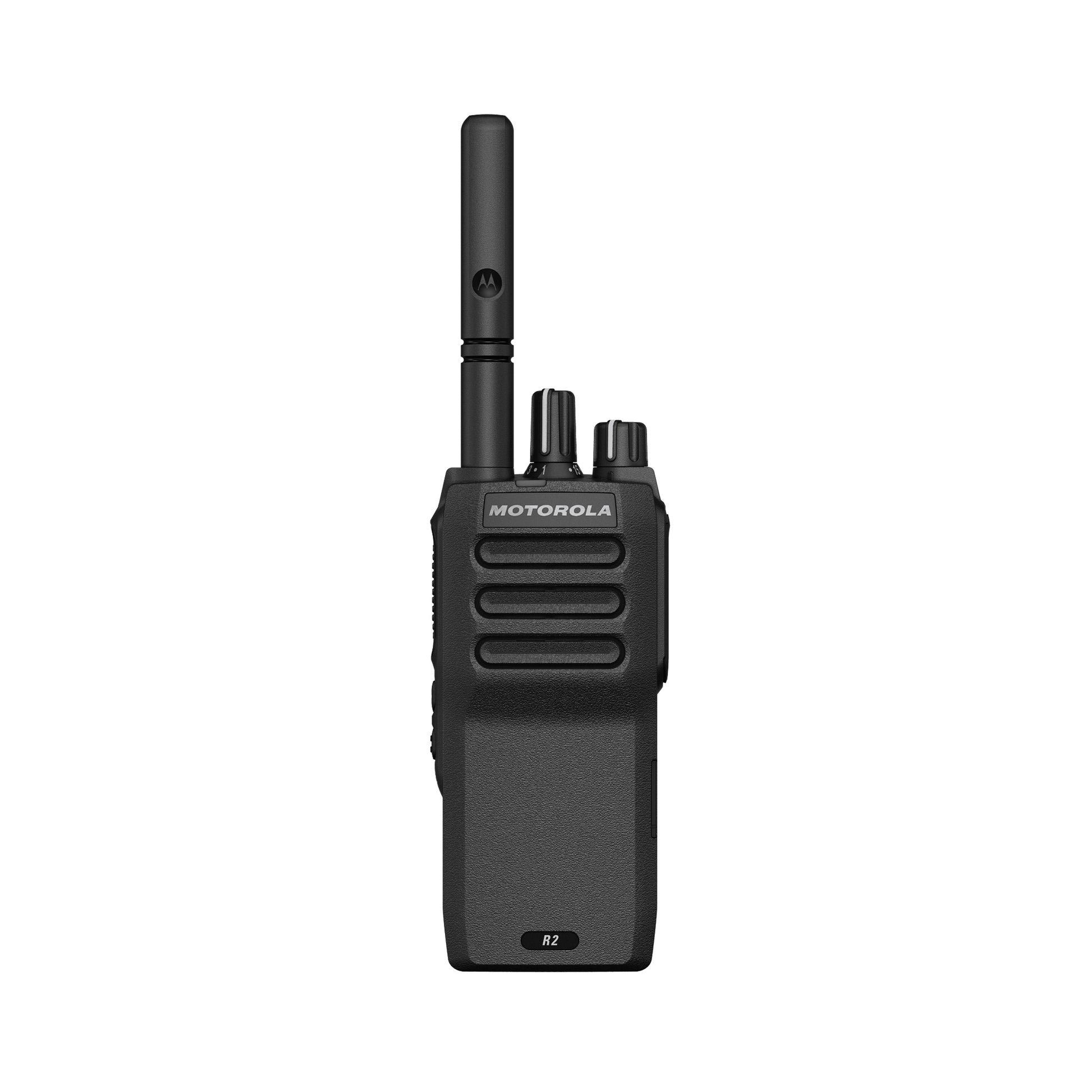

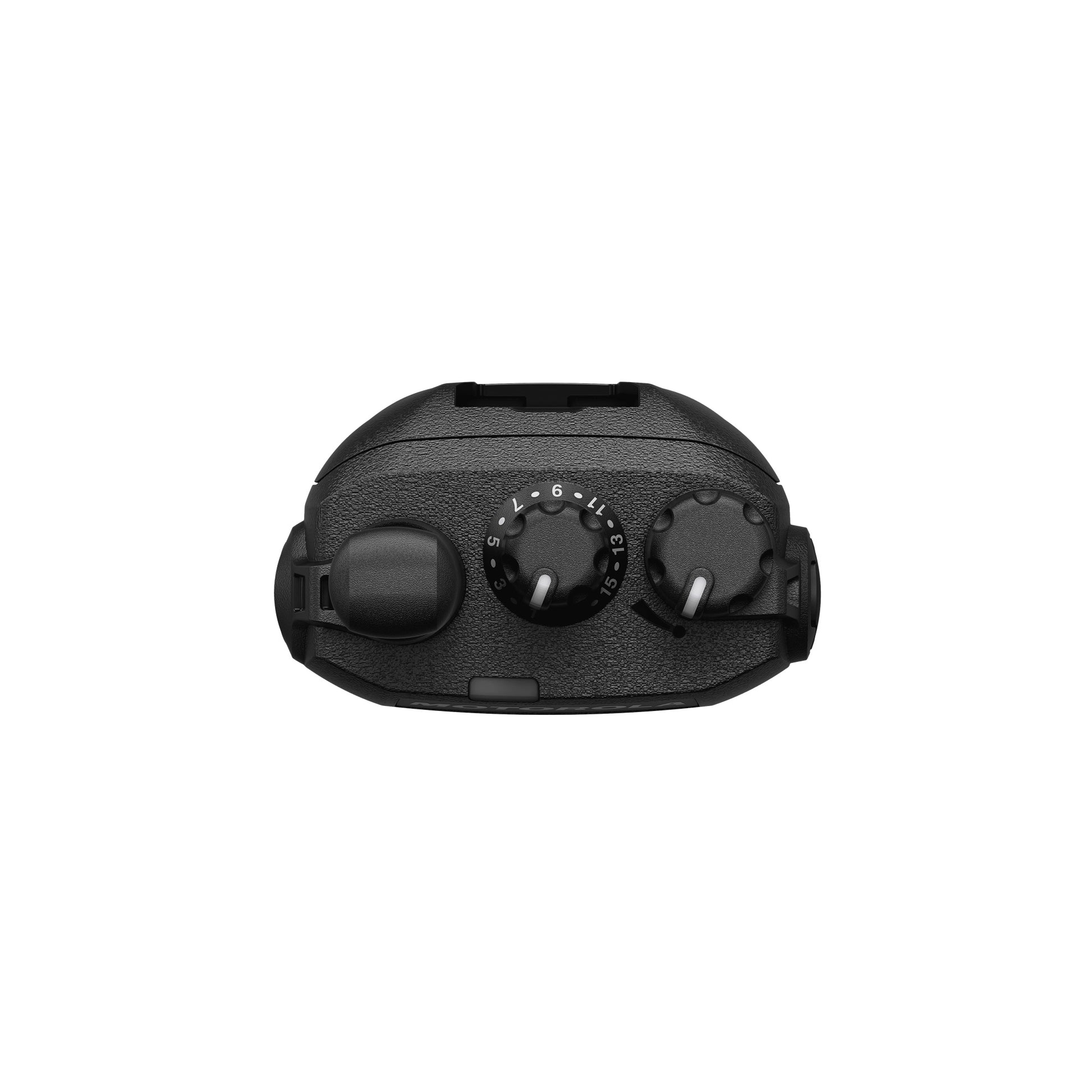

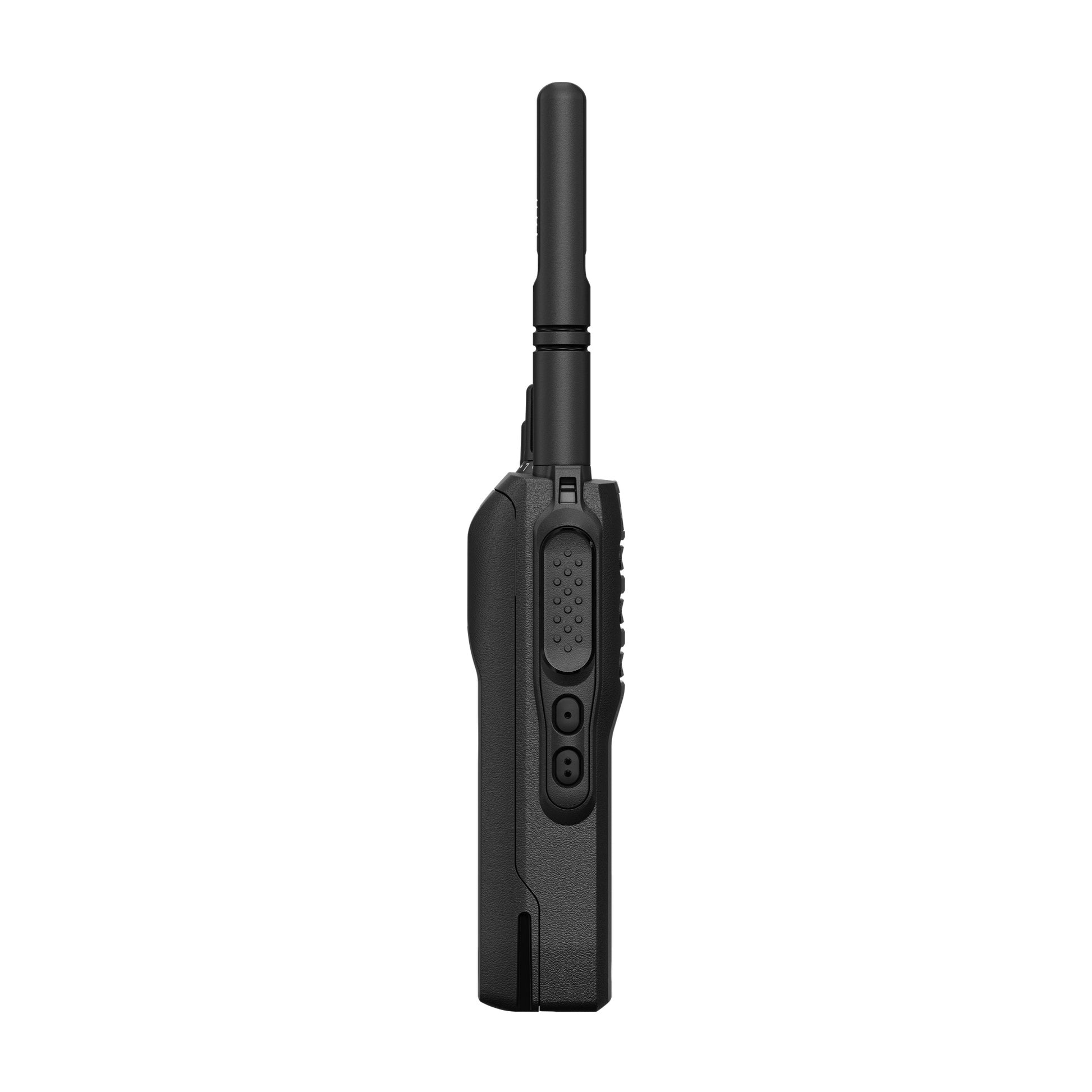

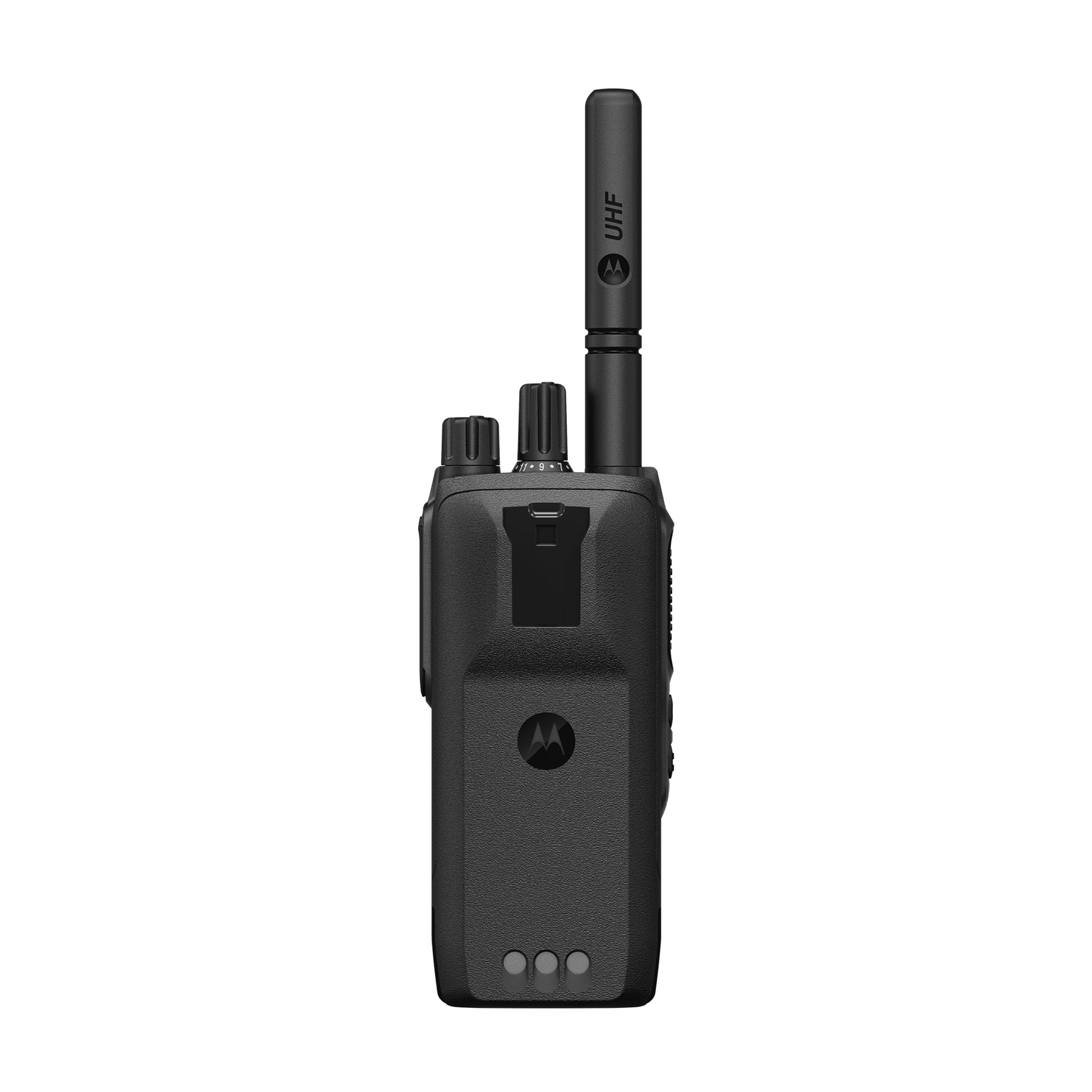

Motorola MOTOTRBO R2 Portable Two-Way Radio
Motorola MOTOTRBO R2 Portable Two-Way Radio
SKU:MOT-AZH11JDC9JA2AN-AU
Couldn't load pickup availability
The Motorola MOTOTRBO™ R2 is a durable and ergonomic workhorse, ensuring easy handling and reliable performance throughout the workday. With superior range, configurable audio, and seamless integration, it’s a valuable addition to any team.
Designed to withstand tough environments, the R2 has an IP55 rating and meets Mil-Std-810 standards for 11 conditions. Whether in dusty factories or wet landscaping, it’s built to perform. Even with gloves, you can use it comfortably and confidently.
Weighing just 286g with a high-capacity battery, this lightweight radio is as tough as they come. It has passed rigorous testing to simulate up to 5 years of use. The robust design extends to the dust cover, which rotates to match the slim contour when connected to an audio accessory.
With SINC+ noise cancellation, long range, and selectable audio profiles, your message will reach every corner of the workplace.
Includes: Standard Impres Battery (PMNN4600), Antenna and Belt Clip.
Capabilities and Functions
Motorola R2 Two-Way Radio Features & Specifications
Motorola R2 Two-Way Radio Product Features
'- 64 channels
- Single-site conventional
- Extended Range Direct Mode
- Dual-Capacity Direct Mode
- IP Site Connect
- Capacity Plus single site, 2 repeaters
- Transmit Interrupt
- Dual-priority scan
- Secure Enhanced Linux operating system
- Enhanced privacy
- Analogue scrambling
- Radio disable/enable
- Remote monitor
- Voice announcement
- Pre-programmed text messaging • Loudness up to 101 phons
- SINC+ noise suppression
- Acoustic feedback suppression
- Quick Call II / MDC1200 capable
- User-selectable audio profiles • Automatic gain control
- Received audio leveling
- Sleek & ergonomic form factor • Rugged to MIL-STD 810
- IP55 (dust and water ingress protection)
- 2 programmable buttons
- Home channel reminder
- Rental timer
Motorola R2 Two-Way Radio Technical Specifications
'- Frequency: VHF, UHF1, UHF2
- Typical RF Output: 5W
- Dimensions: 125 mm x 55 mm x 37 mm
- Weight: 285g
- Battery life (analogue / digital): 19.5 hours / 26.5 hours
- FCC description: AZ489FT3852
- IC description: 109U-89FT3852
**Transmitter**
- 4FSK digital modulation:
12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination: 7K60F1W
- Digital protocol: ETSI TS 102 361-1, -2, -3
- Conducted/radiated spurious emissions (TIA603E): < -36 dBm for < 1 GHz ; < -30 dBm for > 1 GHz
- Adjacent channel power: > 60 dB @ 12.5 kHz / >70 dB @ 20/25 kHz
- Frequency stability: ± 0.5 ppm
- Modulation limiting: ± 2.5 kHz @ 12.5 kHz / ± 4.0 kHz @ 20 kHz / ± 5.0 kHz @ 25 kHz
**Receiver**
- Analog sensitivity (12dB SINAD): 0.18 μV (typical)
- Digital sensitivity (5% BER): 0.16 μV (typical)
- Conducted/radiated spurious emissions (TIA603E): < -57 dBm
- Intermodulation (TIA603E): > 70 dB
- Adjacent channel selectivity (TIA603A)-1T: > 60 dB @ 12.5 kHz / > 70 dB @ 20/25 kHz
- Adjacent channel selectivity (TIA603E)-2T: > 55 dB @ 12.5 kHz / > 70 dB @ 20/25 kHz
- Spurious rejection TIA603D: > 70 dB
- Frequency stability: ± 0.5 ppm
**Audio**
- Digital vocoder type: AMBE+2
- Audio response: TIA603E
- Audio output power (Rated/Max): 1W / 3W
- Audio distortion at rated power: 3% (typical)
- Maximum speech loudness (ISO 532B): 101 phon
- Hum and noise: -45 dB @ 12.5 kHz / -45 dB @ 20/25 kHz
- Operating temperature: -30 °C to 60 °C
- Storage temperature: -40 °C to 85 °C
- Thermal shock: Per MIL-STD 810C, D, E, F, G, H
- Humidity: Per MIL-STD 810C, D, E, F, G, H
- Electrostatic discharge: IEC 61000-4-2 Level 4
- Dust and water intrusion: IEC60529 IP55
- Salt fog: Per MIL-STD 810C/D/E/F/G/H
- Packaging test: Per MIL-STD 810C/D/E/F/G/H
Would you like more information on the Motorola R2 Two-Way Radio?
For more indepth information, please download the Motorola R2 Two-Way Radio product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
