Motorola MOTOTRBO Ion Commercial Smart Radio

Motorola MOTOTRBO Ion Commercial Smart Radio

MOT-MDH90ZDU9RH1AN-AUTIA

$2,780.00
$2,780.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

The Motorola Ion Portable Smart Radio is the ultimate communication device for business, combining always-on voice and broadband data capabilities. It offers seamless connectivity across networks and devices, unifying business-critical data and workflows. With its intuitive touchscreen and integrated camera, you can view, send, and stream high-resolution images and videos. The Android platform supports essential enterprise apps like ticketing, scanning, and collaboration while accessing Motorola's unified technology ecosystem for advanced capabilities such as smart virtual assistants and location apps.

Engineered for durability, the Ion features a rugged touchscreen and pristine audio quality, ensuring you can hear and be heard in any environment. It provides seamless communication over public and private networks, with automatic broadband handover and mobile telephony support for making and receiving phone calls. Enhanced with powerful speakers and smart noise cancellation, the Ion guarantees clear communication even in noisy settings. Its multi-layer security approach safeguards your data against unauthorized access and malicious activities, allowing confident use of data and apps on public networks.

Includes: Standard Battery UL TIA4950 (PMNN4804 or PMNN4805), Antenna and Dust Cover (PMHN4429)

View full details

Capabilities and Functions

Motorola MOTOTRBO Ion Radio Features & Specifications

Motorola MOTOTRBO Ion Radio Product Features

- Android platform
- Open app ecosystem
- Motorola Solutions’ unified technology ecosystem
- Full multimedia capabilities
- Intuitive touchscreen interface
- Fast setup and updates
- Seamless device management
- Managed and supported services
- Device security
- Application security
- Data security
- Built for any environment
- Industry-leading audio
- Ultra-rugged touchscreen
- Customizable experience
- Long battery life
- Redesigned antenna
- Intrinsically safe
- Dedicated PTT device
- Seamless Voice Handover
- Full network interoperability with WAVE PTX
- DMR (MOTOTRBO)
- Long Term Evolution (LTE)
- Wi-Fi
- Wi-Fi Hotspot
- 3G and 4G LTE Cellular Connectivity
- Bluetooth
- HD Voice

Motorola MOTOTRBO Ion Radio Technical Specifications

**Hardware**

- Main Display:
4 inch colour display, 480 x 800 px
Capacitive touchscreen with Gorilla Glass
Usable with gloves up to 4 mm thick
Resistant to draft actuation from fresh or salt water, snow, dirt or grease

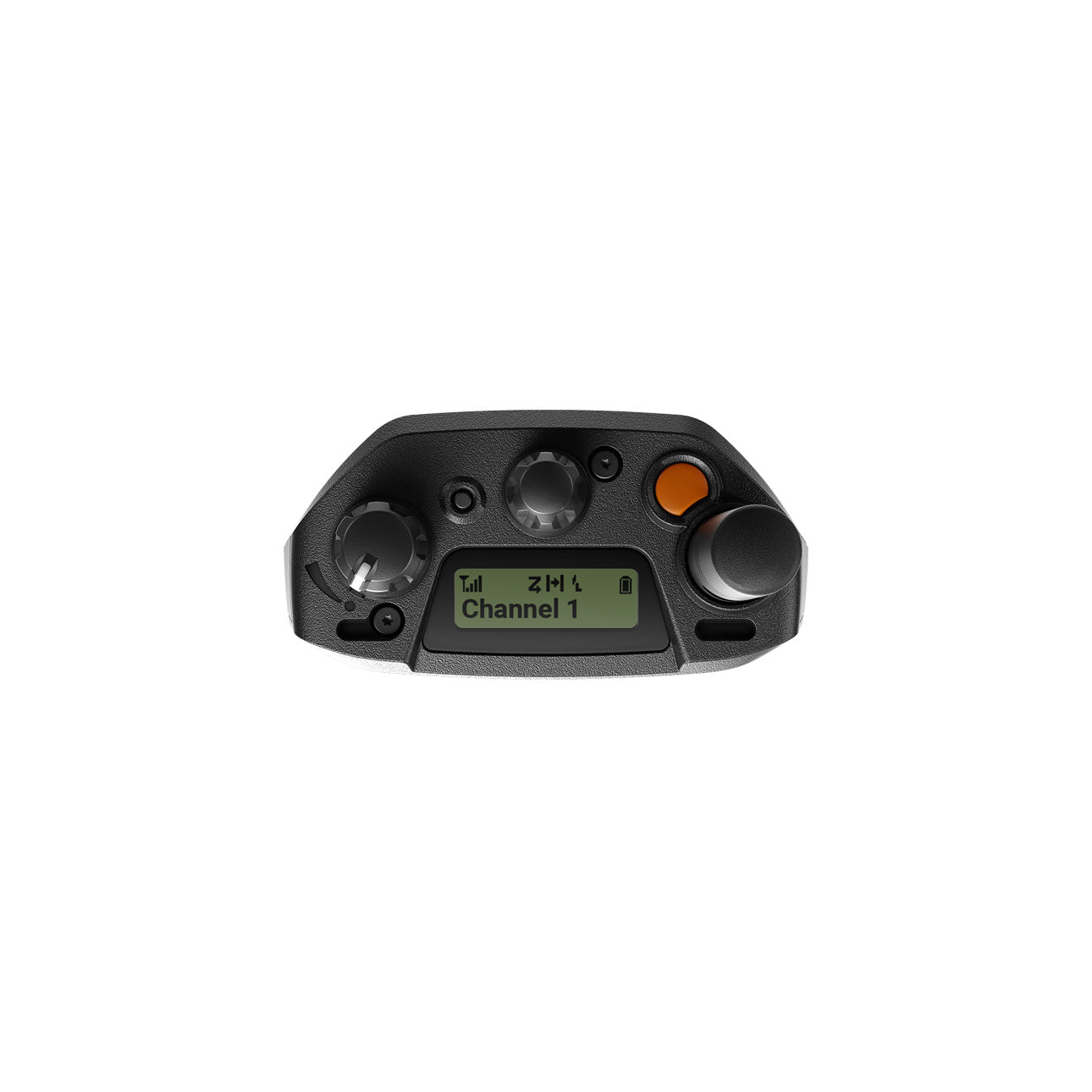

- Top Display: 1.05 in. Monochromatic LCD
- Memory:
4GBRAM
64 GB Internal Storage
Storage is expandable with external up to 256 GB microSDTM card
- Card Slot: 1 x Nano SIM, 1 x Micro SD, e-SIM support
- Camera: Rear 13 MP with auto focus, high-output LED flash and 8x optical zoom
- Sensor Platform:
Hall-Effect Sensor
Ambient Light Sensor
Accelerometer
Barometer
Gyroscope
E-Compass
- User Interface: High-velocity user interface: large touch targets, shallow menu hierarchy, home screen information at a glance.
- Physical Buttons:
Dedicated PTT Button
Dedicated Emergency Button
3 Programmable Buttons
Power/Volume Knob
Display On/Off Button
Channel Selector Knob
- Antenna Length: 6 cm, 9 cm or 15 cm, depending on frequency.

- Hazloc protection: When properly equipped with Motorola UL-Approved battery, MOTOTRBO Ion is UL Approved to TIA-4950 for use in Hazardous Locations, Division 1, Class I, II, III, Groups C,D,E, F, G; Division 2, Class 1, Groups A, B, C, D, T3C. Tamb = -20 °C to +60 °C.

- Ingress protection: IP68 (2 metres, 2 hours)

**CONNECTIVITY**

**LTE**

- Bands Supported:
B1, B2, B3, B4, B5, B7, B8, B20, B28, B38, B39, B40, B41
UMTS: 850 MHz, 900 MHz, 1700 MHz, 1900 MHz, 2100 MHz
- Device Class: 4
- Certifications: TTA IoT for Korea

**DMR (MOTOTRBO)

- Operational Systems:
Digital and Analog Conventional
Dual Capacity Direct Mode
IP Site Connect
Capacity Plus Single/Multi-Site
Capacity Max
- Frequency Bands:
UHF (400 -527 MHz)
Up to 1000 Channels
Up to 250 Zones
- Channel Spacing: 12.5, 25 kHz

**DMR Transmitter**

- RF Output Power: 4 W (high) / 1 W (low)
- 4FSK Digital Modulation:
12.5 kHz Data: 7K60F1D and 7K60FXD
12.5 kHz Voice: 7K60F1E and 7K60FXE
Combination of 12.5 kHz Voice and Data: 7K60F1W
- Digital Protocol: ETSI TS 102 361, DMR Tier II & III
- Conducted/Radiated Emissions (ETSI): -36 dBm < 1GHz, -30 dBm > 1GHz
- Adjacent Channel Power: 60dB (12.5 kHz channel), 70dB (25 kHz channel)
- Frequency Stability: ± 0.5 ppm

**DMR Receiver**

- Analog Sensitivity (12dB SINAD): 0.16uV
- Digital Sensitivity (5% BER): 0.14uV
- Intermodulation (TIA603D): 70 dB
- Adjacent Channel Selectivity, (TIA603A)-1T: 60 dB (12.5 kHz channel), 70 dB (25 kHz channel)
- Adjacent Channel Selectivity, (TIA603D)-2T: 45 dB (12.5 kHz channel), 70 dB (25 kHz channel)
- Spurious Rejection (TIA603D): 70 dB

**WiFi**

- Standards Supported: 802.11a/b/g/n/ac
- Frequency Range: 2.4 GHz, 5 GHz
- Security: Supports WEP, WPA, WPA2, WPA3, Wi-Fi Enhanced Open

**Bluetooth**

- Version: 5.0 + LE +BR/EDR
- Range: Class 1.5, 33ft (10m)
- Simultaneous Connections: 1 x audio accessory and 1 x data device

**GNSS Specifications**

- Time To First Fix, Cold Start: < 50 sec
- Time To First Fix, Hot Start: < 5 sec
- Horizontal Accuracy: < 16.5 ft (< 5 m)

**Location Tracking**

- Built-in GNSS (GPS/GLONASS/BEIDOU/GALILEO) and AGPS
- Indoor Positioning

**Battery**

- Technology: IMPRES 2 Smart Battery
- Battery Capacity:
Standard 2820 mAh
Standard HazLoc 2900 mAh
High Capacity HazLoc 4400 mAh
- Power Supply: 7.5 V (Nominal)

**Audio**

- Audio Output Power: Rated: 1 W @ 1% distortion, maximum 3 W
- Audio Response (EIA): +1, -3 dB
- Hum and Noise: -40 dB (12.5 kHz channel) -45 dB (25 kHz channel)
- Conducted Spurious Emissions (TIA603D): -57dBm
- Audio Features:
Adaptive Speaker Equalization
Adaptive Dual Microphone Noise Suppression
Adaptive Gain Control
Adaptive Wind Noise Mitigation
Automatic Acoustic Feedback Suppression
Intelligent Audio
IMPRES Audio
Microphone Distortion Control
User-Selectable Audio Profiles
Trill Enhancement
- Voice Interaction:
Customizable Voice Announcements
Voice Control: 13 Actions with Intuitive Commands

**Software**

- Operating System: Android 10
- Google Certifications: Google Mobile Services, Android Enterprise Recommended

**Video and Imaging**

- Supported Formats: H.263, H.264, MPEG-4 SP, VP8, JPEG (.jpg), GIF (.gif), PNG (.png), BMP (.bmp), WebP, (.webp) formats supported for playback, streaming, and recording
- Supported File Types: 3GPP (.3gp), MPEG-4 (.mp4), WebM (.webm), (.mkv)
- Video Recording Quality: 1080p (FHD) at 30 fps

**Security**

- Root Detection: Standard
- Multi-Factor Authentication: Optional Integrity Monitoring: Standard
- Malware Blocking: Standard
- Secure boot: Standard
- Mobile Virtual Private Network: Optional
