Matrox Vero MTXVERO ST-2110 Signal Generator & Diagnostic Appliance
The Matrox® VERO ST-2110 Signal Generator & Diagnostic Appliance is a vital resource designed for broadcasters, system integrators, and manufacturers working with ST 2110 devices. This comprehensive tool integrates an adjustable signal generator, a PCAP recorder, and advanced signal diagnostics with EBU LIST, all in one single appliance.
Featuring an intuitive, web-based GUI, the Matrox VERO simplifies the process of validating and ensuring compliance of ST 2110 devices before deployment, making it an indispensable addition to any professional broadcast environment.
CONTACT US for a demonstration or more information.
CLICK HERE to download the product brochure.
Main Features
- Adjustable reference sender
- PCAP recording
- Convenient EBU LIST integration
- HD/Full HD/UHD
- Fill & Key
- Simple configuration
- Intuitive web-based interface
Specifications

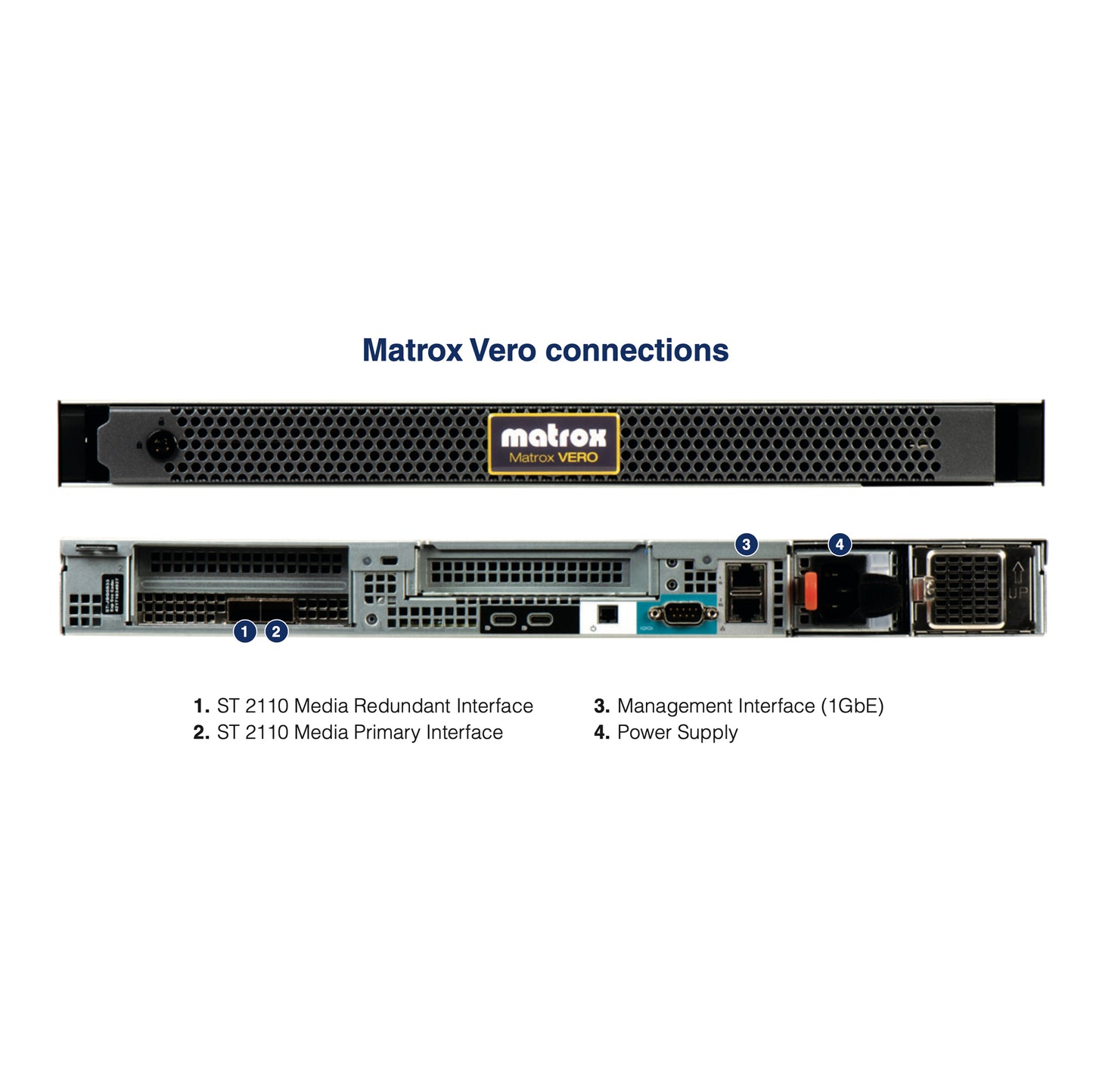

Connectivity
- Network:
- 2x SFP28 cages for ST 2110 interface
- 10 GbE IEEE 802.3ae (10GBASE-SR/LR)
- 25 GbE IEEE 802.3by (25GBASE-SR/CR/CR-S)
- 25 GbE IEEE 802.3cc (25GBASE-LR)
- Dedicated RJ-45 management network interface (1GbE)
- 2x SFP28 cages for ST 2110 interface
- Supported media standards & specifications:
- SMPTE ST 2110 (-10, -20, -21, -30, -311 and -40), ST 2022-7, and ST 2059-2
- AMWA NMOS IS-04 and IS-05
- Control & management:
- Web-based interface compatible with any browser, including mobile devices
- REST-based API for easy automation
Signal Generator
- Video:
- According to SMPTE ST 2110-20 and ST 2110-21
- 3840x2160p @ 50, 59.94 and 60 Hz
- 1920x1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 Hz
- 1920x1080i @ 25, 29.97M and 30 - 1280x720p @ 50, 59.94 and 60 Hz
- ITU-R BT.709 and BT.2020
- According to SMPTE ST 2110-20 and ST 2110-21
- Audio:
- According to SMPTE ST 2110-30
- ST 2110-30 Classes A, B & C
- 1 to 64 channels per flow
- PCM 24bit @ 48 kHz
- Packet times of 125 μs or 1ms
- Ancillary data: According to SMPTE ST 2110-40 - ATC, AFD and bar data.
- PTP: ST2059-2 compliant. Supported on each SFP for redundancy.
- Adjustable parameters:
- User presets for SMPTE ST 2110-21 sender types: N (Narrow), NL (Narrow Linear), W (Wide), or custom
- Custom packet timing for granular control of number of packets present in the Network Compatibility Model (up to and beyond CMAX) and Virtual Receiver Buffer Model (up to and beyond VRXFULL)
- User-controllable RTP timestamp offset per flow.
Capture and Analysis
- PCAP recording:
- Aggregated capture throughput of up to 28Gbps with hardware-based timestamping.
- Available on both ST 2110 interfaces (primary, redundant or both simultaneously)
- Input routing of sources through:
- Manual settings (IGMP)
- NMOS IS-05 control
- SDN control
- Auto-detection of ST 2110 flows on inputs.
- EBU Live IP software toolkit (LIST)
- Open source ST 2110 analysis toolkit
- Deep packet inspection for ST 2110 specification compliance
- Pre-installed for convenience
Physical and Power - Product dimensions: 577mm x 482mm x 428mm - Rack-mountable 1RU - Product weight: 12.42kg - Operating conditions: 10–35°C (50°F–95°F), 20% to 80% (non-condensing) - Power supply: - AC Line voltage: 100-240 VAC - AC Frequency: 50-60 Hz - AC input current (low/high): 3.7A/ 7.4 A • Wattage: 550 W - Warranty: two-year limited warranty
