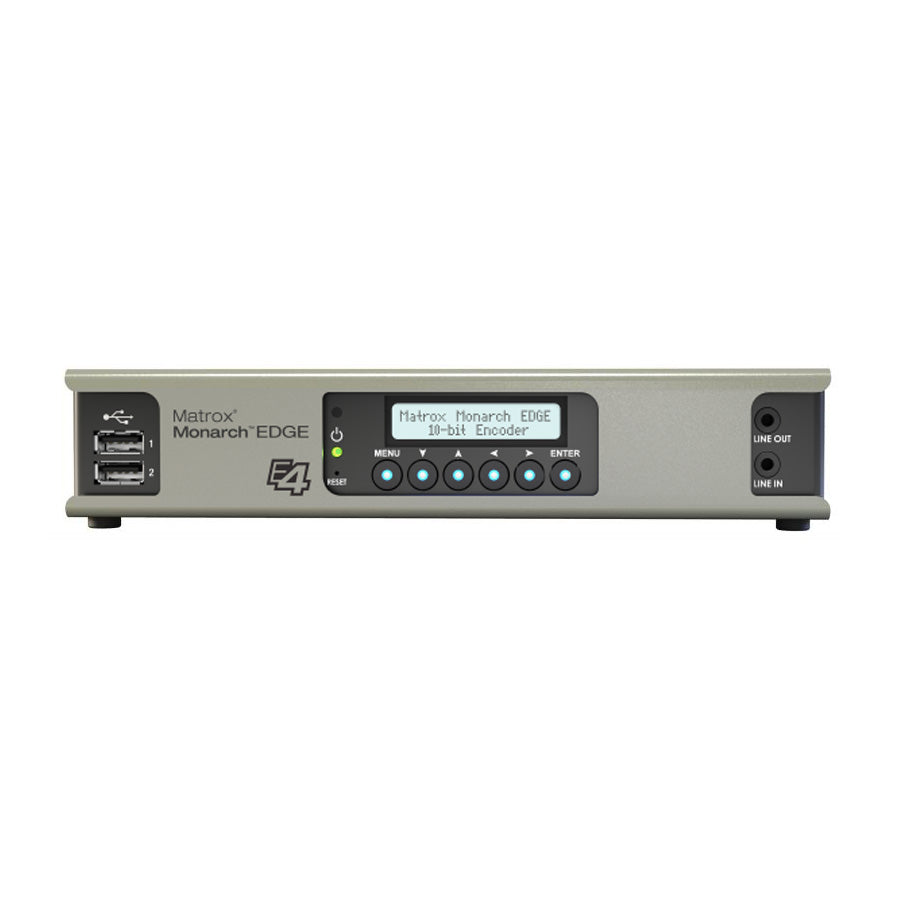

Matrox MDG4-E10-I2 Monarch Edge E4 Four-Channel 10-bit HD SDI Encoder Matrox MDG4-E10-I2 Monarch Edge E4 Four-Channel 10-bit HD SDI Encoder

Matrox MDG4-E10-I2 Monarch Edge E4 Four-Channel 10-bit HD SDI Encoder

MAT-MDG4-E10-I2
Contact us for Pricing

    The Matrox Monarch Edge E4 is the pinnacle in 4K and multi-HD video transport for live, multi-camera events, particularly tailored for remote production (REMI) needs. This 4:2:2, 10-bit-capable encoder is engineered for broadcast-quality productions that demand the highest standards. The Edge E4 enables professionals to extend their production studio to any location with network connectivity, offering the flexibility to encode up to four HD or 3G-SDI camera feeds simultaneously.

    For productions requiring a remote 4K feed, the Monarch Edge E4 supports 4K signals over 12G-SDI or through quad 3G-SDI for a comprehensive 4K stream. Looking forward, it will also support all SDI resolutions on ST 2110 networked I/O ports with SFP28 connectivity, enhancing its versatility for various production needs. Its compact design ensures that even in setups requiring numerous cameras, two units can comfortably fit within a single 1RU space, optimizing rack efficiency.

    Key features include superior 10-bit H.264 encoding for outstanding image quality and exceptionally low latency, achieving “glass-to-glass” latencies as low as 100ms, making it an ideal choice for producing multi-angle live events with the highest fidelity and minimal delay.

    CONTACT US for a demonstration or more information.

    CLICK HERE to download the product brochure.

    CLICK HERE to download the Remi Solution Guide.

    Main Features

    • Big productions, small footprint
    • Built for high quality 10-bit H.264 encoding
    • Exceptionally low latency
    • Flexible protocols
    • Versatile recording
    • Simple, easy to use Tally and Talkback
    • Comprehensive connectivity
    • Convenient, centralised control
    • Localised preview
    • Robust and practical design

    Specifications

    CONNECTIVITY

    Input Connections

    • 1 x 12G SDI per SMPTE ST 2082
    • 3 x 3G SDI per SMPTE ST 425 (Level A mapping only)
    • UHD support using 4x SDI per SMPTE ST 425-5
      • Square division
      • 2 x sample interleave
    • 2 x SFP 28 network ports (up to 25 Gbps)
    • Capture up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-7.

    Output Connections

    • 1 x 12G SDI per SMPTE ST 2082
    • 3x 3G SDI per SMPTE ST 425 (Level A mapping only)
    • UHD support using 12G SDI per SMPTE ST 2082
      • Square division
      • 2x sample interleave
    • 2 x SFP 28 network ports (up to 25 Gbps)
    • Output up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-7.

    Resolutions

    • 2160p at 50, 59.94, 60 fps
    • 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    • 1080i at 25, 29.97, 30 fps
    • 720p at 50, 59.94, 60 fps

    Genlock

    • Bi-level genlock output (encoder)
    • Bi-level or tri-level genlock input (decoder)

    Digital Audio

    • 16 x channels of embedded SDI audio is supported per input
    • 8 x channels of audio support per encode using SRT or MPEG2 TS

    Analog Audio

    • 2 x channels of balanced analog audio input via XLR connector
    • 2 x channels of balanced analog audio output via XLR connector
    • 1 channel of unbalanced stereo audio output via 1/8” TRS connector

    Audio Processing

    • Embedded or analog audio channels can be compressed as a stereo pair or processed as PCM1 (uncompressed audio)
    • Multi-channel audio support as separate audio pairs

    USB Ports

    • 2 x USB 2.0 (front)
    • 1 x USB 3.0 (back)

    Confidence Preview

    • 1 x DisplayPort 1.1
    • Maximum resolution: 1920x1080

    Multi-unit support

    • Yes

    CONTROL & MANAGEMENT

    Access

    • Monarch EDGE Control Hub dedicated Windows® application
    • RESTful HTTP API

    Physical

    • On-device buttons and screen for basic set up and monitoring operations.

    COMPRESSION

    Codecs

    • Video: H.264/MPEG-4 part 10 (AVC)
    • Audio: AAC-HE and AAC-LC

    Bitrate per stream

    • Video: Up to 120 Mbps
    • Audio: From 32 to 256 Kbps

    Chroma sub-sampling

    • 4:2:2 (8-bit and 10-bit), 4:2:0 (8-bit and 10-bit)

    Encoding controls

    • Up to 5.2 level support
    • GOP size and structure
    • Variable and constant bit rate support
    • Average max/min data rate controls
    • Encoding frame rates offered independently of input frame rates

    Decoding controls

    • Scaling of HD/UHD resolutions
    • Frame rate conversions

    Profile

    • Up to High 4:2:2 profile (Hi422P)

    Latency

    • Encode latency as low as 100ms glass-to-glass (network transfers not included in value)

    Encode density/workflow examples

    • 4:2:0 - 1x 3840x2160p @60fps
    • 8x 1920x1080 @60fps
    • 16x 1920x1080 @30fps

    Plus proxy stream

    • 1 x 1080p proxy stream (8-bit)
    • 4 x 720p30 proxy stream
    • 4:2:2 - 1x 3840x2160p @60 fps
    • 4x 1920x1080 @60 fps (There are a number of additional encoding profiles that can be generated per input.

    VANC ANCILLARY DATA PROCESSING (SDI and IP)

    • Closed captioning (CC) embedded in VANC processing as CEA-608/708
    • Vertical interval timecode (ST 12-2)
    • HDR and colorimetry metadata

    TALLY

    • 8 x tally signals (sent to cameras - encoder)
    • 8x tally signals (sent from switcher - decoder)
    • Tally ports available via a 15-pin D-SUB Connector

    STREAMING PROTOCOLS

    • MPEG-2 TS over UDP
    • RTP/RTSP
    • Native RTP1 (unicast or multicast)
    • SRT (Caller, Listener and Rendez-Vous modes)
    • RTMP (encoder only)

    NETWORK

    • 2x RJ45, 100/1000BASE-T Ethernet
    • 2x MSA-compatible SFP28 cage supporting 10 GbE and 25 GbE modules

    PHYSICAL AND POWER

    Product dimensions

    • 217mm x 189mm x 43 mm (length x width x height)
    • 1.66kg
    • Rack-mountable; two Monarch EDGE appliances can fit in 1 RU space

    Operating conditions

    • 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)

    Power

    • Line voltage: 12 volts
    • Total power consumption: 45 watts [avg.]
    • Connector: DIN 4

    Power supply

    • Line voltage: 100-240 VAC
    • Frequency: 50-60 Hz
    • Input: external AC/DC adapter - IEC320-C14
    • DIN4 locking power connector

    Regulatory

    • EMI: FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
    • Power-supply safety: UL/CUL(UL60950-1), TUV-GS(EN60950-1), T-LICENSE(BS EN60950-1), CC(GB4943.1-2011), PSE(J60950), SAA(AS/NZS60950-1), KC-MARK(K60950), S-MARK(IEC60950-1)
    • RoHS directive 2002/95/EC

    Warranty

    • Two-year limited warranty with free online or telephone support
