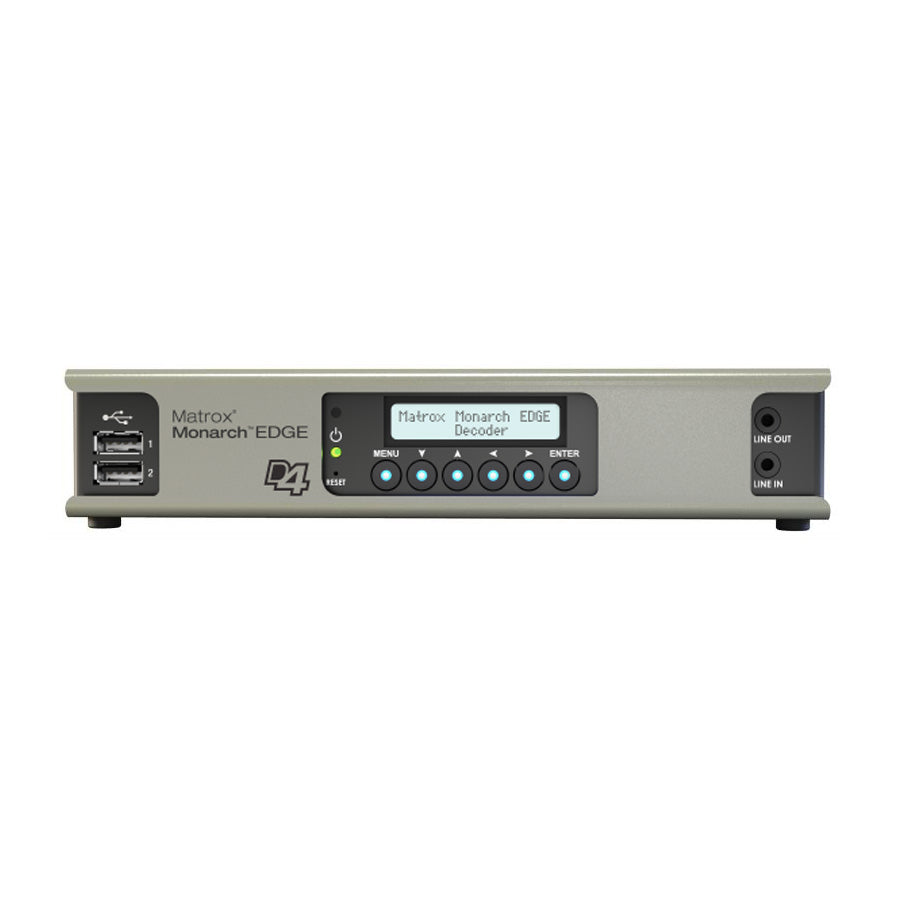

Matrox MDG4-D-I2 Monarch Edge D4 Four Channel HD SDI Decoder
The Matrox Monarch Edge D4 Decoder revolutionizes 4K and multi-HD video transport for live, multi-camera events, particularly tailored for remote production (REMI). This device stands out for its ultra-low latency and high-quality video transport capabilities, making it an essential tool for video professionals seeking reliability and performance.
Capable of decoding live, multi-camera video streams at up to 4K or quad HD resolutions, the Monarch Edge D4 ensures that your production meets the highest quality standards. Its compact, robust design and low power consumption make live event production more efficient and cost-effective, allowing you to keep talent in-house while delivering exceptional video content.
Designed to seamlessly decode REMI streams with remarkably low latency, the Monarch Edge D4 sends video back to your master control room securely and efficiently. Supporting both 4:2:0 8-bit and 4:2:2 10-bit encode/decode options, it pairs perfectly with the Monarch Edge encoder for demanding REMI broadcast workflows or providing backhaul feeds to your broadcast network. When paired with a Monarch EDGE encoder, the EDGE D4 decoder provides ultra-low latency, high-quality video transport.
CONTACT US for a demonstration or more information.
CLICK HERE to download the product brochure.
CLICK HERE to download the Remi Solution Guide.
Main Features
- Built for High Quality 10-bit H.264 Encoding
- Exceptionally Low Latency
- Single clock to realign streams at output
- Flexible protocols
- Simple, Easy-to-Use Tally and Talkback
- Future-proof video connectivity
Specifications
CONNECTIVITY
Input Connections
- 1 x 12G SDI per SMPTE ST 2082
- 3 x 3G SDI per SMPTE ST 425 (Level A mapping only)
- UHD support using 4x SDI per SMPTE ST 425-5
- Square division
- 2 x sample interleave
- 2 x SFP 28 network ports (up to 25 Gbps)
- Capture up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-7.
Output Connections
- 1 x 12G SDI per SMPTE ST 2082
- 3x 3G SDI per SMPTE ST 425 (Level A mapping only)
- UHD support using 12G SDI per SMPTE ST 2082
- Square division
- 2x sample interleave
- 2 x SFP 28 network ports (up to 25 Gbps)
- Output up to four independent 3 Gbps video streams or one 12 Gbps (4Kp60) stream encapsulated per SMPTE ST 2110-10, -20, and -21. Seamless protection (redundancy) according to SMPTE ST 2022-7.
Resolutions
- 2160p at 50, 59.94, 60 fps
- 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- 1080i at 25, 29.97, 30 fps
- 720p at 50, 59.94, 60 fps
Genlock
- Bi-level genlock output (encoder)
- Bi-level or tri-level genlock input (decoder)
Digital Audio
- 16 x channels of embedded SDI audio is supported per input
- 8 x channels of audio support per encode using SRT or MPEG2 TS
Analog Audio
- 2 x channels of balanced analog audio input via XLR connector
- 2 x channels of balanced analog audio output via XLR connector
- 1 channel of unbalanced stereo audio output via 1/8” TRS connector
Audio Processing
- Embedded or analog audio channels can be compressed as a stereo pair or processed as PCM1 (uncompressed audio)
- Multi-channel audio support as separate audio pairs
USB Ports
- 2 x USB 2.0 (front)
- 1 x USB 3.0 (back)
Confidence Preview
- 1 x DisplayPort 1.1
- Maximum resolution: 1920x1080
Multi-unit support
- Yes
CONTROL & MANAGEMENT
Access
- Monarch EDGE Control Hub dedicated Windows® application
- RESTful HTTP API
Physical
- On-device buttons and screen for basic set up and monitoring operations.
COMPRESSION
Codecs
- Video: H.264/MPEG-4 part 10 (AVC)
- Audio: AAC-HE and AAC-LC
Bitrate per stream
- Video: Up to 120 Mbps
- Audio: From 32 to 256 Kbps
Chroma sub-sampling
- 4:2:0
Encoding controls
- Up to 5.2 level support
- GOP size and structure
- Variable and constant bit rate support
- Average max/min data rate controls
- Encoding frame rates offered independently of input frame rates
Decoding controls
- Scaling of HD/UHD resolutions
- Frame rate conversions
Profile
- Up to High 4:2:2 profile (Hi422P)
Latency
- Encode latency as low as 100ms glass-to-glass (network transfers not included in value)
Encode density/workflow examples
- 4:2:0 - 1x 3840x2160p @60fps
- 8x 1920x1080 @60fps
- 16x 1920x1080 @30fps
Plus proxy stream
- 1 x 1080p proxy stream (8-bit)
- 4 x 720p30 proxy stream
- 4:2:2 - 1x 3840x2160p @60 fps
- 4x 1920x1080 @60 fps (There are a number of additional encoding profiles that can be generated per input.
VANC ANCILLARY DATA PROCESSING (SDI and IP)
- Closed captioning (CC) embedded in VANC processing as CEA-608/708
- Vertical interval timecode (ST 12-2)
- HDR and colorimetry metadata
TALLY
- 8 x tally signals (sent to cameras - encoder)
- 8x tally signals (sent from switcher - decoder)
- Tally ports available via a 15-pin D-SUB Connector
STREAMING PROTOCOLS
- MPEG-2 TS over UDP
- RTP/RTSP
- Native RTP1 (unicast or multicast)
- SRT (Caller, Listener and Rendez-Vous modes)
- RTMP (encoder only)
NETWORK
- 2x RJ45, 100/1000BASE-T Ethernet
- 2x MSA-compatible SFP28 cage supporting 10 GbE and 25 GbE modules
PHYSICAL AND POWER
Product dimensions
- 217mm x 189mm x 43 mm (length x width x height)
- 1.66kg
- Rack-mountable; two Monarch EDGE appliances can fit in 1 RU space
Operating conditions
- 32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)
Power
- Line voltage: 12 volts
- Total power consumption: 45 watts [avg.]
- Connector: DIN 4
Power supply
- Line voltage: 100-240 VAC
- Frequency: 50-60 Hz
- Input: external AC/DC adapter - IEC320-C14
- DIN4 locking power connector
Regulatory
- EMI: FCC Class A, CE Mark Class A, ACMA C-Tick Mark, VCCI
- Power-supply safety: UL/CUL(UL60950-1), TUV-GS(EN60950-1), T-LICENSE(BS EN60950-1), CC(GB4943.1-2011), PSE(J60950), SAA(AS/NZS60950-1), KC-MARK(K60950), S-MARK(IEC60950-1)
- RoHS directive 2002/95/EC
Warranty
- Two-year limited warranty with free online or telephone support
