Matrox Monarch Edge S1 Encoder/Decoder DEMO

- Simultaneously encode and decode HD feeds.
- Built for high quality 10-bit H.264 encoding.
- Exceptionally low latency.
- Flexible protocols.
- Simple, Easy-to-Use Tally and Talkback.
- Convenient, centralized control.
- Localized preview.
- Robust and practical design.

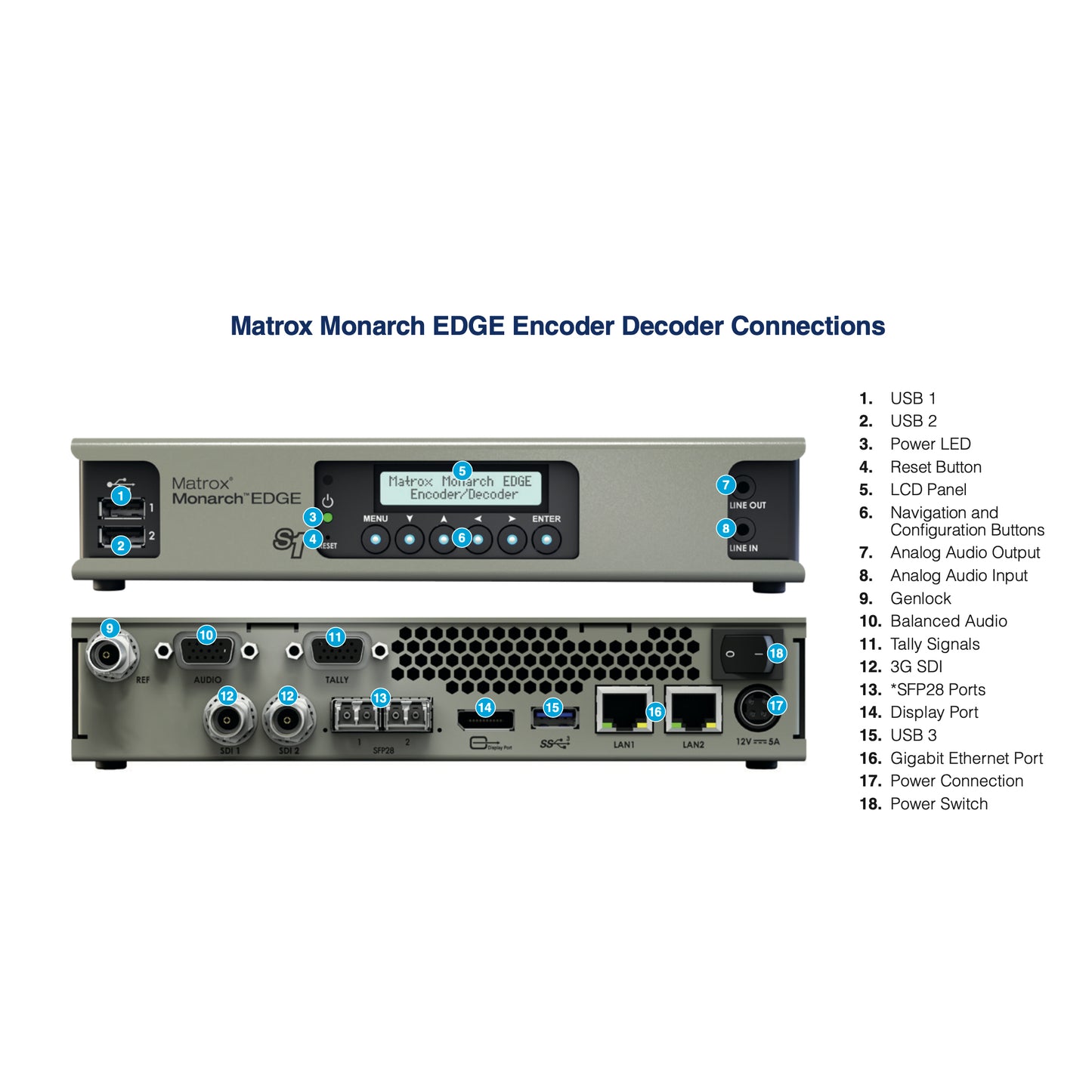

**Connectivity**

- Video Input/Output (simultaneous operation):
- 1 x 3G SDI input and 1x 3G SDI output per ST425 (Level A mapping only)
- 2 x SFP 28 network ports (up to 25 Gbps):
- Video Input/Output Resolutions:
- 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
- 1080i at 25, 29.97, 30 fps
- 720p at 50, 59.94, 60 fps
- Genlock: Bilevel or tri-level genlock input.
- VANC ancillary data processing (SDI and IP)
- Closed captioning (CC) embedded in VANC processing as CEA-608/708
- Vertical interval timecode (RP-188)
- HDR and colourimetry metadata
- Digital Audio Input: 16 x channels of embedded SDI audio is supported per input, and 8 x channels of audio support per encode using SRT or MPEG2 TS.
- Analog Audio Input: 2 x channels of balanced analog audio input via XLR connector.
- Digital Audio Output: 8x channels of embedded audio support per SDI output.
- Digital Analog Output:
- 2 x channels of balanced analog audio output via XLR connector
- 1 channel of unbalanced stereo audio output via 1/8” TRS connector
- Confidence Preview: 1 display port 1.1 with a maximum resolution of 1920 x 1080
- Multi-unit support: Yes.

**Video and Audio Processing**

- Video Scaling: High Quality multi-tap 10 bit Up/Down Scaler and De-Interlacer
- Video Deinterlacing: Yes
- Audio Encoding Format: AAC-LC
- Audio Sampling Frequency: 48 kHz when digitized from an analog source
- Audio Bitrates: range from 32 kbps to 256 kbps

**Codec**

- Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)
- Encoding Profiles: Up to High 4:2:2 profile (Hi422P)
- Colour Space and Chroma Sub-Sampling:
- 4:2:0 (8-bit and 10-bit)
- 4:2:2 (8-bit and 10-bit)
- Encoder Bitrates Range: Video up to 120 Mbps
- Encoding Rate Control:
- Encoding frame rates offered independent of input frame rates
- GOP size and structure
- Variable and constant bit rate support
- Encoding Level: up to 5.2

**Encoding**

- Encoding Capability: Monarch EDGE S1 is capable of sending many streams from a single input. Each stream can be a different resolution, encoding profile, and bitrate.
- Encoding Latency: Latency as low as 50 ms (network transfers and decode operation not included in value)

**Decoding**

- Decoding Capability: 1 x 1920x1080 60p
- Decoding Latency: Latency as low as 50ms (network transfers and encode operation not included in value)

**Network**

- Network Standard
- 2x RJ45, 100/1000BASE-T Ethernet
- 2x MSA-compatible SFP28 cage supporting 10 GbE and 25 GbE modules
- IP Addressing:
- IPv4
- IPv61
- DHCP (default) and static IP
- Streaming Protocols:
- MPEG-2 TS over UDP (unicast or multicast)
- RTP/RTSP
- Native RTP1 (unicast or multicast) • SRT
- RTMP (encoder only)
- Command and Control:
- HTTPS over TCP
- UPnP (discovery

**Physical**

- Product Dimensions: 217mm x 189mm x 43mm
- Unit Weight: 1.66kg
- Power Supply Unit:
- Line voltage: 100-240V ac.
- Frequency: 50-60 Hz
- Input: external AC/DC adapter - IEC320-C14
- DIN4 locking power connector
- Power-supply safety: cULus (Canada/US), CE (EU), NOM (Mexico), CCC (China), RCM (Au/Nz), EAC (Russia / Customs Union), PSE (Japan), KCC (Korea), BIS (India)
- Tally/GPIO: When paired with another MDG2/ED/10, up to 4x tally/GPIO signals can be sent in either direction simultaneously. Tally/GPIO ports available via a 15 Position Pin D-Sub Standard Connector.

**Hardware and Software**

- Hardware Included: Monarch EDGE appliance, power supply (includes IEC-C14 power cord)
- Software: Monarch EDGE Control Hub—dedicated Windows® application (free download) and RESTful HTTP API4

**Environmental**

- Operating Conditions:
- Temperature: 0 to 40 degrees Celsius
- Humidity: 20% to 80% non-condensing
- Storage Conditions:
- Temperature: -40 to 70 degrees Celsius
- Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
- Humidity: 5% to 95% non-condensing
- Power Consumption:
- Line voltage: 12 volts
- Total power consumption: 45 watts [avg.]

**General**

- Supported operating systems (software): Windows 10 (64 bit)
- EMC/EMII Device Class: Class A
- EMC/EMII Certifications: CE (EU), FCC (US), ICES-3 (Canada), KC (Korea), RCM (Aus/NZ)
- Environmental Certifications: RoHS Directive 2011/65/EU amended by (EU) 2015/863
- Warranty: Two-year limited warranty with free online or telephone support
