Matrox MDG2-E10-I2 Monarch Edge S1 Encoder/Decoder Matrox MDG2-E10-I2 Monarch Edge S1 Encoder/Decoder

Matrox MDG2-E10-I2 Monarch Edge S1 Encoder/Decoder

MAT-MDG2-E10-I2
Contact us for Pricing
1 Remaining in Stock

    Enhance your remote production (REMI) processes cost-effectively with the Monarch EDGE S1, a device capable of encoding and decoding simultaneously. This innovative tool empowers users to deliver return feeds to multi-camera crews on location. With its 3G-SDI input, the Monarch EDGE S1 encodes low-latency return feeds from the studio for secure transmission over private and public internet connections. At the remote location, it can decode one HD feed, outputting it through a genlockable 3G-SDI connection to distribute the studio-produced program feed. Offering the capability for simultaneous encode and decode operations, the Monarch EDGE S1 enables individual camera operators in the field to send a high-quality feed back to the studio while receiving the live program feed, streamlining communication and production quality.

    CONTACT US for a demonstration or more information.

    CLICK HERE to download the product brochure.

    Main Features

    • Simultaneously encode and decode HD feeds.
    • Built for high quality 10-bit H.264 encoding.
    • Exceptionally low latency.
    • Flexible protocols.
    • Simple, Easy-to-Use Tally and Talkback.
    • Convenient, centralized control.
    • Localized preview.
    • Robust and practical design.

    Specifications

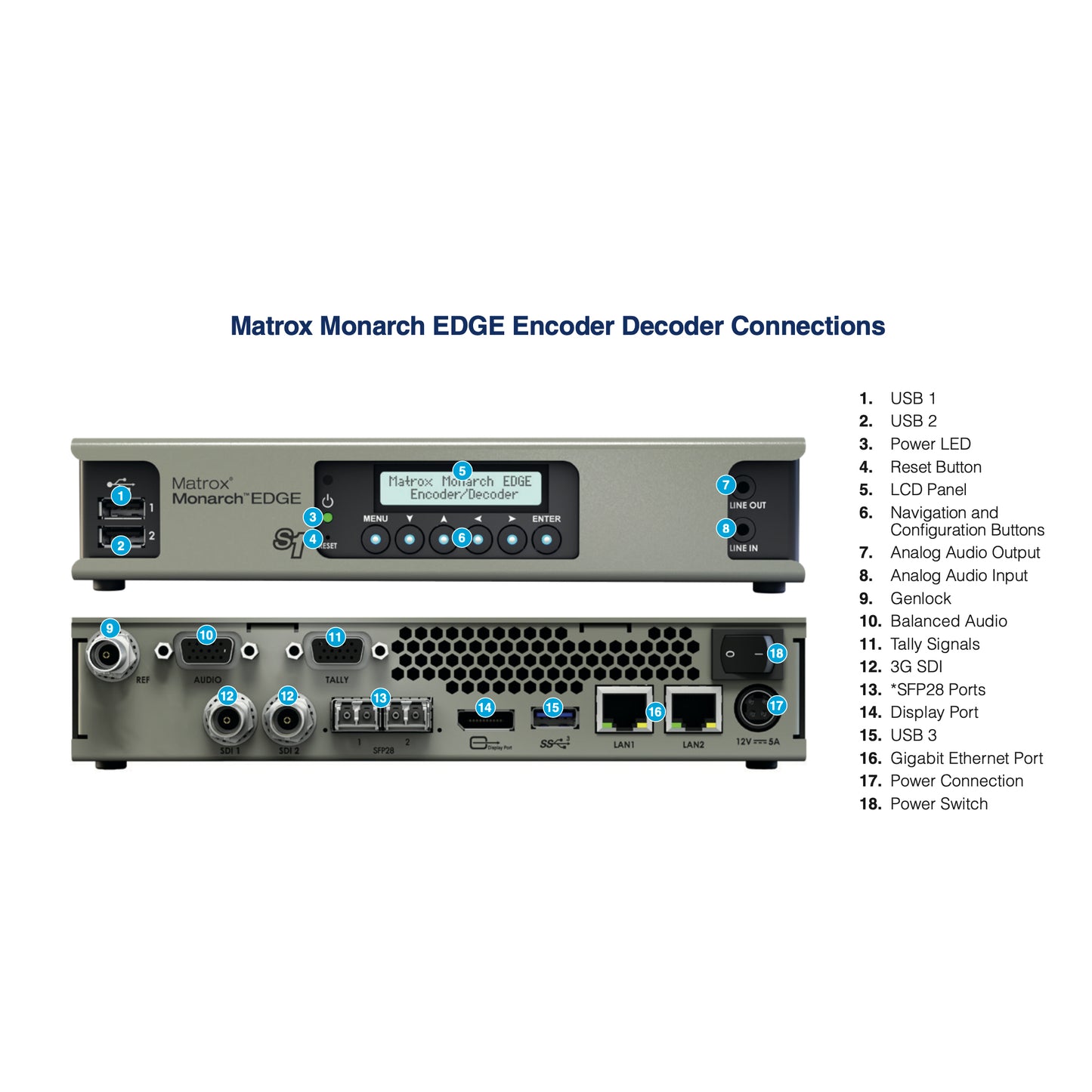

    Connectivity

    • Video Input/Output (simultaneous operation):
      • 1 x 3G SDI input and 1x 3G SDI output per ST425 (Level A mapping only)
      • 2 x SFP 28 network ports (up to 25 Gbps):
    • Video Input/Output Resolutions:
      • 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
      • 1080i at 25, 29.97, 30 fps
      • 720p at 50, 59.94, 60 fps
    • Genlock: Bilevel or tri-level genlock input.
    • VANC ancillary data processing (SDI and IP)
      • Closed captioning (CC) embedded in VANC processing as CEA-608/708
      • Vertical interval timecode (RP-188)
      • HDR and colourimetry metadata
    • Digital Audio Input: 16 x channels of embedded SDI audio is supported per input, and 8 x channels of audio support per encode using SRT or MPEG2 TS.
    • Analog Audio Input: 2 x channels of balanced analog audio input via XLR connector.
    • Digital Audio Output: 8x channels of embedded audio support per SDI output.
    • Digital Analog Output:
      • 2 x channels of balanced analog audio output via XLR connector
      • 1 channel of unbalanced stereo audio output via 1/8” TRS connector
    • Confidence Preview: 1 display port 1.1 with a maximum resolution of 1920 x 1080
    • Multi-unit support: Yes.

    Video and Audio Processing

    • Video Scaling: High Quality multi-tap 10 bit Up/Down Scaler and De-Interlacer
    • Video Deinterlacing: Yes
    • Audio Encoding Format: AAC-LC
    • Audio Sampling Frequency: 48 kHz when digitized from an analog source
    • Audio Bitrates: range from 32 kbps to 256 kbps

    Codec

    • Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)
    • Encoding Profiles: Up to High 4:2:2 profile (Hi422P)
    • Colour Space and Chroma Sub-Sampling:
      • 4:2:0 (8-bit and 10-bit)
      • 4:2:2 (8-bit and 10-bit)
    • Encoder Bitrates Range: Video up to 120 Mbps
    • Encoding Rate Control:
      • Encoding frame rates offered independent of input frame rates
      • GOP size and structure
      • Variable and constant bit rate support
    • Encoding Level: up to 5.2

    Encoding

    • Encoding Capability: Monarch EDGE S1 is capable of sending many streams from a single input. Each stream can be a different resolution, encoding profile, and bitrate.
    • Encoding Latency: Latency as low as 50 ms (network transfers and decode operation not included in value)

    Decoding

    • Decoding Capability: 1 x 1920x1080 60p
    • Decoding Latency: Latency as low as 50ms (network transfers and encode operation not included in value)

    Network

    • Network Standard
      • 2x RJ45, 100/1000BASE-T Ethernet
      • 2x MSA-compatible SFP28 cage supporting 10 GbE and 25 GbE modules
    • IP Addressing:
      • IPv4
      • IPv61
      • DHCP (default) and static IP
    • Streaming Protocols:
      • MPEG-2 TS over UDP (unicast or multicast)
      • RTP/RTSP
      • Native RTP1 (unicast or multicast) • SRT
      • RTMP (encoder only)
    • Command and Control:
      • HTTPS over TCP
      • UPnP (discovery

    Physical

    • Product Dimensions: 217mm x 189mm x 43mm
    • Unit Weight: 1.66kg
    • Power Supply Unit:
      • Line voltage: 100-240V ac.
      • Frequency: 50-60 Hz
      • Input: external AC/DC adapter - IEC320-C14
      • DIN4 locking power connector
      • Power-supply safety: cULus (Canada/US), CE (EU), NOM (Mexico), CCC (China), RCM (Au/Nz), EAC (Russia / Customs Union), PSE (Japan), KCC (Korea), BIS (India)
    • Tally/GPIO: When paired with another MDG2/ED/10, up to 4x tally/GPIO signals can be sent in either direction simultaneously. Tally/GPIO ports available via a 15 Position Pin D-Sub Standard Connector.

    Hardware and Software

    • Hardware Included: Monarch EDGE appliance, power supply (includes IEC-C14 power cord)
    • Software: Monarch EDGE Control Hub—dedicated Windows® application (free download) and RESTful HTTP API4

    Environmental

    • Operating Conditions:
      • Temperature: 0 to 40 degrees Celsius
      • Humidity: 20% to 80% non-condensing
    • Storage Conditions:
      • Temperature: -40 to 70 degrees Celsius
      • Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
      • Humidity: 5% to 95% non-condensing
    • Power Consumption:
      • Line voltage: 12 volts
      • Total power consumption: 45 watts [avg.]

    General

    • Supported operating systems (software): Windows 10 (64 bit)
    • EMC/EMII Device Class: Class A
    • EMC/EMII Certifications: CE (EU), FCC (US), ICES-3 (Canada), KC (Korea), RCM (Aus/NZ)
    • Environmental Certifications: RoHS Directive 2011/65/EU amended by (EU) 2015/863
    • Warranty: Two-year limited warranty with free online or telephone support
