Matrox CIP-SRST ConvertIP Single-channel HDBaseT-to-IP Transmitter/Receiver Matrox CIP-SRST ConvertIP Single-channel HDBaseT-to-IP Transmitter/Receiver

Matrox CIP-SRST ConvertIP Single-channel HDBaseT-to-IP Transmitter/Receiver

MAT-CIP-SRST
Contact us for Pricing

    For businesses and organizations equipped with HDBaseT setups, transitioning to new infrastructure can pose challenges in terms of complexity and expense. The Matrox ConvertIP SRST transmitter/receiver device offers a solution by allowing you to expand your existing HDBaseT network infrastructure seamlessly. It facilitates the integration of HDBaseT content into and from the IP network without the need for costly upgrades to your current equipment or infrastructure. Built on open standards, the ConvertIP SRST is IPMX-ready and works seamlessly with SMPTE ST 2110 networks.

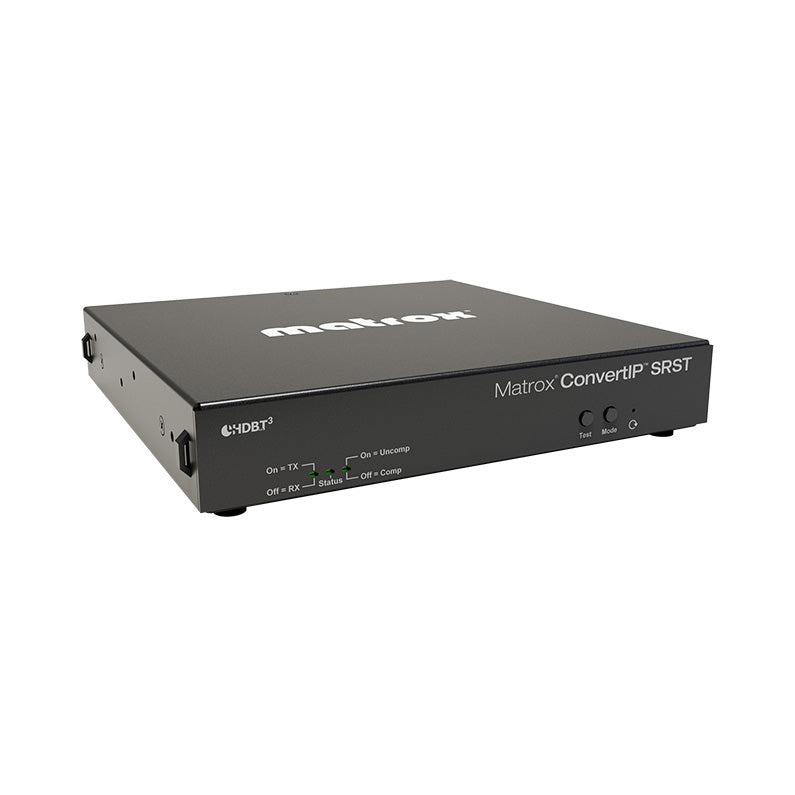

    A compact Input/Output device, Matrox ConvertIP SRST is designed to both receive or transmit HDBaseT signals in a single, standalone device. Featuring both RJ45 and SFP28 ports on a single device, ConvertIP SRST enables you to leverage your 1 GbE network to transmit full 4K video at 60 fps over IP in near-real time or uncompressed workflows up to 25 GbE—without ripping out and replacing your current HDBaseT equipment.

    CONTACT US for a demonstration or more information.

    Main Features

    • HDBASE-T I/O
    • Multi-network support
    • 1x SFP28 (10G & 25G network support)
    • 1x RJ45 (1G & 2.5G network support)
    • Transmit or receive IP signals from a single device
    • Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
    • Fanless design for quiet cooling
    • Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
    • Compact form factor mounts easily to the back of a monitor
    • Web-based user interface for managing ConvertIP devices
    • Complimentary ConvertIP Manager Windows application for simple commission and deployment
    • HDCP 1.4 and 2.2 support
    • IPMX ready
    • Colibri codec for visually lossless transmission of compressed of media over 1G network
    • Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
    • Glass-to-glass latencies of 1ms achievable

    Specifications

    Connectivity

    • Video input:
      • TX mode: HDBaseT™ v3
      • RX mode: No input
    • Video output:
      • TX mode: No input
      • RX mode: HDBaseT™ v3
    • Video resolution: HD and 4K resolutions (including broadcast)
    • Audio input/output: Up to 8 channels of audio embedded

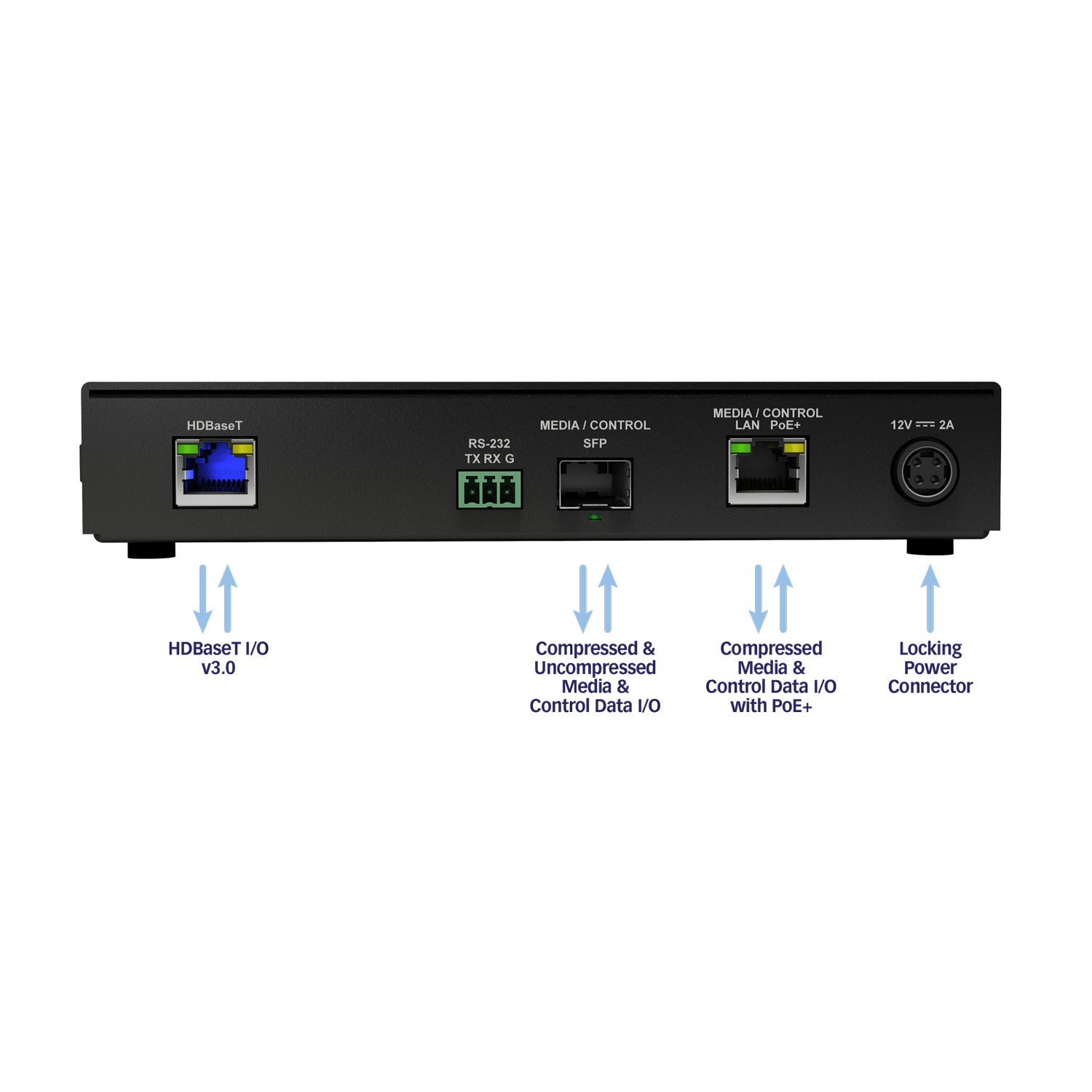

    • Network connector:
      • 1x RJ45 LAN for Media and Control with PoE+
      • 1x SFP28 cages for Media and Control
        • 10 GbE IEEE 802.3ae (10GBASE-SR/LR fiber module)
        • 25 GbE IEEE 802.3by (25GBASE-SR/CR/CR-S)
        • 25 GbE IEEE 802.3cc (25GBASE-LR)
    • RS-232: No
    • Control and management: Matrox ConvertIP Command Center (web UI) + Matrox ConvertIP Manager (software application)

    Performance

    • Maximum video resolutions: 4096 x 2160 60p
    • Bit depth and colour space:
      • YCbCr 4:2:0 10-bit and 8-bit
      • YCbCr 4:2:2 10-bit
      • RBG 4:4:4 8-bit
      • SDR/HDR

    Video and Audio Processing

    • Video scaling: High Quality multi-tap 10-bit Up/Down Scaler
    • Video deinterlacing: Yes
    • Color space conversion: Yes
    • HDCP support: HDCP 1.4 and 2.2 support

    Encoding Formats

    • Video:
      • Uncompressed
        • HD 3 Gbps and 4K 12 Gbps
      • Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content
        • Colibri codec included: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
        • JPEG-XS codec upgrade required: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
    • Audio: Uncompressed PCM (~1 Mbps/ch)
    • Latency: Less than a 1/4 frame (<4 ms)

    Network

    • Network standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
    • IP addressing:
      • IPv4
      • IPv6
      • DHCP (default) and static IP
    • Supported protocols
      • SMPTE ST 2110 (-10, -22, -30)
      • SMPTE 2059 (-1, -2)
      • IPMX ready
    • Redundancy: No
    • Command and control: HTTPS over TCP
    • Discovery, registration and control: NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1
    • PoE+: Yes (IEEE 802.3 at Type 2)

    Physical

    • Dimensions: 181 (D) x 191 (W) x 36 (H) mm
    • Weight: 770g
    • Cooling: Fanless
    • Power
      • Device: Input: 12 volts, max 18 Watts
      • PoE+
      • Optional PSU (sold separately)
        • Line Voltage: 100-240 V a.c., 0.5A
        • Frequency: 50-60 Hz
        • Input: IEC320-C14
        • Output: DIN4 locking power connector

    Hardware and Software

    • Hardware included: ConvertIP DSS appliance
    • Optional hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA)
    • Accessories (sold separately)
      • ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)4
      • Rackmount kit (Part #: RMK-19TR-A)5
      • Angled bracket kit (Part #: RMK-6BRKT-A)
      • NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)
    • Optional software:
      • JPEG-XS codec license
      • Crestron Module to expand existing controlled environments

    Environmental

    • Operating conditions:
      • Temperature: 0 to 45 degrees Celsius
      • Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m)
      • Humidity: 20% to 80% non-condensing
    • Storage conditions:
      • Temperature: -40 to 70 degrees Celsius
      • Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
      • Humidity: 5% to 95% non-condensing

    General

    • EMC/EMI device class: Class A
    • EMC/EMI compliance: RCM (Aus/NZ), CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea)
    • Environmental compliance: China RoHS, EU RoHS, REACH
    • Warranty: Three-year limited warranty with free online or telephone support
