Matrox ConvertIP Single-channel RJ45 HDMI-to-IP Transmitter/Receiver

- HDMI I/O
- 1G and 2.5G support over RJ45
- Transmit or receive IP signals from a single device
- Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
- Fanless design for quiet cooling
- Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
- Compact form factor mounts easily to the back of a monitor
- Web-based user interface for managing ConvertIP devices
- Complimentary ConvertIP Manager Windows application for simple commission and deployment
- HDCP 1.4 and 2.2 support
- IPMX ready
- Colibri codec for visually lossless transmission of compressed of media over 1G network
- Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
- Glass-to-glass latencies of 1ms achievable

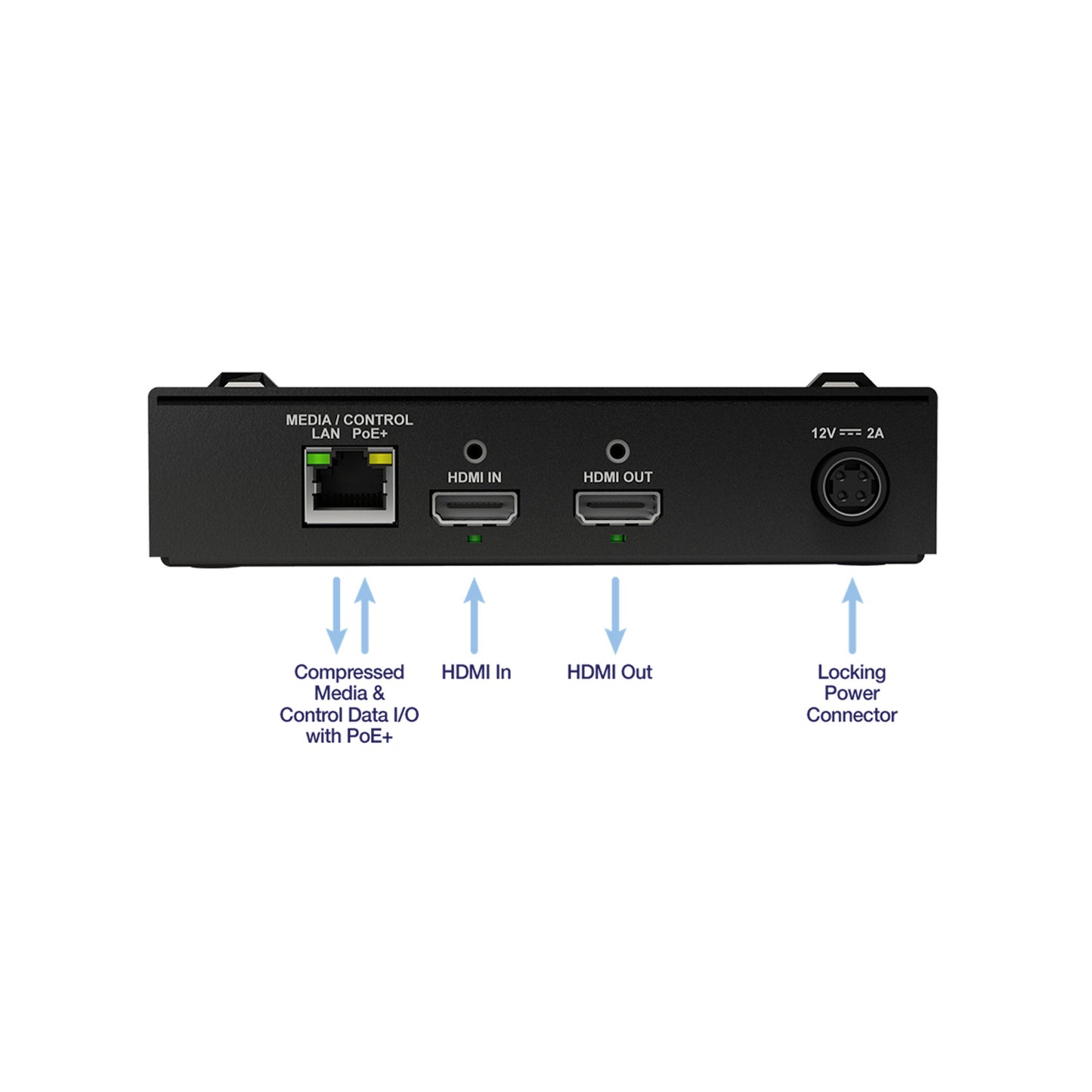

**Connectivity**

- Video input: 1 HDMI
- Video output: 1x HDMI
- Video resolution: Most desktop resolutions up to 4Kp60
- Audio input/output: Up to 8 channels of audio embedded in HDMI signal
- Network connector: 1x RJ45 LAN port for Media and Control with PoE+ (1/2.5G)
- RS-232: No
- Control and management: Matrox ConvertIP Command Center (web UI) + Matrox ConvertIP Manager (software application)

**Performance**

- Maximum video resolutions: 4096 x 2160 60p
- Bit depth and colour space:
- YCbCr 4:2:0 10-bit and 8-bit
- YCbCr 4:2:2 10-bit
- RBG 4:4:4 8-bit
- SDR/HDR

**Video and Audio Processing**

- Video scaling: High Quality multi-tap 10-bit Up/Down Scaler
- Video deinterlacing: Yes
- Color space conversion: Yes
- HDCP support: HDCP 1.4 and 2.2 support

**Encoding Formats**

- Video:
- Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content
- Colibri codec included: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
- JPEG-XS codec upgrade required: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
- Audio: Uncompressed PCM (~1 Mbps/ch)
- Latency: Less than a 1/4 frame (<4 ms)

**Network**

- Network standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
- IP addressing:
- IPv4
- IPv6
- DHCP (default) and static IP
- Supported protocols
- SMPTE ST 2110 (-10, -22, -30)
- SMPTE 2059 (-1, -2)
- IPMX ready
- Redundancy: No
- Command and control: HTTPS over TCP
- Discovery, registration and control: NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1
- PoE+: Yes (IEEE 802.3 at Type 2)

**Physical**

- Dimensions: 181 (D) x 191 (W) x 36 (H) mm
- Weight: 655g
- Cooling: Fanless
- Power
- Device: Input: 12 volts, max 18 Watts
- PoE+
- Optional PSU (sold separately)
- Line Voltage: 100-240 V a.c., 0.5A
- Frequency: 50-60 Hz
- Input: IEC320-C14
- Output: DIN4 locking power connector

**Hardware and Software**

- Hardware included: ConvertIP DSS appliance
- Optional hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA)
- Accessories (sold separately)
- ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)4
- Rackmount kit (Part #: RMK-19TR-A)5
- Angled bracket kit (Part #: RMK-6BRKT-A)
- NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)
- Optional software:
- JPEG-XS codec license
- Crestron Module to expand existing controlled environments

**Environmental**

- Operating conditions:
- Temperature: 0 to 45 degrees Celsius
- Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m)
- Humidity: 20% to 80% non-condensing
- Storage conditions:
- Temperature: -40 to 70 degrees Celsius
- Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
- Humidity: 5% to 95% non-condensing

**General**

- EMC/EMI device class: Class A
- EMC/EMI compliance: RCM (Aus/NZ), CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea)
- Environmental compliance: China RoHS, EU RoHS, REACH
- Warranty: Three-year limited warranty with free online or telephone support
