Matrox CIP-DRH ConvertIP RJ45 HDMI-to-IP Transmitter/Receiver

MAT-CIP-DRH
Contact us for Pricing

    The Matrox ConvertIP DRH is a small, independent device that serves as both a transmitter and receiver for ST 2110 and IPMX protocols. With HDMI input/output and three RJ45 ports integrated into a single unit, the ConvertIP DRH is tailored for 1G AV setups, ensuring ultra-low latency. It can draw power via Ethernet through its RJ45 port or use an optional power supply unit, providing redundancy by allowing both methods to be utilized simultaneously.

    CONTACT US for a demonstration or more information.

    Main Features

    • HDMI I/O
    • Multi-network support
    • 2x RJ45 (1G & 2.5G network support for Media and Control)
    • 1x RJ45 (1G network support for independent control network)
    • Transmit or receive IP signals from a single device
    • Standardized Discovery and Routing – based on AMWA NMOS IS-04 and IS-05 specifications
    • Fanless design for quiet cooling
    • Zero-latency HDMI loop-out
    • Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
    • Compact form factor mounts easily to the back of a monitor
    • Web-based user interface for managing ConvertIP devices
    • Complimentary ConvertIP Manager Windows application for simple commission and deployment
    • HDCP 1.4 and 2.2 support
    • IPMX ready
    • Colibri codec for visually lossless transmission of compressed of media over 1G network
    • Optional JPEG XS codec license for SMPTE ST 2110-22 support (up to 2 Gbps)
    • Glass-to-glass latencies of 1ms achievable

    Specifications

    Connectivity

    • Video input: 1 HDMI
    • Video output: 1x HDMI (zero latency pass-through in TX mode)
    • Video resolution: Most desktop resolutions up to 4Kp60
    • Audio input/output:
      • Up to 8 channels of audio embedded in HDMI signal
      • Unbalanced analog stereo input via 1/8″ (3.5mm) jack
      • Line Level

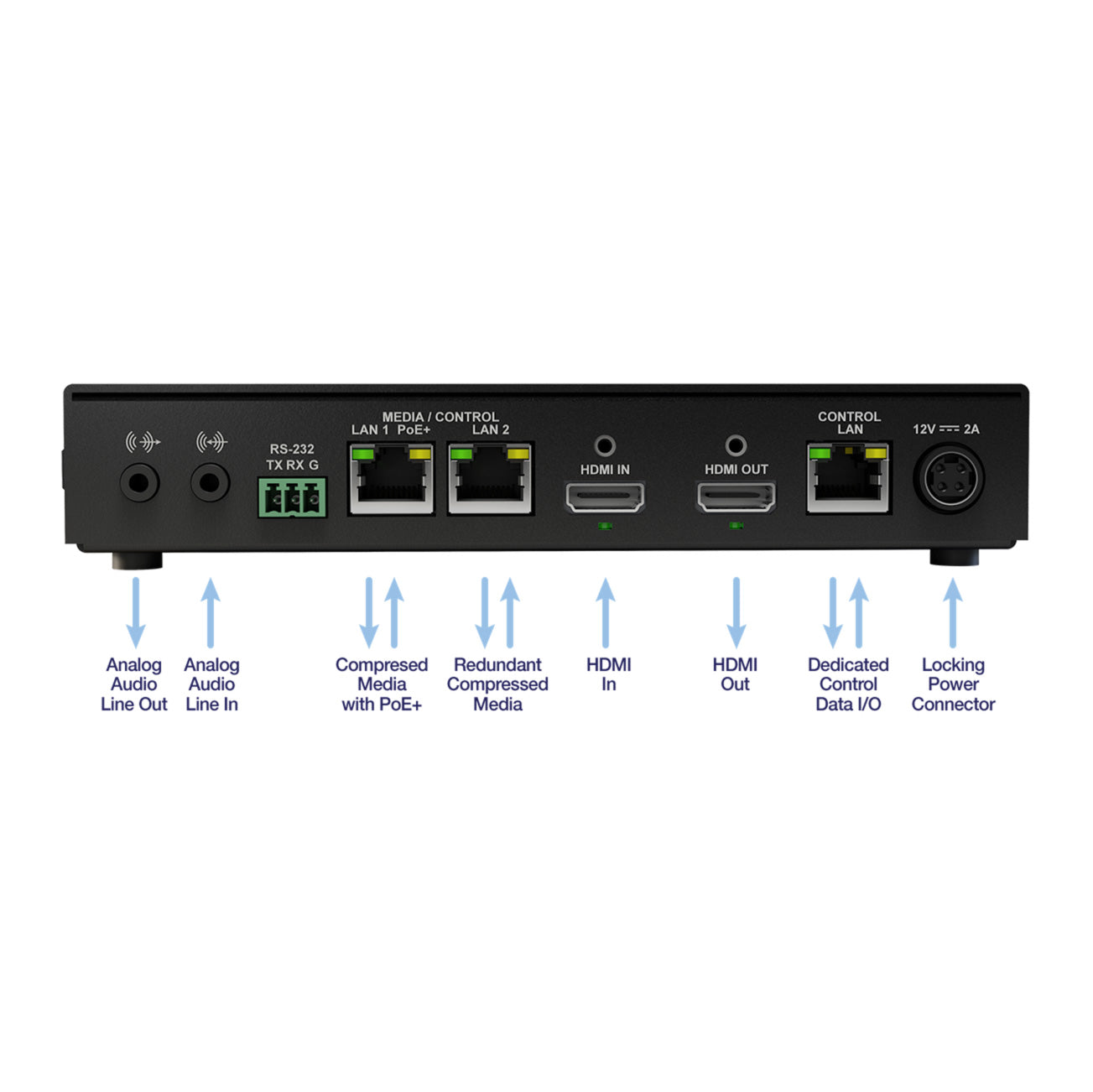

    • Network connector: 3x RJ45 ports
      • LAN 1 for Media and Control with PoE+ (1/2.5G)
      • LAN 2 for redundant Media and Control (1/2.5G)
      • Control LAN for Control data only (100/1000 Mbps)
    • RS-232: Yes
    • Control and management: Matrox ConvertIP Command Center (web UI) + Matrox ConvertIP Manager (software application)

    Performance

    • Maximum video resolutions: 4096 x 2160 60p
    • Bit depth and colour space:
      • YCbCr 4:2:0 10-bit and 8-bit
      • YCbCr 4:2:2 10-bit
      • RBG 4:4:4 8-bit
      • SDR/HDR

    Video and Audio Processing

    • Video scaling: High Quality multi-tap 10-bit Up/Down Scaler
    • Video deinterlacing: Yes
    • Color space conversion: Yes
    • HDCP support: HDCP 1.4 and 2.2 support

    Encoding Formats

    • Video:
      • Default compressed bitrates: 200 Mbps for HD content, 820 Mbps for 4K content
        • Colibri codec included: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
        • JPEG-XS codec upgrade required: 4:2:2 10-bit YUV and 4:4:4 8-bit RGB. 100 to 2000 Mbps
    • Audio: Uncompressed PCM (~1 Mbps/ch)
    • Latency: Less than a 1/4 frame (<4 ms)

    Network

    • IP addressing:
      • IPv4
      • IPv6
      • DHCP (default) and static IP
    • Supported protocols
      • SMPTE ST 2110 (-10, -22, -30)
      • SMPTE 2059 (-1, -2)
      • IPMX ready
    • Redundancy: Yes (ST 2022-7)
    • Command and control: HTTPS over TCP
    • Discovery, registration and control: NMOS discovery and control according to standards IS-04 v 1.2 and 1.3 and IS-05 1.0 and 1.1
    • PoE+: Yes (IEEE 802.3 at Type 2)

    Physical

    • Dimensions: 181 (D) x 191 (W) x 36 (H) mm
    • Weight: 635g
    • Cooling: Fanless
    • Power
      • Device: Input: 12 volts, max 18 Watts
      • PoE+
      • Optional PSU (sold separately)
        • Line Voltage: 100-240 V a.c., 0.5A
        • Frequency: 50-60 Hz
        • Input: IEC320-C14
        • Output: DIN4 locking power connector

    Hardware and Software

    • Hardware included: ConvertIP DSS appliance
    • Optional hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-MRA)
    • Accessories (sold separately)
      • ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK)4
      • Rackmount kit (Part #: RMK-19TR-A)5
      • Angled bracket kit (Part #: RMK-6BRKT-A)
      • NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)
    • Optional software:
      • JPEG-XS codec license
      • Crestron Module to expand existing controlled environments

    Environmental

    • Operating conditions:
      • Temperature: 0 to 45 degrees Celsius
      • Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m)
      • Humidity: 20% to 80% non-condensing
    • Storage conditions:
      • Temperature: -40 to 70 degrees Celsius
      • Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)
      • Humidity: 5% to 95% non-condensing

    General

    • EMC/EMI device class: Class A
    • EMC/EMI compliance: RCM (Aus/NZ), CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea)
    • Environmental compliance: China RoHS, EU RoHS, REACH
    • Warranty: Three-year limited warranty with free online or telephone support
