Kiloview RF02 Cradle Series Media Centre
Kiloview RF02 Cradle Series Media Centre
SKU:KIL-RF02
Couldn't load pickup availability

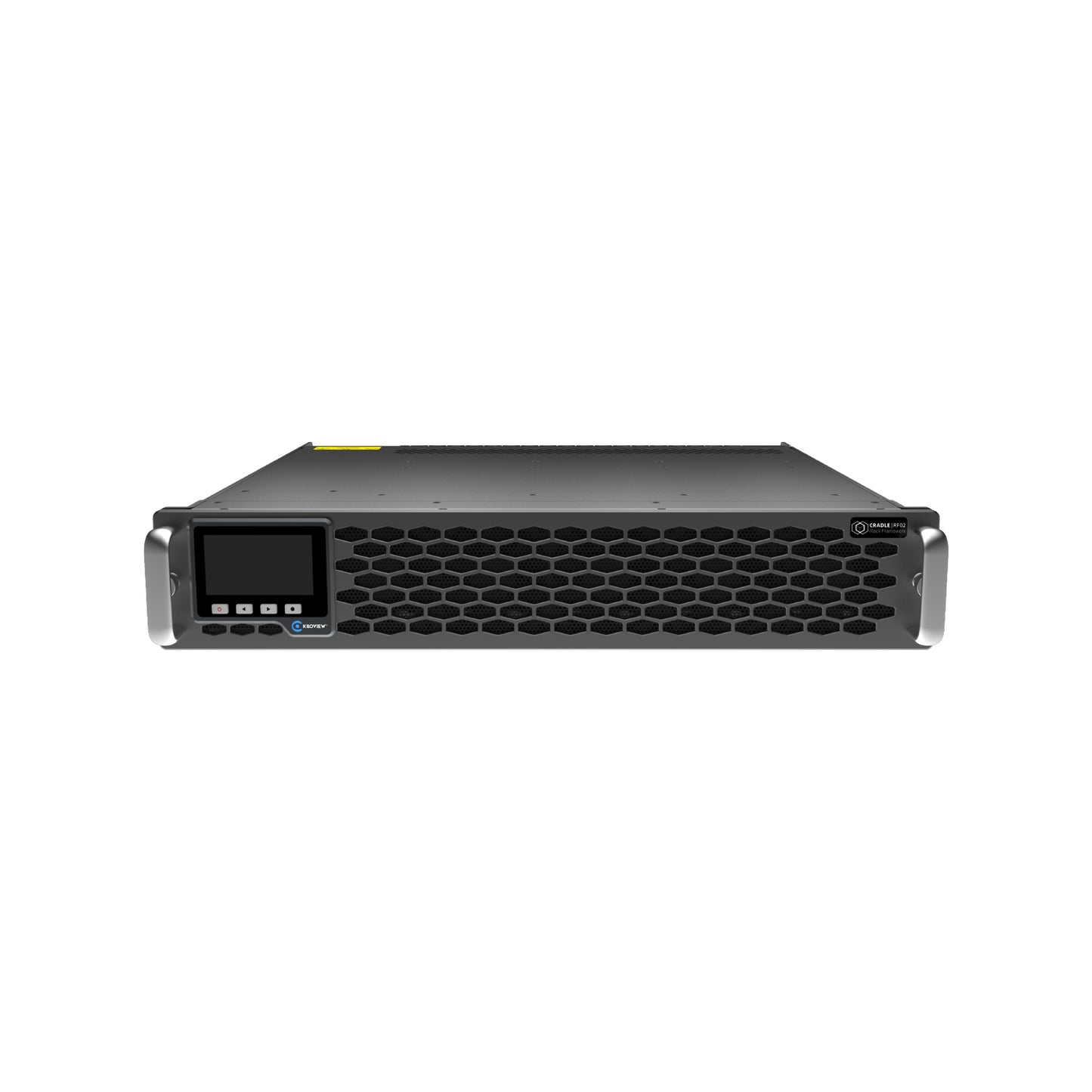

The Kiloview Cradle Series RF02 Media Centre is the ultimate unified solution for transforming AV-over-IP workflows. This advanced 2RU rack framework combines unparalleled flexibility, power, and space efficiency, making it ideal for high-density multi-service environments.
The RF02 features three 10Gbps SFP+ and one 10Gbps RJ45 Ethernet interface for high-speed connectivity and integrates a 1G/2.5G network switch module to streamline data flow and eliminate the need for external switches.
The integrated ARM64 main controller running Kiloview’s KiloLink Server Pro provides centralised management. It enables unified control, monitoring, and upgrading of up to 18 service cards and serves as an on-premise bonding server for Kiloview P series encoders. Its modular design and intuitive source-based control panels ensure seamless integration across various media processing tasks, from encoding and decoding to NDI conversion, all within a compact and efficient footprint.
Capabilities and Functions
Kiloview Cradle Series RF02 Features & Specifications
Kiloview Cradle Series RF02 Product Features
- Built-in High Bandwidth Switch
- Centralised Management with KiloLink Server Pro
- Modular Design for Flexibility
- High Density with Space-Saving Design
- Seamless Integration Across Workflows
- Reliable Performance
- User-Friendly Interface
- Professional Integration Capabilities
- Optional Service Cards
- Diversified Business Solutions for Unmatched Media Workflow Efficiency
Kiloview Cradle Series RF02 Technical Specifications
Main Controller Module
- Processor: 8-core ARM64 high-performance processor (Cortex) A73@1.8GHz )
- Memory: 12GB DDR4
- Storage: 128GB EMMC
- Operating System /Software: Linux 5.10/KiloLink Server Pro RF version
- Management and Control: Web/ HTTP API
Network Switch Module
- Service Cards Connection: 18 x 1Gbps/2.5Gbps Adaptive Ethernet (Copper) (*Note: Slot17/18 can support up to 10Gbps, others support 1Gbps/2.5Gbps)
- Control Module Connection: 2 x 5Gbps (Copper)
- External Connection: 3 x 10Gbps SFP+ Optical Ports (IEEE 802.3ae) 1 x 10Gbps RJ45 Ethernet port
- Type: Three-layer managment switch/VLAN support (802.1Q/QinQ)
- Switching Capacity: 240Gbps
- Management and Control: Web (KiloLink Server RF management based on the main controller )
Overall Chassis

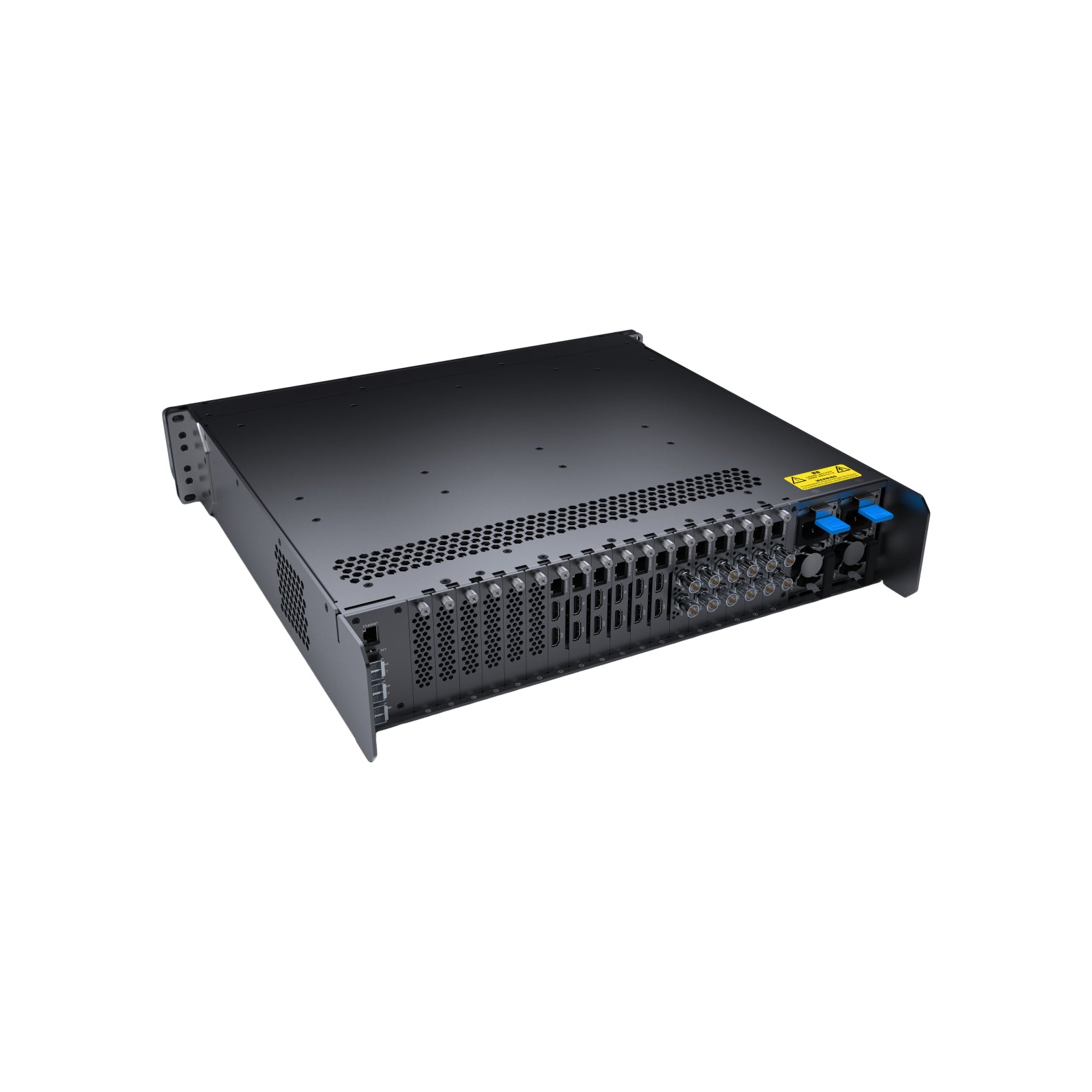

- Service Cards: 18x (MAX) / Front and rear through-slot design with rail guide and 20-pin gold finger connector
- Max Power per slot: 25W/ slot
- Service Support: Supports encoding/decoding/ NDI I/O/media gateway cards
- Dimensions: Size: 483mm x487mm x88mm (standard 2RU)
- Working temperature: -10℃ to 45℃
- Storage temperature: -20℃ to 70℃
- Relative humidity: 5% to 90%
- Heat dissipation: Self-Adjust heat dissipation/ Auto-temp control
- Power supply: 2x AC100-240V/7A (Max), 60/50Hz, 500W Max(Optional)
- Power consumption: No load : 37W, Full Load: 480W
- Compatible Service Cards:
- 18x (Max) Encoding
- 18x (Max) Decoding
- 18x (Max) NDI I/O Conversion
- 18x (Max) 4K Media Conversion Gateway
- 18x (Max) 4K Decoding Gateway (HDMI/SDI Baseband Output)
Would you like more information on the Kiloview Cradle Series RF02?
For more indepth information, please download the Kiloview Cradle Series RF02 product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
