Kiloview P3-Mini 4G Wireless Bonding Encoder
Kiloview P3-Mini 4G Wireless Bonding Encoder
SKU:KIL-P3-MINI
Couldn't load pickup availability
The P3 mini 4G Wireless Bonding Encoder, an upgraded version of P1/P2, is an ideal outdoor live streaming device powered by patented KiloLink bonding transmission technology. Featuring professional-grade antenna isolation, it effectively bonds multiple channels (3*4G cellular network + 1WiFi + 1*RJ45 Ethernet port), ensuring exceptional anti-interference capability and stable transmission. With dual input interfaces for 3G-SDI and HDMI supporting up to 1080P60 resolution, along with a 5000mAh battery offering 4 hours of continuous operation and PD fast charging, it fulfils diverse application needs.
The P3 mini utilizes KiloLink's patented multi-link bonding transmission tech, employing encryption algorithms for bandwidth overlay, load balancing, and dynamic bitrate adjustments. It bonds five networks (3*4G cellular + WiFi + Ethernet) for seamless live streaming. Users can deploy bonding servers privately, locally, or in the cloud for stable transmission, all without any charges for using KiloLink.
The P3 mini employs a professional-grade antenna isolation design to guarantee stable outdoor signal transmission. This minimizes disruptions like screen freezing and intermittent sound, ensuring reliable data transmission.
With its 5000mAh battery and PD fast charging support, the P3 mini offers ample battery capacity and quick recharging capabilities. This facilitates uninterrupted operation, ensuring seamless support for outdoor live production.
It is compatible with H.265/H.264 encoding formats, accommodating up to 1080P60 HDMI and 3G-SDI dual interface inputs. Additionally, it fully supports popular media protocols like NDI HX/RTSP/RTMP/SRT/HLS.

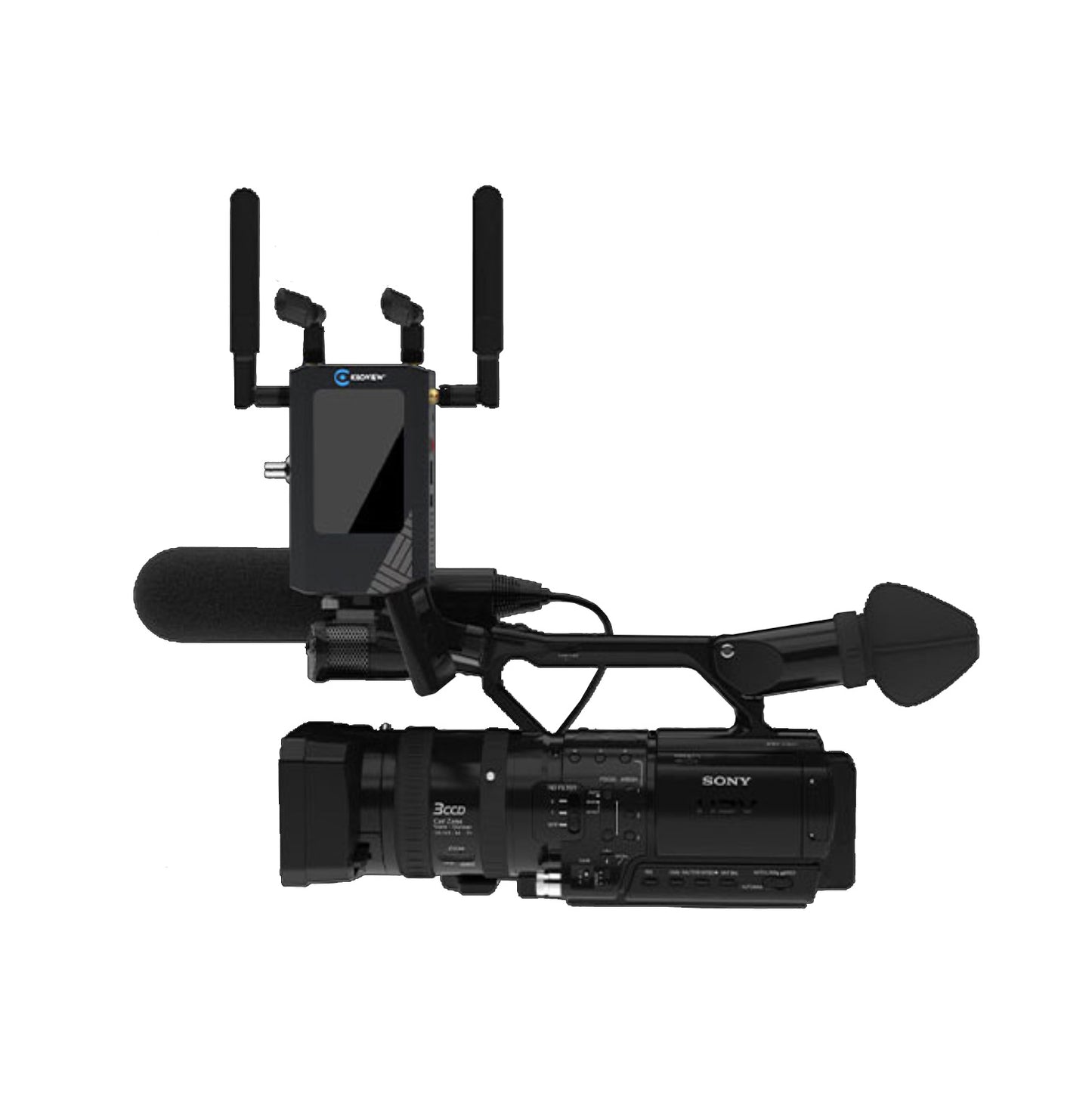

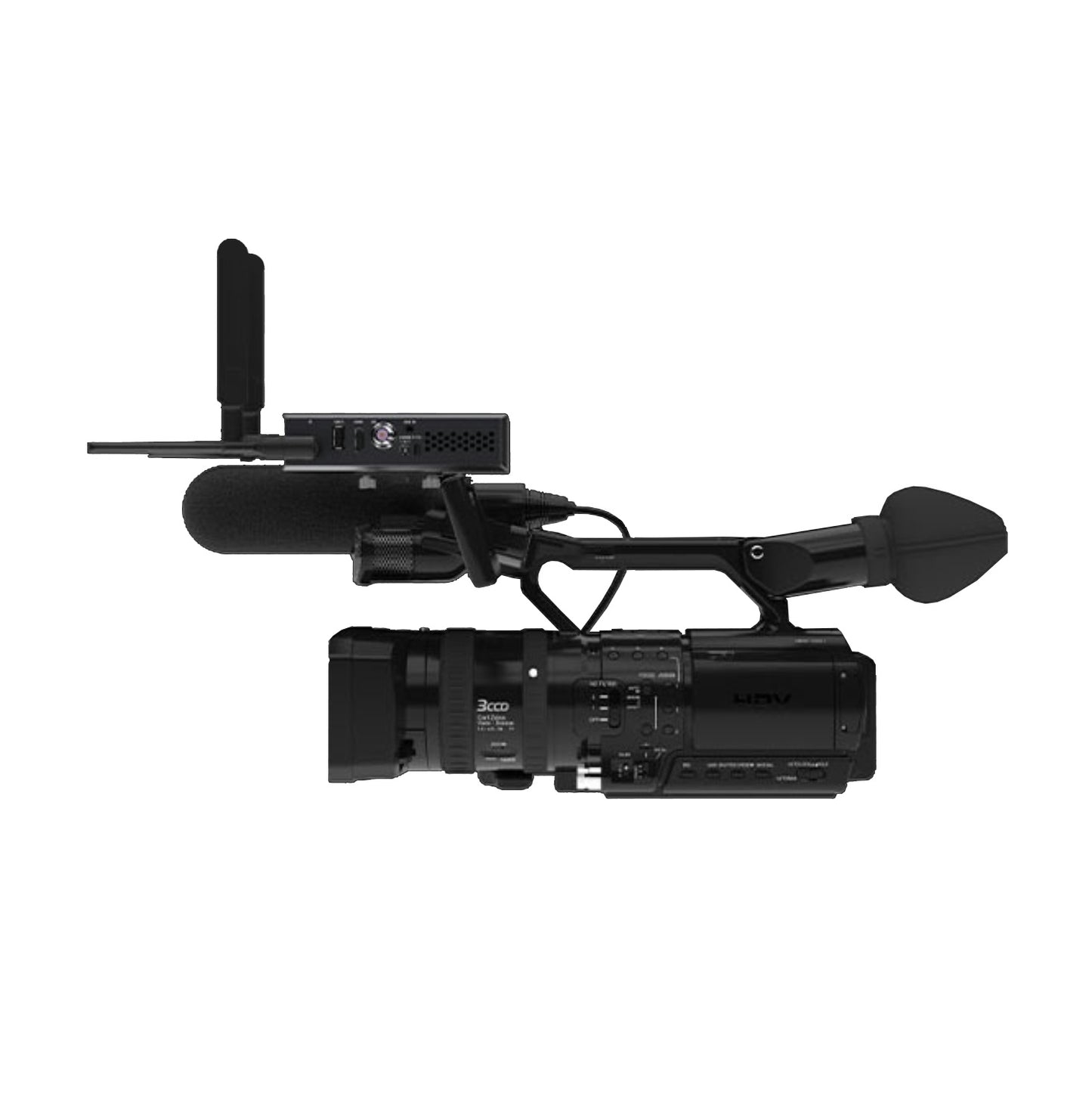

The P3 mini features dual USB ports for versatile expansion, enabling connections for keyboard input, PTZ camera control, and USB recording functions for integrated multifunctional operation. Its portable design supports both vertical and horizontal installation, seamlessly integrating with various cameras for flawless live streaming tasks anywhere, anytime.






Capabilities and Functions
Kiloview P3-Mini 4G Wireless Bonding Encoder Features & Specifications
Kiloview P3-Mini 4G Wireless Bonding Encoder Product Features
- Multi-CH bonding
- Efficient, Stable, and Secure Bonding Transmission
- Professional Antenna Design for Superior Anti-Interference
- PD Fast Charging for Extended Battery Life
- H.265 Encoding, Dual Interface Inputs for SDI+HDMI
- High Sensitivity Touchscreen LCD Display
- Dual USB Ports
- Compact Size, Supports Multiple Mounting Options
Kiloview P3-Mini 4G Wireless Bonding Encoder Technical Specifications
- Video Encoding: H.265/H.264
- Resolution: 1080P60
- Video Input: 1*1080P60 HDMI+1*3G-SDI
- Recording/Storage: USB expansion
- Audio Port: 1*3.5mm Line in or SDI/HDMI embedded
- Multi-channel Audio Encoding:
HDMI: 4 channels
SDI: 4 channels
Line in: 2 channels
- Bonding Performance:
3CH 4G cellular network, WIFI (2.4G/5G dual band)
USB expanded Ethernet
- Network: 4G / WiFi / Ethernet
- Protocols: NDI HX/ SRT/ RTMP/ RTSP/RTP/HLS/ TS-UDP (with KiloLink Server)
- PTZ: USB
- Display: 3" LCD touchscreen
- Battery: 5000mAh@7.2V 36W
- Voice Intercom: Support
- Dimension (mm): 138*85*35mm
- Power Consumption: 16W
- Power Supply: DC 12V/3A PD Fast Charging
- Management: Web/KiloLink Server
- Working Temperature: -15℃~45℃
