Kiloview D350 4K SDI-HDMI Video Decoder
Kiloview D350 4K SDI-HDMI Video Decoder
SKU:KIL-D350
Couldn't load pickup availability
The D350 decodes a wide array of network video stream formats, including NDI HB, NDI HX/HX3, SRT, RTMP, UDP, RTP, and RTSP, ensuring stable audio and video synchronization via its 3G-SDI and HDMI outputs. Experience exceptional performance with the ability to decode up to 12 simultaneous 1080P60 video streams.
Featuring hardware-based Multiview monitoring, the D350 enables real-time preview switching, customizable layouts, dynamic switching, and professional background/LOGO overlays. Monitor your audio levels with integrated audio bar monitoring and enjoy convenient reverse PTZ control. The integrated LCD screen provides instant access to IP address and output status, making monitoring effortless.
Capabilities and Functions
Kiloview D350 Video Decoder Features & Specifications
Kiloview D350 Video Decoder Product Features
- Outstanding decoding performance supporting simultaneous decoding of up to 16 channels of video streams.
- Compatible with all protocols including NDI HX2, NDI HX3*, Full NDI, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP.
- Multiple interfaces, customisable outputs.
- Low transmission latency with a decoding delay of less than 200 ms and a packet loss rate of less than 10%.

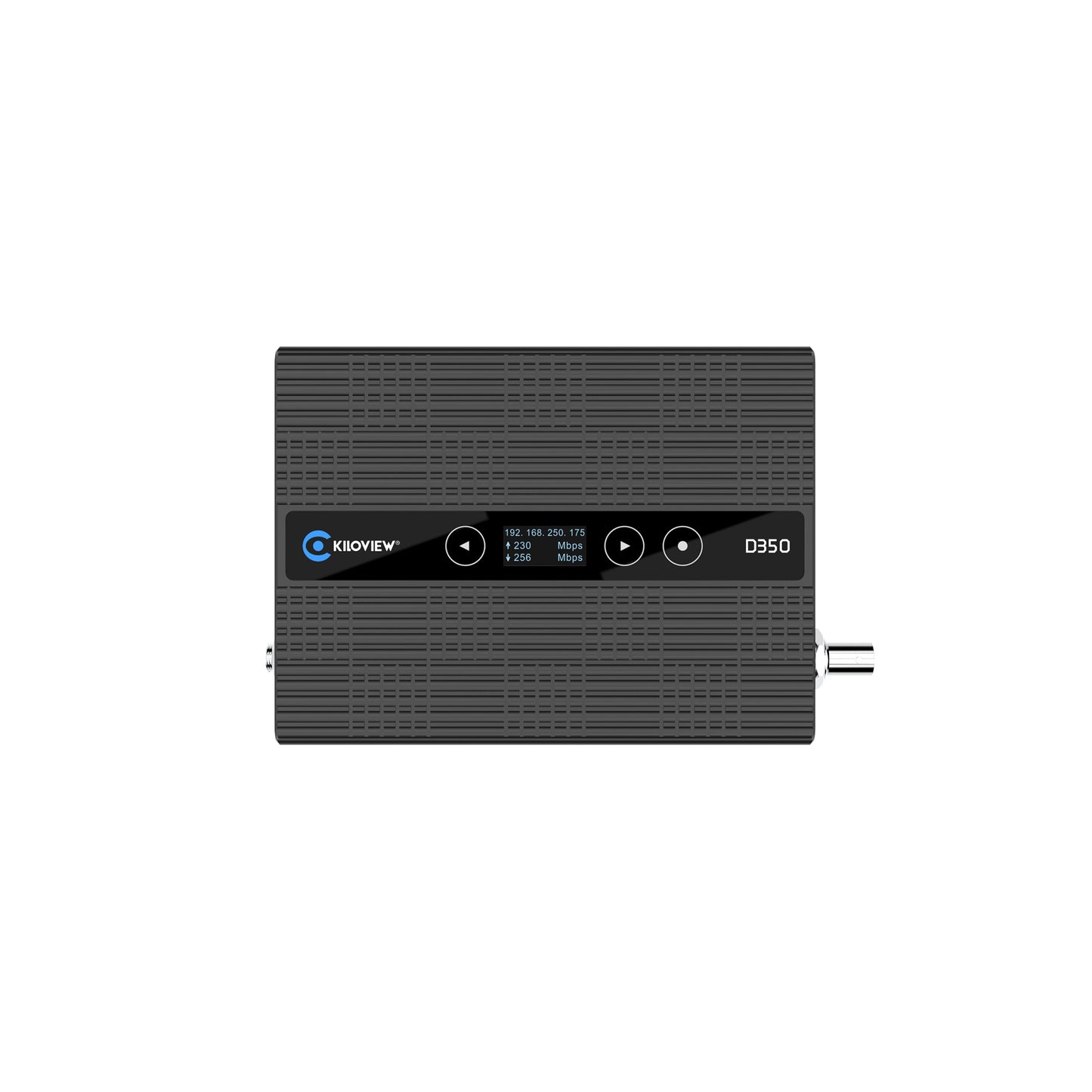

- LCD screen for realtime status monitoring.
- RTMP server supported.
- User-defined display for free output.
- 16 preview + 9 output with dynamic switching.
- Customised output background and OSD.
- Audio and intercom
- Centralised management with KiloLink server.
Kiloview D350 Video Decoder Technical Specifications

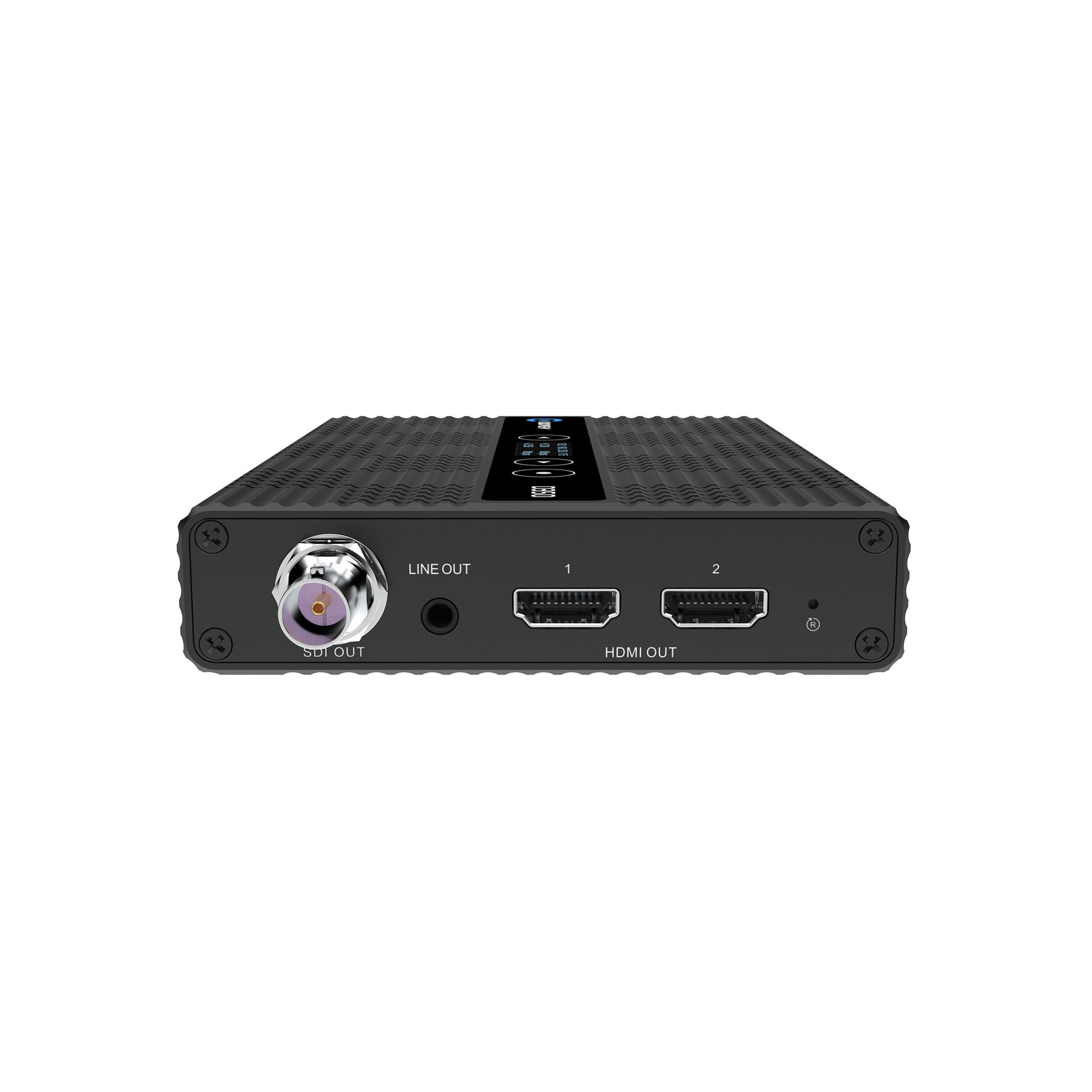

- Video Output: 1 x 3G-SDI, up to1080P60, 2 x HDMI2.0, up to 4KP60 (Backward compatible)
- Audio Output: Embedded SDI/HDMI channels or 3.5mm Line out
- Video Formats: H.264(AVC) compatible with Baseline/Main/High Profile, up to Level 5.2；H.265(HEVC) compatible with Main Profile, up to Level 5.1；SpeedHQ(NDI High-bandwidth)
- Video Decoding Capability: H.264(AVC)/H.265(HEVC): Up to 12 channels in 1080P30, 12 channels in 1080P60, 3 channels of 4KP30, or 2 channels in 4KP60. Speed HQ (NDI High Bandwidth): Up to 4 channels in 1080P30, 3 channels in 1080P60 or 1 channel in 4KP60
- Audio Formats: AAC/G.711/Opus/LPCM with expanding support to additional formats and channels
- Latency: NDI High Bandwidth&NDI HX：around 150ms；Others：100~200ms (Adjustable)
- Streaming Protocols: NDI High Bandwidth/NDI HX/NDI HX3/SRT/RTMP/RTMPS/ HLS/TS over UDP/RTP/ RTSP
- Layouts: 1/2/3/4/5/6/7/8/9~16 with adjustable screen sizes for each display
- Intercom: Yes
- Display: LCD Screen
- OSD: Yes

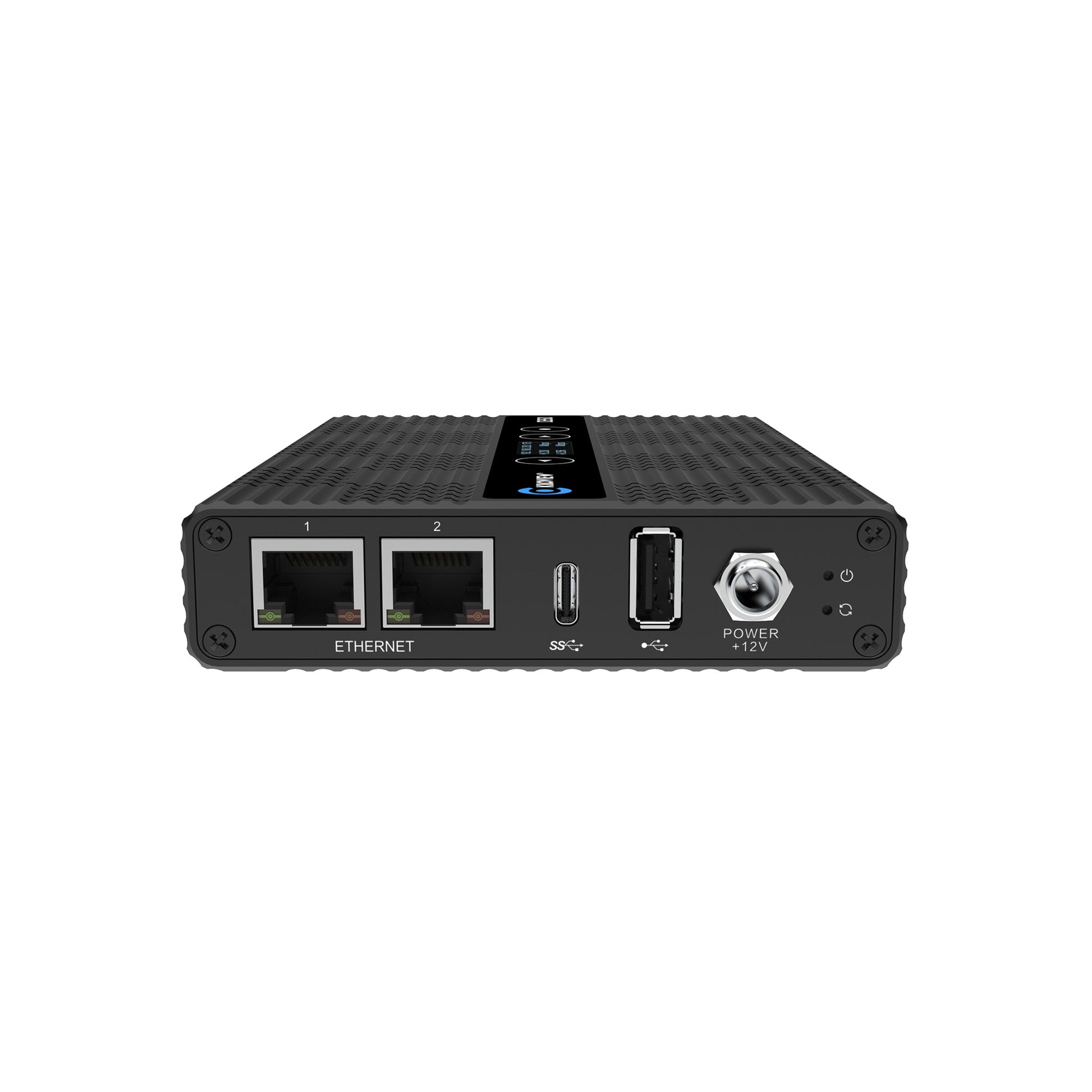

- Network: 2×100M/1000M RJ-45 Ethernet ports
- USB: 1 x USB Type-A, 1 x USB Type-C
- Management: Web UI/Kiloview KiloLink Server
- Firmware Upgrade: Web UI/Kiloview KiloLink Server
- Power Consumption: 12V, 1A /8W
- Dimension: 140 x 104 x 25mm
- Weight: 360g
- Operating Temperature: -20~60°C
Would you like more information on the Kiloview D350 Video Decoder?
For more indepth information, please download the Kiloview D350 Video Decoder product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
