Kiloview HD H.265 HDMI & SDI Decoder
Kiloview HD H.265 HDMI & SDI Decoder
SKU:KIL-D260
Couldn't load pickup availability

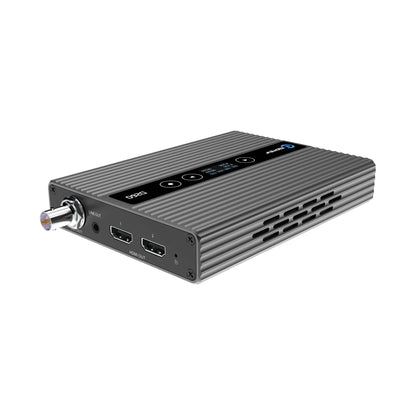

D260 represents Kiloview’s latest addition to its lineup, a cutting-edge H.265 1X3G-SDI+2XHD HDMI decoder. It enhances upon the functionality of our initial decoder, the DC230, boasting enhanced decoding capabilities, additional ports, broader protocol support, and a fresh LCD screen. This all-in-one unit encapsulates all your decoding requirements at an affordable price point.
Supporting H.265 format decoding and accommodating up to four 1080p60 video streams simultaneously, it offers unparalleled flexibility. With customizable video outputs, users can opt for single display or picture-in-picture arrangements with adjustable settings. The D260 embraces cutting-edge IP-based transmission technologies, including NDI HX3, NDI HX2, SRT, and more, ensuring seamless integration into any workflow. Building upon its predecessor, the DC230, the D260 features expanded interfaces, including two HDMI 2.0 ports, one 3G-SDI port, and two USB ports, enhancing scalability and versatility. Its "preview + output" mode allows for simultaneous previewing and outputting of selected video streams, ideal for monitoring purposes.
Its robust audio decoding capabilities support various formats and real-time adjustments, facilitating an immersive audiovisual experience. Offering customizable multi-output display options and equipped with an LCD screen with touch buttons, the D260 delivers unmatched user convenience and performance for professional video applications.





Capabilities and Functions
Kiloview D260 Decoder Features & Specifications
Kiloview D260 Decoder Product Features
- Upgrading Decoding Performance with H.265/H.264
- Supports the latest NDI technology – NDI HX3, NDI HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP
- Extended Output Interfaces

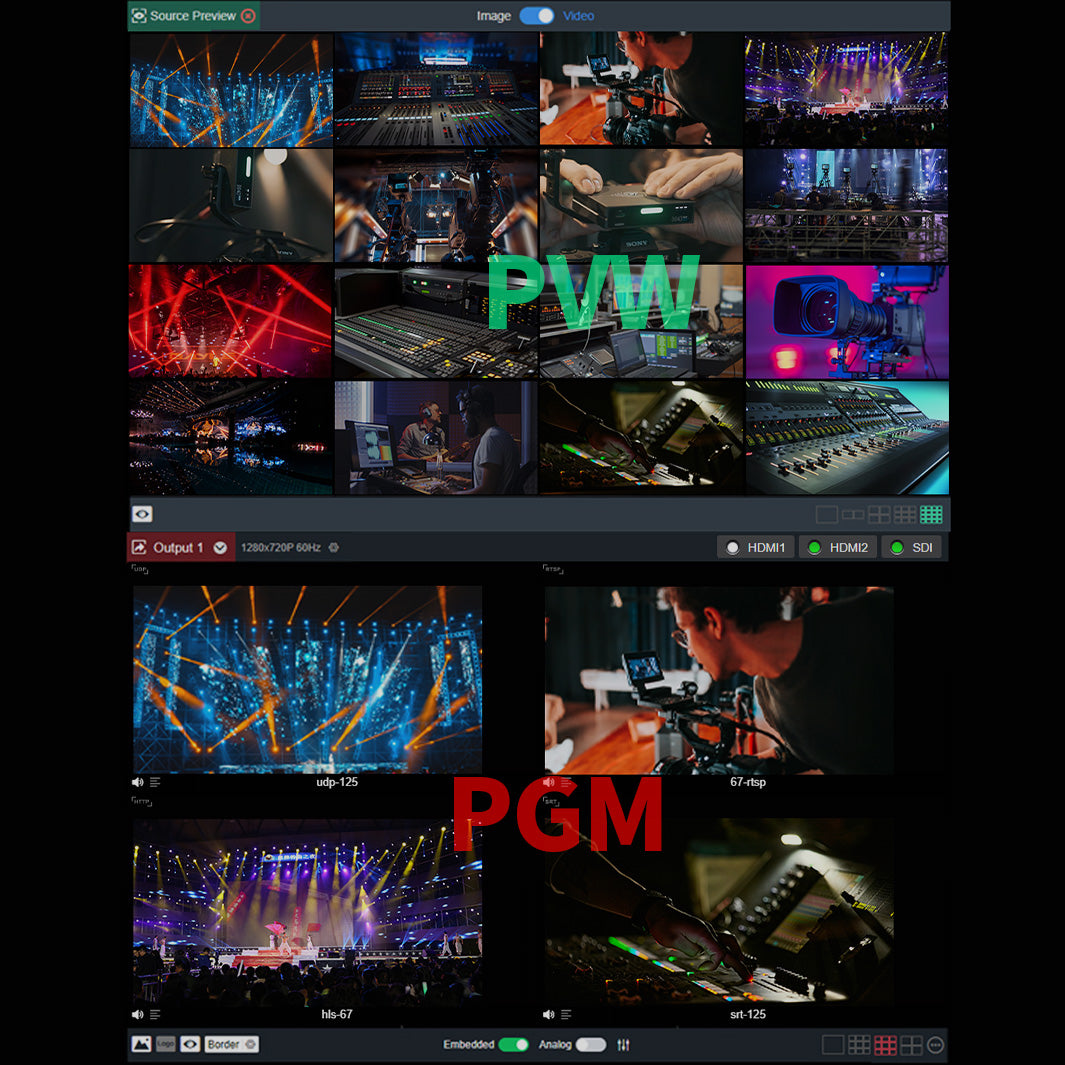

- 16 Preview + 4 Output
- Powerful Audio Decoding
- Custom Layouts
- Display and Touch Button
- RTMP Server
- OSD
- Dual USB Ports

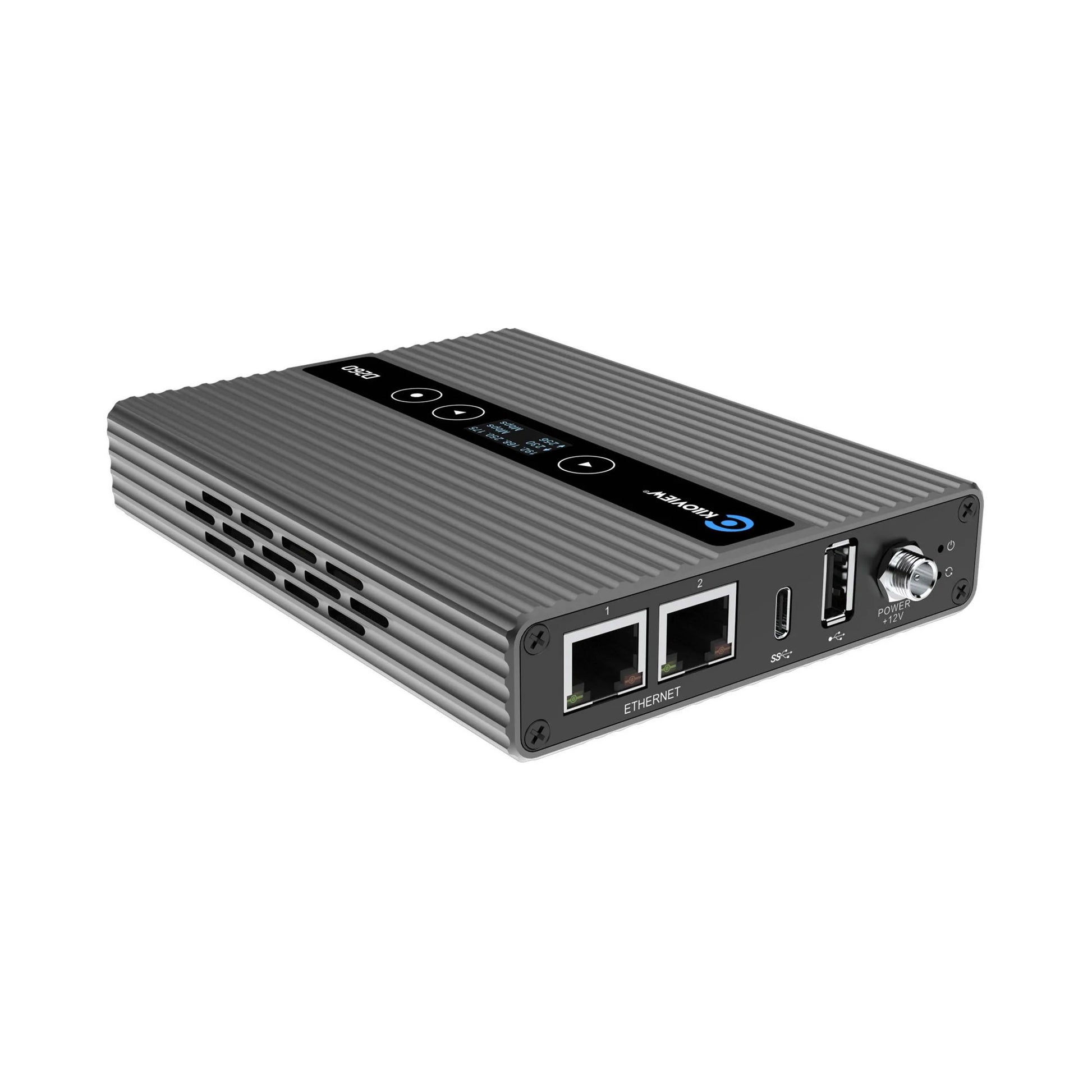

- Dual Ethernet Ports
- Intercom
- Latency<100ms
- Centralized management
Kiloview D260 Decoder Technical Specifications

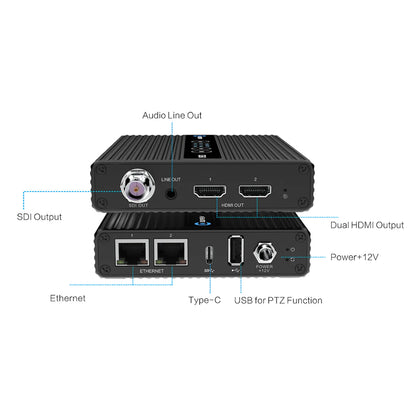

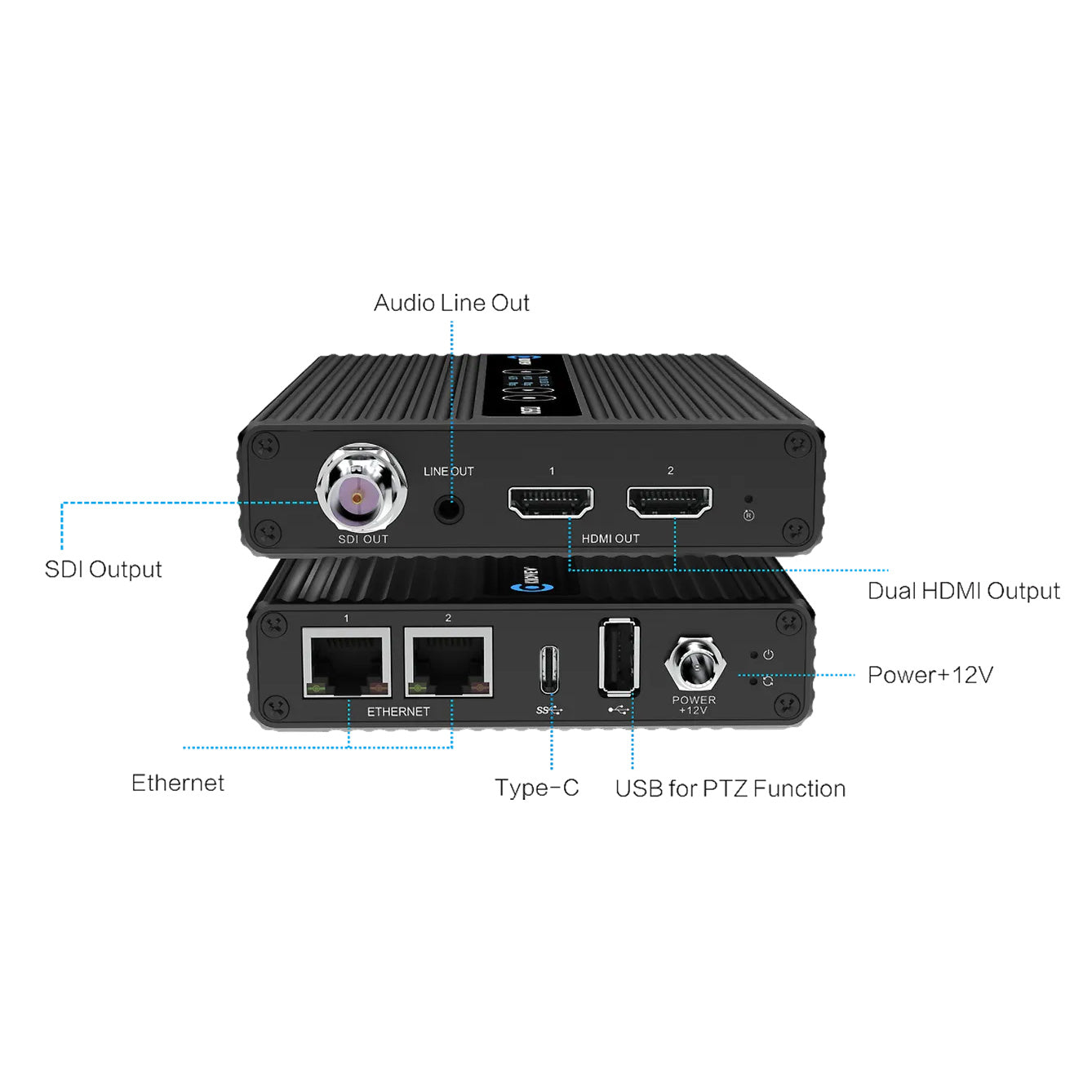

- Video Output: 2 x HDMI, 1 x 3G-SDI
- Audio Output: HDMI, SDI and 1 x 3.5mm Line out
- Video Formats:
- H.264(AVC), Compatible with Baseline/Main/High Profile, up to Level 5.2;
- H.265(HEVC)Compatible with Main Profile, up to Level 5.1
- Video Decoding: 4 channels of H.264(AVC)/H.265(HEVC) video streams in resolution of 1080p60
- Audio Formats: AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM
- Streaming Protocols: NDI|HX2/NDI|HX3/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP/ RTSP

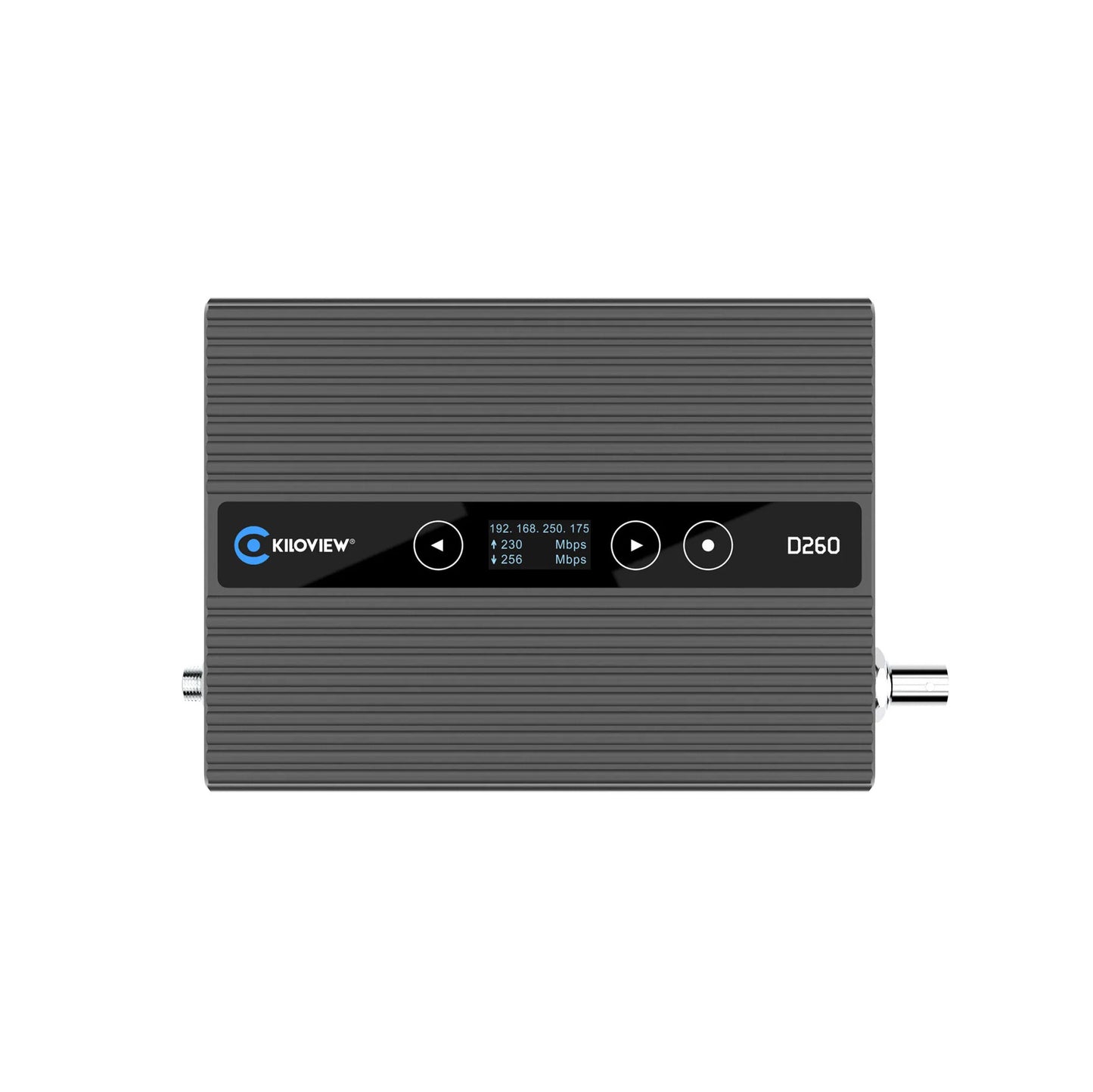

- Display: 0.96”OLED Display and Touch Button
- Layouts: Custom 1/2/3/4 layouts
- Intercom: Yes
- OSD: Yes
- Tally: Yes
- Network Connections: Ethernet Ports: 2*10/100M/1000M
- USB Ports: 1 x USB 2.0 Type-C, 1 x USB 2.0 Type-A
- Power Supply: DC 12V/1A
- Management: WebUI/KiloLink Server
- Power Consumption: 7W(MAX)
- Dimensions: 162.85mm x 104.00mm x 25.00mm
- Weight: 328.18g
- Operating Temperature: -20℃~60℃
