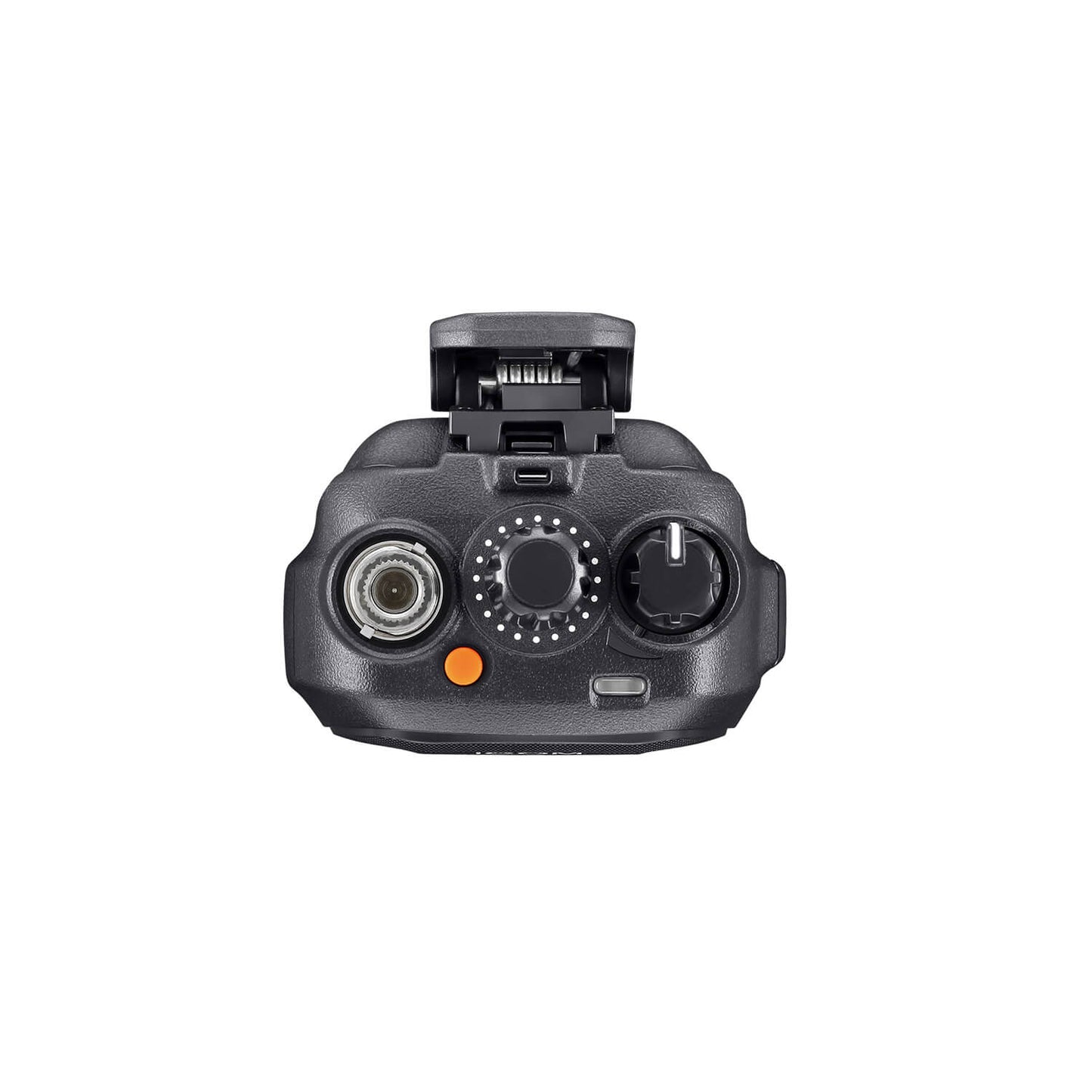

ICOM IP740D Hybrid IP Transceiver LTE + UHF
ICOM IP740D Hybrid IP Transceiver LTE + UHF
SKU:ICO-IP740D
Couldn't load pickup availability
This product is currently out of stock
👉 If you are ordering an item that is not in stock, please allow 3-4 weeks lead time.
The IP740D is a dual-mode “hybrid” radio that provides nationwide coverage over LTE networks and conventional UHF professional radio mode (IDAS™ digital/analog mode). The IP730D series can receive communications from both an LTE radio group and an IDAS™ (or analog) group simultaneously (audio mixed). You can press either the main PTT for LTE, the sub-PTT button for IDAS™, or the analogue channel to answer per pre-programming. If necessary, you can press the main and sub-PTT buttons simultaneously to address two groups at once.
The Bridge function relays received IDASTM digital audio to the LTE radio group and forwards LTE radio conversations to the IDASTM group. This function is useful when communicating outside of the LTE service coverage area with an IDASTM radio, or a temporary cross-band connection between two IDASTM radio groups using different frequencies or channels.
Please note this radio comes with the radio, battery, and belt clip only. The charger, power supply, and antenna must be ordered separately.
Capabilities and Functions
ICOM IP740D LTE Radio Features & Specifications
ICOM IP740D LTE Radio Product Features
- Sub PTT button for dual-mode operation
- Full-duplex communication in LTE mode
- 1500 mW powerful audio
- Built-in Bluetooth technology
- GPS data transmission capability
- IP67 waterproof and dust-tight specification
- Emergency call features
- Digital voice recording/playback
ICOM IP740D LTE Radio Technical Specifications
- 350-470 or 400-520MHz
- 128 Channels/8 Zones
- Rotary encoder with channel announcement function
- DTMF code transmission with optional DTMF microphone, HM-245T
- Vibration alert function
- Surveillance function
- AquaQuakeTM function prevents audio degradation from a water-logged speaker
- NXDN conventional
- NXDN multi-site conventional over IP network
- IDAS digital simulcast
- Over-the-Air Programming (OTAP) function updates the radio configuration over the LTE
- Over-the-Air Alias (OAA) displays the caller’s name without programming
- Up to 500 ID numbers for IDASTM mode can be saved in the Call List to show the alias name
- Individual, Group and All calls
- Digital voice scrambler (15-bit encryption)
- Talk back
- CTCSS and DTCS
- 12.5 kHz channel spacing
