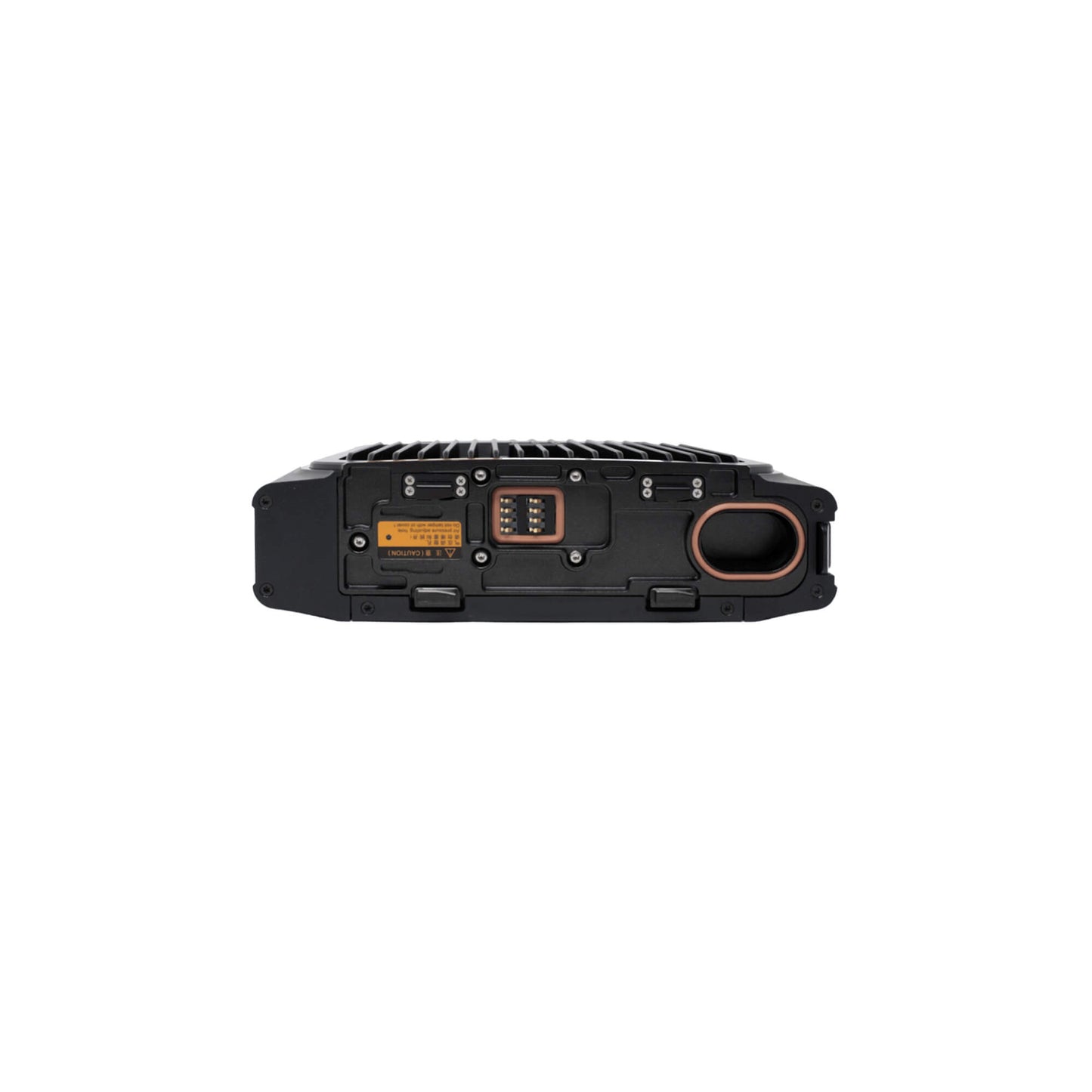

Hytera HR652 Compact DMR Repeater
Hytera HR652 Compact DMR Repeater
SKU:HYT-HR652L-VHF
Couldn't load pickup availability
The Hytera HR652 is a cutting-edge compact DMR repeater, engineered to enhance radio range and ensure consistent, reliable, and seamless voice and data communications. It fully complies with the DMR standard and utilizes TDMA digital technology, offering two simultaneous voice channels to effectively double the voice channel capacity.
Compact and lightweight, the HR652 offers flexible mounting options, whether wall-mounted or carried with tailored accessories. This versatility ensures that communication is available wherever you need it. The HR652 is the ideal choice for hotels, office buildings, supermarkets, industrial parks, and various other large-scale industries.




Capabilities and Functions
Hytera HR652 Repeater Features & Specifications
Hytera HR652 Repeater Product Features
'- Ultra compact for flexible installations and portability.
- Analog and digital auto switch.
- Reliable operation.
- Higher security.
- Optional battery for mobile applications and backup power.
- Interconnect multiple repeaters with IP-Connect.
Hytera HR652 Repeater Technical Specifications
'- Frequency Range: VHF 136-174MHz or UHF 400-470MHz
- Channel Capacity: 1,024 Channels
- Channel Spacing: 12.5kHz / 20kHz / 25kHz
- Operational Voltage: DC Power Input: 14.4V 15% ± Battery Voltage: 12-16.8VDC
- Current Consumption: DC: Standby ≤0.35A, Transmitting 10W ≤3A, 25W ≤6A AC: Standby ≤0.35A, Transmitting ≤1.2A
- Battery: 14.4V/125Ah/1,800W
- Battery Life (50-50 Duty Cycle): High Power setting 25W: 4 hours Low Power setting 10W: 9 hours
- Weight: 2.0kg without battery
- Dimensions (HxWxD): 201 x 211 x 80mm
- Frequency Stability: ± 0.5ppm
- Antenna Impedance: 50Ω
- Duty Cycle: 100%
- Networking: Conventional Single Site Repeater Mode, IP-Connect
Receiver
- Digital Sensitivity: 0.2μV (BER5 5%) 0.18μV (Typical)/BER 5%
- Analog Sensitivity: 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
- Adjacent Selectivity: TIA-603: 65dB@12.5kHz, 75dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz
- Spurious Response Rejection: TIA-603: 80dB@12.5/20/25kHz ETSI: 80dB@12.5/20/25kHz
- Intermodulation: TIA-603: 75dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHzd
- Blocking: 90dB
- Hum and Noise: 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
- Rated Audio Distortion: ≤3%
- Audio Response: +1 to -3dB
- Conducted Spurious Emission: Operating ≤1GHz: 1GHz: ≤-47dBm
Transmitter
- RF Power Output: High Power setting 5-25W (Continuous Adjustable) Low Power setting 1-5W (Continuous Adjustable)
- FM Modulation: 11K0F3E @ 12.5kHz 14K0F3E @ 20kKh 16K0F3E @ 25kHz
- 4FSK Digital Modulation: 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
- Conducted/Radiated Emission: Operating: ≤1GHz: -36dBm, >1GHz: -30dBm Standby: ≤1GHz: -57dBm, >1GHz: -47dBm
- Modulation Limiting: ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
- FM Hum and Noise: 40dB @ 12.5kHz, 43dB @ 20kHz, 45dB @ 20/25kHz
- Adjacent Channel Power: 60dB @ 12.5kHz, 70dB @ 20/25kHz
- Audio Response: +1 to -3dB
- Audio Distortion: ≤3%
- Digital Vocoder Type: AMBE+2TM
- Digital Protocol: ETSI-TS 102 361-1,-2,-3
Environmental
- Operating Temperature: -22°F to +140°F (-30°C to +60°C)
- Storage Temperature: -40°F to +185°F (-40°C to +85°C)
- Dust and Water Intrusion: IP54
- Shock, Vibration, and Humidity: MIL-STD 810H
