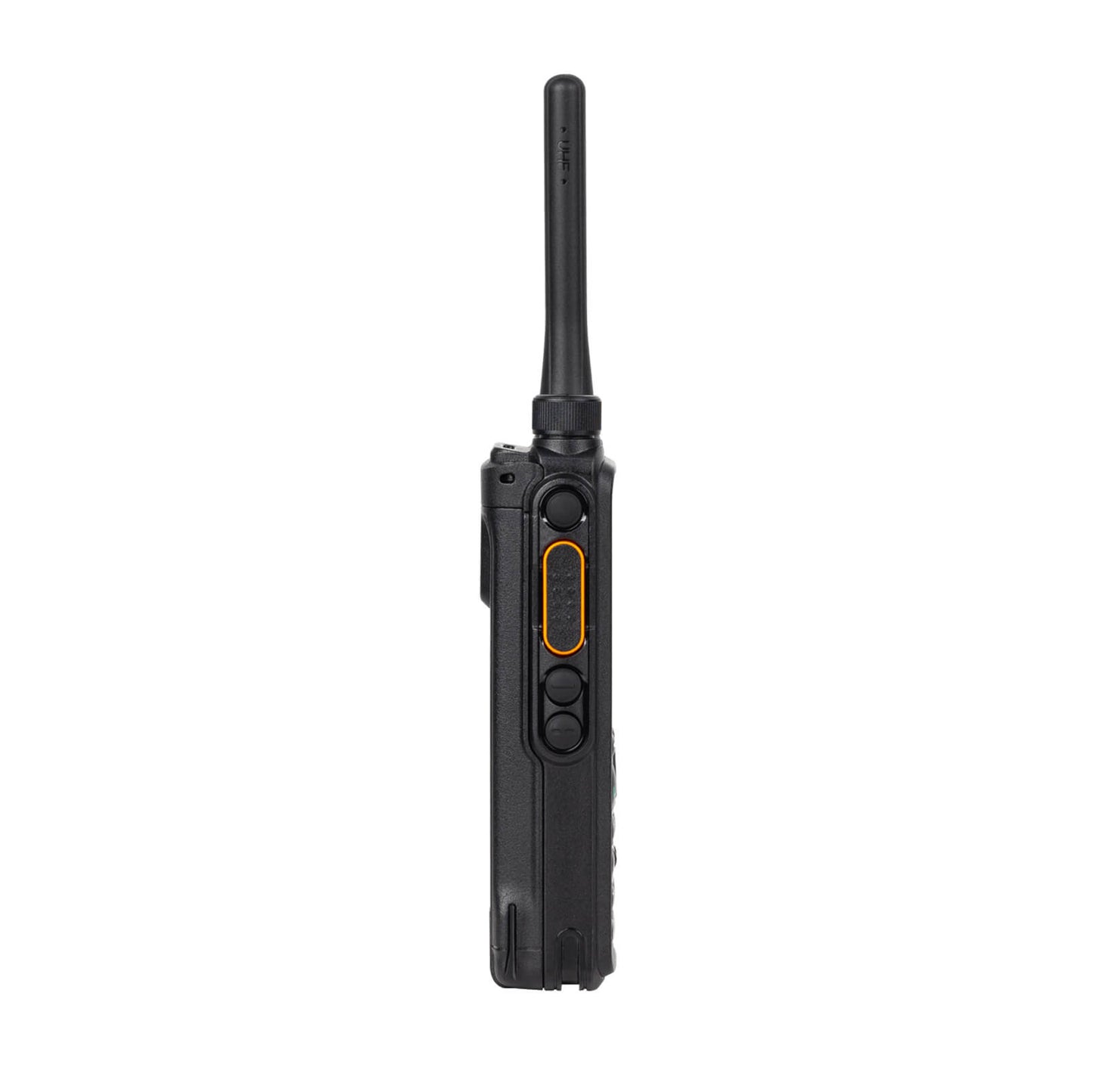

Hytera HP782UL Intrinsically Safe Tier II DMR & Analogue Radio with LCD Display
Hytera HP782UL Intrinsically Safe Tier II DMR & Analogue Radio with LCD Display
SKU:HYT-HP782UL-VHF
Couldn't load pickup availability
Introducing the Hytera HP782 UL913 Professional Intrinsically Safe Digital Radio, designed for high-risk production environments. This state-of-the-art digital radio ensures safe and efficient instant communication, keeping users connected and boosting productivity. With its sleek design and advanced features, the HP782 UL913 offers clear audio, a powerful battery, and exceptional portability and ruggedness. Experience the future of digital radio with reliable, efficient communication tailored for the most demanding conditions.



Capabilities and Functions
Hytera HP782UL Radio Features & Specifications
Hytera HP782UL Radio Product Features
'- UL913 compliant (Intrinsically Safe rating)
- Up to 1024 channels
- 12.5/20/25 selectable channel spacing
- Mixed mode scanning( analogue & digital channel)
- IP68 and MIL-STD-810 G to ensure outstanding performance in harsh environments
- Supporting Global Positioning System(GPS)
- Digital voice call function
- Digital text message function
- Supplymental services (remote monitor, radio enable, radio disable, call alert)
- Man Down
- BT DATA
- Basic/advanced digital encryption and Scrambler feature in analog mode
- Pseudo trunk operation (DMO&RMO)
- Multi-Site Roaming
- Channel Change Voice Notification
- One touch call/text message/supplymental services
- Analogue & Digital Emergency
- Supports XPT digital trunking
- Supports DMR tier III trunking
- Class I, II, III, Division 1, Groups C-G, T4, -30℃ to 60℃;
- Class I, Division 2, Groups A-D, T4, -30℃ to 60℃
Hytera HP782UL Radio Technical Specifications
'- Channel Capacity: 1,024 Channels (512 Analog, 512 Digital)
- Zone Capacity: 64 Zones with 256 Channels per Zone
- Channel Spacing: 12.5kHz / 20kHz / 25kHz
- Operational Voltage: 7.7V (Rated)
- Battery: 2400mAh Li-Ion Polymer
- Battery Life (5/5/90): UHF/VHF - 20 Hours, 24 Hours GPS disabled
- Weight: 10.93oz (310g)
- Dimensions: 132mm x 55mm x 29.5mm without antenna
- Frequency Stability: ± 0.5ppm
- Antenna Impedance: 50Ω
- Display: LCD 2.4”, 320x240, 262,000 colours, 10 rows
Receiver
- Digital Sensitivity: 0.18μV (BER 5%)
- Analog Sensitivity: 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
- Adjacent Selectivity: TIA-603: 60dB@12.5kHz, 70dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz
- Spurious Response Rejection: TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
- Intermodulation: TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
- Hum and Noise: 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
- Rated Audio Power Output: 0.5W
- Rated Audio Distortion: ≤3%
- Audio Response: +1 to -3dB
- Conducted Spurious Emission: <-57dBm
Transmitter
- RF Power Output: VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
- FM Modulation: 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
- 4FSK Digital Modulation: 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
- Conducted/Radiated Emission: -36dBm 1GHz
- Modulation Limiting: ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
- FM Hum and Noise: 40dB @ 12.5kHz, 45dB @ 25kHz
- Adjacent Channel Power: 60dB @ 12.5kHz, 70dB @ 25kHz
- Audio Response: +1 to -3dB
- Audio Distortion: ≤3%
- Digital Vocoder Type: AMBE+2TM
- Operating Temperature: -0°F to +140°F (-20°C to +60°C)
- Storage Temperature: -40°F to +185°F (-40°C to +85°C)
- ESD: IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
- Dust and Water Ingress: IP68 Standard
- Humidity: Per MIL-STD-810 C/D/E/F/G Standard
- Shock and Vibration: Per MIL-STD-810 C/D/E/F/G Standard
