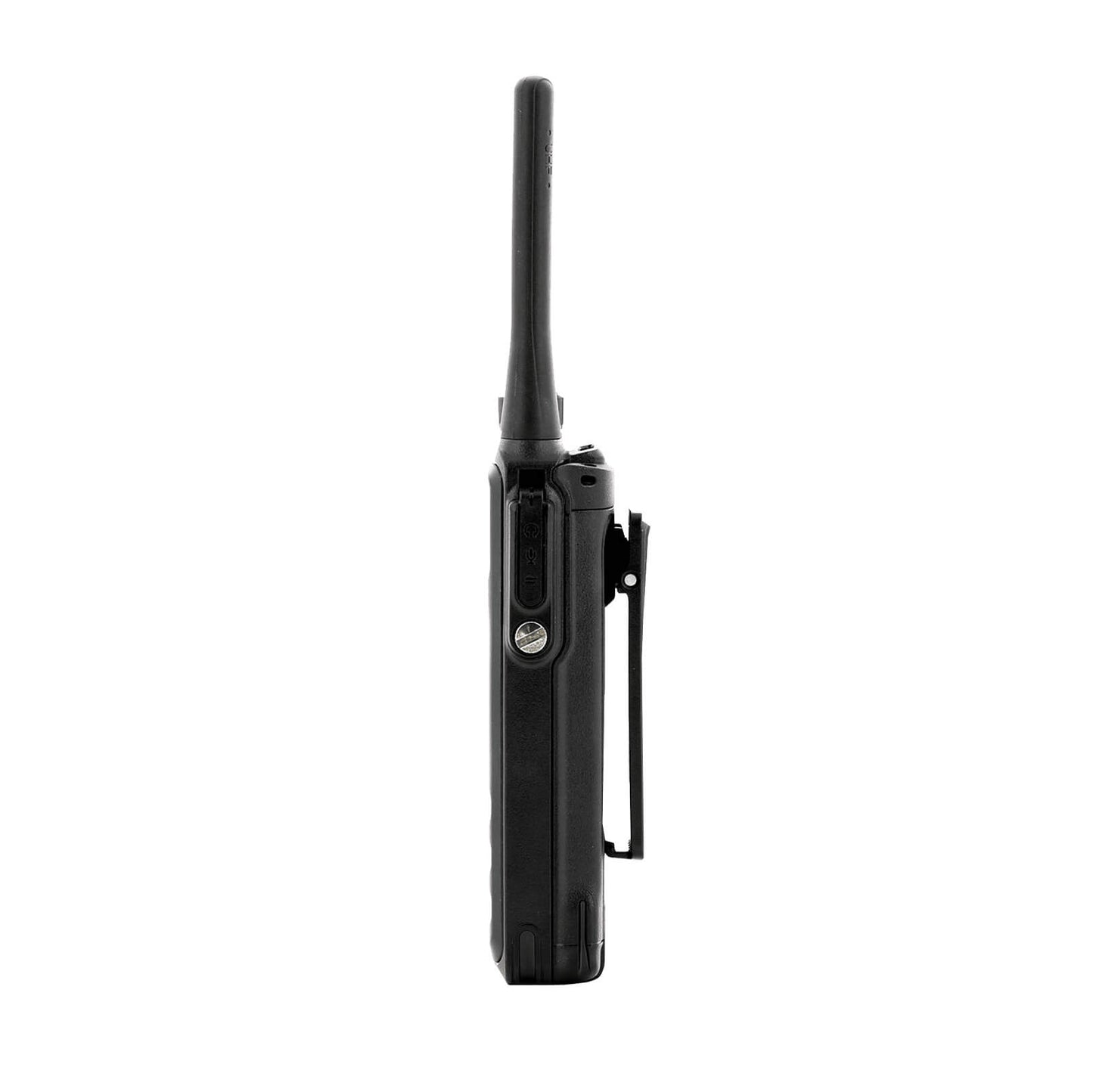

Hytera HP702UL Intrinsically Safe Tier II DMR & Analogue Radio

Hytera HP702UL Intrinsically Safe Tier II DMR & Analogue Radio

SKU:HYT-HP702UL-VHF

Regular price $1,425.00
Regular price Sale price $1,425.00
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

Frequency
GPS & Bluetooth Capability

The Hytera HP702UL is an intrinsically safe DMR portable two-way radio with optional GPS and Bluetooth. This radio sets a new standard with its sleek design and advanced features, offering efficient and reliable communication. Experience loud, clear audio and a powerful battery in a compact, rugged device. Perfectly suited for professionals working in mining, fuel depots, confined spaces, emergency services and airport operations. Any hazardous environments with potentially explosive gases or flammable dust.

View full details

Capabilities and Functions

Hytera HP702UL Radio Features & Specifications

Hytera HP702UL Radio Product Features

'- UL913 compliant (Intrinsically Safe Rating)
- GPS
- Bluetooth
- Up to 1024 channels
- 12.5/20/25 selectable channel spacing
- Mixed mode scanning( analogue & digital channel)
- IP68 and MIL-STD-810 G to ensure outstanding performance in harsh environments
- Supporting Global Positioning System(GPS)
- Digital voice call function
- Digital text message function
- Supplymental services (remote monitor, radio enable, radio disable, call alert)
- Man Down
- BT DATA
- Basic/advanced digital encryption and Scrambler feature in analog mode
- Pseudo trunk operation (DMO&RMO)
- Multi-Site Roaming
- Channel Change Voice Notification
- One touch call/text message/supplymental services
- Analogue & Digital Emergency
- Supports XPT digital trunking
- Supports DMR tier III trunking
- Class I, II, III, Division 1, Groups C-G, T4, -30℃ to 60℃;
- Class I, Division 2, Groups A-D, T4, -30℃ to 60℃

Hytera HP702UL Radio Technical Specifications

'- Channel Capacity: 1,024 Channels (512 Analog, 512 Digital)
- Zone Capacity: 64 Zones with 256 Channels per Zone
- Channel Spacing: 12.5kHz / 20kHz / 25kHz
- Operational Voltage: 7.7V (Rated)
- Battery: 2400mAh Li-Ion Polymer
- Battery Life (5/5/90): UHF - 24 Hours, 26 Hours GPS disabled VHF - 21 Hours, 25 Hours GPS disabled
- Weight: 290g
- Dimensions: 132mm x 55mm x 29.5mm without antenna
- Frequency Stability: ± 0.5ppm
- Antenna Impedance: 50Ω
- Display: OLED 0.91” Display
- Bluetooth: BT 5.0 BLE+EDR

GPS (5 Satellites visible at nominal 130dBm)

- Time to First Fix Cold Start: <60 Seconds (Typical TTFF)
- Time to First Fix Hot Start: <10 Seconds (Typical TTFF)
- Horizontal Accuracy: <5 meters Receiver

Receiver

- Digital Sensitivity: 0.18μV (BER 5%)
- Analog Sensitivity: 0.16μV (Typical) (12dB SINAD) 0.18μV (12dB SINAD)
- Adjacent Selectivity: TIA-603: 60dB@12.5kHz, 70dB@20/25kHz ETSI: 60dB@12.5kHz, 70dB@20/25kHz
- Spurious Response Rejection: TIA-603: 70dB@12.5/20/25kHz ETSI: 70dB@12.5/20/25kHz
- Intermodulation: TIA-603: 70dB@12.5/20/25kHz ETSI: 65dB@12.5/20/25kHz
- Hum and Noise: 40dB@12.5kHz, 43dB@20kHz, 45dB@25kHz
- Rated Audio Power Output: 0.5W
- Rated Audio Distortion: ≤3%
- Audio Response: +1 to -3dB
- Conducted Spurious Emission: <-57dBm

Transmitter

- RF Power Output: VHF High Power: 5W, VHF Low Power: 1W UHF High Power: 4W, UHF Low Power: 1W
- FM Modulation: 11K0F3E @ 12.5kHz 14K0F3E @ 20kHz 16K0F3E @ 25kHz
- 4FSK Digital Modulation: 12.5kHz Data Only: 7K60FXD 12.5kHz Data and Voice: 7K60FXW
- Conducted/Radiated Emission: -36dBm 1GHz
- Modulation Limiting: ±2.5kHz @ 12.5kHz ±4.0kHz @ 20kHz ±5.0kHz @ 25kHz
- FM Hum and Noise: 40dB @ 12.5kHz, 45dB @ 25kHz
- Adjacent Channel Power: 60dB @ 12.5kHz, 70dB @ 25kHz
- Audio Response: +1 to -3dB
- Audio Distortion: ≤3%
- Digital Vocoder Type: AMBE+2TM

- Operating Temperature: -0°F to +140°F (-20°C to +60°C)
- Storage Temperature: -40°F to +185°F (-40°C to +85°C)
- ESD: IEC 61000-4-2 (Level 4) ±8kV Contact, ±15kV Air
- Dust and Water Ingress: IP68 Standard
- Humidity: Per MIL-STD-810 C/D/E/F/G Standard
- Shock and Vibration: Per MIL-STD-810 C/D/E/F/G Standard
