Hytera Earpiece with In-Line PTT
Hytera Earpiece with In-Line PTT
SKU:HYT-EAS07
Couldn't load pickup availability

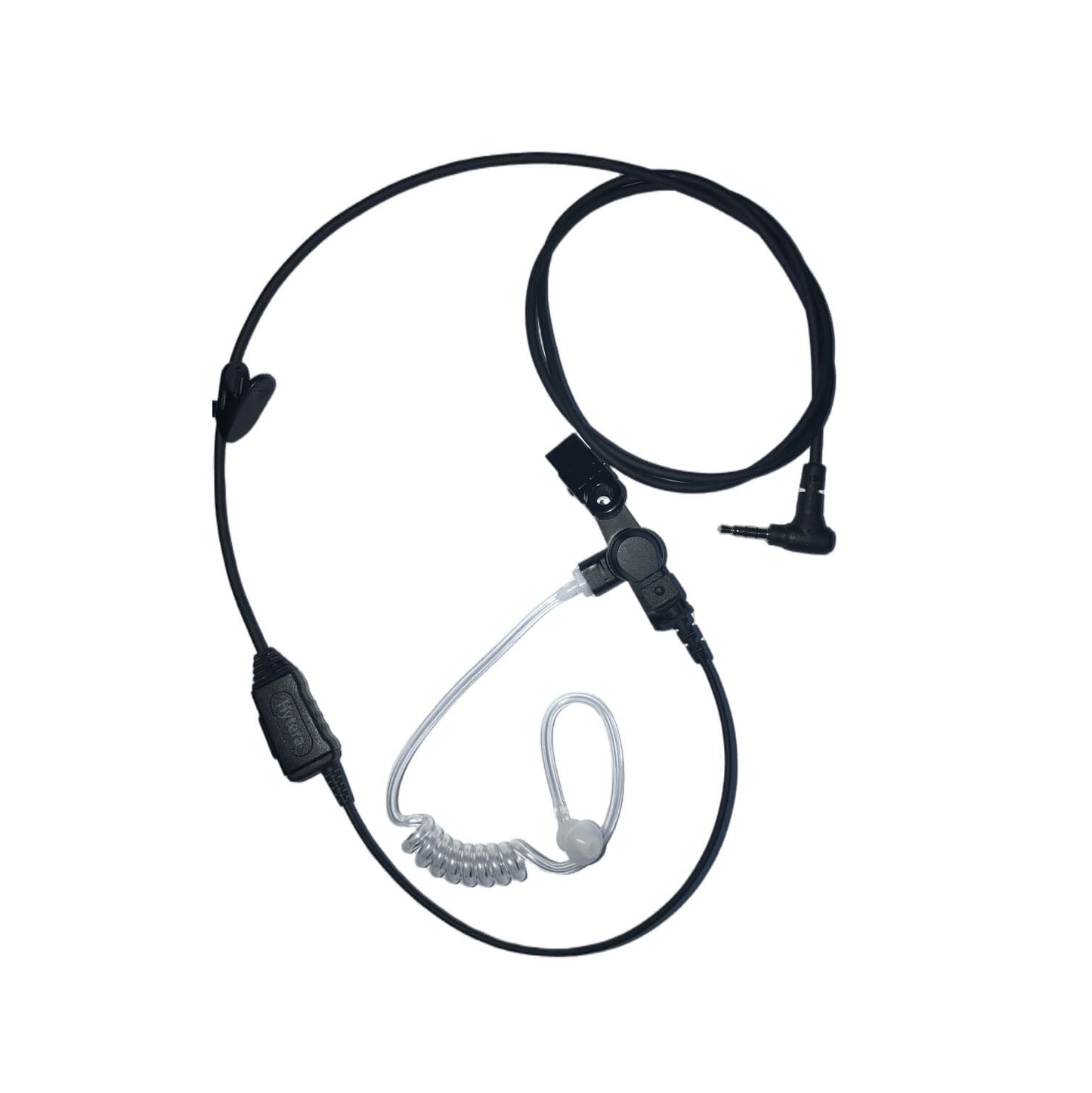

Earpiece Featuring an In-Line Push-to-Talk Button and Clear Acoustic Tube
This earpiece, equipped with a 3.5mm jack plug, is designed for use with PNC360, PNC360S, PNC370SE, PNC380, PNC380S, PNC380D, and PNC550 models. It includes a transparent acoustic tube and an in-line push-to-talk (PTT) function for enhanced communication clarity and ease of use.
Capabilities and Functions
Hytera EAS07 Earpiece Features & Specifications
Hytera EAS07 Earpiece Product Features
Hytera EAS07 Earpiece Technical Specifications
'- Connector
- 3.5 mm jack plug
- Microphone Sensitivity
- -42 ±3dB @1kHz 3.0V 2.2K, 0dB=1V/Pa
- Speaker Power
- 20 mW (rated) / 30 mW (max.)
- Speaker Impedance
- 90 Ω ±15% @1kHz
- Speaker Frequency Response
- 98 ±4dB @1kHz @0.179V
- Ingress Protection
- None
- Operating Temperature
- –20℃ to 60℃
- Storage Temperature
- –40℃ to 85℃
- Applicable Radios
- PNC360, PNC360S, PNC370SE, PNC380, PNC380S, PNC380D, PNC550
Would you like more information on the Hytera EAS07 Earpiece?
For more indepth information, please download the Hytera EAS07 Earpiece product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
