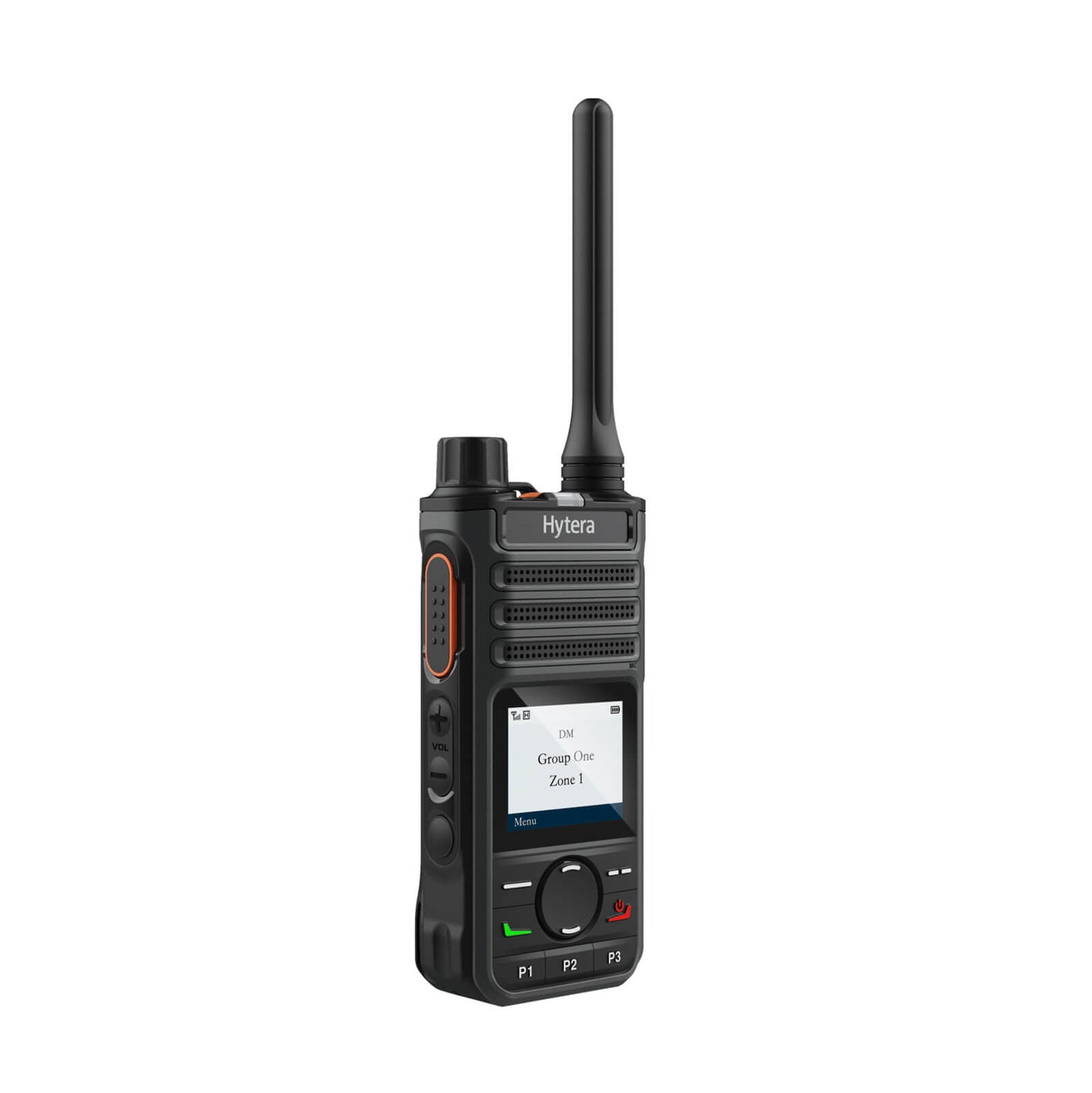

Hytera BP562 DMR Portable Radio 450-520MHz
Hytera BP562 DMR Portable Radio 450-520MHz
SKU:HYT-BP562
Couldn't load pickup availability
The Hytera BP562 DMR Portable Radio is a versatile communication device that supports both digital and analog modes, ensuring seamless compatibility with your existing systems and terminals. Designed for enhanced business service, it offers powerful digital features such as priority interrupt, basic encryption, text messaging, and roaming. With an extended range and 128 channels, the BP562 series facilitates flexible group communication.
Lightweight and compact, the BP562 comes with a 1.77-inch colour display and a robust 3W high-power loudspeaker, making it perfect for use in retail, hospitality, and education environments. It also boasts a high-energy battery and Type-C USB charging, ensuring you stay operationally productive at all times.



Capabilities and Functions
Hytera BP562 Radio Features & Specifications
Hytera BP562 Radio Product Features
'- High energy battery.
- Clear and loud audio.
- Digital and analogue compatible.
- Excellent coverage.
- Pseudo trunking.
- Inter-channel interference reduction.
- Priority interrupt.
- Encryption.
- Vox.
- Thinner and lighter.
Hytera BP562 Radio Technical Specifications
'- Frequency Range: 400-470MHz
- Channel Capacity: 128
- Zone Capacity: 8
- Channels Per Zone: 16
- Channel Spacing: 12.5kHz/20kHz/25kHz
- Operating Voltage: 7.4V (rated)
- Battery: 1500mAh 7.4V 2000mAh 7.4V (Optional)
- Battery Life: (5/5/90 Duty Cycle, High TX Power), 12h (1500mAh), 16h (2000mAh)
- Dimensions: 115mm x 55mm x 29.5mm
- Weight (with antenna & battery): 230g±5g
- Display: 1.44 inch LCD
- BT (optional): BT 5.0 BLE+EDR
Environmental
- Operating Temperature: -30℃ to +60℃
- Storage Temperature: -40℃ to +85℃
- ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
- IP Rating: IEC60529-IP54 (IP67 optional)
- Humidity: MIL-STD-810 G
- Shock and Vibration: MIL-STD-810 G
Receiver
- Sensitivity: 0.18μV (12dB SINAD)
- Hum and Noise: 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output: 1W
- Rated Audio Distortion: ≤3%
- Audio Response: +1~-3dB
Transmitter
- RF Power Output: VHF: 5W / 1W UHF: 4W / 1W
- FM Modulation: 11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
- Modulation Limiting: ±2.5kHz@12.5kHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz
- Conducted/Radiated Emission: -36dBm<1GHz; -30dBm>1GHz
Would you like more information on the Hytera BP562 Radio?
For more indepth information, please download the Hytera BP562 Radio product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
