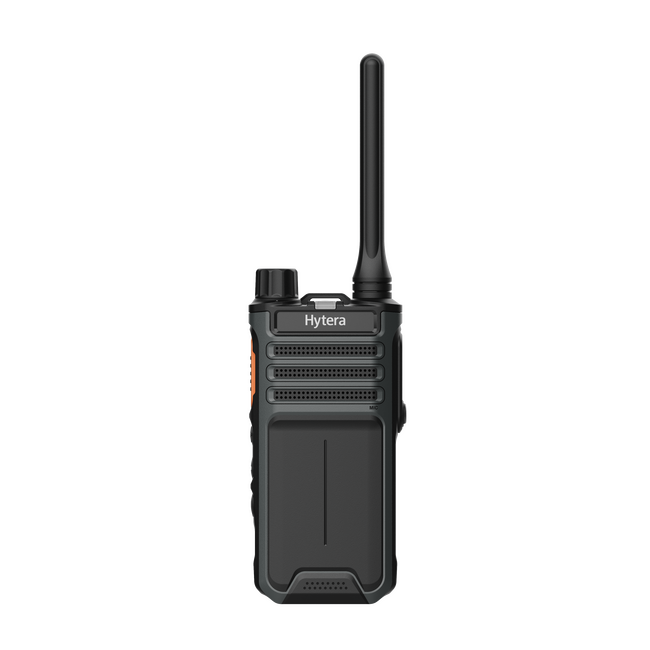

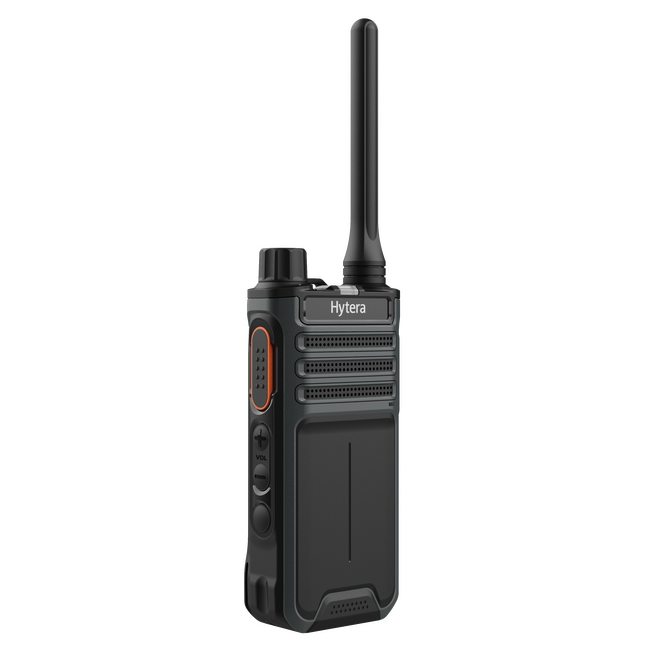

Hytera BP512 DMR Portable Radio
Hytera BP512 DMR Portable Radio
SKU:HYT-BP512-VHF
Couldn't load pickup availability
The Hytera BP512 DMR Portable Two-Way Radio is your reliable communication partner. Designed for business, this compact and robust radio seamlessly supports both digital and analog signals. Enjoy powerful, clear audio thanks to its 3W high-power speaker, which cuts through even the loudest background noise. With an impressive 16-hour battery life and convenient Type-C fast charging, the BP512 ensures you're always ready to communicate, no matter where your workday takes you.


Capabilities and Functions
Hytera BP512 Radio Features & Specifications
Hytera BP512 Radio Product Features
- Clear and loud audio.
- Digital and analogue compatible.
- Excellent coverage.
Hytera BP512 Radio Technical Specifications
- Frequency Range: VHF: 136-174 MHz, UHF: 400-470 MHz
- Channel Capacity: 256
- Zone Capacity: 4
- Channel Spacing: 12.5 kHz/20 kHz/25 kHz
- Operating Voltage: 7.2 V (rated)
- Battery: 1500mAh 7.2V, 2400mAh 7.2V (Optional)
- Battery Life (5/5/90 Duty Cycle, High TX Power): Analog: 12h (1500mAh),18h (2400mAh), Digital: 16h (1500mAh),26h (2400mAh)
- Dimensions: 115 mm x 55 mm x 29.5 mm
- Weight (with antenna & battery): 210g±5%g
- BT (optional): BT 5.0
RECEIVER
- Sensitivity(Analog): 0.18 μV (12 dB SINAD)
- Sensitivity(Digital): 0.18 μV/BER5%
- Adjacent Channel Selectivity: TIA-603: 60 dB@12.5 kHz / 70 dB@20/25 kHz, ETSI: 60 dB@12.5 kHz / 70 dB@20/25 kHz
- Intermodulation: TIA-603: 70 dB@12.5/20/25 kHz, ETSI: 65 dB@12.5/20/25 kHz
- Spurious Response Rejection: TIA-603: 70 dB@12.5/20/25 kHz, ETSI: 70 dB@12.5/20/25 kHz
- Blocking: TIA-603: 80 dB, ETSI: 84 dB
- Hum and Noise: 40 dB@12.5 kHz 43 dB@20 kHz 45 dB@25 kHz
- Rated Audio Power Output: 1W
- Rated Audio Distortion: ≤3%
- Audio Response: +1~-3 dB
- Conducted Spurious Emission: <-57 dBm
TRANSMITTER
- RF Power Output: VHF: 5W/1W, UHF: 4W/1W
- FM Modulation: 11K0F3E@12.5 kHz 14K0F3E@20 kHz 16K0F3E@25 kHz
- Conducted/Radiated Emission: -36 dBm<1 GHz -30 dBm>1 GHz
- Modulation Limiting: ±2.5 kHz@12.5 kHz ±4.0 kHz@20 kHz ±5.0 kHz@25 kHz
- FM Hum & Noise: 40 dB@12.5 kHz 43 dB@20 kHz 45 dB@25 kHz
- Adjacent Channel Power: 60 dB@12.5 kHz 70 dB@20/25 kHz
- Environmental Operating Temperature: -30°C to +60°C (Radio only - Battery -20°C)
- Storage Temperature: -40°C to +85°C
- ESD: IEC 61000-4-2 (Level 4) ±8 kV (contact) ±15 kV (air)
- Dust and Water Intrusion: IEC60529-IP54/IP67(optional)
- Humidity: Per MIL-STD-810 H
