Green-Go Quad 4-wire Interface
Green-Go Quad 4-wire Interface
SKU:GGO-Q4WR
Couldn't load pickup availability
Connect any 4-wire analogue system to the Green-GO network with the Quad 4-wire Interface. Separate audio signals injected into and extracted from the Green-GO networks are possible due to a 4-wire port. This port consists of a pair of 3-pin XLR in and output ports with a Sub-D9 connector and can operate in a full user-based mode or a general-purpose mode. The display provides an overview of transmitted and received audio signals and levels, on a large TFT colour screen.
Capabilities and Functions
Green-Go Q4WR Interface Features & Specifications
Green-Go Q4WR Interface Product Features
'- Easily combinable with any other Green-GO Beltpack or Multi-Channel Station (no separate matrix or interface required)
- Connect any 4-wire device, for example, a third-party 4-wire intercom matrix.
- Get Audio into and out of the Green-GO system, like Program audio or announcements.
- Connect an audio source from anywhere in the world with a Green-GO bridge device.
- Intercom routing data, system setup & preferences are stored in local memory
- Create your configuration with the free Green-GO Control Software
Green-Go Q4WR Interface Technical Specifications
'- Dimensions: 485 x 150 x 45 mm
- Weight: 2.45 kg

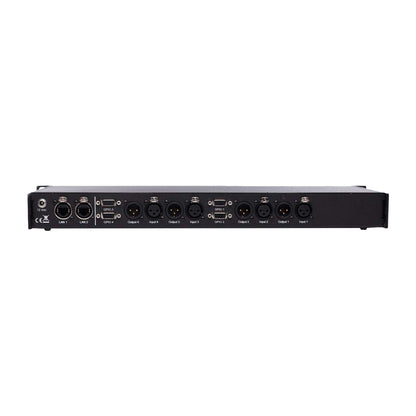

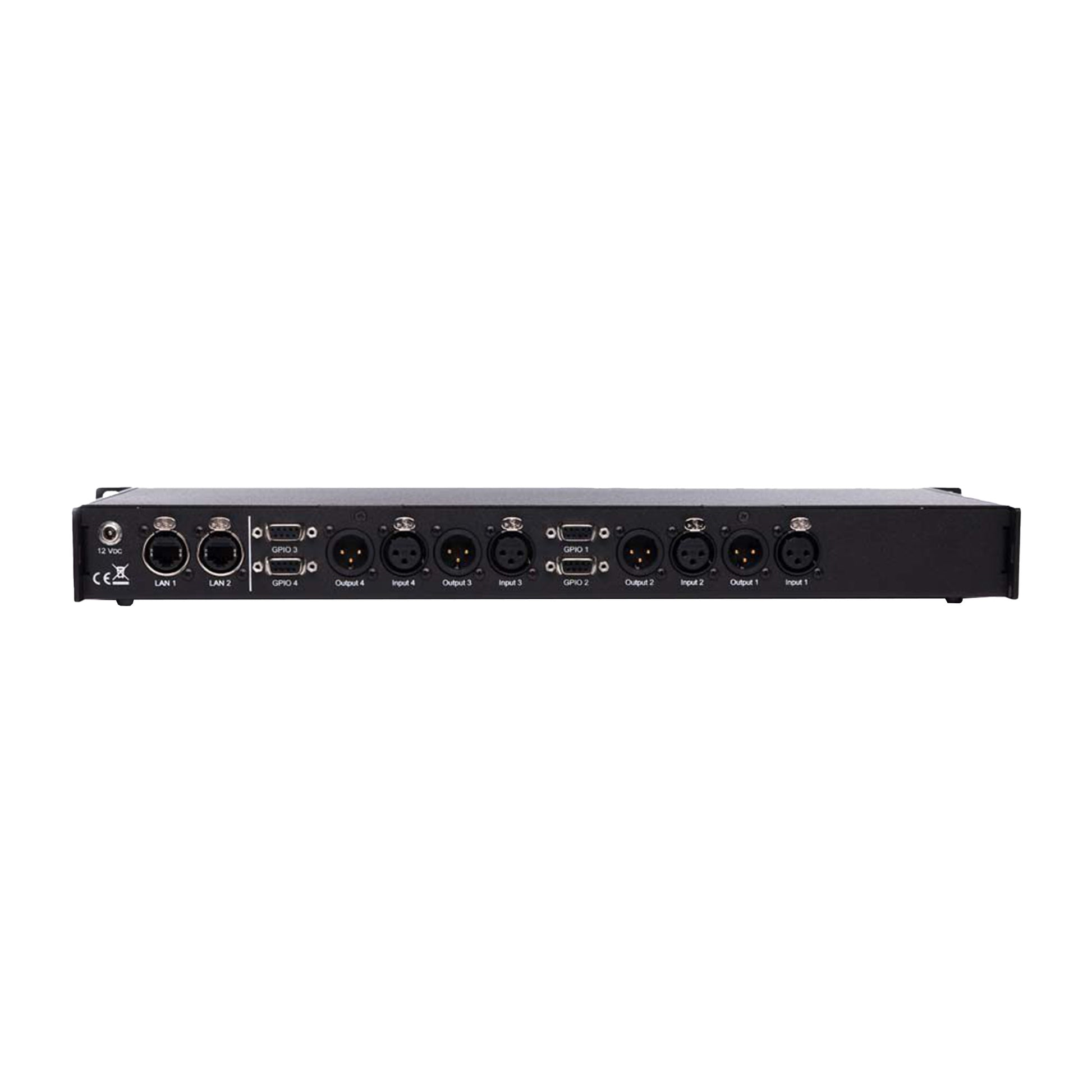

- Connections: 2 x 10/100Mbps Neutrik RJ45 EtherCON, 4 x Neutrik XLR3F, 4 x Neutrik XLR3F, 2 x Neutrik XLR3M, 4 x SUB-D9
- Controls: 1 x 2,2” TFT screen, 1 x Rotary Encoder
- Power Supply: PoE (802.3af) or optional external 12V DC Power Supply
Would you like more information on the Green-Go Q4WR Interface?
For more indepth information, please download the Green-Go Q4WR Interface product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
