Green-Go Audio Interface

Green-Go Audio Interface

SKU:GGO-INTERFACEX

Regular price $3,136.36
Regular price Sale price $3,136.36
Sale Sold out
PRICE EXCLUDES GST. THIS WILL BE ADDED AT CHECKOUT.

The Green-GO InterfaceX enables the integration of 2-wire or 4-wire analog intercom systems into the Green-GO digital Ethernet network. This versatile audio in/out interface, equipped with contact closures, can be seamlessly connected to an existing matrix or other analog interfacing products.

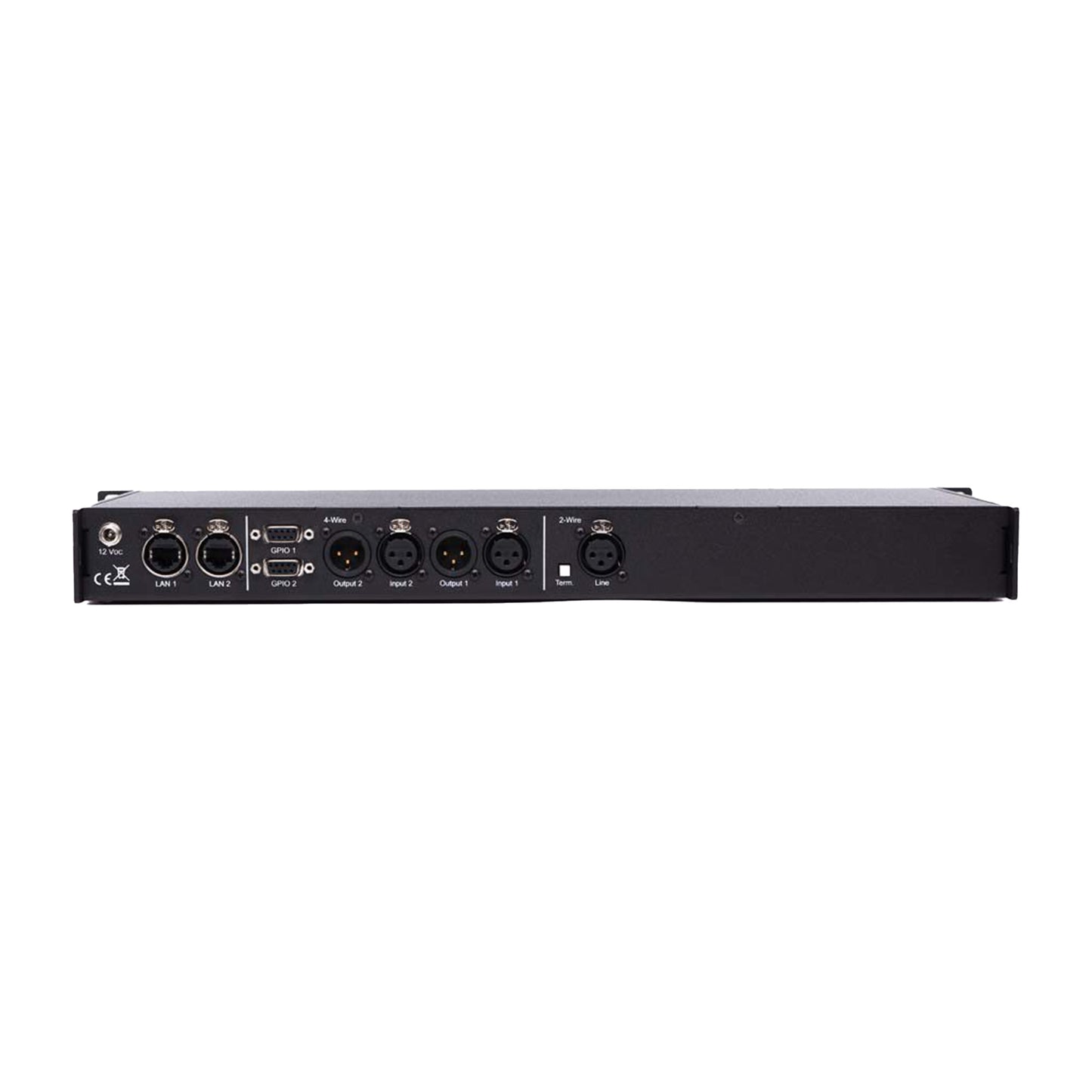

For 4-wire intercoms, the dual in/out 3-pin XLR ports offer the capability to inject two separate audio signals (or a stereo signal) into the Green-GO network, allowing the transmission to any other location on the same Ethernet network. Additionally, a dedicated separate 3-pin XLR port is available next to the 4-wire connections for connecting a basic analog 2-wire intercom (partyline system). All ports can be easily configured individually through the setup menu of the Green-GO InterfaceX. The device also features two GPIO connectors on its back.

View full details

Capabilities and Functions

Green-Go INTERFACEX Interface Features & Specifications

Green-Go INTERFACEX Interface Product Features

'- Backlit menu display and rotary encoder for interface setup
- 2 EtherCon LAN sockets with 100MBit switch
- 2 pairs of 3-pin XLR in/out ports for 4-wire connection
- 3-pin XLR port for 2-wire connection
- 2 9-pin GPIO connectors

Green-Go INTERFACEX Interface Technical Specifications

'- Dimensions: 485 x 150 x 45 mm
- Weight: 1.4 kg
- Connections: 2 x 10/100Mbps Neutrik RJ45 EtherCON, Connections (2-Draht): 1 x Neutrik XLR3F, Connections (4-Draht): 2 x Neutrik XLR3F, 2 x Neutrik XLR3M, 2 x SUB-D9
- Controls: 1 x Matrix-Dot-Display, 1 x Rotary Encoder, 220Ω Terminator
- Power Supply: PoE (802.3af) or optional external 12V DC Power Supply
