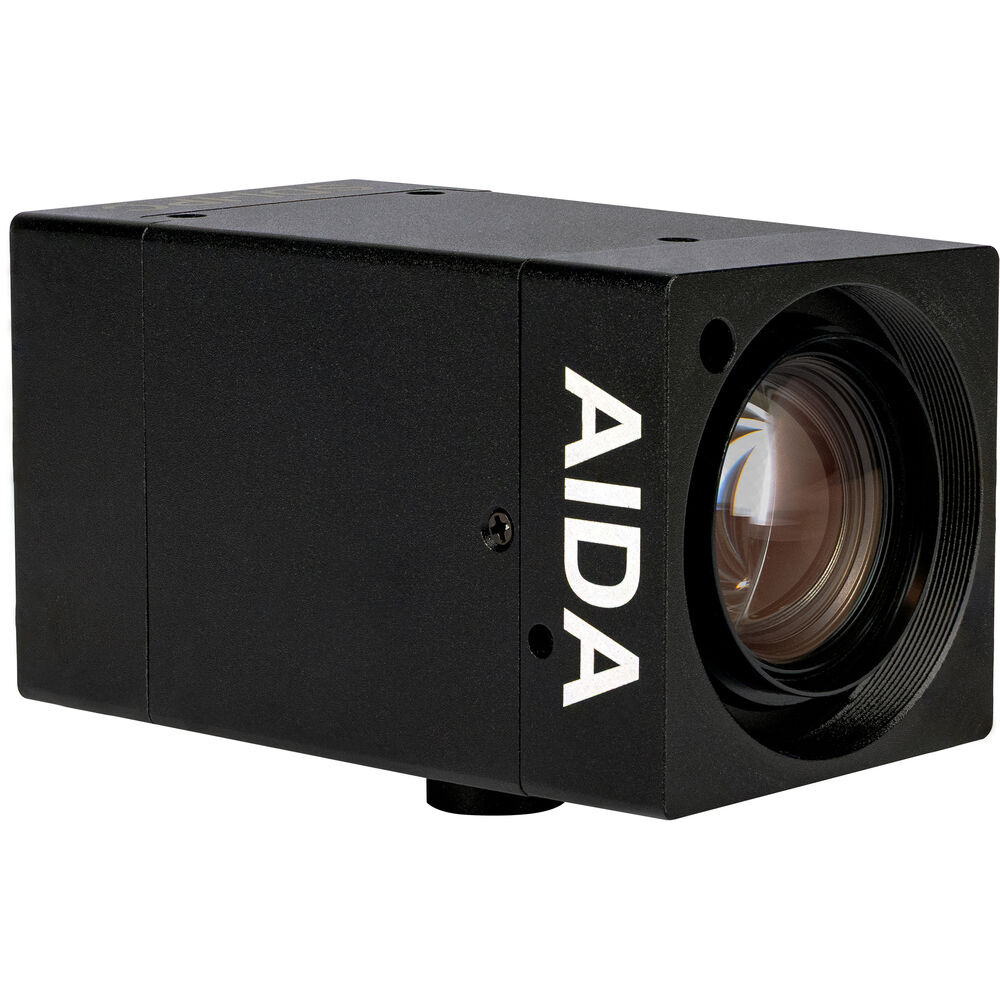

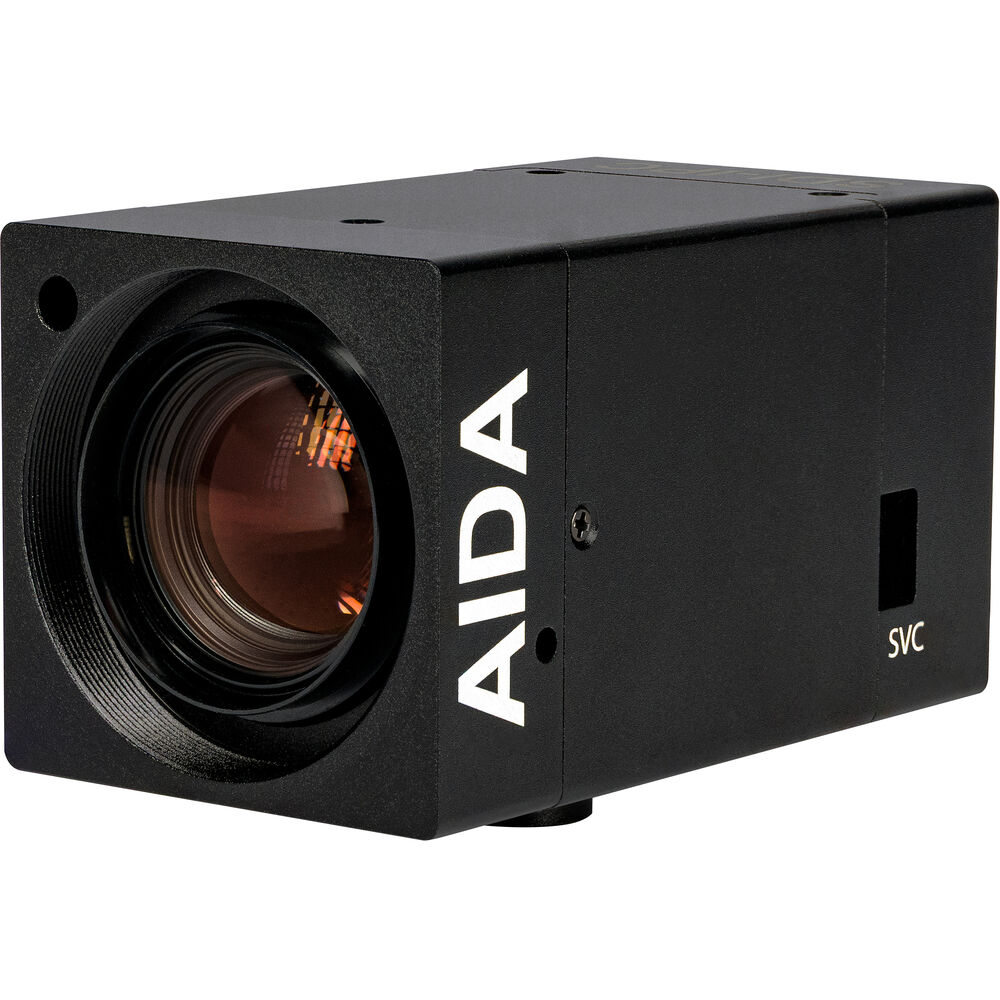

Full HD 3G-SDI with IP Control 10X Macro Zoom with 49mm thread POV Camera
Full HD 3G-SDI with IP Control 10X Macro Zoom with 49mm thread POV Camera
SKU:AID-HD3G-IPC-MX10
Couldn't load pickup availability
This product is currently out of stock
👉 If you are ordering an item that is not in stock, please allow 3-4 weeks lead time.
The HD3G-IPC-MX10 means business. A 1/2.8-inch progressive CMOS sensor paired with a built-in 10× optical zoom delivers sharp, detailed 1080p60 — and it comes out of both 3G-SDI and HDMI simultaneously, so whatever your workflow is running, this camera speaks the language. Production, corporate, fixed AV — it doesn't care. It just fits.
VISCA-over-IP handles remote control natively across standard networks, and the included PoE+ adapter keeps your deployment clean — one connection for power and control, no extra boxes cluttering the run. The 49mm front thread takes optional ND filters or macro lenses when the shot demands something closer or the light needs taming, giving you real flexibility without swapping cameras.
Compact housing, standard 1/4″-20 mount — tripods, brackets, fixed installs, it goes where you put it and stays there. Built for environments where consistent performance isn't a nice-to-have, the HD3G-IPC-MX10 is straightforward to deploy and reliable enough to forget about once it's running.
Capabilities and Functions
HD3G-IPC-MX10 Features & Specifications
HD3G-IPC-MX10 Product Features
1080p 1/2.8" progressive CMOS sensor capable of capturing up to 60 fps over 3G-SDI and HDMI
Supports VISCA over IP for easy remote camera control across a network
Built-in 10x optical zoom delivers detailed close-ups without image loss
Compact design with PoE+ support via the included adapter cable for simplified power and data setup

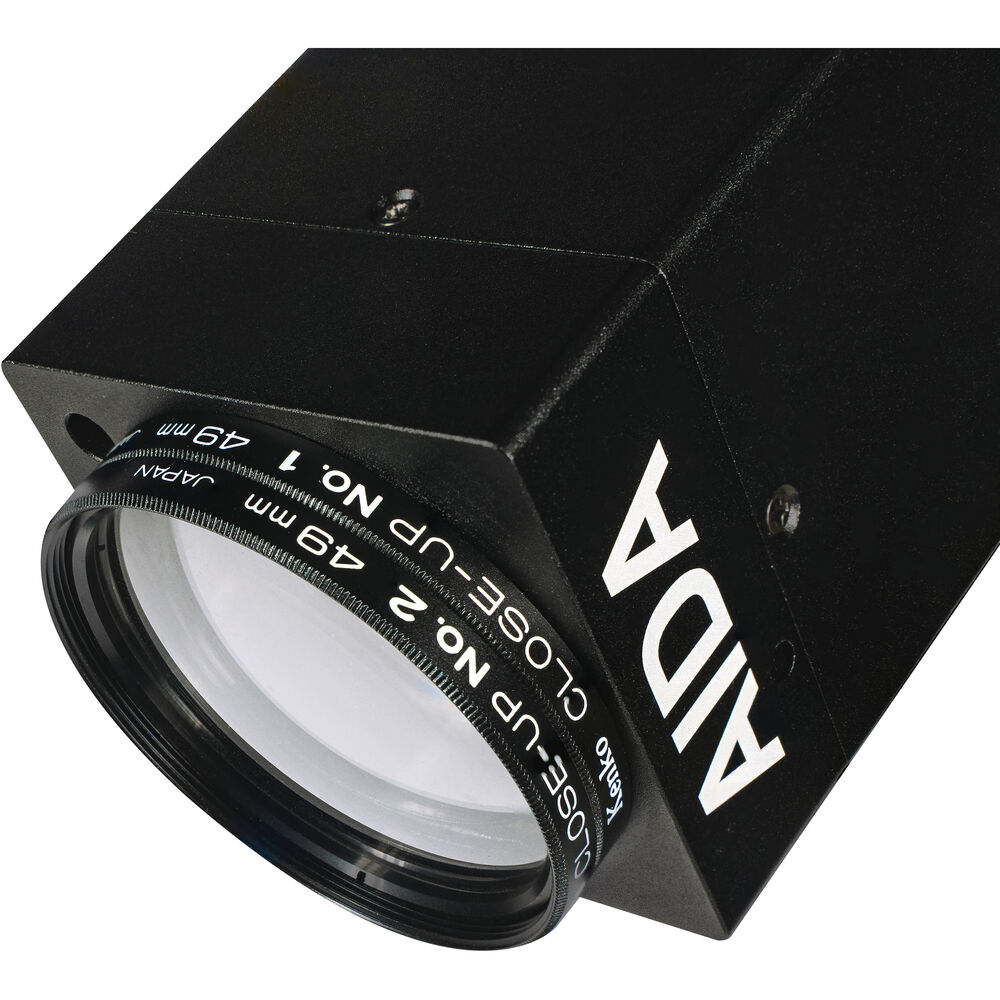

Front-mounted 49mm filter thread supports optional ND filters and macro lenses for creative flexibility
Smooth, low-noise imaging optimized for low-light environments with wide dynamic range

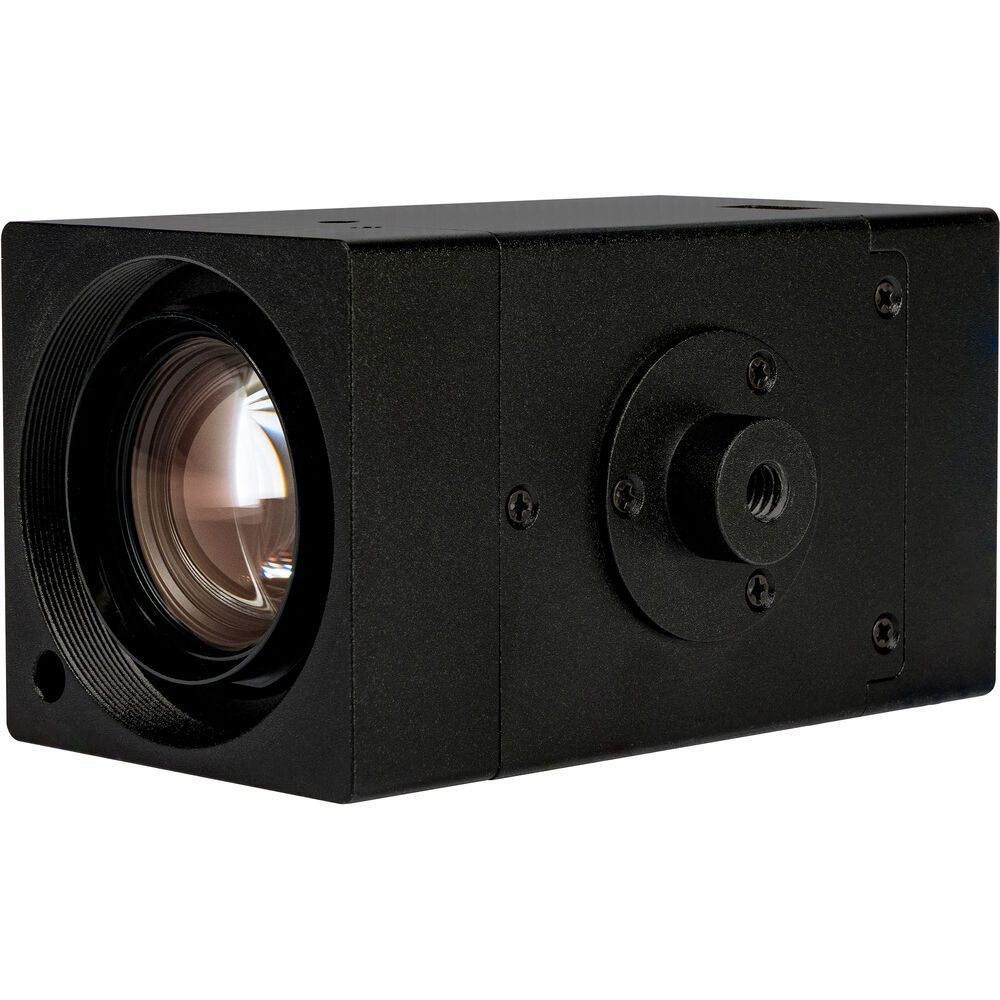

Rugged and versatile form factor with 1/4"-20 mounting thread for easy integration into any setup
HD3G-IPC-MX10 Technical Specifications
General
Image Sensor: 1/2.8" Progressive CMOS
Effective Pixels: 1920 × 1080
Resolution
1920 × 1080p @ 60, 59.94, 50, 30, 25, 24 fps
1920 × 1080i @ 60, 59.94, 50 fps
1280 × 720p @ 60, 59.94, 50 fps
Color & Imaging
Color Spaces: 4:2:2 YCC, 10-bit
Minimum Illumination:
0.2 lux (Day)
0.1 lux (Night)
White Balance: 9000 to 11,000K (Auto / Manual)
Lens
Zoom: 10× Optical
Focal Length: 4.5 to 47 mm
Field of View: 6° to 61°

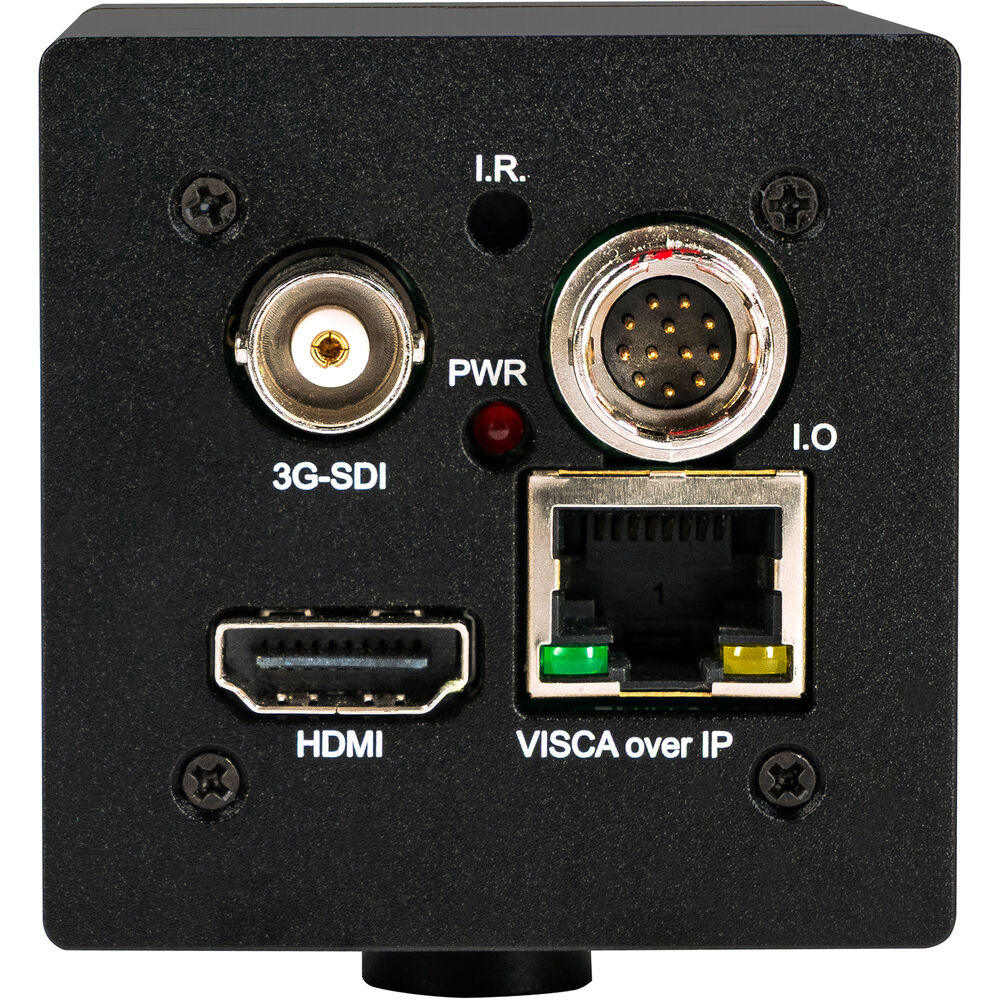

Inputs / Outputs
Video I/O:
1 × BNC (3G-SDI) Output
1 × HDMI Output
Audio I/O:
1 × 3.5 mm (1/8") Line Input
Control Interfaces:
Serial VISCA
VISCA over IP
RS-485
RJ45
Wireless
Wireless Support: Yes
Power
Power Source: AC Adapter (with power brick)
DC Input: 12 VDC
Physical Specifications
Mounting: 1 × 1/4"-20 Thread
Color: Black
Operating Temperature:
32 to 104°F (0 to 40°C)
Cable Length: 1.5 ft (45.7 cm)
Dimensions: 3.7 × 2.1 × 2.1 in (95 × 54 × 54 mm)
Weight: 16 oz (453 g)
Would you like more information on the HD3G-IPC-MX10?
For more indepth information, please download the HD3G-IPC-MX10 product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
