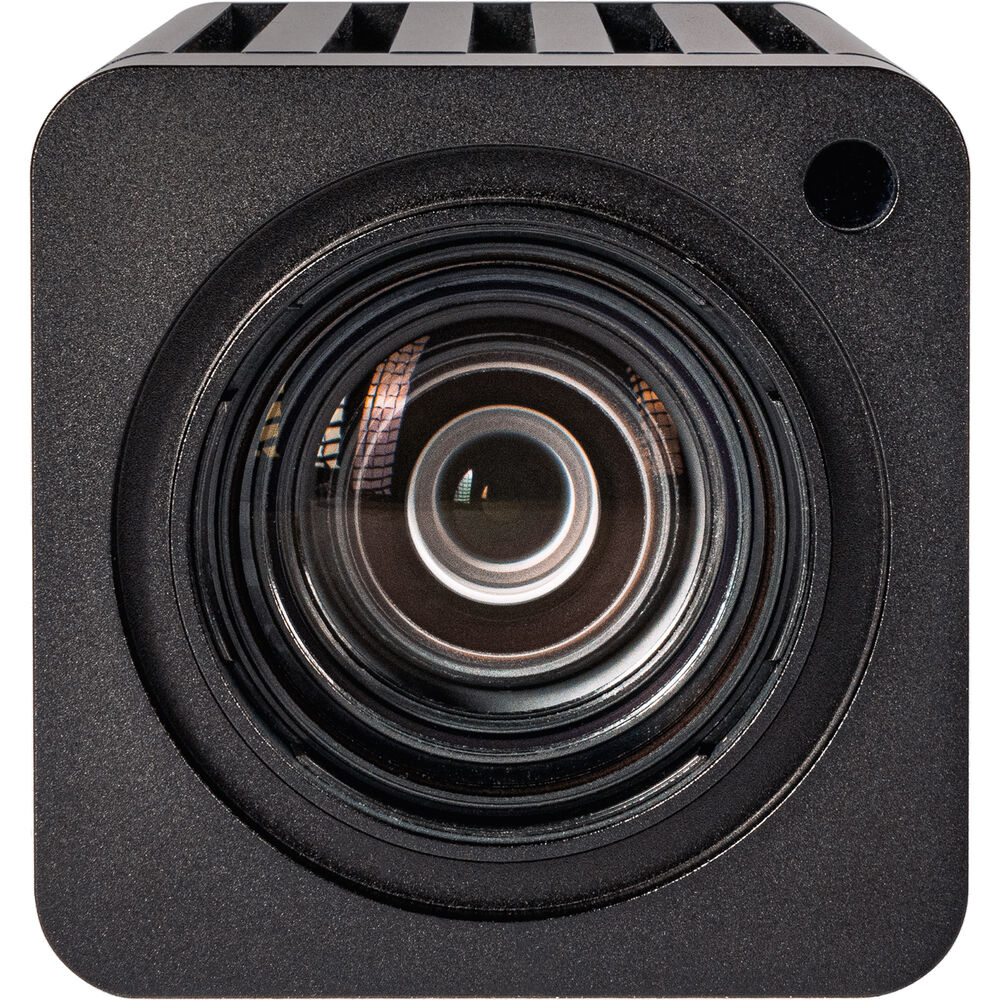

FULL 4K/30 HDMI 1.4 & 6G-SDI 20x Zoom POV Camera
FULL 4K/30 HDMI 1.4 & 6G-SDI 20x Zoom POV Camera
SKU:AID-UHD6G-X20L
Couldn't load pickup availability
This product is currently out of stock
👉 If you are ordering an item that is not in stock, please allow 3-4 weeks lead time.

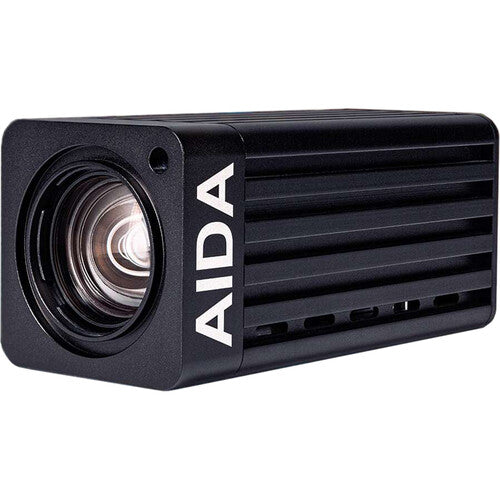

The AIDA UHD6G-X20L is a compact POV camera designed for professional video production and broadcast environments. It features a 1/2.8" CMOS sensor capable of capturing 4K video at up to 30 frames per second, providing clear and detailed image output suitable for a range of applications.
The camera is equipped with a 20x optical zoom lens, allowing it to cover both wide and narrow fields of view without digital cropping. This makes it suitable for installations where framing flexibility is required, such as live events, lecture capture, houses of worship, and studio setups.
For connectivity, the UHD6G-X20L includes both HDMI 1.4 and 6G-SDI outputs, enabling compatibility with different video workflows and equipment. It supports standard control protocols such as VISCA (serial and over IP), which allows for remote operation and integration into existing control systems.
The compact form factor allows for discreet mounting in fixed or semi-permanent installations. The camera is also designed to maintain stable performance in varying lighting conditions, including lower-light indoor environments.
Capabilities and Functions
UHD6G-X20L Features & Specifications
UHD6G-X20L Product Features
1/2.8" CMOS sensor
Up to 4K UHD (3840×2160) at 30fps
20x optical zoom lens
Video outputs: HDMI 1.4 and 6G-SDI
Supports VISCA control (Serial / IP)
Compact POV-style design for flexible installation
UHD6G-X20L Technical Specifications
General
Image Sensor: 1/2.8" Progressive CMOS
Effective Pixels: 3840 × 2160
Video Resolution:
3840 × 2160p @ 30 / 29.97 / 25 fps
1920 × 1080p @ 60 / 59.94 / 50 / 30 / 25 fps
1920 × 1080i @ 60 / 59.94 / 50 fps
1280 × 720p @ 60 / 59.94 / 50 fps
Video Format: 4:2:2 (via SDI), 4:2:0 (via HDMI)
Lens & Optics
Optical Zoom: 20x
Focal Length: Approx. 4.7 mm – 94 mm
Field of View (FOV): Approx. 60° (wide) to 3° (tele)
Aperture: f/1.6 – f/3.5
Minimum Illumination:
Colour: ~0.5 lux
Low-light mode: ~0.1 lux
Image Control
White Balance: Auto / Manual (Approx. 2500K – 8000K)
Gain Control: Auto / Manual
Shutter Speed: Auto / Manual
Backlight Compensation: Supported
Wide Dynamic Range (WDR): Supported
Noise Reduction: 2D / 3D
Video Outputs
SDI Output: 1 × 6G-SDI (up to 4K)
HDMI Output: 1 × HDMI 1.4
Audio
Audio Input: 1 × 3.5mm Line In (embedded over SDI/HDMI)
Control & Interfaces
Control Protocols: VISCA (RS-232 / RS-485 / IP)
Network: RJ45 (for IP control)
Power
Power Supply: DC 12V
Power Consumption: Approx. 8–12W
Physical
Form Factor: Compact POV-style camera
Mounting: Flexible mounting options for fixed installations
Would you like more information on the UHD6G-X20L?
For more indepth information, please download the UHD6G-X20L product brochure.
If you'd prefer to talk it over, or would like to arrange a demonstration, our friendly team is always ready to assist. Reach out anytime!
